10.1 Inch LCD HD Video Microscope With 150X C Mount Lens Electronic Microscope Camera With Metal Stand Professional Repair Tools

Nun für nur 120.92€ mit dem Coupon-Code BG3d4861 (nur für die ersten 30 Bestellungen)

Feature:

1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.

2. Especially suitable for observing the surface microstructure of large objects.

3. Using high-quality materials, strong and durable, has a long service life.

4. HD camera with 16 megapixel CMOS sensor 1/2.8 inch, with HDMI USB port.

5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.







Specifications:

Sensor：16 Megapixel IMX sensor

Pixel Size：2.0 × 2.0μm

Sensor Size ：1/2.8 inch

Video Output Interface ：HDMI / USB (HD Interface)

Resolution：1920×1080@60FPS（HDMI）

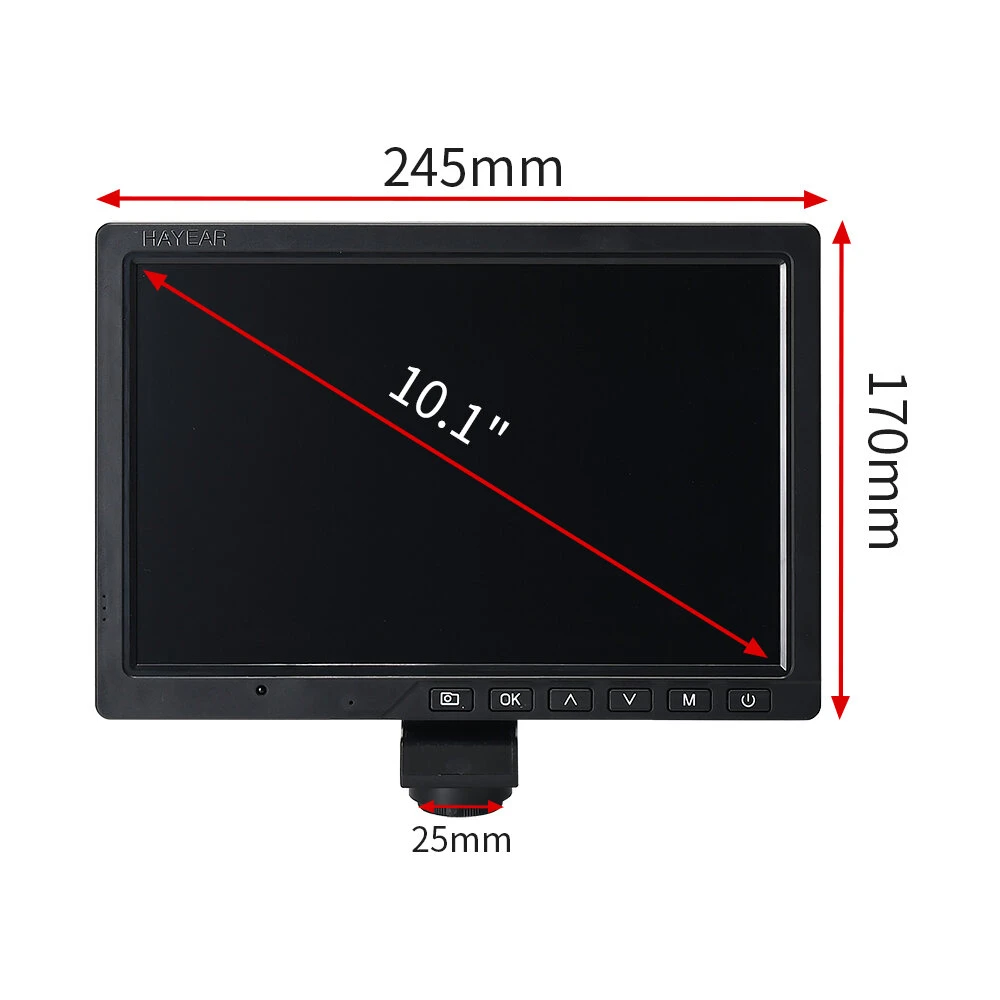

Monitor size ：10.1 inches

USB Output：1920×1080@30FPS(USB)

Video Ratio：Support 16:9, 4:3 Mode

Picture Resolution ：4608 x 3456

Frame Rate ：30@FPS

Color     R/G/B：support manual adjustment

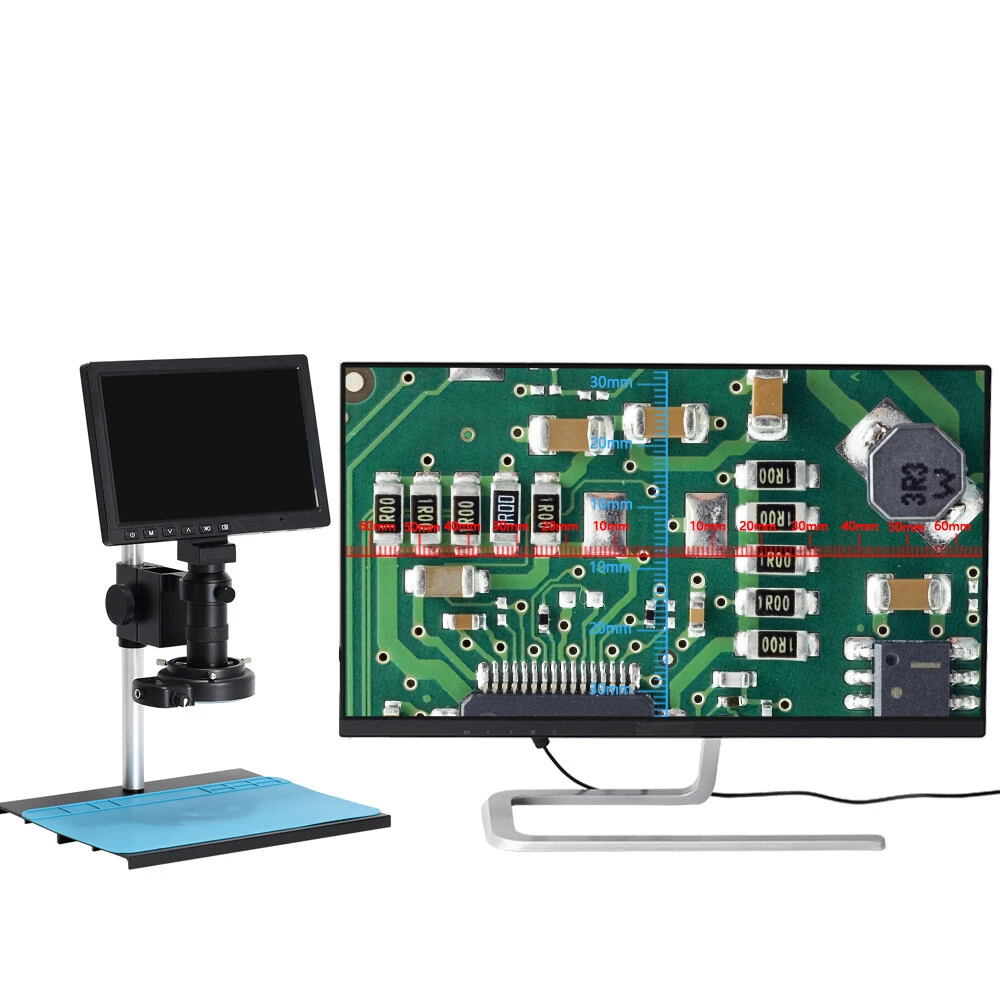

Cross line ：5 horizontal/vertical line, Color & size of line can be adjust, cross line with scale

Zoom：7X digital zoom

Magnifier Function ：Support magnifying in same screen

Sensitivity Level：Middle(can be used with extra light source)

Interface for Lens ：Standard C/CS Interface

Dynamic Range ：40dB

PC Systems ：Support Windows XP/7/8/10, with measurement software(gift)

Picture Format ：JPEG

Language：CN, EN, JP, FR, DE, RU, IT, KR, TUR

Working Voltage ：12V/1A

Spectral Response (Wavelength) ：400nm~700nm (Strong)

White Balance：Manual/Auto

SNR：45dB

Black & White Mode ：Support

Storage ：TF Card, Maximum support 256GB

Working Temperature ：-40°C~70°C







8X-150X Zoom C-mount Lens:

Working distance: 50mm-350mm

Field of view: 3.1mm-66mm

zoom c-mount Lens

zoom ratios:15:1

Magnification Power by 0.11X – 2X(about 8X -150X on the Monitor)

Size: 100mm(L) * 28mm(DIA)





144 LED Adjustable Compact Microscope Ring Light

Provides intense and focused shadow-free illumination

144 bright white LED bulbs

Lighting direction changeable

Variable intensity control

Intense and focused shadow-free illumination

100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0″ (27mm)

Overall outside diameter: 1.77″ (45mm)

Working Distance: 27mm-45mm







Package included:

1 X 10.1-inch HD Microscope camera

1 X 150X C-MOUNT Lens

2 X Power supply

1 X USB cable

1 X Adjustable bracket

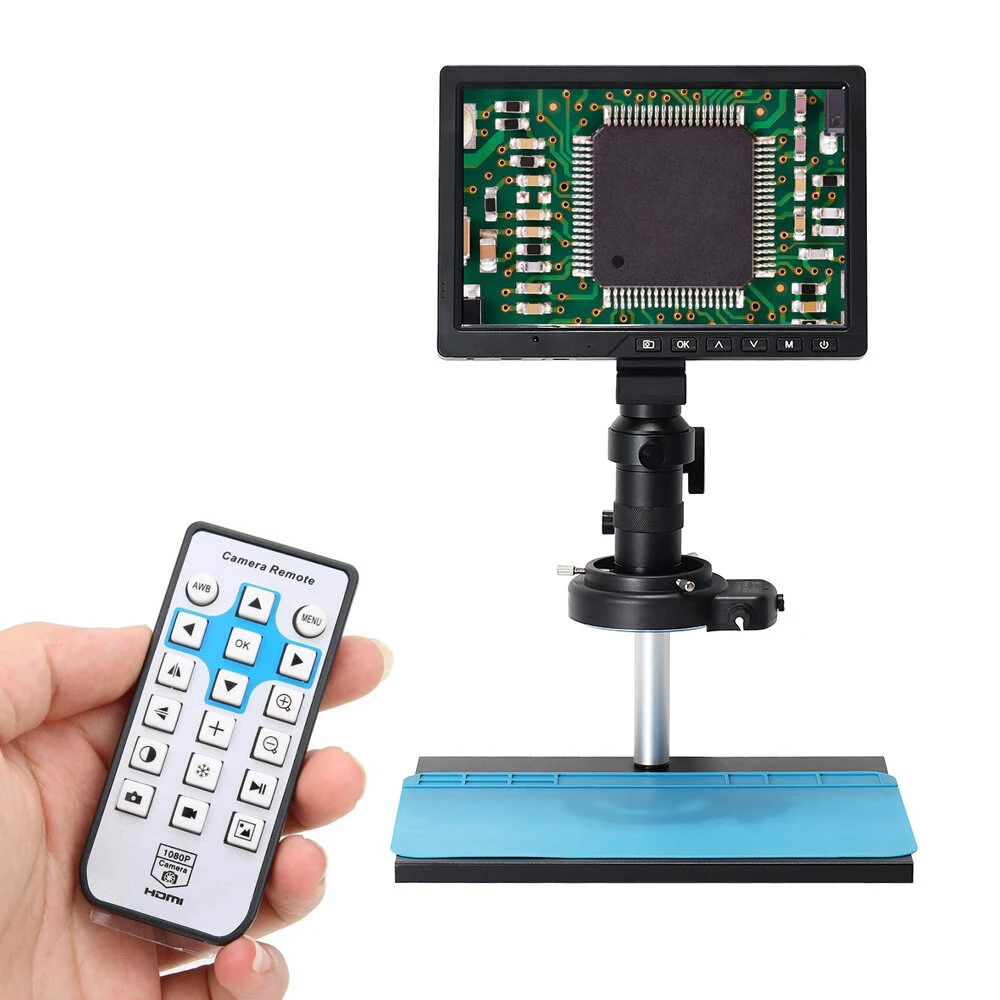

1 X Remote control

1 X HDMI cable

1 x 144-LED Ring Light
