130X 180X 300X Industrial Adjustable Monocular Zoom CS C Mount Lens HDMI Video Microscope Camera

Please note: The working distance described in the details is for reference only.

Because of the size of the sensor, the working distance of the camera with these lenses will be somewhat different

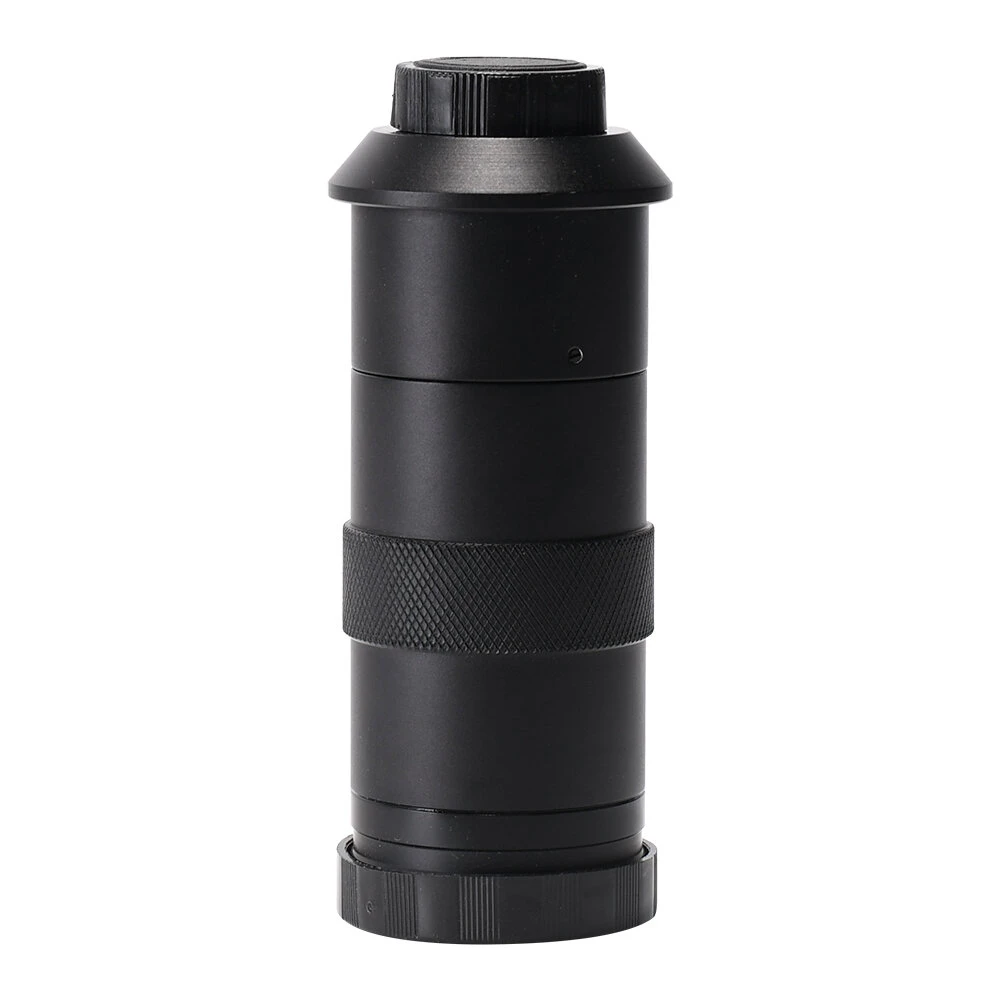

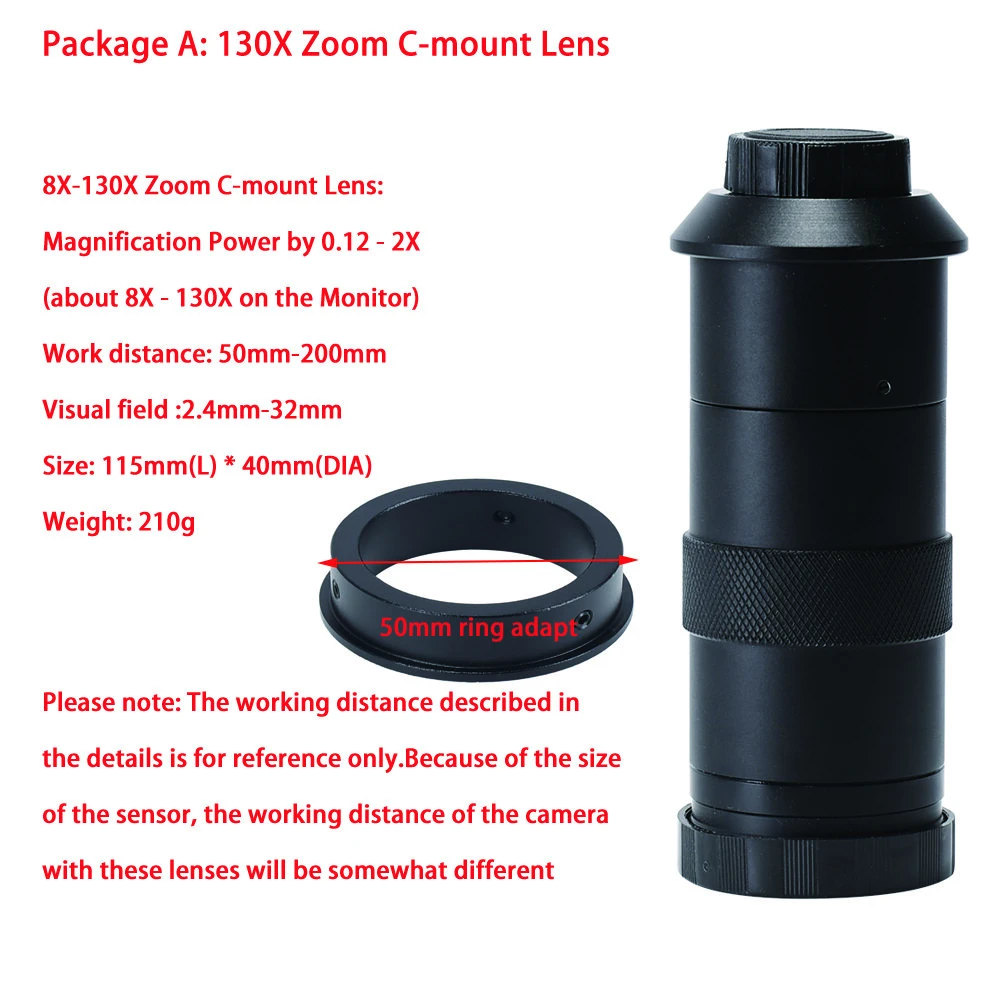

8X-130X Zoom C-mount Lens:

Magnification Power by 0.12 – 2X (about 8X – 130X on the Monitor)

Work distance: 50mm-200mm

Visual field :2.4mm-32mm

Size: 115mm(L) * 40mm(DIA)

Weight: 210g

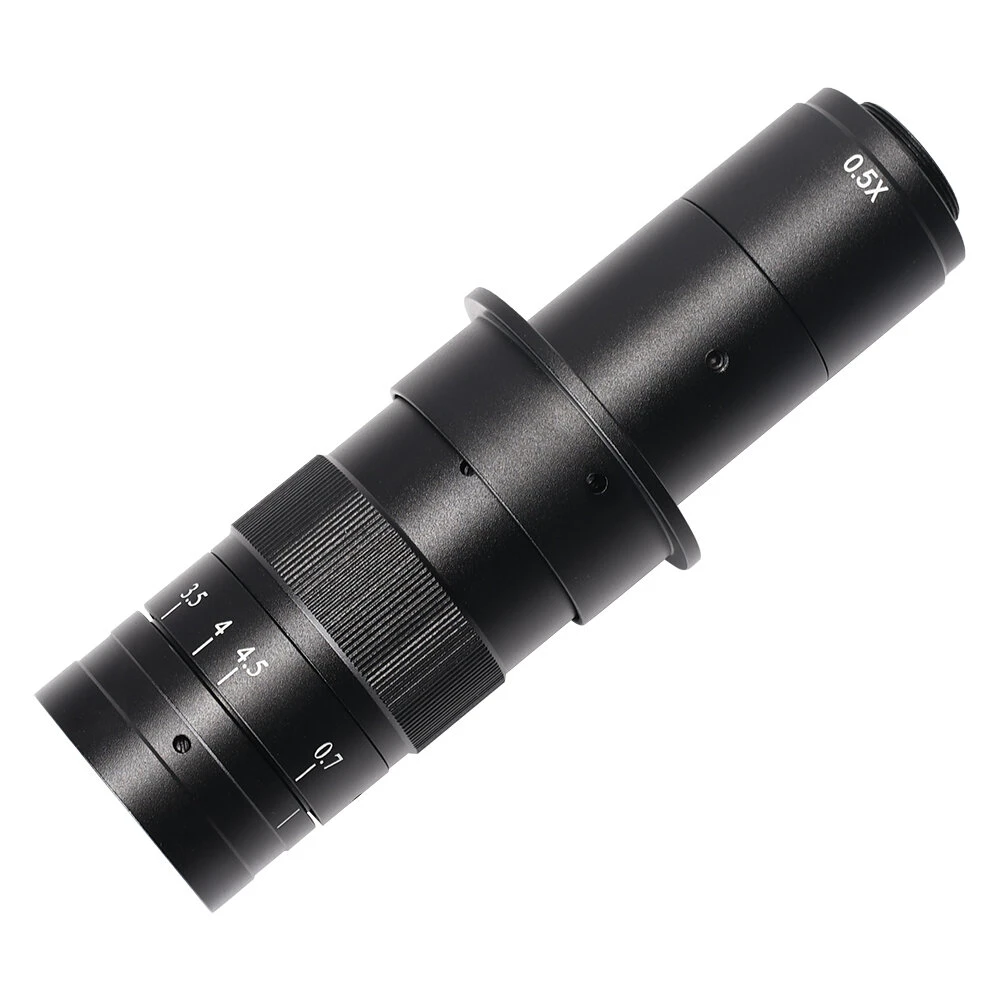

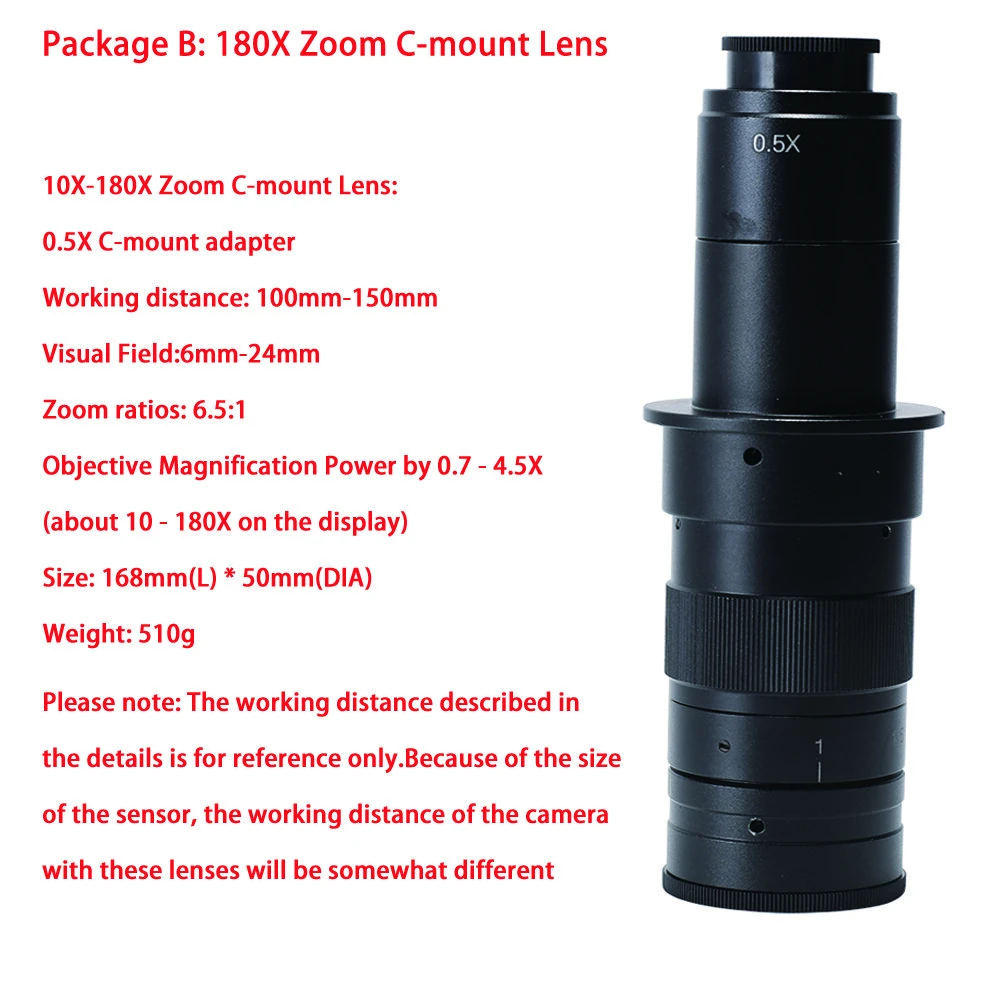

10X-180X Zoom C-mount Lens:

0.5X C-mount adapter

Working distance: 100mm-150mm

Visual Field:6mm-24mm

Zoom ratios: 6.5:1

Objective Magnification Power by 0.7 – 4.5X(about 10 – 180X on the display)

Size: 168mm(L) * 50mm(DIA)

Weight: 510g

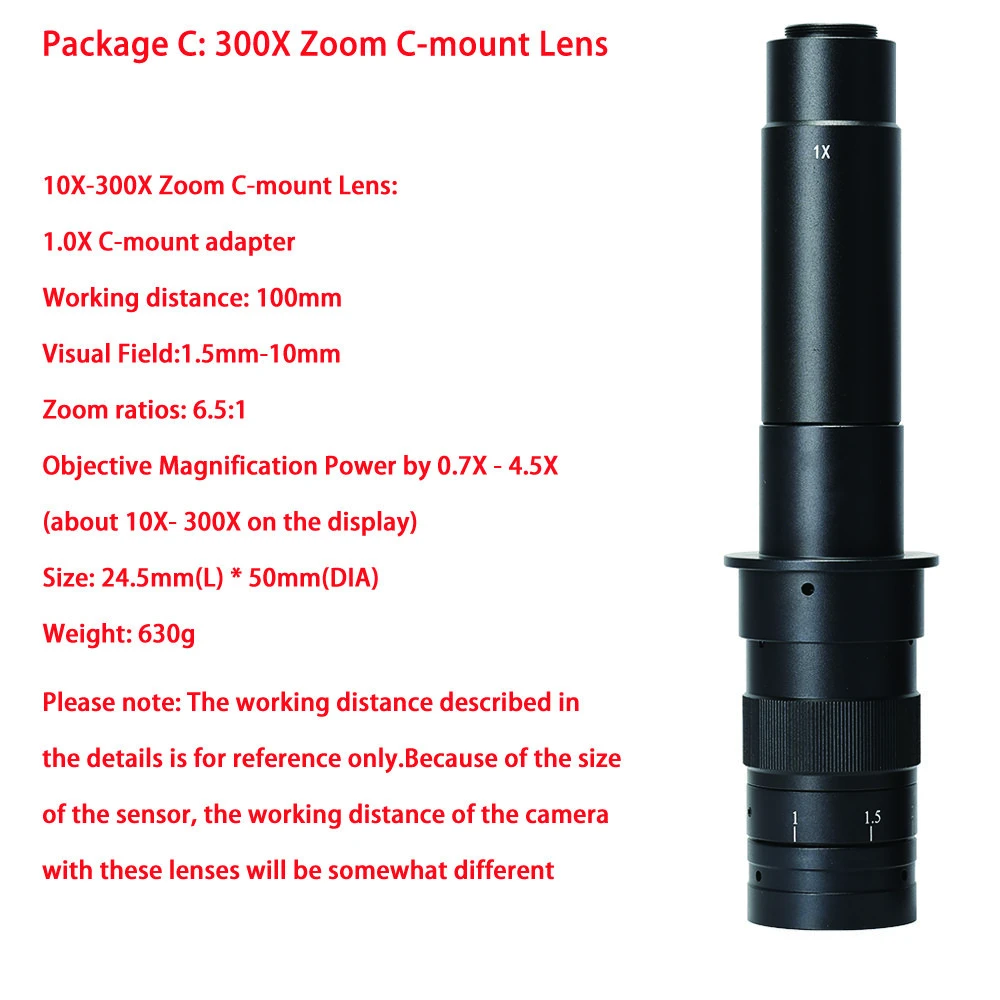

10X-300X Zoom C-mount Lens:

1.0X C-mount adapter

Working distance: 100mm

Visual Field:1.5mm-10mm

Zoom ratios: 6.5:1

Objective Magnification Power by 0.7X – 4.5X(about 10X- 300X on the display)

Size: 24.5mm(L) * 50mm(DIA)

Weight: 630g



Package incluede:

1 x Zoom C-mount Lens
