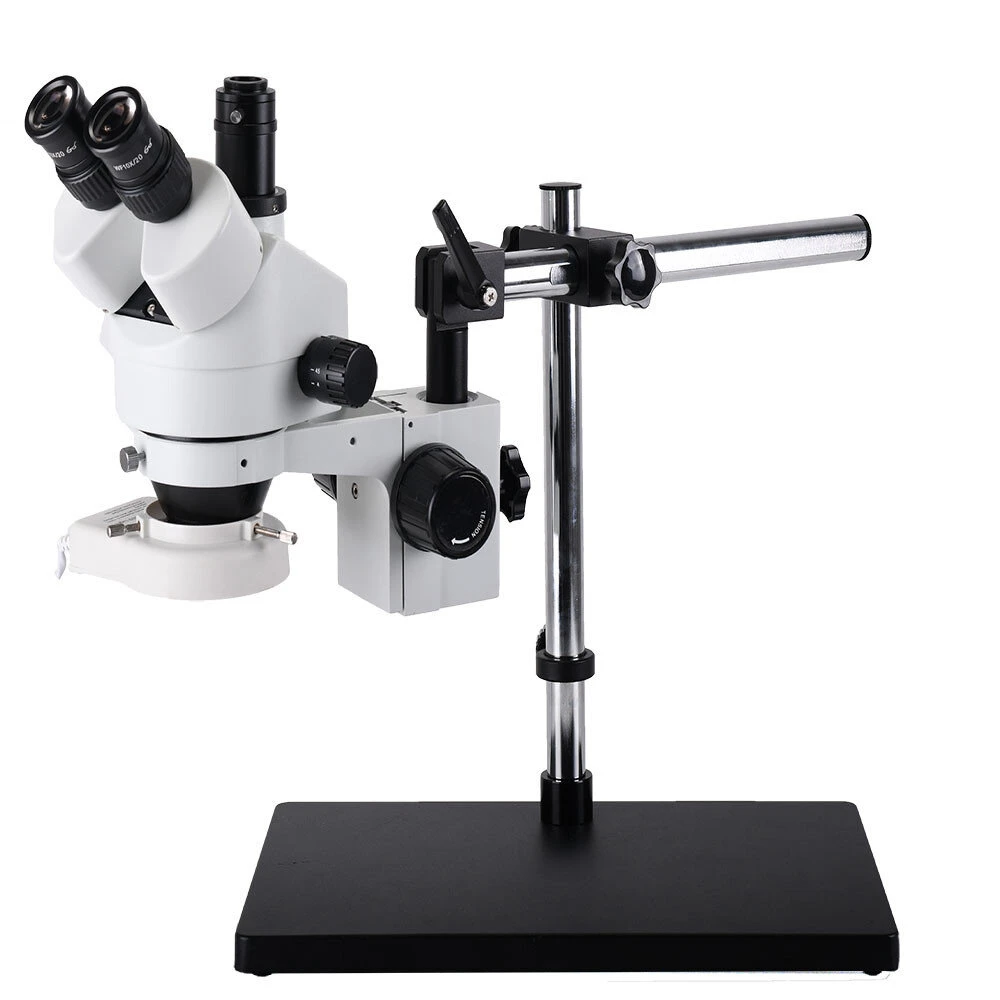

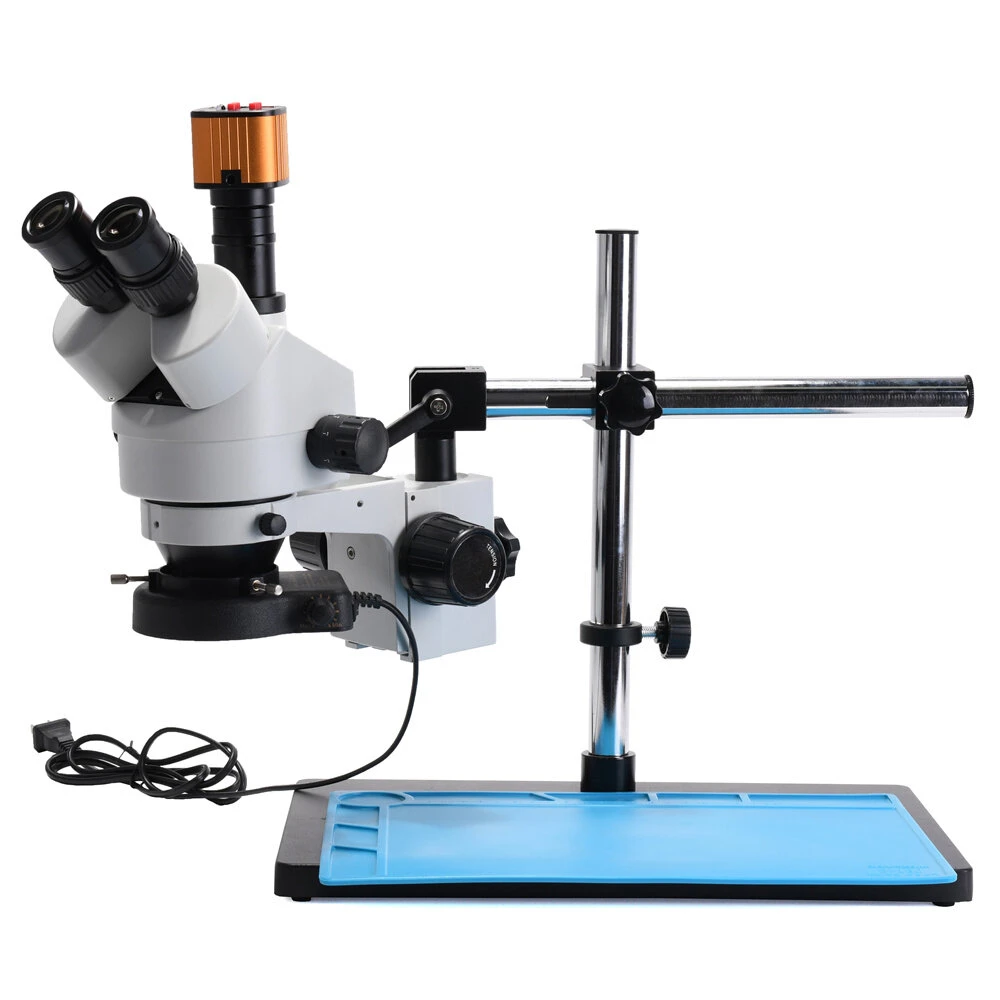

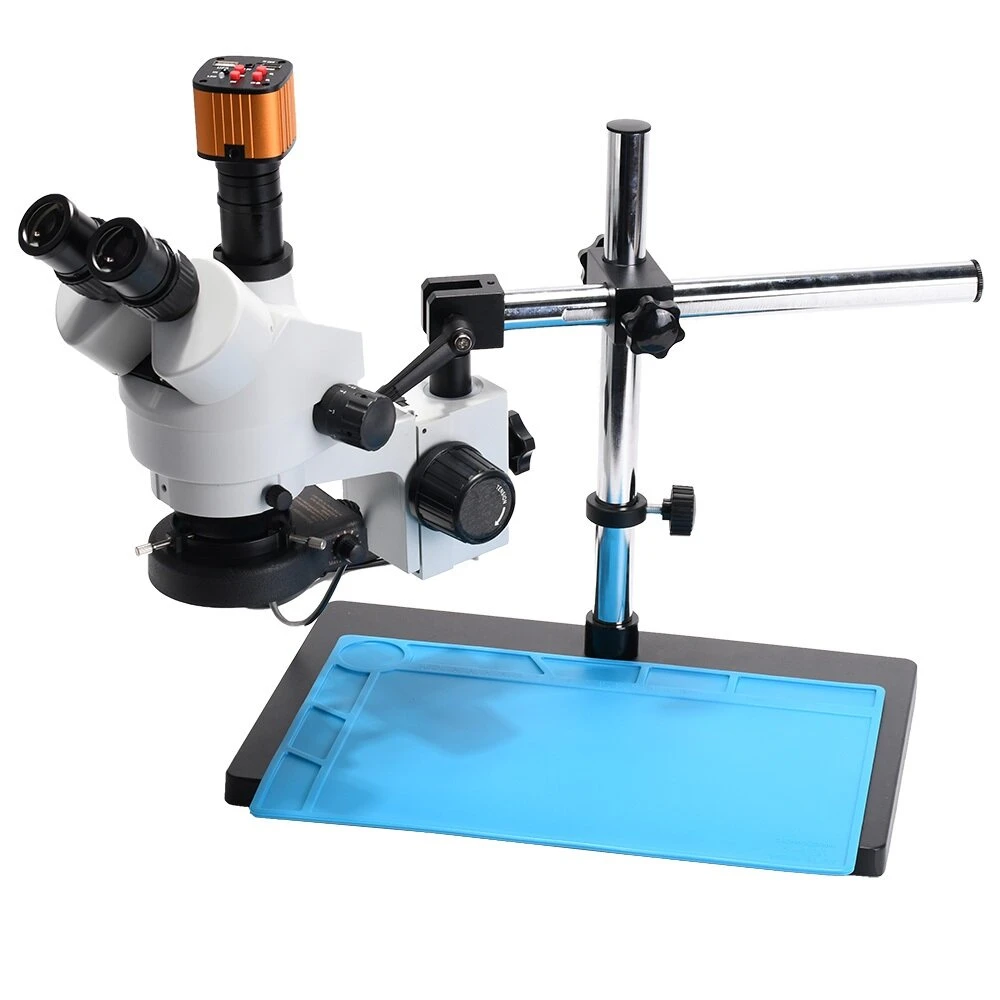

3.5~90X Zoom Magnification Stereo Microscope 16MP Camera Microscope For Industrial PCB Repair Sturdy All-metal Pillar Stand Powerful 56-LED Ring Light
Original price was: $361.77.$97.99Current price is: $97.99.
- Safeguard Your Shopping Experience
- Online assistance, always at your service.
- Buy with confidence, backed by quality.
- There are quality problems, free return and exchange
Features:
3.5~90X zoom magnification power with crisp sharp images
Super widefield high-eyepoint optics
widefield of view
4″ (100mm) working distance
Sturdy all-metal pillar stand

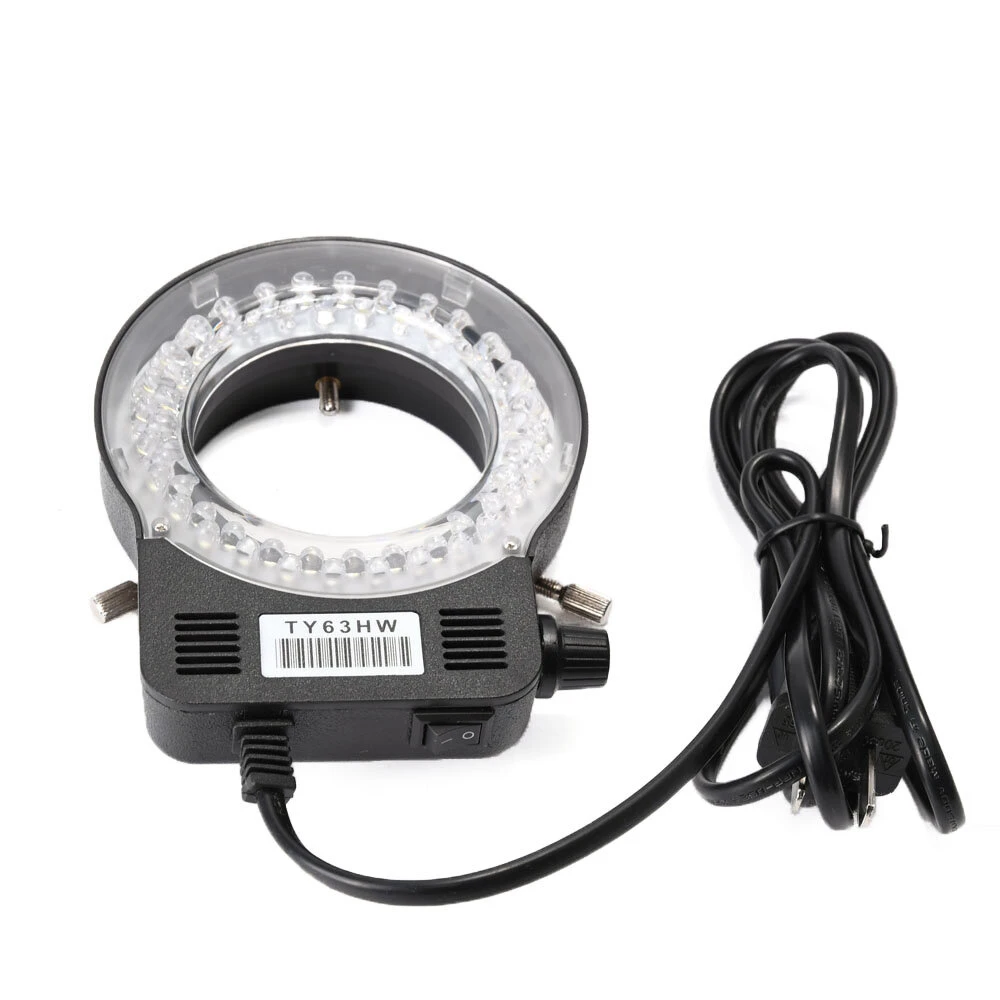

Powerful 56-LED ring light with dimmer
This stereo microscope has a 56-LED ring light that offers super widefield optics and 7X-45X zoom magnification power with a cool light illumination system. It is an ideal instrument for industrial inspection and/or biological lab applications. This microscope is perfect for gemologists, manufacturing engineers, dental lab technicians, and anyone in electronic and semiconductor industries.
An excellent stereo inspection microscope with lightness adjustable 56-LED ring light
3.5x-90x super wide zoom magnification power
Bright cool light 56-LED illumination system
High resolution with great flatness and contrast, giving sharp and clear images
Binocular head with 45 degree inclined 360 degree swiveling eye tubes
Sharp stereo erect images with a wide field of view
Crystal clear original true color microscope images
Dual eye tubes with adjustable diopters
Large working distance
Sturdy all-metal table stand
Accurate alignment reduces eye strain for longer periods of viewing
Full optical glass elements
Precise ground glass lenses
Full metal chrome-plated mechanical components
Adjustable interpupillary distance
Rubber eye-guards included
Specifications:
Head: 360 degree rotatable 45 degree inclined binocular
Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
Working Distance: 4″ (100mm)
Diopter Adjustment: /- 5dp
Interpupillary Distance: 2-3/16″ – 2-15/16″(55-75mm)
Round Plate: 3-3/4″ (95mm) in diameter
Stand: 10″ x 7-7/8″ x 10.75″ (254 x 200 x 275mm)
Illumination: 56-LED Ring Light
Power Input: 110-240V, 50-60HZ, Automatic Switching
Accessories: Paired eye-caps
Microscope Camera:
For USB output, the white balance, exposure and color adjustment are automatic, they can’t be adjusted.
Specification:
Image sensor: CMOS 1/2.9
Pexil size: 2.85 × 2.85μm
Video output: full hd 1080p ( via HDMI), 720P( via USB)
Image resolution: 4608*3456( via HDMI)
Video recording: 1080p ( via HDMI )
Image format: jpeg
Lens: C/CS
Resolution:1920*1080@30fos, 720p 160@fps
TF card interface: max 64G
Pc support: windows XP/7/8/10 system, HAYEAR measure software
Digital zoom: 4 times digital zoom
Language: English, Chinese, Japanese, French, Germany, Italy, Korean, Turkey, Russia
Camera dimension: 50mm*50mm*43mm
Package dimension:16cm*10cm*8cm / 0.3kg

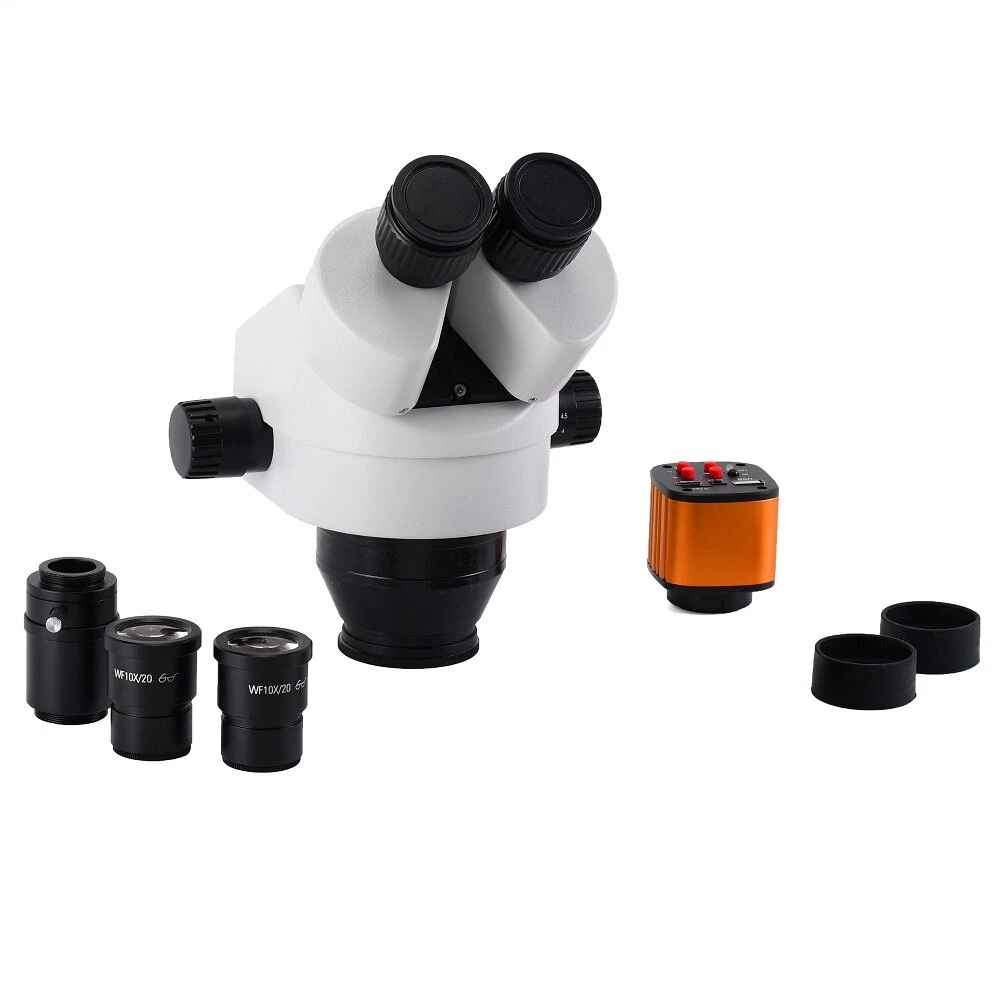

Package include:
1 x Trinocular microscope Zoom Head
1 x Pair of Super Widefield 10X Eyepieces
1 x 56-LED Ring Light with Adapter

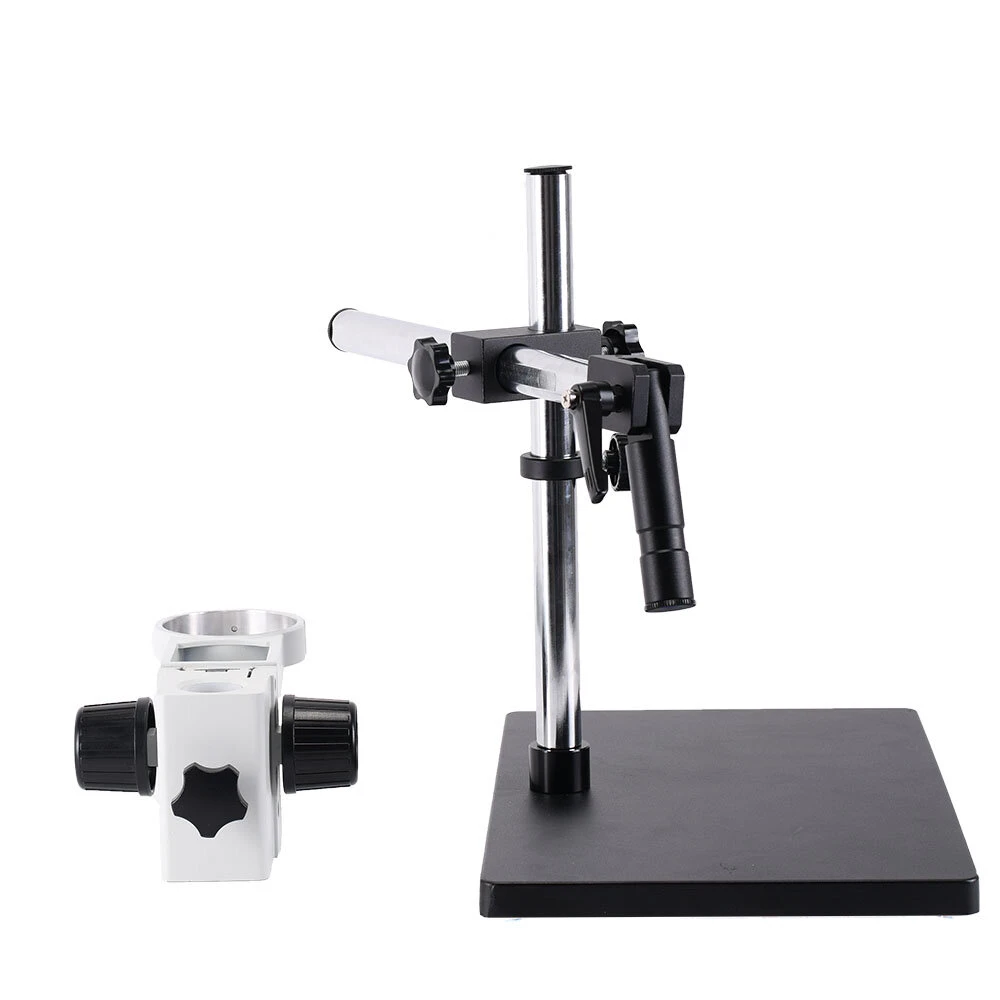

1 x Big size Pillar Table Stand
1 x Focusing Rack
1 x Pair of Eye-Guards
1 x Dust Cover
1 x microscope camera
1 x High temperature resistant working pad
1 x Universal bracket
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 30 mm)
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)
Note:
We will send you a plug adapter according to your country.
Detail Pictures:
