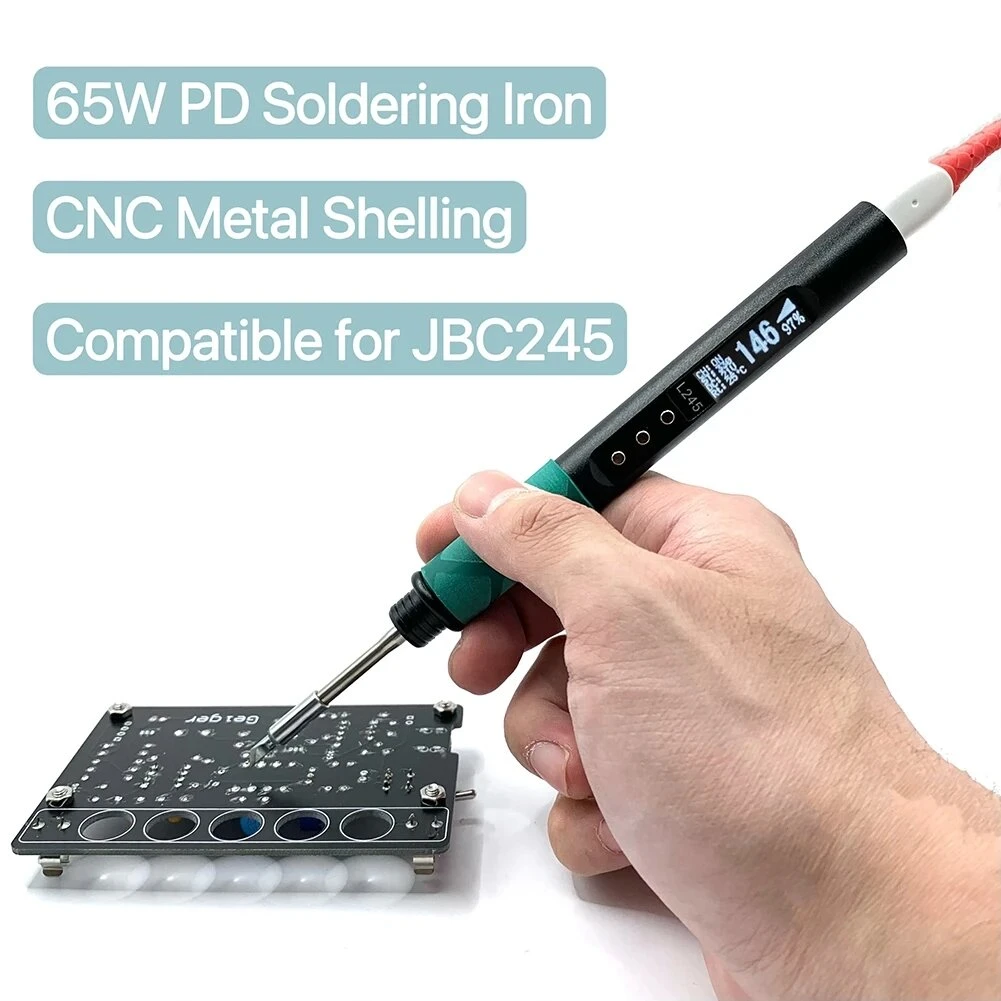

65W L245 Electric Soldering Iron Power Supplying Aluminum Alloy CNC Shell QC PD Type-C Compatible JBC245

Description:

– This product is made of aluminum alloy CNC, and is made by sandblasting and anodizing process. It is not only firm, but also has excellent hand feel.

– With customized L245 heating element, the heating and temperature return speed is very fast! It is an indispensable good tool for electronic maintenance, electronic DIY, etc!

Features:

1. Compatible with QC, PD and other fast charging protocols, and supporting DC direct power supply

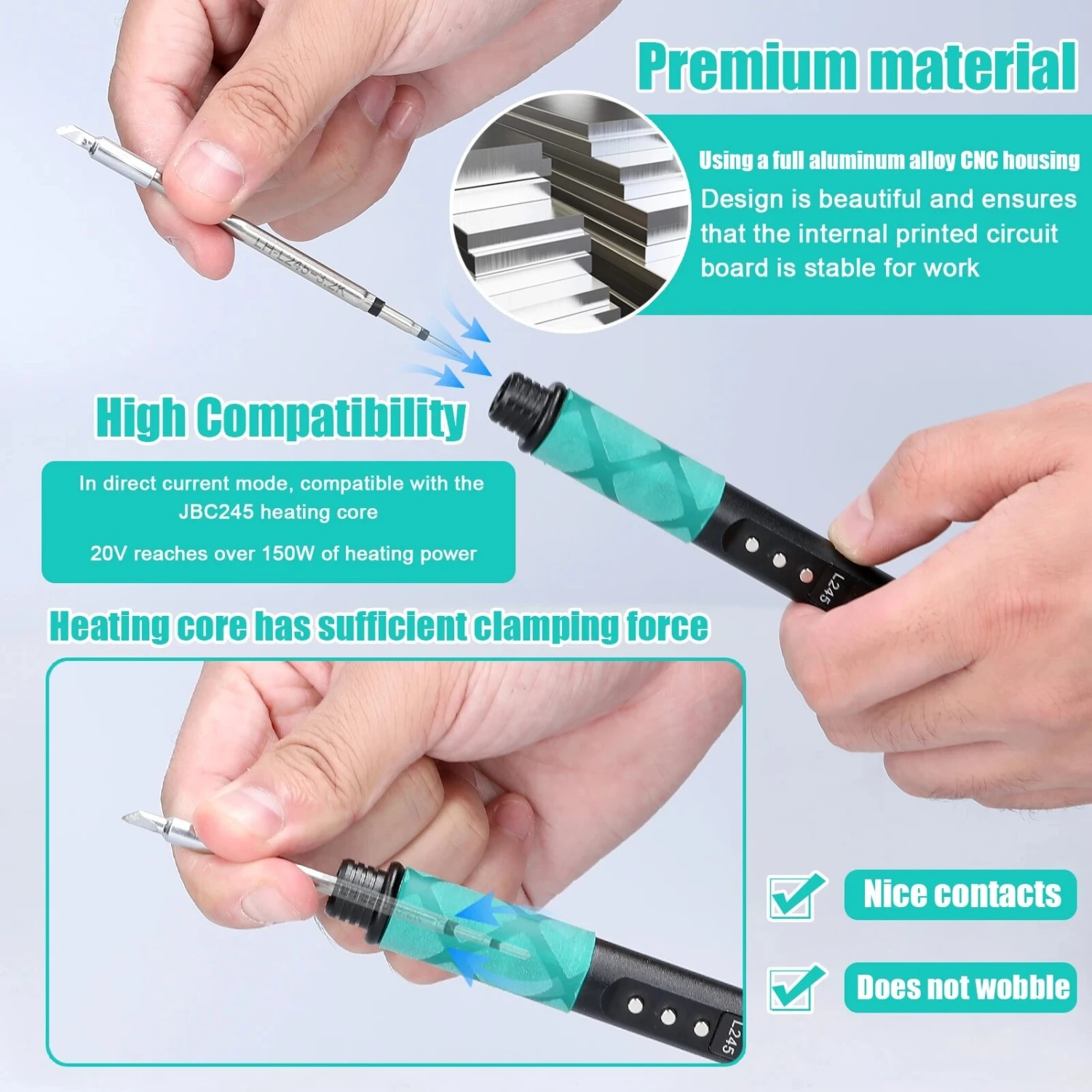

2. When DC mode is used, the original or JBC245 compatible heating core can be used, and the heating power can reach above 150W when the voltage is 20V. If the default L245 heating element is used, the maximum power can reach 65W

3. The default L245 heating core is specially customized, which has a very good heating/temperature recovery efficiency, as well as a large heat capacity value. Solder joints of all sizes melt easily.

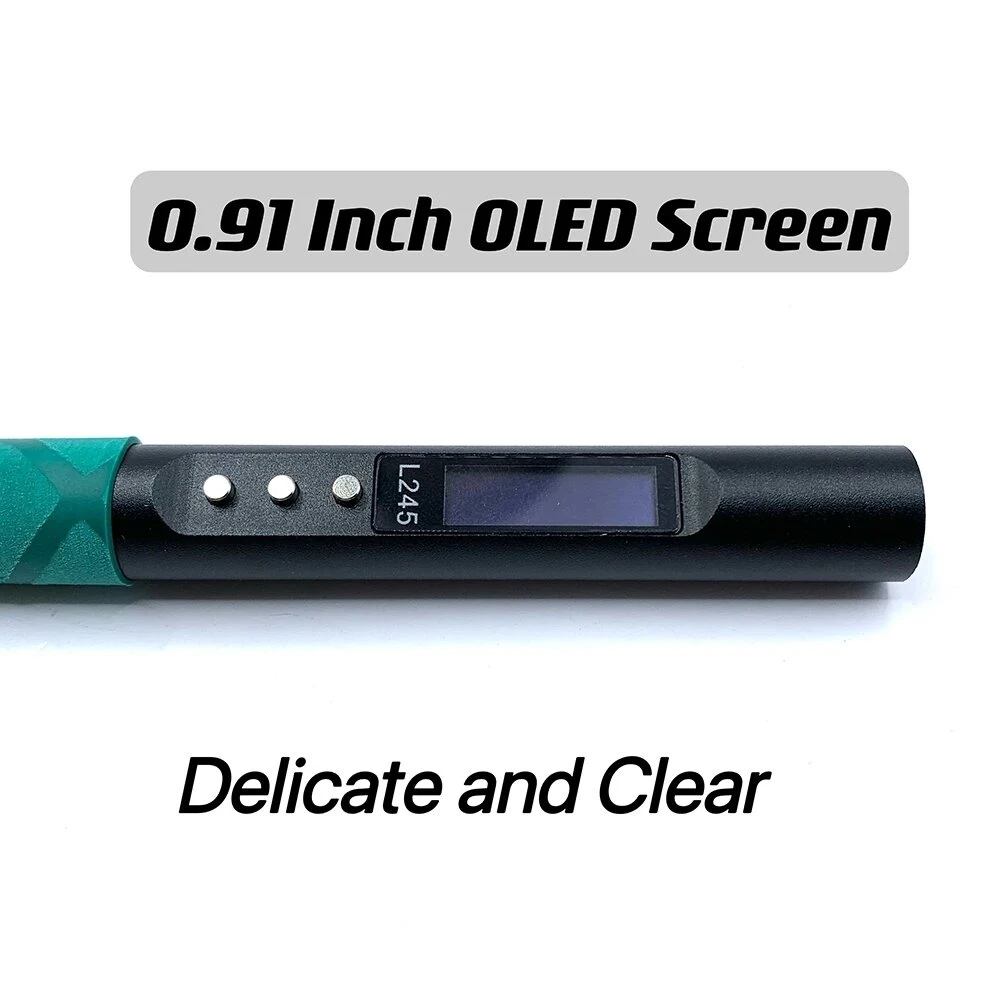

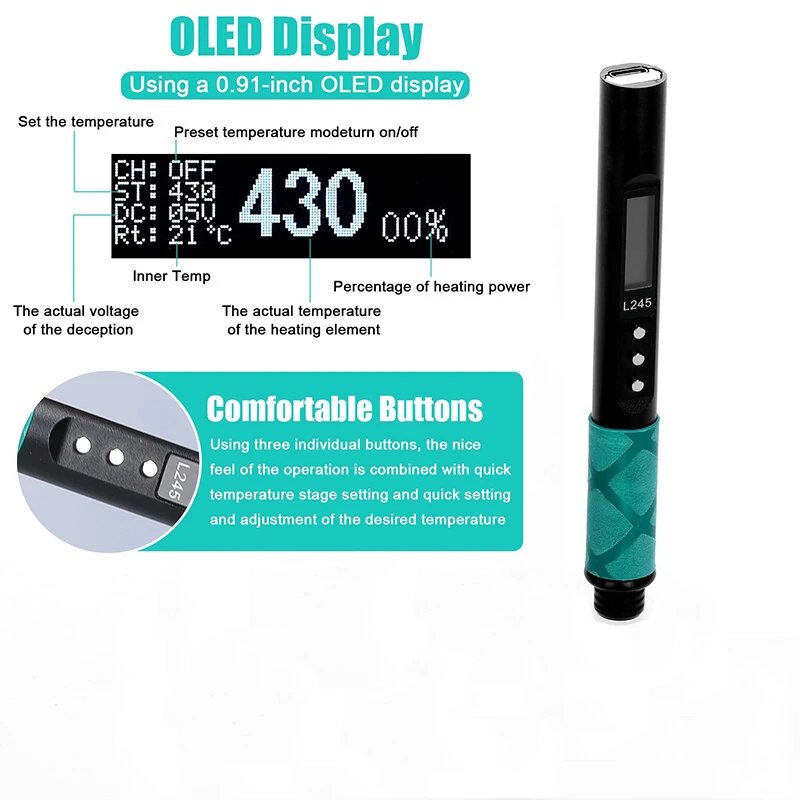

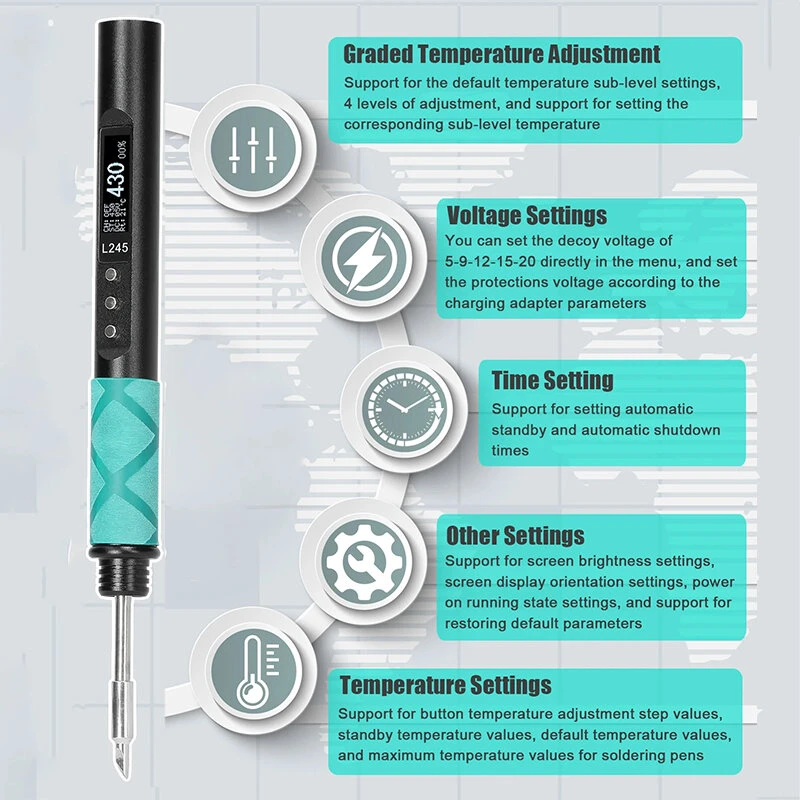

4. The 0.91-inch OLED screen can display rich contents: temperature gear, set temperature, voltage, internal temperature, actual temperature of heating element, heating power and power percentage.

5. Under the condition of ensuring the same power, adopt the working mode of large voltage and small current, reduce the dependence on type-c line, and do not need the support of emark chip

6. You can quickly set and adjust the temperature with only 3 keys

7. The decoy voltage can be set directly in the menu (according to the parameters of the charging head, it can be set automatically)

8. Automatic standby, vibration awakening, automatic shutdown

9. Time, temperature, parameter setting and calibration

10. Support Chinese English switching

11. More interesting functions await your exploration~

Parameters:

Power: 65W (using the default L245 heating core)

Temperature control range: 0-480 degrees

Heating core: L245 (customized); Compatible with JBC245 (DC mode is required, and the machine can only be started when the voltage is greater than 20V)

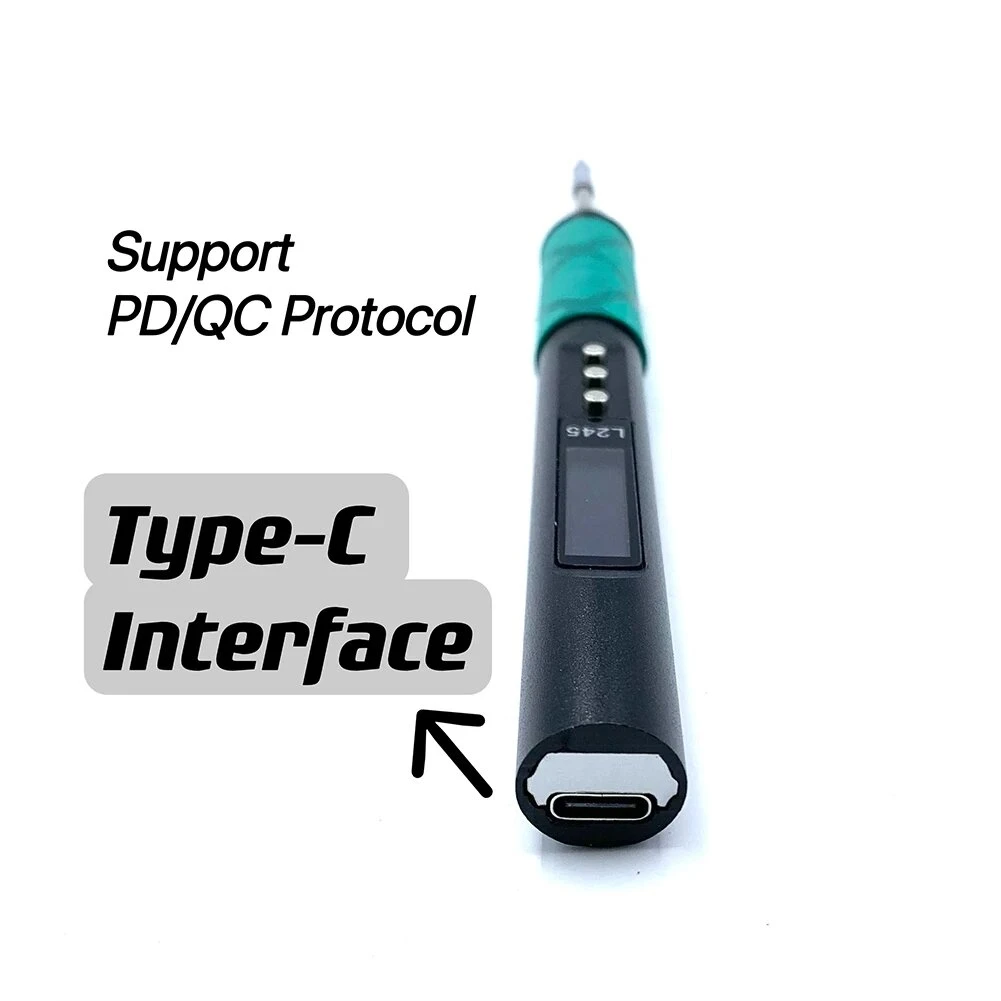

Power interface: TYPE-C

Fast charging protocol: QC/PD

Power supply range: 9-20V

Internal resistance value of L245 heating core: 6.5 Ω

Length (excluding soldering head): 135.6mm

Use instructions:

1. Use for quick temperature regulation: press the middle key to select CH: ON to open the step adjustment, press the left and right keys to quickly call the five component step pre stored temperature according to the preset step temperature

2. Use for normal temperature regulation: Press the middle key to select CH: OFF to turn off the grading regulation, press the left key to decrease the temperature according to the set temperature step, and press the right key to increase the temperature to adjust the temperature.

3. Press and hold the middle key for more than 3 seconds to enter the menu setting, and you can adjust each item according to the menu description. After entering the lower menu, long press for 3 seconds to return to the upper menu

Note:

1. Before use, you must confirm the condition of your own charging head. If you can only provide 5V power supply and do not support PD, please replace the charging head for use in QC fast charging protocol.

2. Setting method of decoy voltage: if the charging head is above 65W, no setting is required.

3. If the power of the charging head is insufficient, the default setting of the electric soldering iron is 20V leakage. If the charging head does not support, it will automatically jump to the maximum allowable voltage gear. If the screen flashes during use, it means that the power of the charging head is insufficient and the current limiting function is not supported. At this time, you need to check the range of the charging head output parameters, and obtain the current value by dividing the maximum supported voltage by 6.5, If the calculated value is lower than the current value provided by the corresponding voltage marked on the charging head, the voltage will be set to trap.

4. Due to the oxidation processing of the CNC shell, there may be small scratches or slight oxidation defects. Please forgive me!

5. DC mode refers to the direct use of external DC12-20V full power supply to supply power to the soldering pen through TYPEC cable without using the fast charging protocol charging head.

6. The default heating core is custom heating core L245, which only supports 65W at most

Package Included:

1 x Electric soldering iron

1 x L245 3.2K heating element
