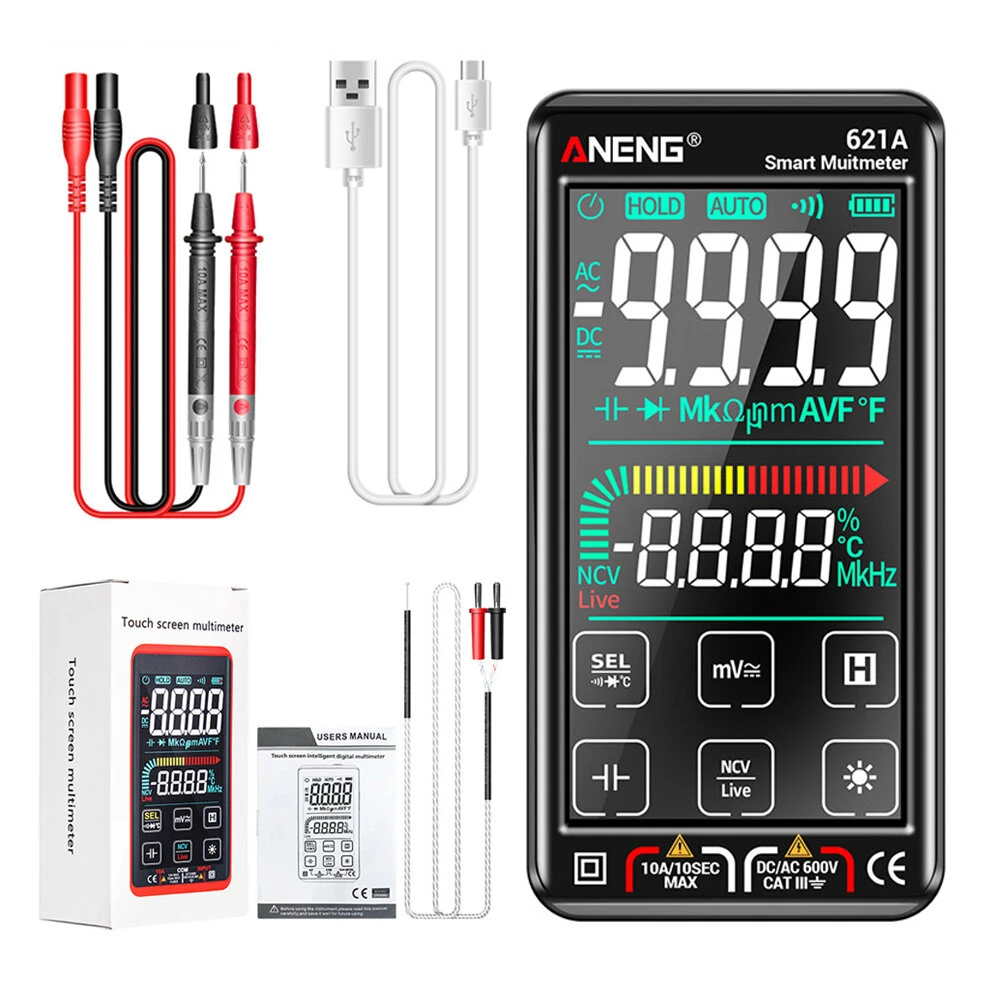

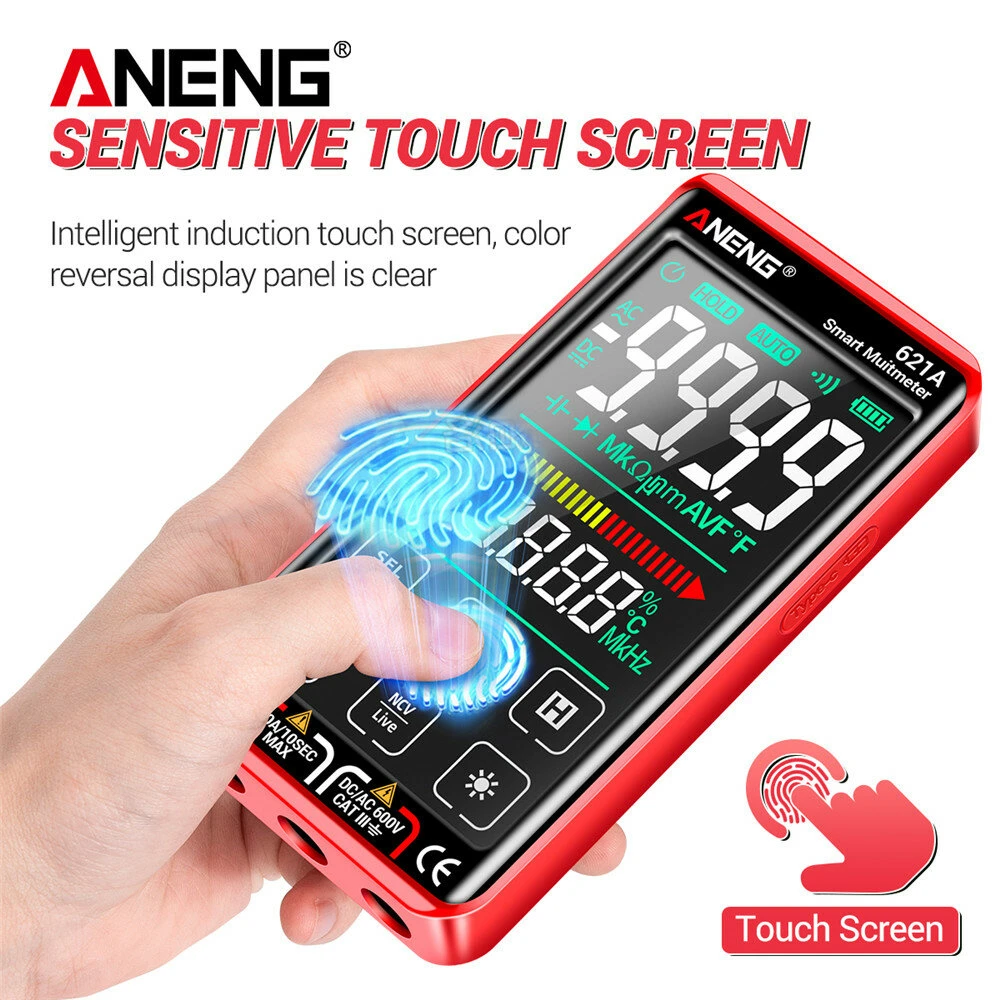

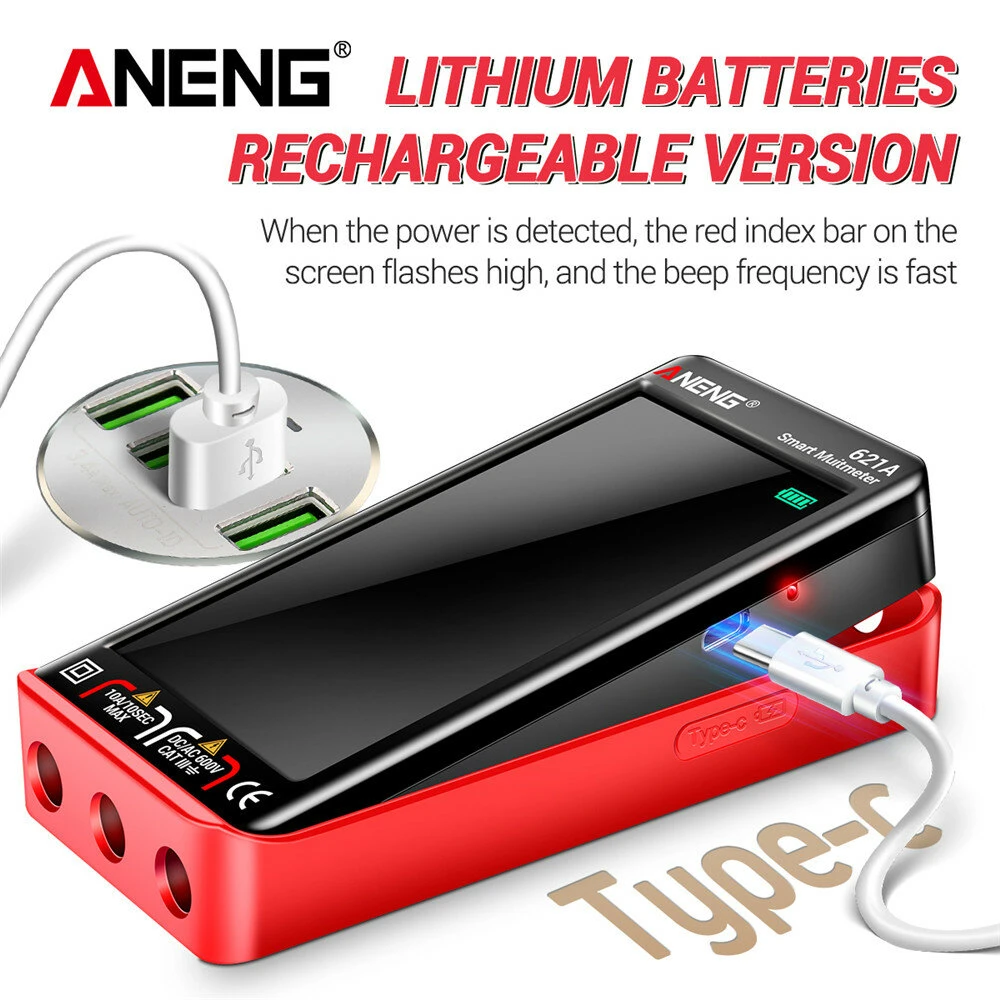

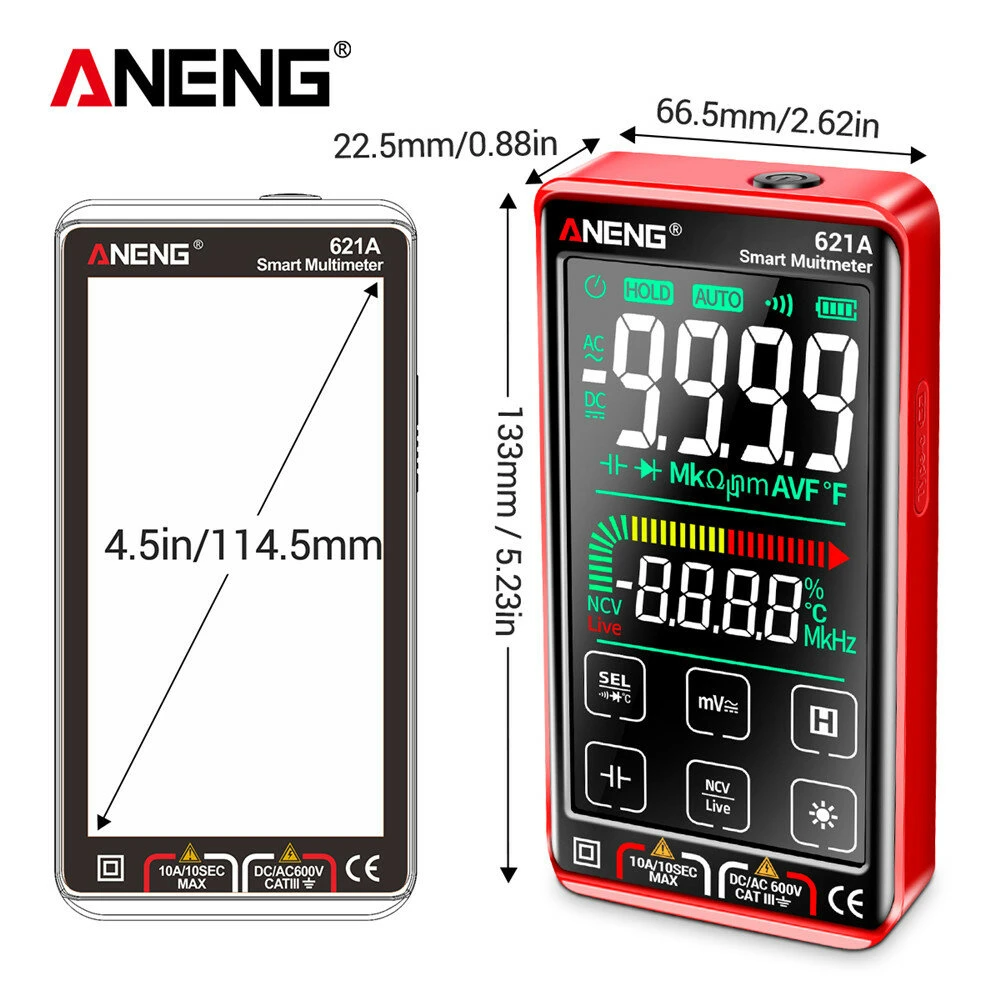

ANENG 621A 9999 Counts Auto Range Full-screen Touch Smart Digital Multimeter Rechargeable DC/AC Voltage Current Tester Meter

Function

Range

Resolution

   Accuracy

DC voltage

0.5-999.9V

 0.001-1V

±(0.5% reading + 3 digits)

mA DC voltage

0-600mV

 0.001-1V

±(0.5% reading + 3 digits)

AC voltage

0.5-999.9V

 0.001-1V

±(0.8% reading + 5 digits)

mA AC voltag

0-600mV

 0.001-1V

±(0.8% reading + 5 digits)

DC current

20mA-10A

1mA-0.01A

± (1.0% reading + 5 digits)

AC current

20mA-10A

1mA-0.01A

± (1.0% reading + 8 digits)

Frequency

40Hz-1000Hz

0.1Hz-1Hz

± (1.0% reading + 5 digits)

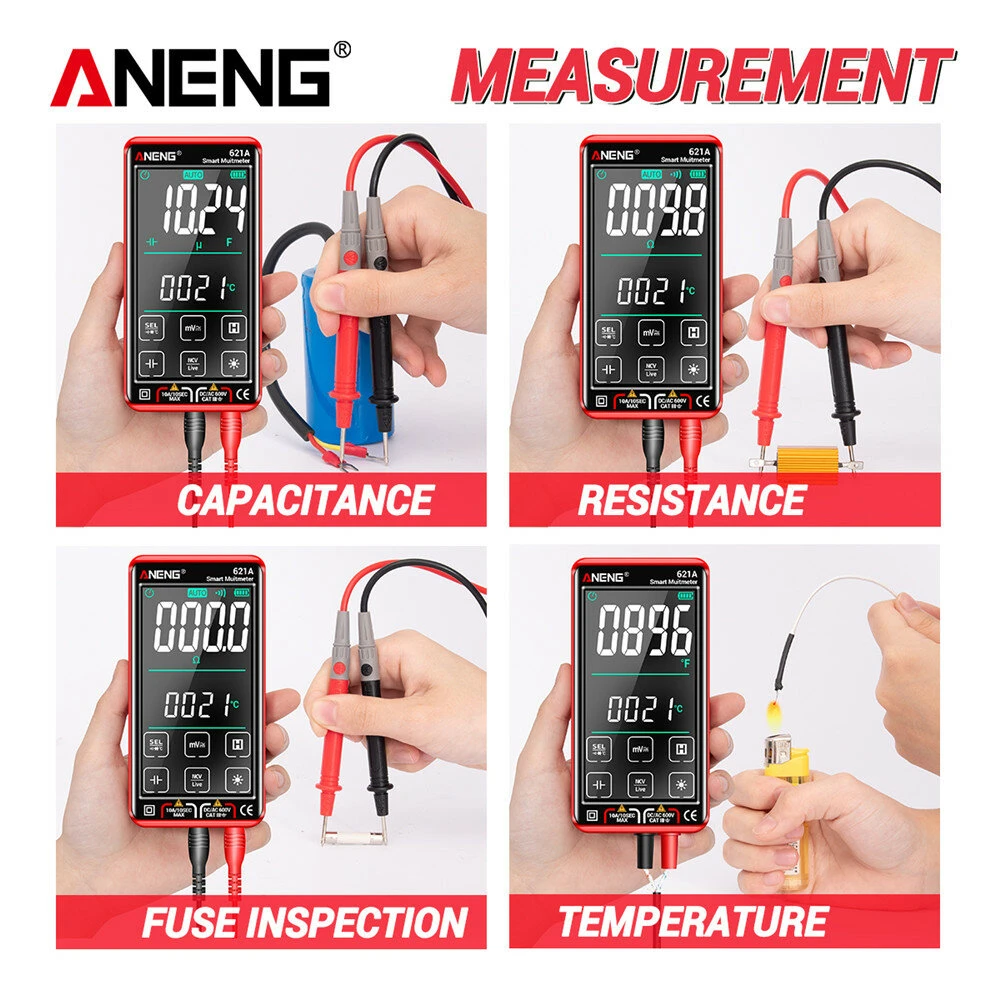

Capacitance

9.999nF-99.99mF

0.001nF-0.01mF

± (2.5% reading + 20 digits)

Resistance

999.9Ω-99.99MΩ

0.1Ω-0.01MΩ

± (0.8% reading + 3 digits)

Temperature

-40-1832°F

1°F

 ±(1.0% of reading + 3°F)

Temperature

-40-1000°C

1°C

±(1.0% reading+3°C)
