Features:
This product is a 3 5/6 digital multimeter with stable performance and reliable quality. The meter adopts

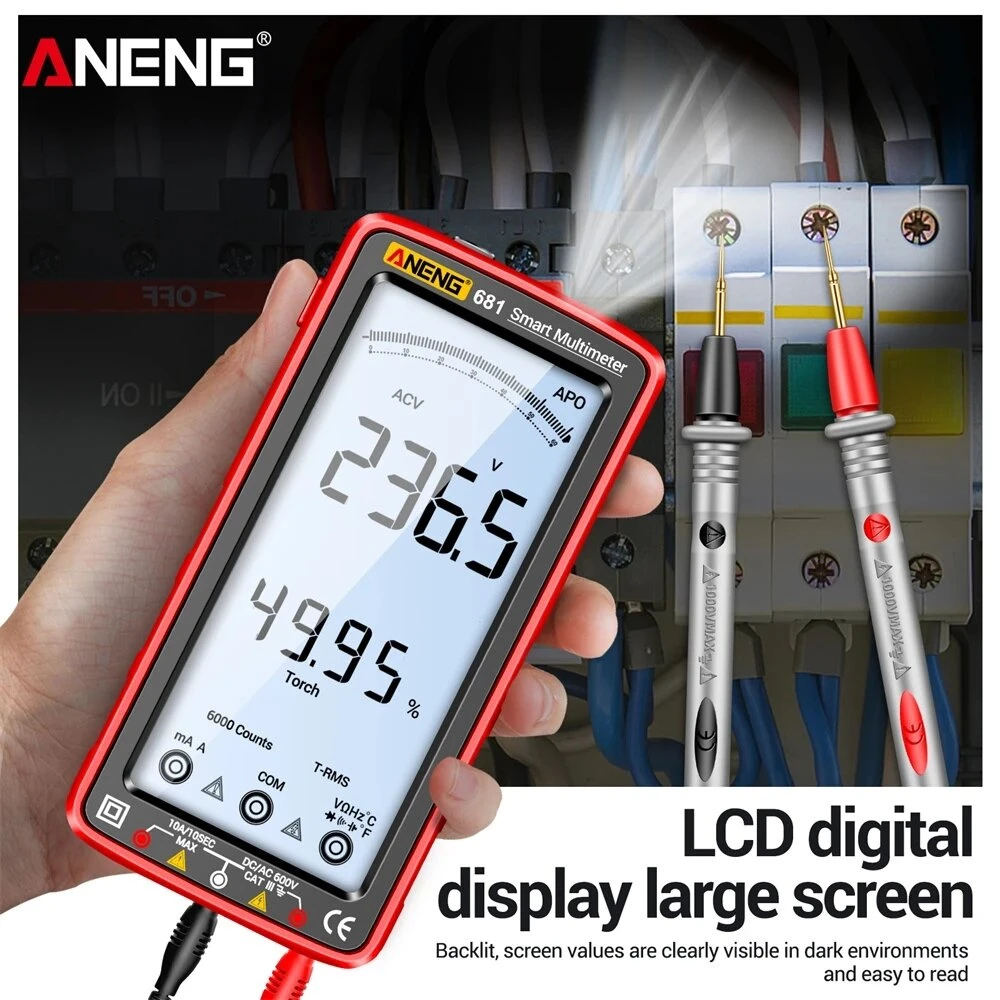

LCD display screen with analog bar display.
Color: Black / Red
Model: 681 / 681 Pro
– 681 is a 6000 count pocket type true effective value automatic scanning digital meter.
– 681 automatically recognizes and measures according to the different input
voltage/current/resistance/etc. signals.
– 681 has the characteristics of stable performance, high precision and clear reading.
– 681 also has additional convenient functions of flashlight test.
– 681 is an ideal tool and instrument suitable for factories, teaching and electronic enthusiasts.

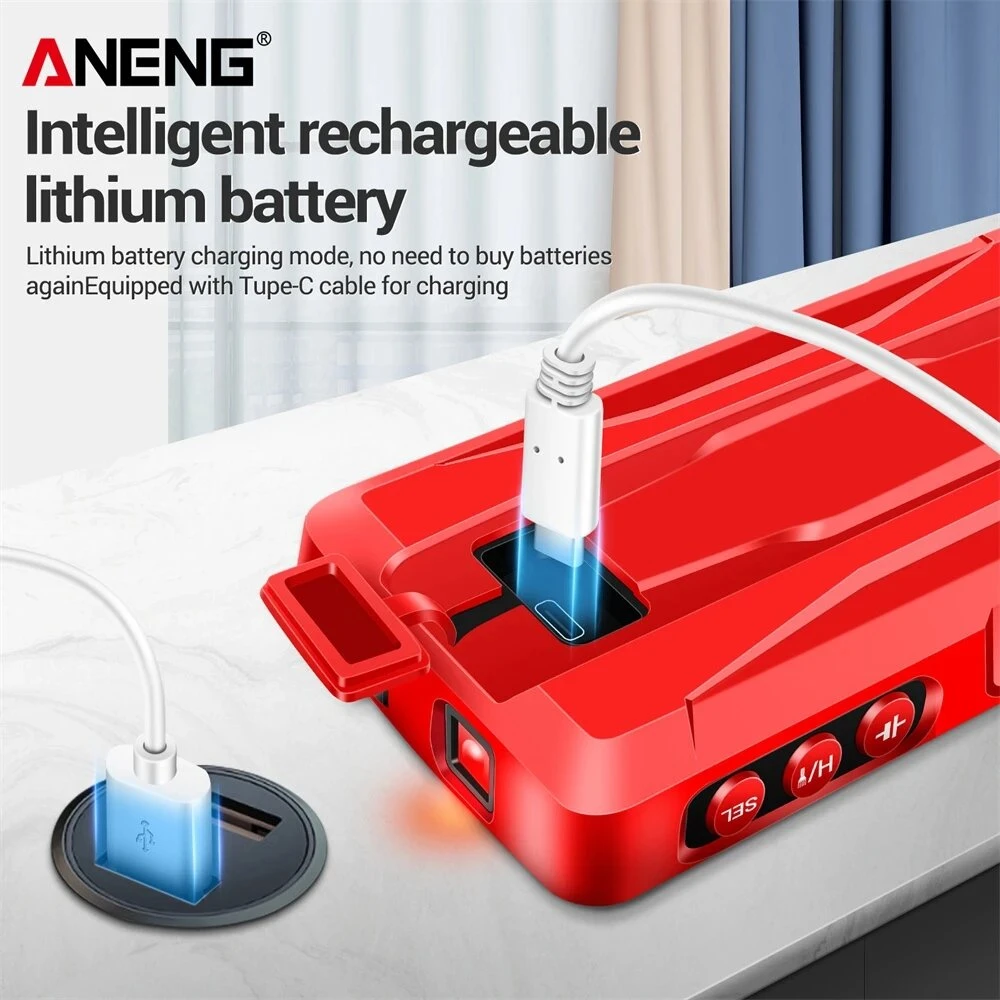

– Bulit in Li-on battery, direct charging.
Specification:
| Function | Range | Resolution | Accuracy |
| DC voltage | 0~1000V | 0~1V | ±(0.8%+10) |
| AC voltage | 0~750V | 0~1V | ±(1.0%+10) |
| AC current | 0~10A | 0~0.01A | ±(2.5%+10) |
| DC current | 0~10A | 0~0.01A | ±(2.5%+10) |
| Capacitance | 0nF~100mF | 0nF~0.1mF | ±(5.0%+5) |
| Resistance | 0Ω~60MΩ | 0Ω~0.01MΩ | ±(2.5%+5) |
| Temperature ℃ | -40 ℃~1000℃ | 1℃ | ±(1.9%+5d) |
| Temperature °F | -40°F~1832 °F | 1°F | ±(1.9%+6d) |
| Hz | 0-999.9 kHz | 0~0.1 kHz | ±(0.8%+3d) |
| Diode | √ | NCV voltage induction | √ |
| On-Off beep | √ | Low power prompt | √ |
| Auto shut-down | √ | Flashlight | √ |
| Keep data | √ | Backlit bright screen | √ |
| Material | ABS/ Silicone | Zero Fire | √ |
| Watch pen material | Brass/Silicone | Silicone sheath | √ |
| Charging line | √ | With a stylus | √ |
| Test leads | according to the choose | Temperature line | √ |
| Model | 681 | Max Count | 6000 Counts |
| Product Size | 150.8*74.8*23.8 mm/5.94*2.94*0.98 inch | ||

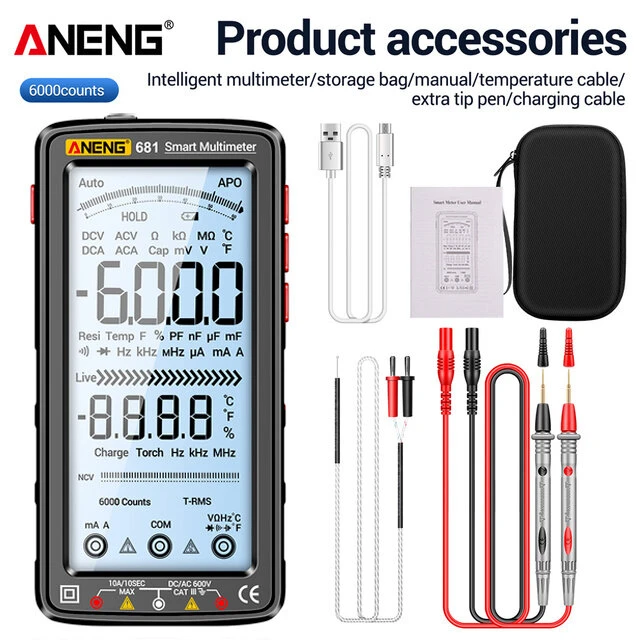

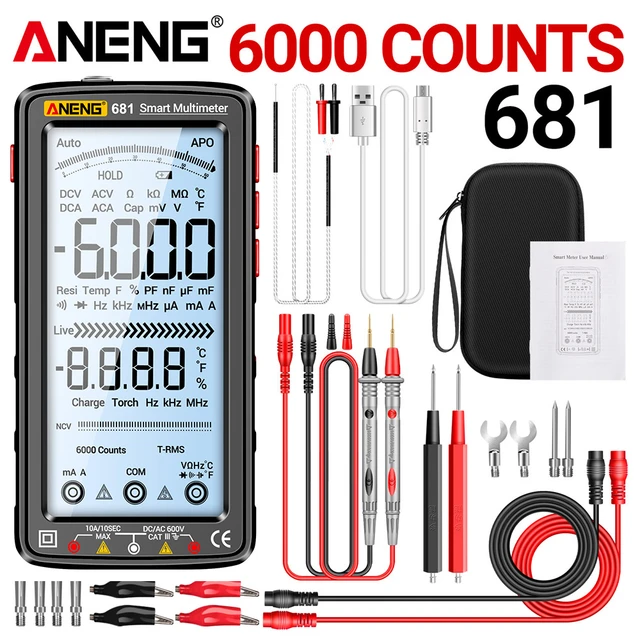

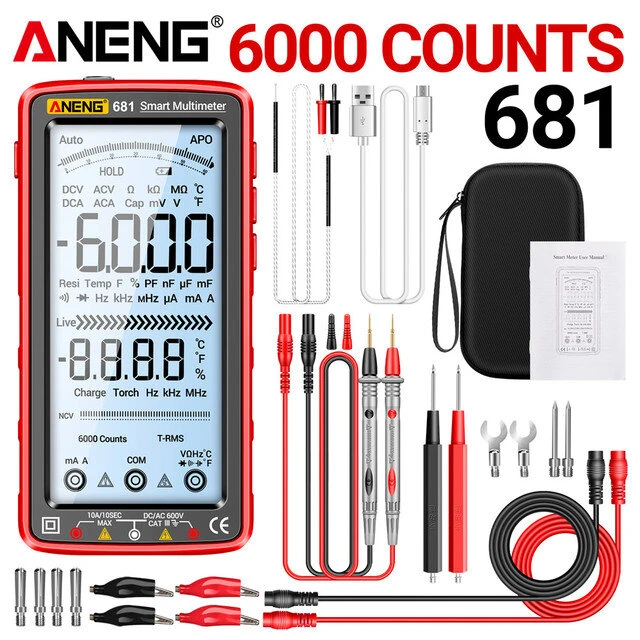

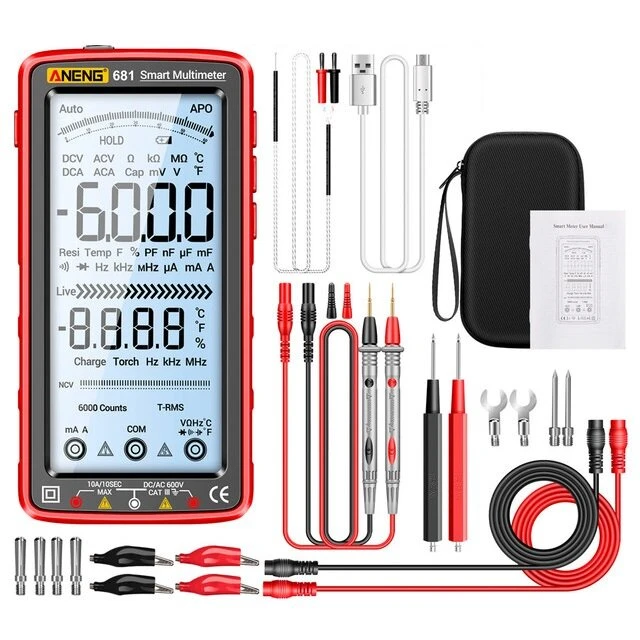

Packing included:
Type 1: Black 681
1 x Digital Multimeter
1 x Temperature line
1 x Storage bag
1 x English user Manual
1 x Packing box
1 x Charging Cable
Tyep 2: Red 681
1 x Digital Multimeter
1 x Temperature line
1 x Storage bag
1 x English user Manual
1 x Packing box
1 x Charging Cable
Type 3: Black 681 Pro
1 x Digital Multimeter
1 x Temperature line
1 x Storage bag
1 x English user Manual
1 x Packing box
1 x Charging Cable
1 x 16-in-1 Combination Test Parts
Type 4: Red 681 Pro
1 x Digital Multimeter
1 x Temperature line
1 x Storage bag
1 x English user Manual
1 x Packing box
1 x Charging Cable
1 x 16-in-1 Combination Test Parts
