ANENG AN113D Intelligent Auto Measure True- RMS Digital Multimeter 6000 Counts Resistance Diode Continuity Tester Temperature AC/DC Voltage Current Meter Upgraded From AN8002

ANENG AN113D Intelligent Auto Measure True- RMS Digital Multimeter 6000 Counts Resistance Diode Continuity Tester Temperature AC/DC Voltage Current Meter Upgraded From AN8002

Name: ANENG AN113D Intelligent Auto Measure True- RMS Digital Multimeter 6000 Counts Resistance Diode Continuity Tester Temperature AC/DC Voltage Current Meter Upgraded From AN8002, Buy Cheap Online Home-Tools United States of America
SKU: DXNHL 1568882
Price: 12.66 USD
Availability: InStock

Original price was: $18.08.Current price is: $12.66.

Color1

Clear

SKU: DXNHL 1568882 Categories: Digital Multimeters & Oscilloscope, Measurement & Analysis Instruments

Safeguard Your Shopping Experience
Online assistance, always at your service.
Buy with confidence, backed by quality.
There are quality problems, free return and exchange

Good News!

ANENG AN113D the upgrade version of ANENG AN8002 has already released.

This new product not only has the Manual gear as AN8002,but also added an automatic measurement button which is more convenient measurement and more friendly operation for the novices.

Annnnd,It also equipped with a Black EBTN Screen, which can be clearly displayed without backlighting!!!

Features:

This product is a multi-functional, auto-ranging digital multimeter with a 6000 counts LCD display.

1. Measurement functions include AC/DC voltage, AC/DC current, resistance, diode test/continuity, NCV, frequency/duty cycle, capacitance.

2. Support True- RMS

3. Support Auto Power Off

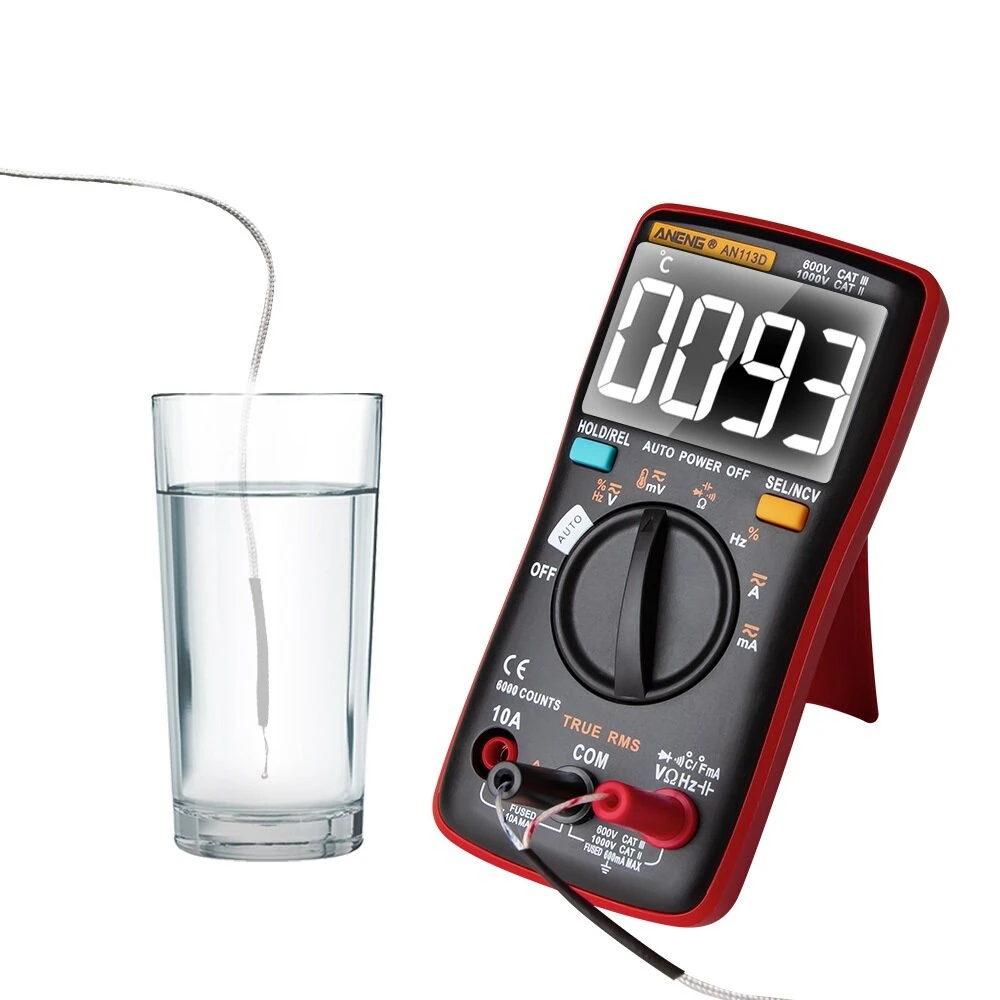

4. Support temperature measurement

5. Support data hold

Specification:

Display(LCD): 6000 counts

Ranging :Auto

Material: ABS/PVC

Update Rate: 3 times / second

Low Battery Indication: √

Product Weight :114g (batteries not included)

Product Dimension :130*65*32mm
OperatingStorage: Temperature 0~40℃ Humidity <75%
OperatingStorage :Temperature -20~60℃ Humidity < 80%

DC Voltage : 6.000V (0.001V) / 60.00V( 0.01V)/ 600.0V (0.1V )/1000V (1V) ±(0.5%+3)
DC Voltage : 60.00mV (0.01mV)/ 600mV (0.1mV) ±(0.5%+3)
AC Voltage : 6.000V (0.001V) / 60.00V (0.01V)/ 600.0V (0.1V)/ 750V (1V ) ±(1.0%+3)
AC Voltage : 60.00mV (0.01mV) / 600.0mV (0.1mV) ±(1.0%+3)
DC Current : 6.000A (0.001A) / 10.00A( 0.01A) ±(1.2%+3)
DC Current : 60.00mA (0.01mA)/600.0mA (0.1mA)
AC Current : 6.000A (0.001A) /10.00A (0.01A) ±(1.5%+3)
AC Current : 60.00mA (0.01mA)/ 600.0mA (0.1mA) ±(1.5%+3)
Resistance : 600.0Ω (0.1Ω)/6.000kΩ(0.001kΩ)/60.00kΩ (0.01kΩ) /600.0kΩ(0.1kΩ) / 6.000MΩ (0.001MΩ) ±(0.5%+3) /60.00MΩ (0.01MΩ) ±(1.5%+3)
Capacitance : 9.999nF(0.001nF) ±(5.0%+20) /99.99nF(0.01nF) 999.9nF(0.1nF)/ 9.999μF (0.001μF)/ 99.99μF(0.01μF)/ 999.9μF (0.1μF)±(2.0%+5) / 9.999mF (0.001mF) ±(5.0%+5)
Frequency : 99.99Hz (0.01Hz) /999.9Hz (0.1Hz)/ 9.999kHz (0.001kHz)/ 99.99kHz (0.01kHz)/ 999.9kHz (0.1kHz)/ 9.999MHz (0.001MHz) ±(0.1%+2)
Duty Cycle 1%~99% 0.1% ±(0.1%+2)
Temperature (-20~1000)℃ 1℃ ±(2.5%+5)1000℃ (-4~1832)℉ 1℉ 1832℉

Diode: √
Continuity :√

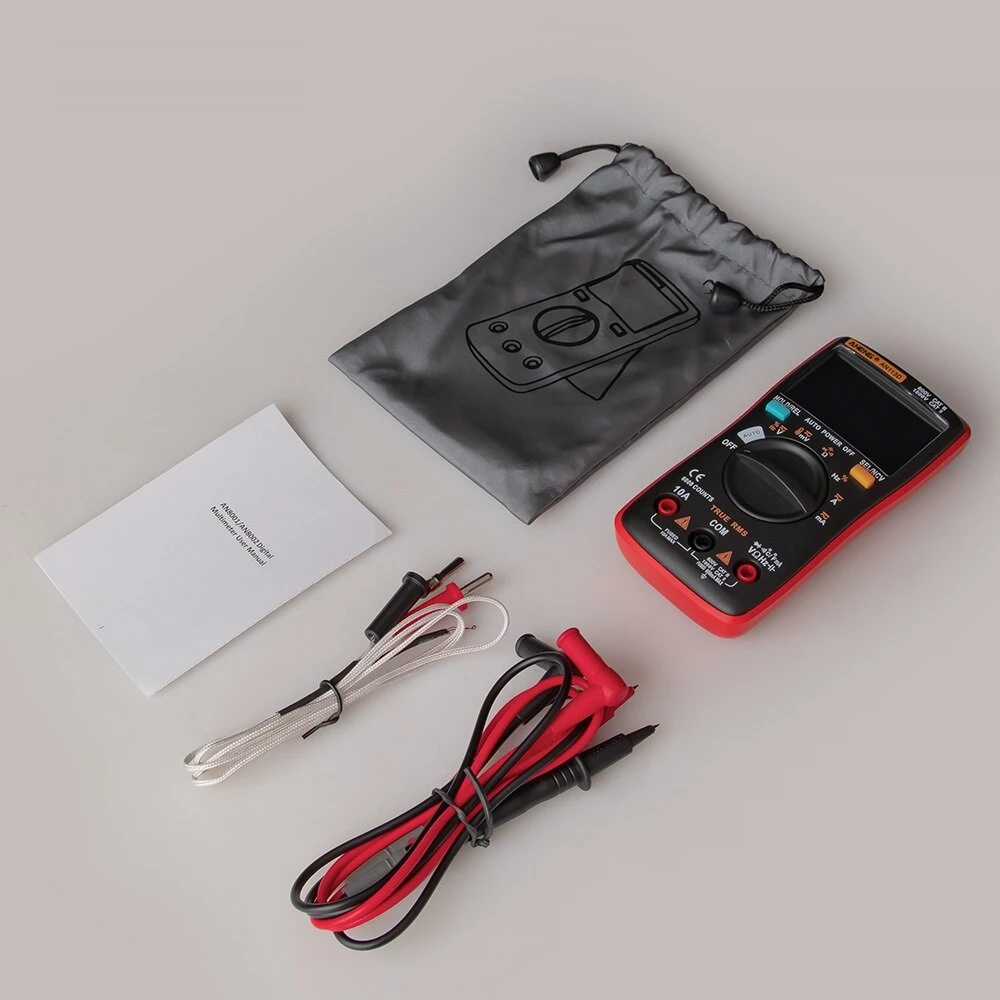

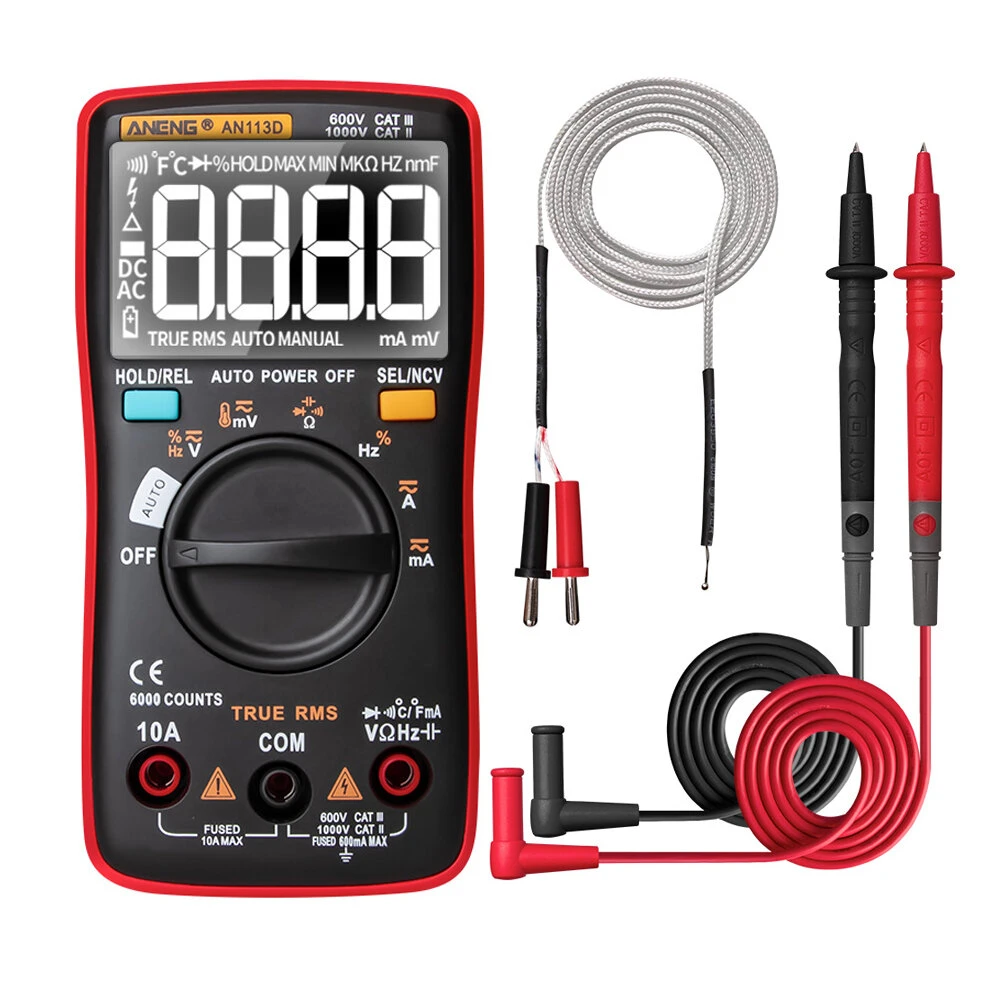

Package Includes:

1 x Multimeter
1 x Pair of test leads
1 x Thermocouple
1 x English user manual

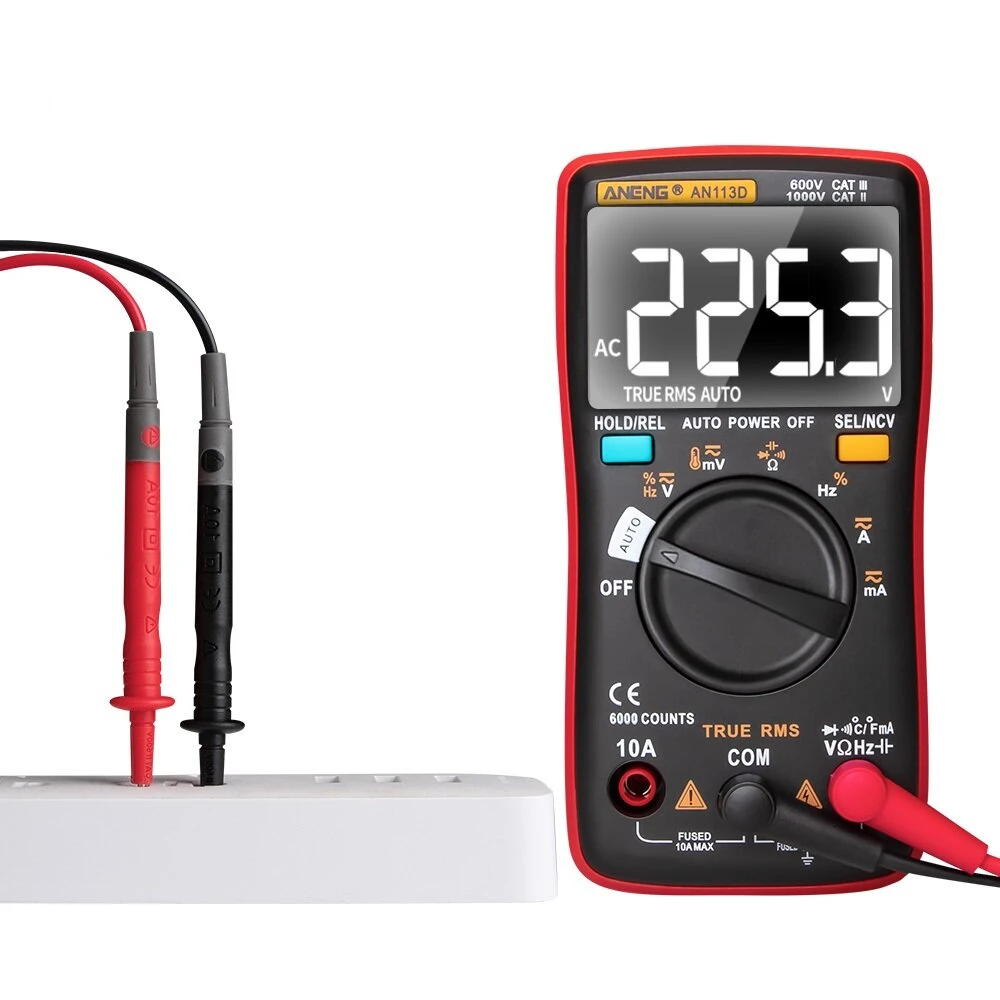

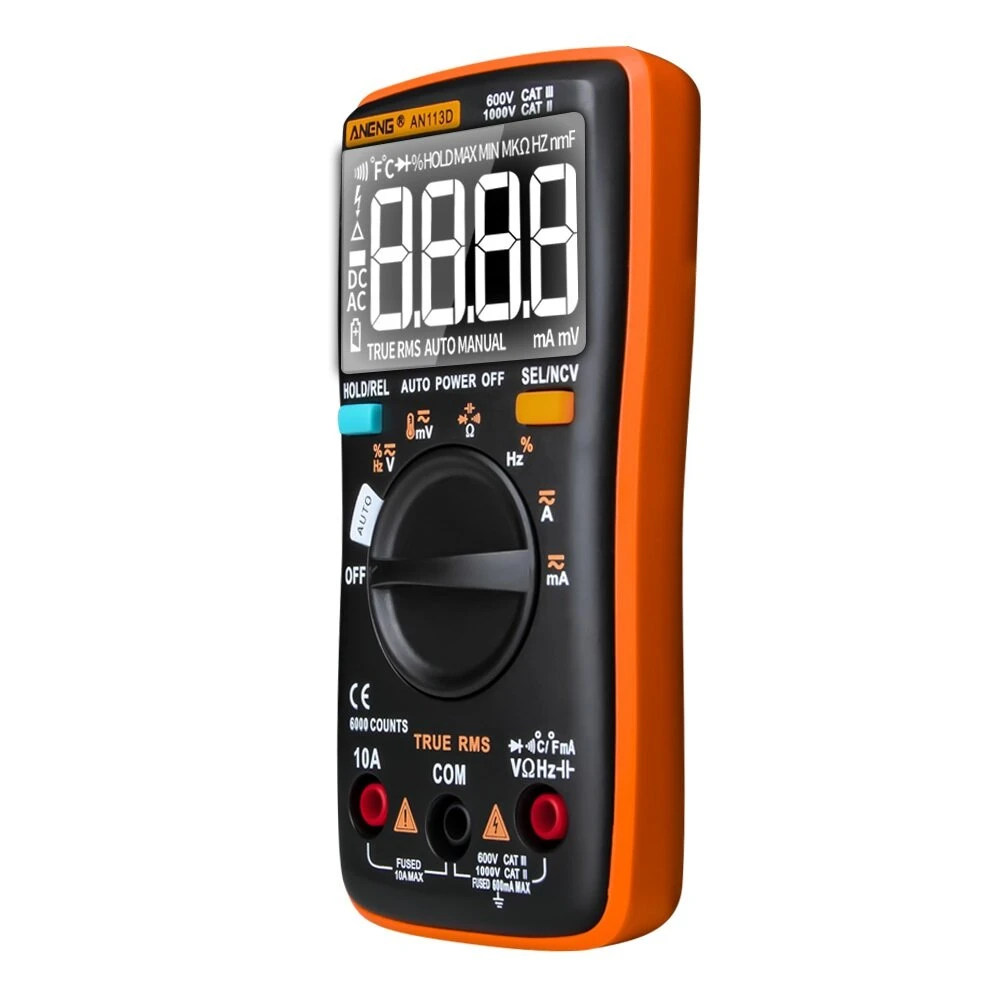

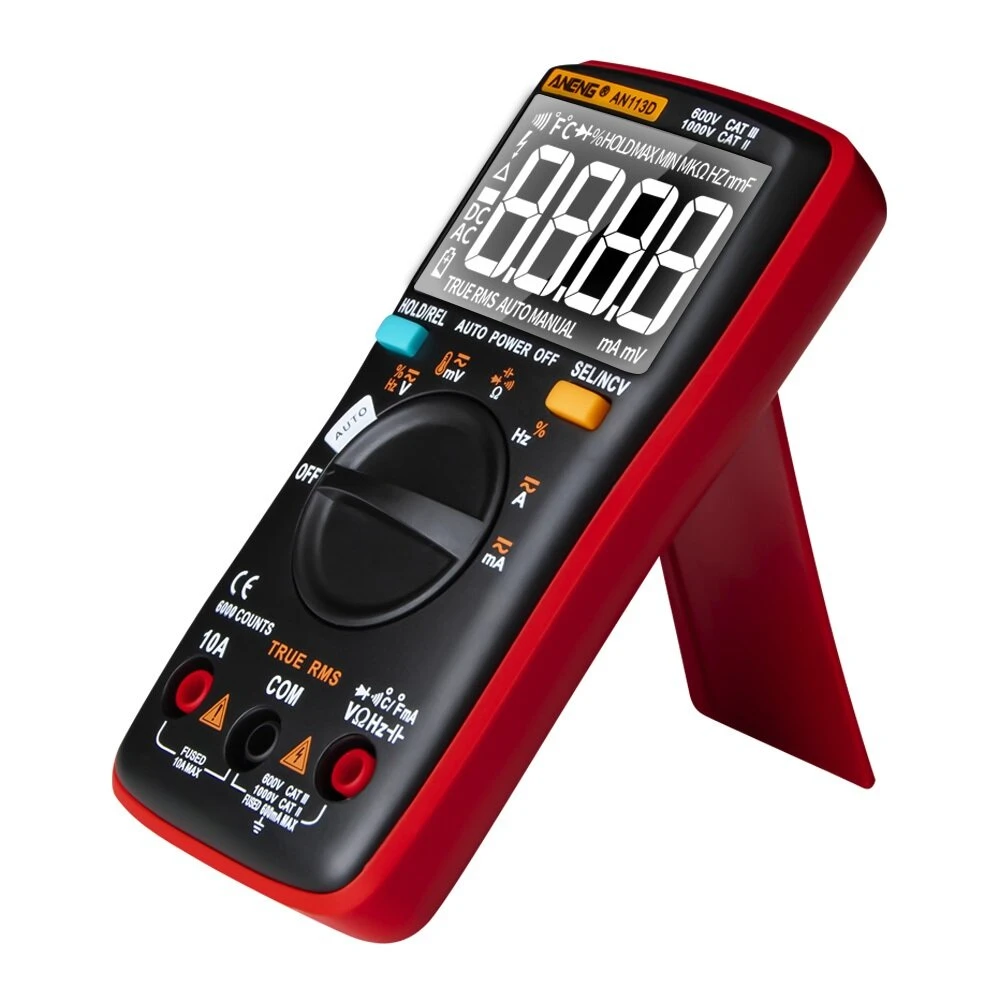

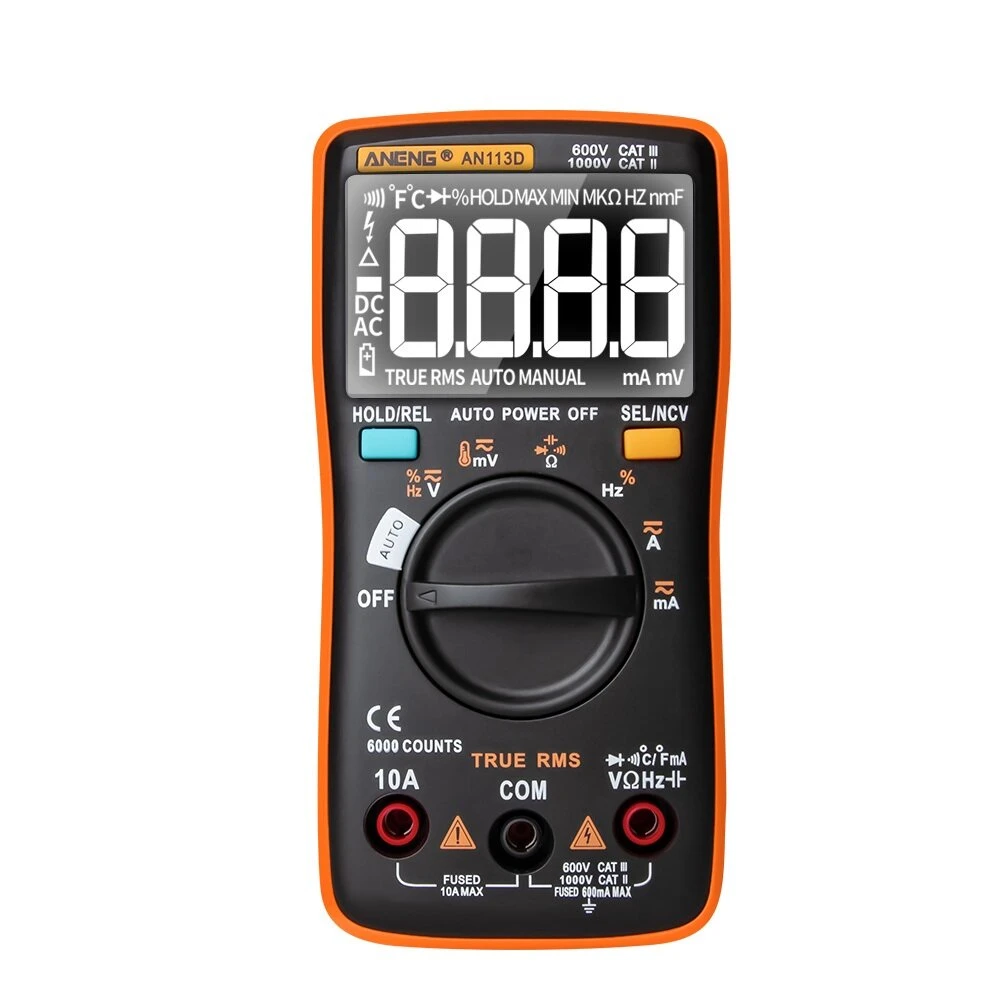

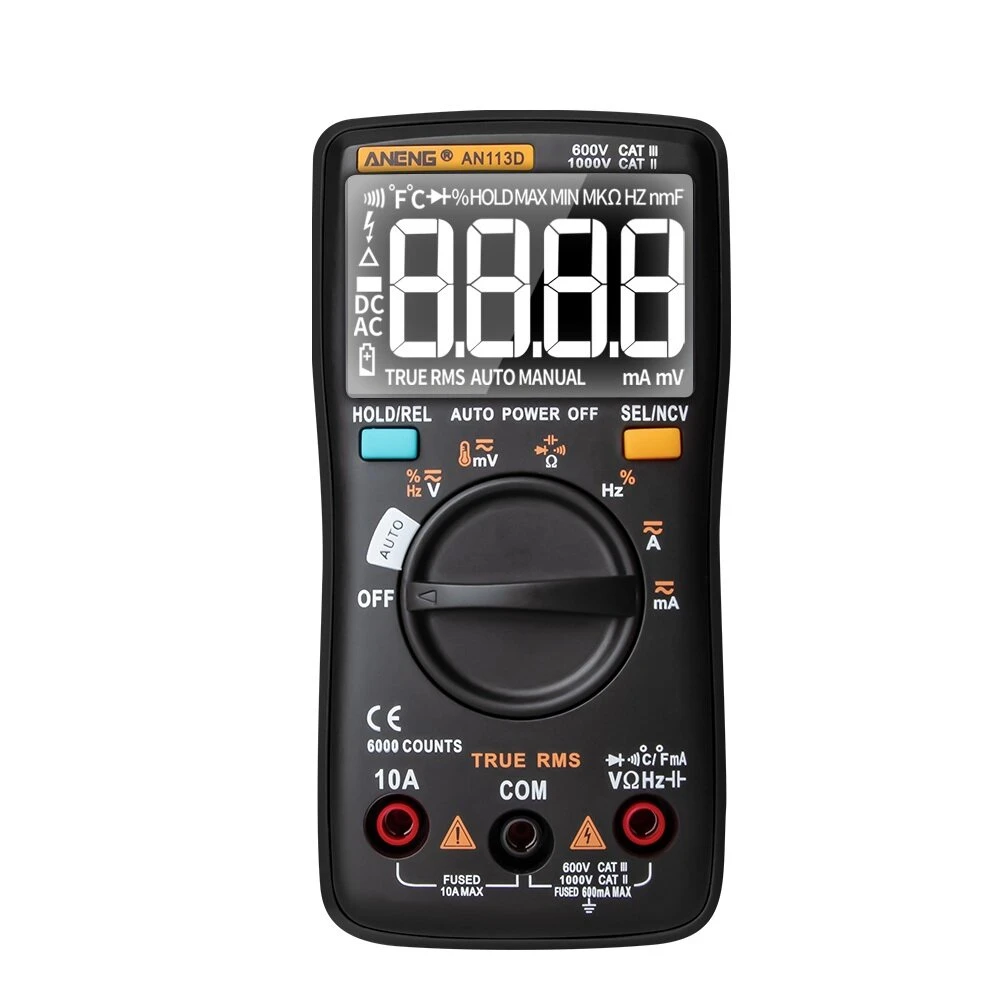

Details Pictures:
