Features:
1.600A AC current measurement

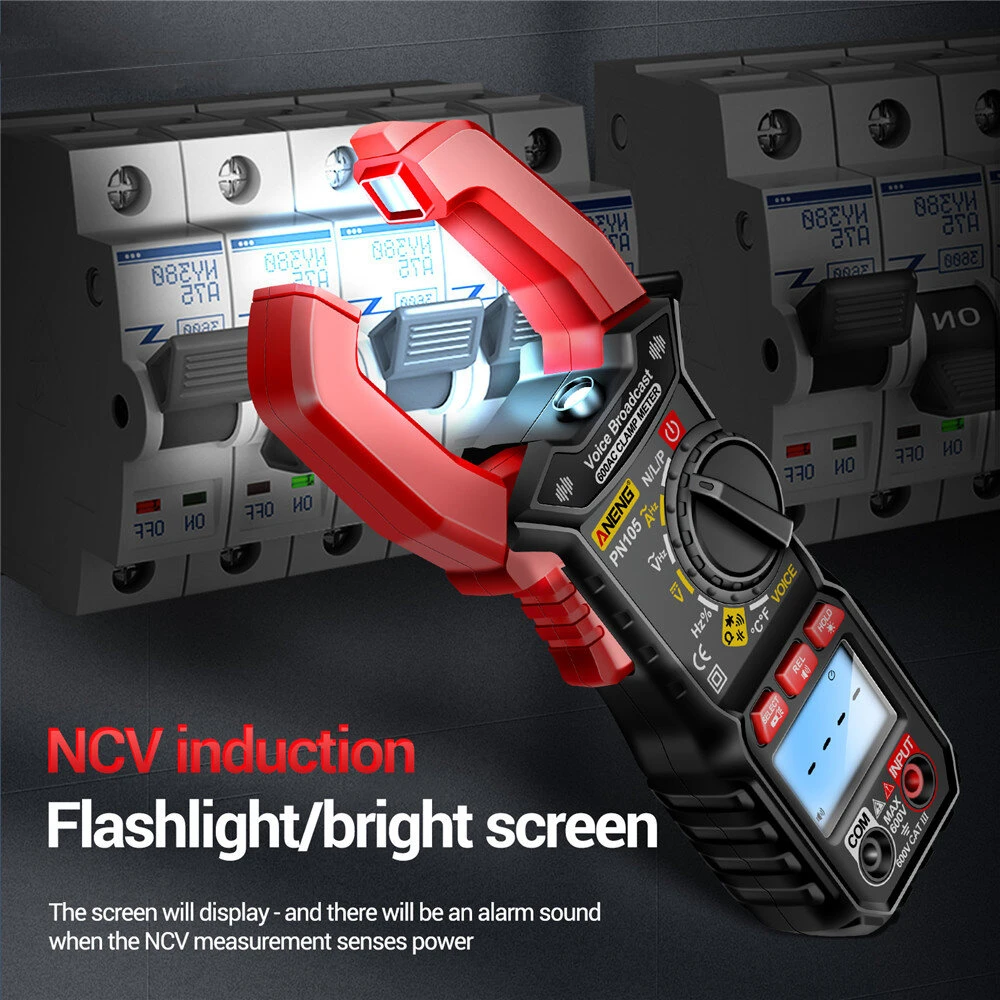

2. When the NCV senses the power supply, the screen will display — and there will be an alarm sound, flashlight and backlight bright screen to help the measurement in dark environment

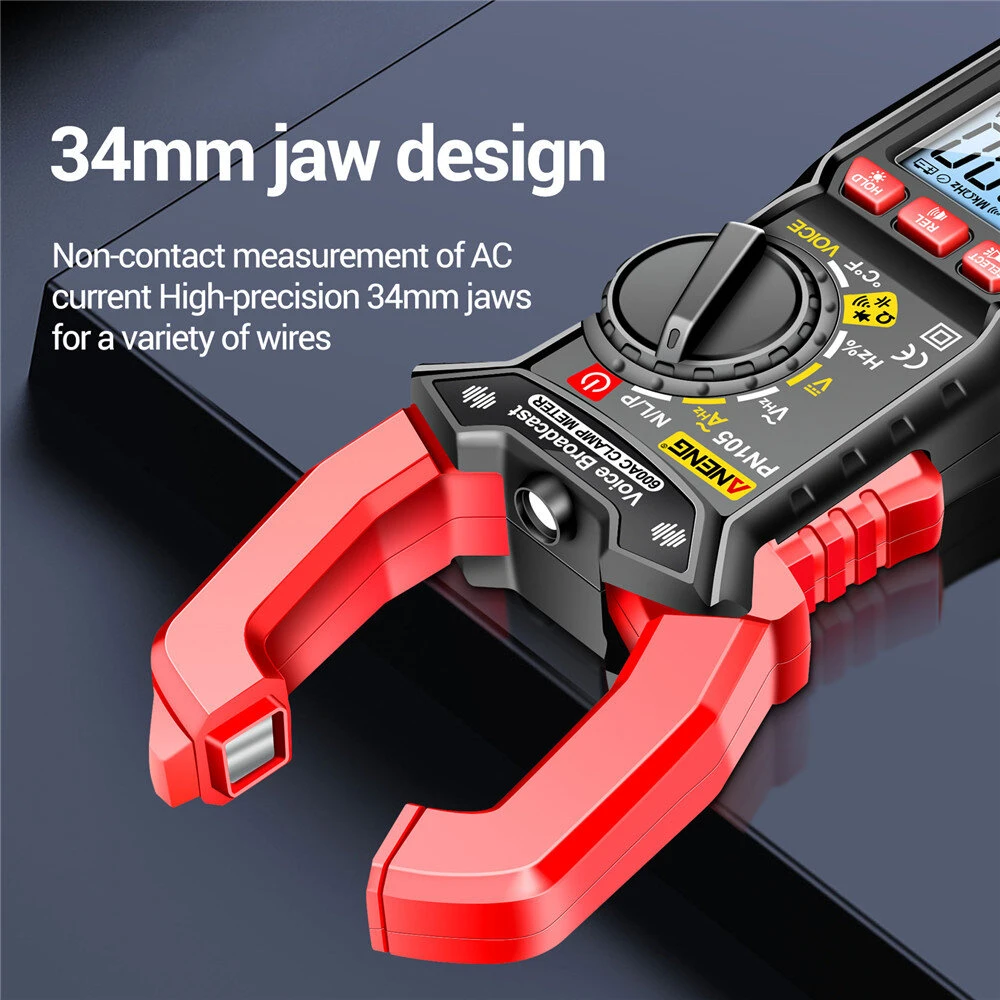

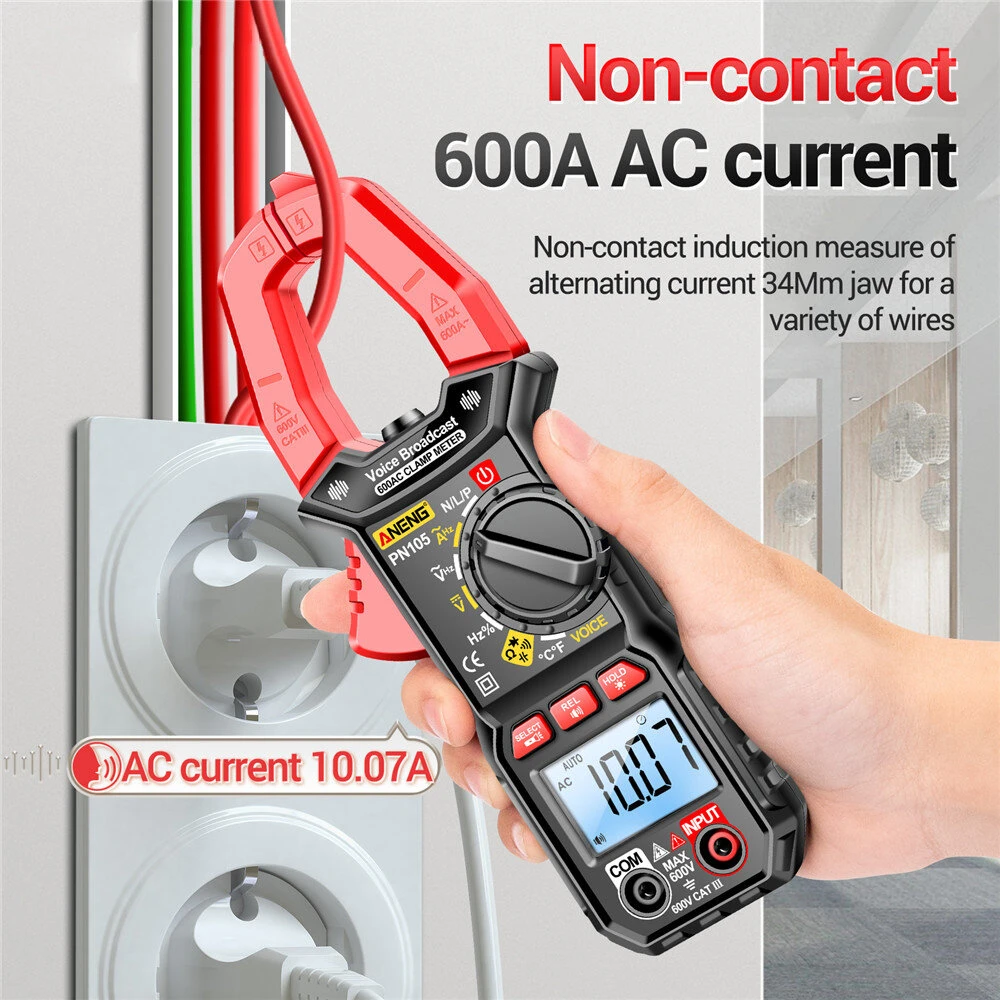

3. Non-contact induction measurement of AC current is safer, high-precision induction 34mm jaw is applicable to a variety of wires
4. Data holding screen backlight bright screen: let the measurement unlimited digital display upgrade to 6000 digital display, and press the HOLD key to keep the data on the screen for recording

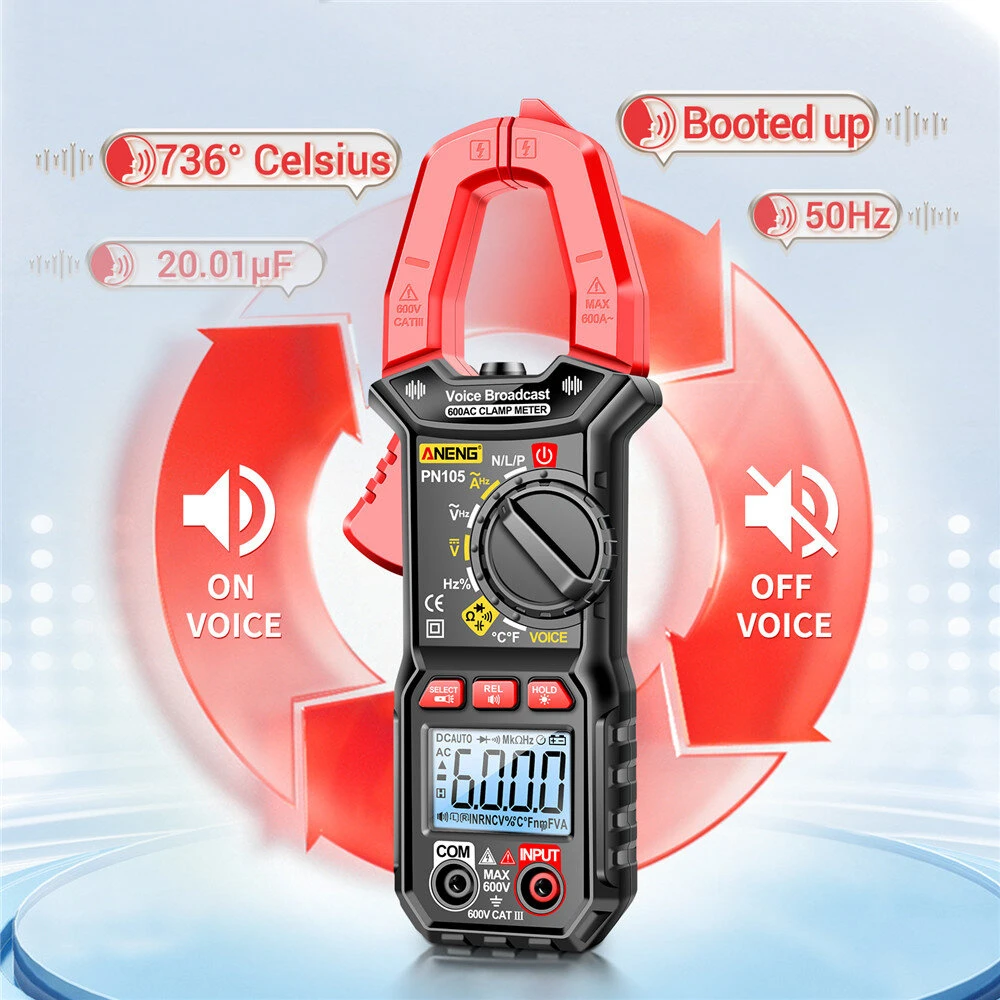

5. Live voice broadcast: When the value is stable, the instrument starts to broadcast the reading, and the value can be clearly understood without looking
6. Three-phase line phase detection: the pen tip is close to the phase line to measure ABC, and the voice broadcast result “reverse phase ” screen displays “L” as reverse phase, and “R” as positive phase
7. LIVE zero-fire line detection, temperature NCV power induction
Specifications:
Product model: PN105
AC current: 0~600A
AC voltage: 6V~600V
DC voltage: 600mV~600V
Resistance: 0~600M Ω
Capacitance: 10nF~60mF
Hz:10hz~10MHz
Duty ratio: 0.1%~99.9%
Temperature ℃: – 40~1000 ℃
Temperature ℉: – 40~1832 ℉
Phase detection: √
NCV induction: √
Diode: √
Backlit screen: √
Zero line: √
On/off beep: √
Data retention: √
Relative value measurement: REL √
Automatic shutdown: √ 15 minutes without operation will automatically shut down
Battery model: AAA * 2 (shipped without battery)
Maximum count: 6000
Pen material: PVC/brass
Probe length: 97cm/38.1inch
Voice function: voice can be turned on/off

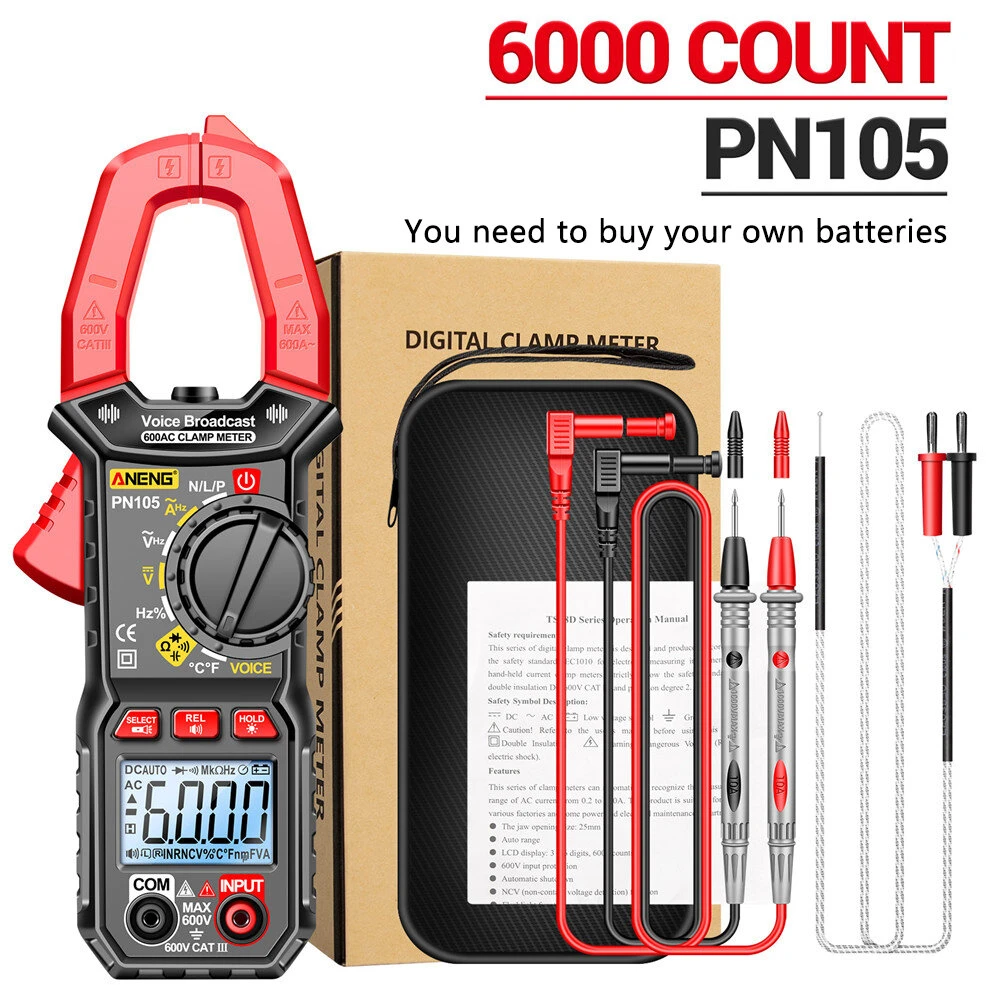

Package included:
1 x Multimeter
1 x Pen
1 x Instructions
1 x Storage bag
1 x Temperature line
