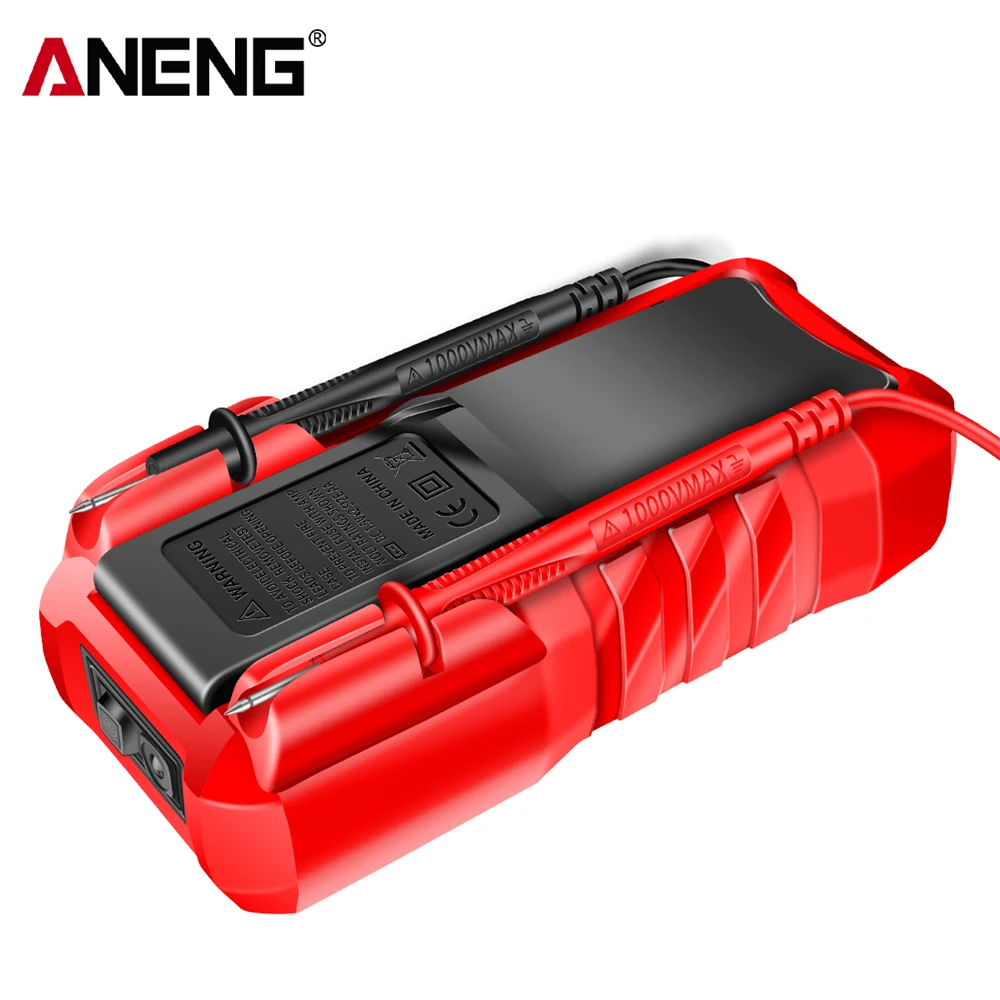

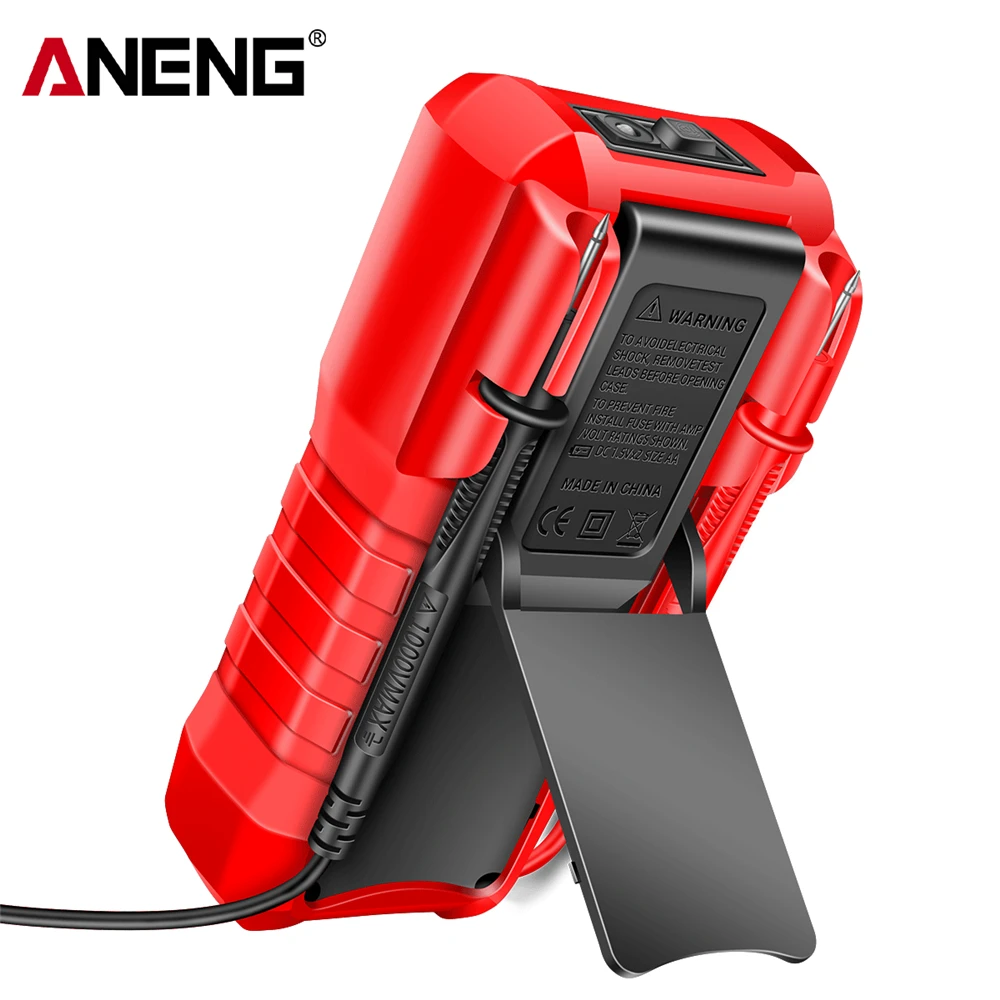

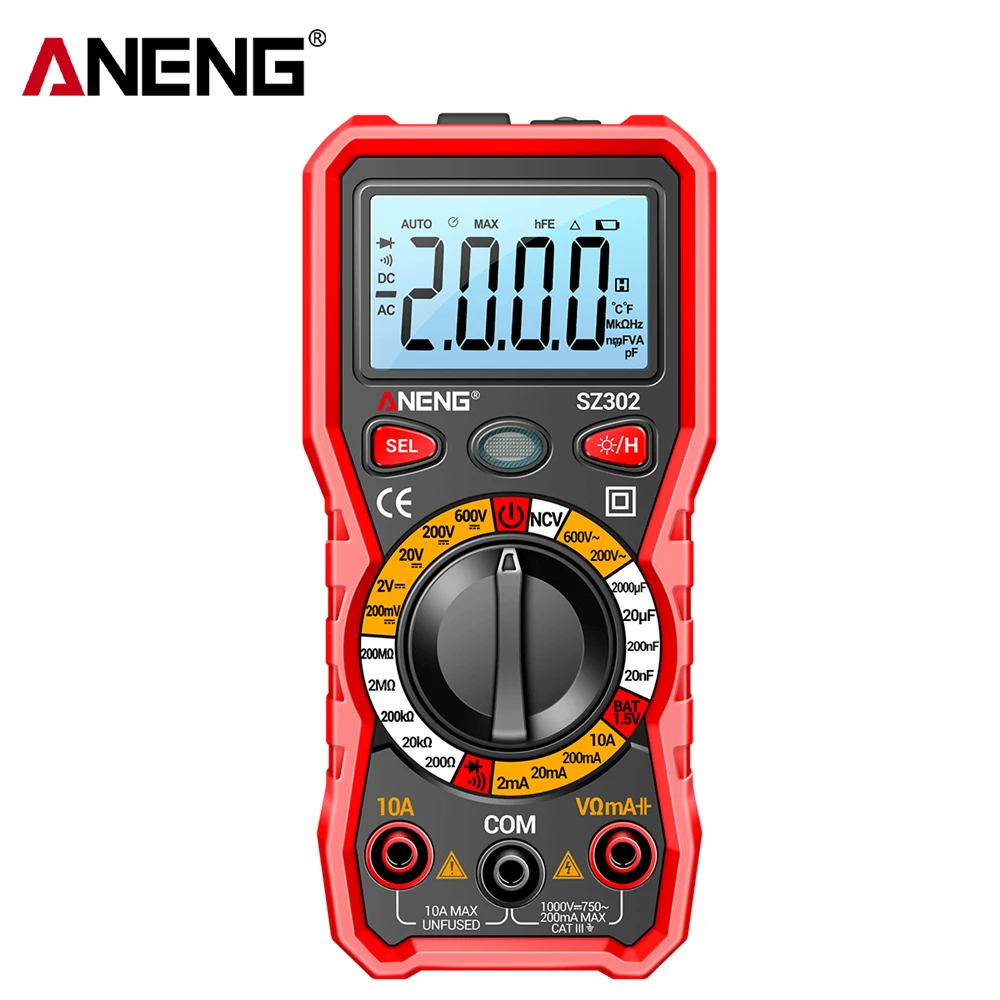

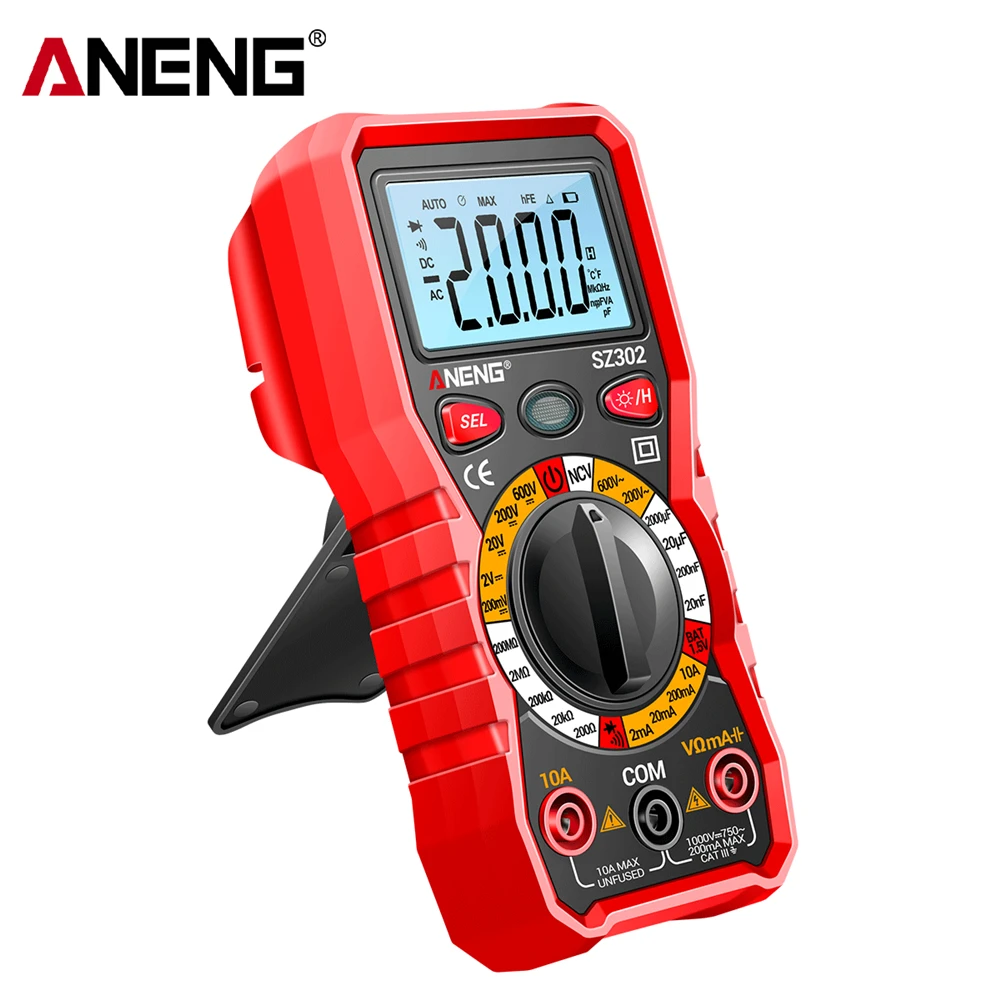

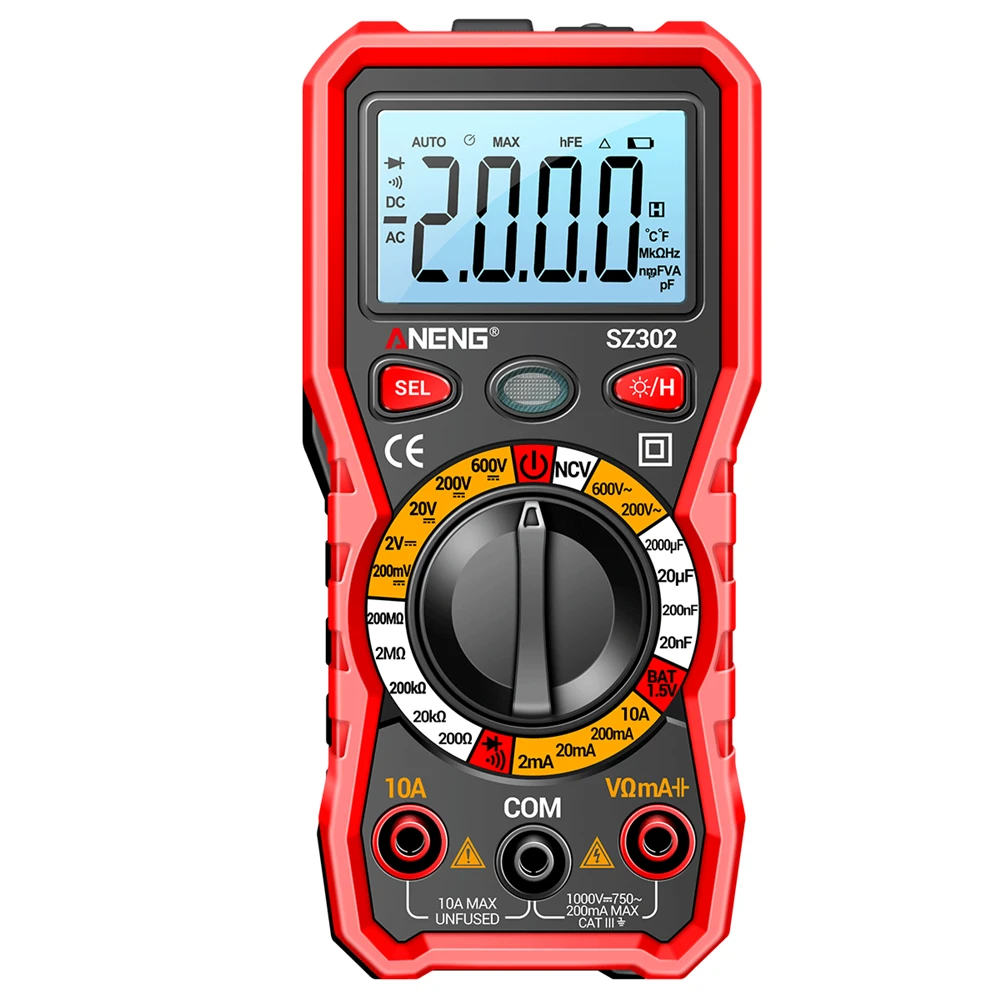

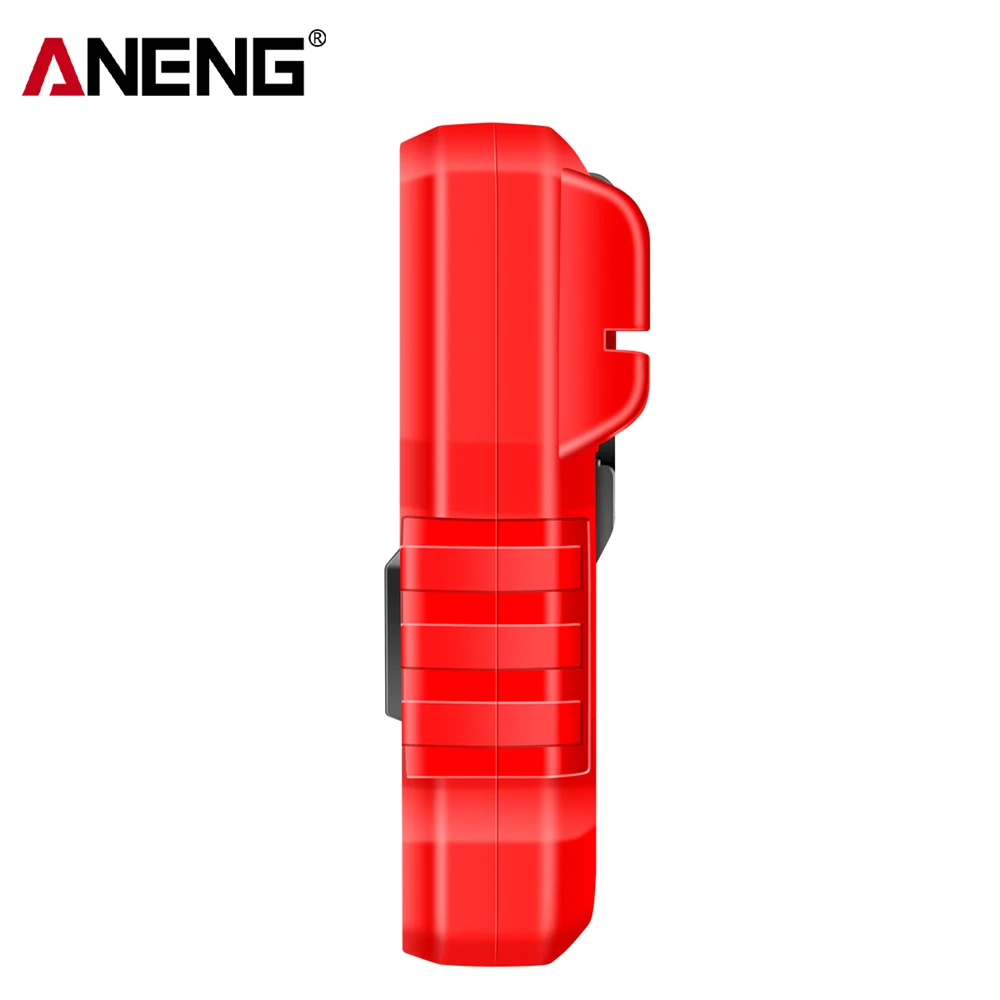

ANENG SZ302 is a handheld digital multimeter, designed and produced according to international electrical safety standards, used to measure AC/DC voltage, AC/DC current, resistance, capacitance, diode and NCV and other functions
Feature:
|
Function |
Range |
Resolution |
Accurate |
|
DC voltage |
200mV/2V/20V/200V/600V |
0.1mV/1mV/10mV/0.1V/1V |
±(0.5%+5) |
|
AC voltage |
200V/600V |
100mV/1V |
±(1%+5) |
|
DC current |
2mA/20mA/200mA/10.00A |
0.001mA/0.01mA/0.1mA/0.01A |
±(1.5%+8) |
|
AC current |
2mA/20mA/200mA/10.00A |
0.001mA/0.01mA/0.1mA/0.01A |
±(1.5%+8) |
|
Resistance |
200Ω/20kΩ/200kΩ/2MΩ/200MΩ |
0.1Ω/10Ω/100Ω/1kΩ/100kΩ |
±(4.0%+10) |
|
Capacitance |
20nF/200nF/20uF/2000uF |
0.01nF/0.1nF/0.01uF/1uF |
±(5.0%+10) |
|
Diode |
√ |
On and off beep |
√ |
|
Flashlight |
√ |
Data retention |
√ |
|
Bright screen |
√ |
NCV induction |
√ |
|
Indicator light |
√ |
Automatic shut-down |
√ |
|
Battery |
No.5 AA battery*2 |
BAT 1.5V |
√ |
|
Model |
SZ302 |
Pen material |
PVC/Brass |
|
Max count |
2000 counts |
Overall length of test leads |
74MM |
The package includes:
1 x Multimeter (Without battery)
1 x Test lead
1 x User Manual
