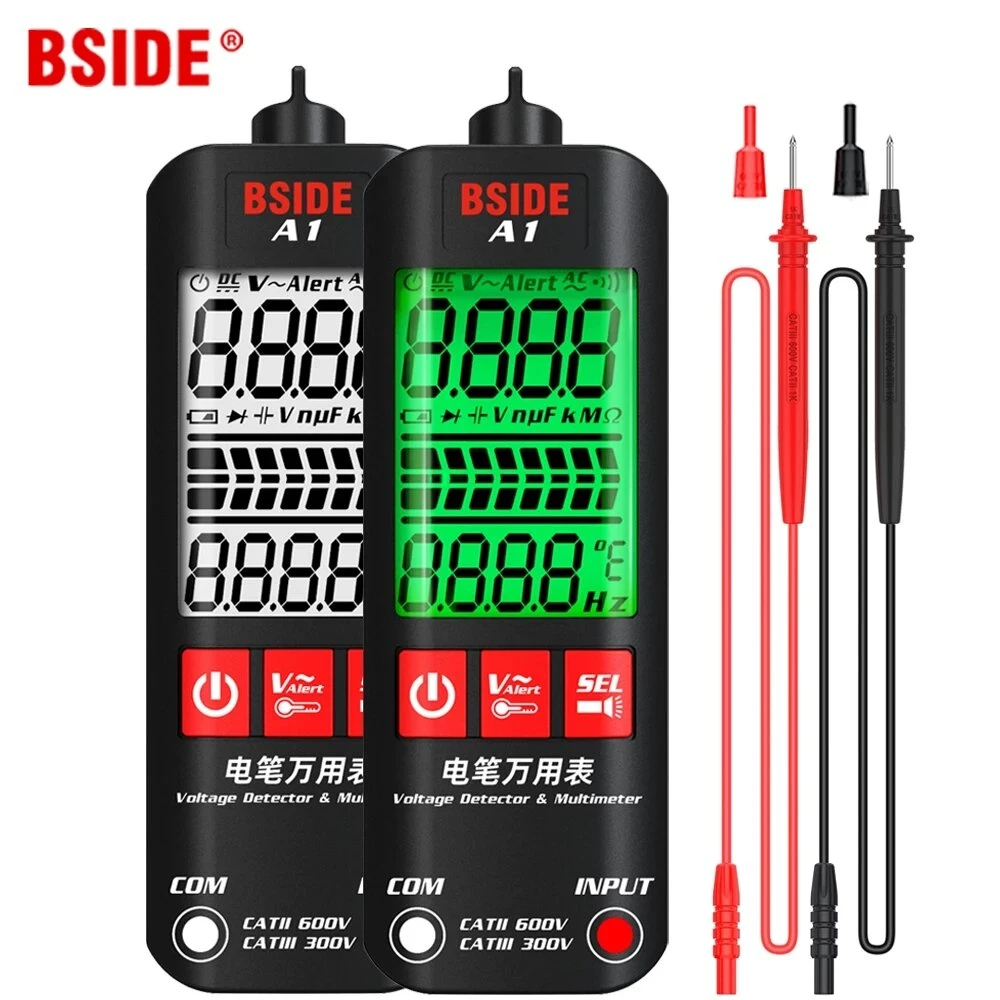

BSIDE A1 Voltage Tester Detector Multimeter Color Display Non-Contact Electric Pen Dual Range Live Wire Test Ohm Hz NCV Meter

Main Features:
  ●  2.2-inch red/green two-color display design.

  ●  Non-contact and pen shaped desigh,convenient to operate and carry.

  ● Dual sensitivity mode（High：12~1000V / Low：48~1000V）. The sensitivity of the product can be adjusted freely according to the actual scene used.

  ● This product has a Self-test function at boot time. It can effectively detect whether the product can work normally and avoid wrong judgment.

  ● Has Induction dangerous voltage alarm, Live/Neutral wire distinction, Live Wire Breakpoint Locate, Continuity check, DC/AC voltage, resistance, frequency, flashlight lighting features etc.

  ● Alarm mode:Sound and light (Red/Green).

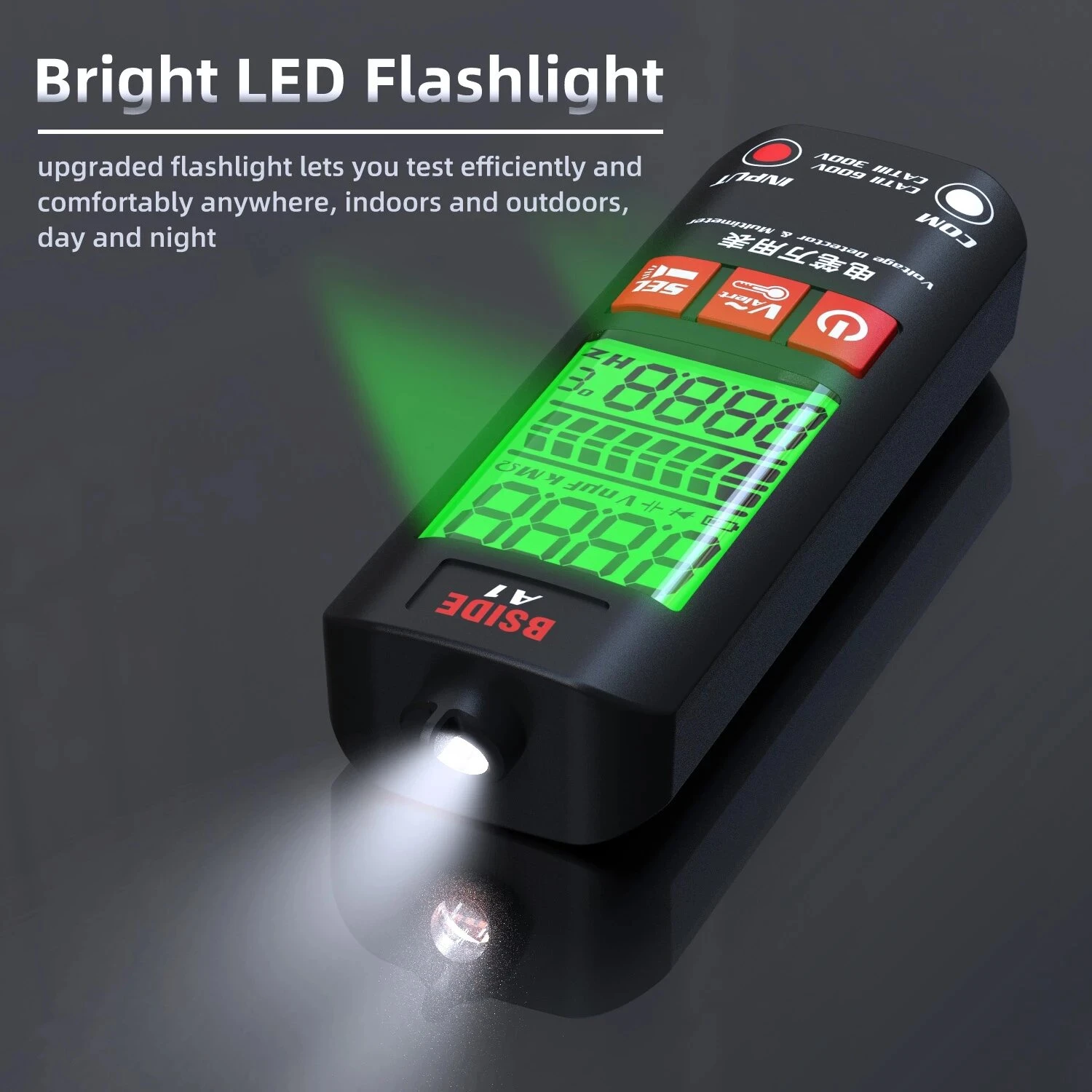

  ● LED spotlight, Battery low voltage reminder, Auto power off features.

 ● Safety level: CAT II 1000V. Compliance with international safety standards.

  Specification

Display: 2000 counts

Screen: 2.2 inch

DC Voltage: 500V 0.01V ±(0.8%+3)

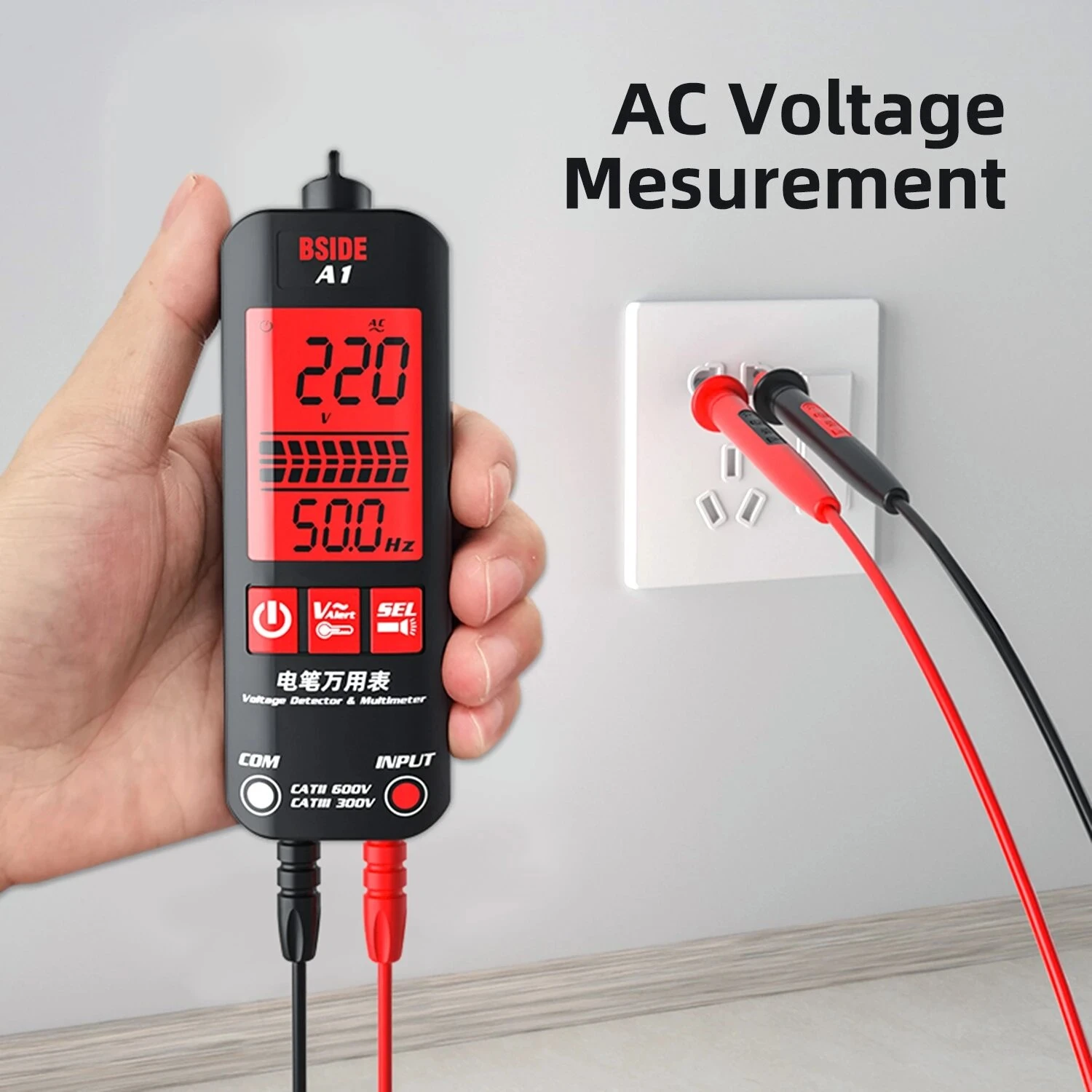

AC Voltage: 500V 0.01V ±(1.2%+5)

Resistance: 0Ω-10MΩ 1Ω ±(1.2%+3)

Frequency: 1000Hz 0.1Hz ±(2.0%+3)

Continuity: If the resistance less than 30Ω, the beeper sounds

V-Alert (Non-contact Voltage Detection): Yes

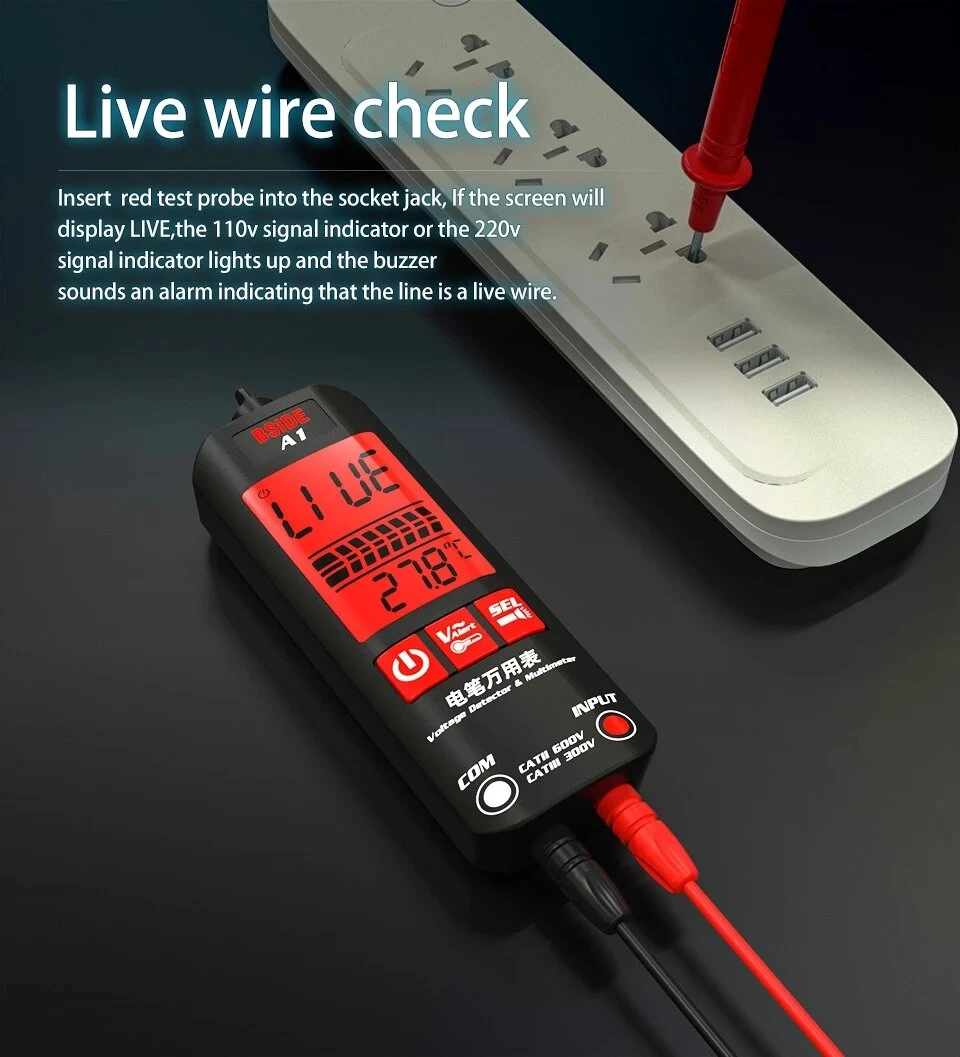

Live Wire Check: Yes

Power: 1.5V (AAA) x 2 (Not Included)

Size: 127*42*25mm

Weight: 67g

  Package Contents

1 x Voltage Detector

1 x Test Leads

1 x Screwdriver

1 x User Manual
