【Code:BG2eedd5】UNI-T UTi85A -15℃~550℃ Digital Industry Infrared Thermal Imager Real-time Imaging Transmission Thermal Imager Camera
Original price was: $216.11.$95.99Current price is: $95.99.
- Safeguard Your Shopping Experience
- Online assistance, always at your service.
- Buy with confidence, backed by quality.
- There are quality problems, free return and exchange
【Code:BG81f285】$ 216.99
Description:
UTi85A is a Versatile, rugged, and ergonomically designed thermal imager with great performance. It adopts a UFPA detector to ensure excellent infrared resolution and a rich variety of palette modes. It also has buzzer alarm, and real-time image transmission, which is convenient for various applications.
Features:
Temperature Measurement Display: ROI, center point temperature, high/low temperature tracking (default).
5 Color Palettes Selectable: including iron red, rainbow, white hot, red hot, ice blue, 5 kinds of color palettes for you to choose from.
USB Communication and Image Projection: after connecting to a PC, you can browse pictures and analyze data under the USB Mode, or switching to the USB Camera Mode, it allows you to realize real-time image projection.
Supports Image Storage: comes with a 16G micro TF storage card for saving the captured images.
HD TFT Screen: 2.8-inch TFT screen with 80 * 60 infrared resolution, the image displayed is clearly for you to observe the detail of the image.
Tripod Mounting: 1/4″ tripod mounting hole at the bottom of the handle, you can mount the thermal imager on the tripod to ensure the stability during measurement.
LED Light: LED flashlight for auxiliary lighting, besides, the light will flash once the measured temperature exceeds the set temperature range.
Built-in Li-ion Battery: 3.6V 5000mAh large capacity rechargeable battery provides up to 6 hours of battery life after full charged. Recharging or connect with PC via the included Type-C cable.
Multifunctions & Practical: -10~400℃(14~752℉) temperature measurement range, ℃/℉ unit switchable, buzzer alarm, auto capture of Hi/Low temperature, high/low temperature alert, display brightness adjustable, IP65 protective and 2m drop proof, etc.
Specifications:
Material: ABS
Sensor: UFPA
Display: 2.8″ TFT LCD
Display Resolution: 320 * 240 pixels
Temperature Range: -10~400℃ / 14~752℉
Measurement Accuracy: ±2℃ or ±2%
Resolution: 0.1℃ / 0.2℉
Response Time: ≤500ms
Thermal Resolution: 4,800 pixels (80 * 60)
Pixel Size: 17μm
Color Palette: Iron red, rainbow, white hot, red hot, ice blue
Infrared Spectral Bandwidth: 8~14μm
Field of View (FOV): 51°(H) * 38°(V)
Spatial Resolution (IFOV): 11.1mrad
Thermal Sensitivity(NETD): ≤150mK
Frame Rate: ≤9Hz
Image Format: BMP
Buzzer Alarm: Yes
PC Software: Yes
Real-time Image Transmission: Yes
Data Transmission: Type-C USB interface
Auto Power-off(Selectable): 5min, 10min, 30min(default), off
Battery: 1 * 26650 3.6V 5000mAh rechargeable Li-ion battery
Battery Life: ≥6 hours
Charging Time: 4 hours
Charging Voltage/Current: 5V/2A
Image Storage: Micro storage card (16G)
Language Selection: Chinese, English, AM Spanish, EU Spanish, German, Italian, French
Storage Environment: -20~60℃ (-4~140℉), <85%RH (non-condensing)
Operating Environment: 0~50℃ (32~122℉), <85%RH (non-condensing)
Operating Altitude: ≤2,000m
IP Rating: IP65
Drop Test: 2 meters
Item Size: 236 x 75.5 x 76mm / 9.29 x 2.97 x 2.99in
Package Size: 28 x 16.2 x 11.8cm / 11.02 x 6.38 x 4.65in

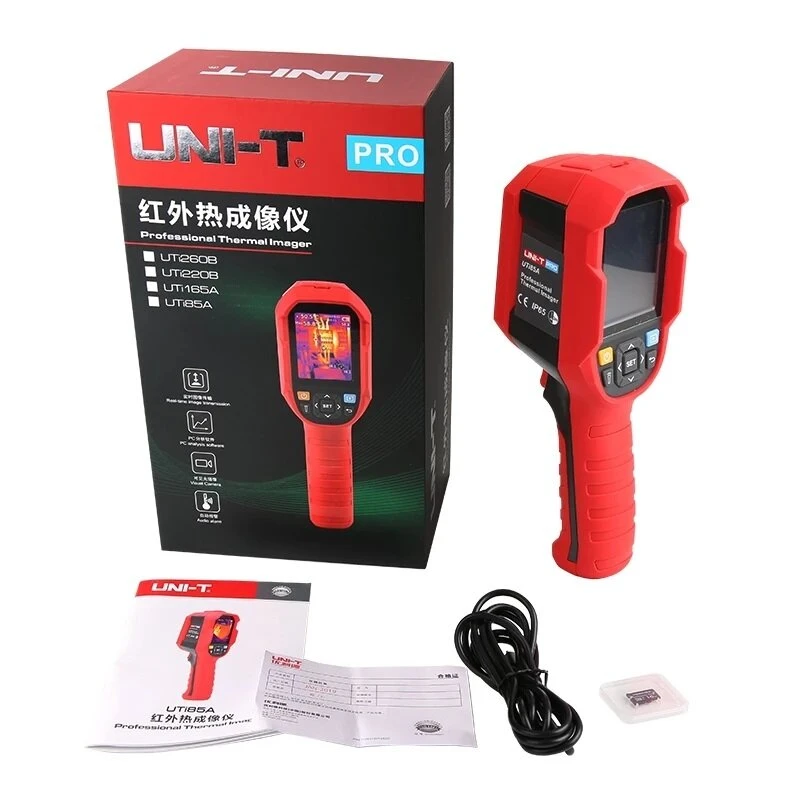

Package Includes:
1 x Thermal Imager
1 x 16GB Data Storage Card
1 x Type-C Cable
1 x English Manual
