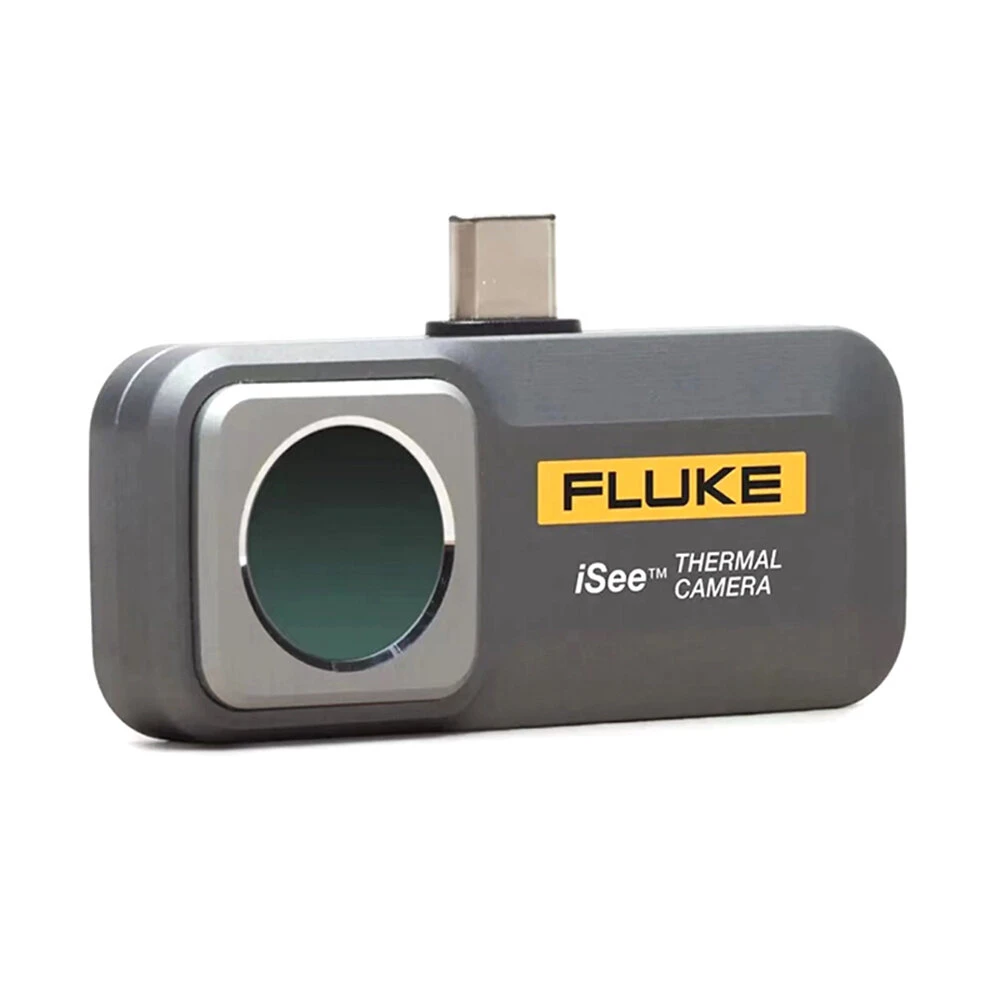

Fluke TC01A Thermal Camera For Phone Construction Imager Thermographic Smartphone Repair Cell Phone Infrared Professional

Features:

High Precision: The Fluke TC01A Thermal Camera provides superior accuracy of ± 2% (or ± 2℃), assuring you precise measurements each time.



High-Resolution Imaging: With an infrared resolution of 256×192, this professional-grade thermal camera delivers clear, detailed thermographic images for reliable diagnostics and repairs.



Versatile Temperature Range: The TC01A offers an expansive temperature measurement range, from -10℃ to 550℃, covering your diverse needs in different environments.



Convenient and Portable: Designed with a Type C USB interface and compact size, the Fluke thermal camera is highly portable and compatible with most smartphones, making it ideal for field use.



Rugged and Reliable: This thermal camera is robustly built to withstand challenging working conditions, with an IP54 protection level and resistance to a broad range of temperatures and humidity levels.



Specifications:

Brand: Fluke

Model: FLUKE-TC01A

Type: Infrared Thermal Imaging Camera

Color: Black

Infrared Resolution: 256×192

Pixel Size: 12um

Temperature Measurement Range: -10℃-150℃,100℃-550℃

Accuracy: ± 2% (or ± 2℃)

Temperature Measurement Distance: 0.25-5M

Frame Rate: 25Hz

Focal Length: Fixed 3.2mm

Thermal Sensitivity (NETD): 50mK

Spectra: 8-14um

Field of View Angle (HxV): 56° x42°

Spatial Resolution: 3.81mrad

USB Interface: Type C

Working Temperature: 0℃ -40℃

Storage Temperature: -30℃ -60℃

Working Humidity: 10% -90% RH

Power Consumption: 350mW

Protection Level: IEC 60529, IP54

Size: 59x32x10mm



Package Included:

1 X FLUKE-TC01A Infrared Thermal Imaging Camera

1 X User Manual

1 X Carrying Case
