Guide PC210 256x192 2.4" LCD Screen Industrial Thermal Imager -20°C~150°C High Power Fast Charge Thermal Camera Thermal Inspection Tool

Guide PC210 256x192 2.4" LCD Screen Industrial Thermal Imager -20°C~150°C High Power Fast Charge Thermal Camera Thermal Inspection Tool - Image 2

Guide PC210 256x192 2.4" LCD Screen Industrial Thermal Imager -20°C~150°C High Power Fast Charge Thermal Camera Thermal Inspection Tool - Image 3

Guide PC210 256x192 2.4" LCD Screen Industrial Thermal Imager -20°C~150°C High Power Fast Charge Thermal Camera Thermal Inspection Tool - Image 4

Guide PC210 256x192 2.4" LCD Screen Industrial Thermal Imager -20°C~150°C High Power Fast Charge Thermal Camera Thermal Inspection Tool - Image 5

Guide PC210 256x192 2.4" LCD Screen Industrial Thermal Imager -20°C~150°C High Power Fast Charge Thermal Camera Thermal Inspection Tool - Image 6

Guide PC210 256x192 2.4" LCD Screen Industrial Thermal Imager -20°C~150°C High Power Fast Charge Thermal Camera Thermal Inspection Tool -Home-Tools 20119ee9 757b 4d5d a1bb 25ea7152cff0

Guide PC210 256×192 2.4″ LCD Screen Industrial Thermal Imager -20°C~150°C High Power Fast Charge Thermal Camera Thermal Inspection Tool

Original price was: $371.29.Current price is: $95.99.

SKU: DXNHL 1974682 Categories: Measurement & Analysis Instruments, Temperature Measurements

Safeguard Your Shopping Experience
Online assistance, always at your service.
Buy with confidence, backed by quality.
There are quality problems, free return and exchange

Description
Reviews (0)

Description:

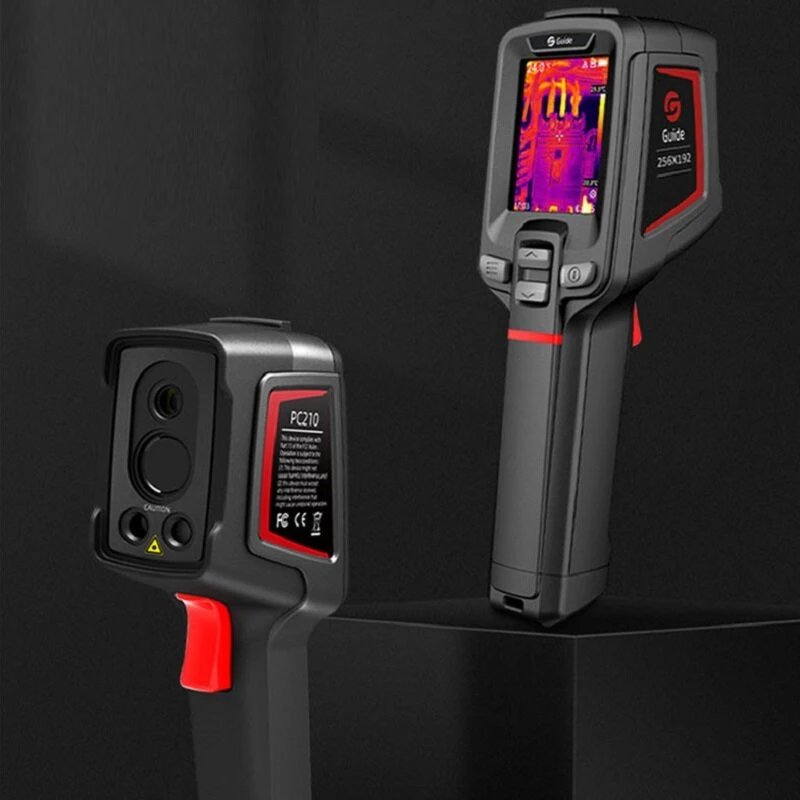

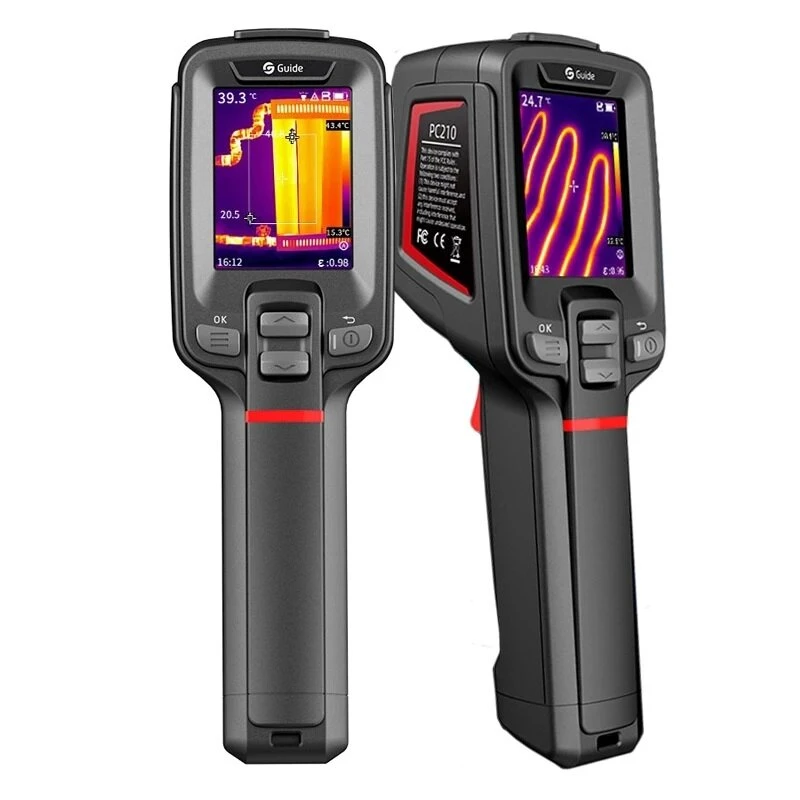

PC210, Tool-like Handheld Thermal Camera, With excellent performance in image quality and charging battery life ,This Thermal Camera adopts 256×192 IR Detector and 200W pixel visible light. Adopts the New SharpIR composite image enhancement technology, it can provide you with detailed infrared thermal imaging and dual-light fusion images to help you find potential faults more quickly.

Features:

Boot up in 1 Second

Boot up and display fully radiometric image instantly

Full screen max & min temperature alarm

2.4 inch Large Display

240 x 320 pixel Color LCD

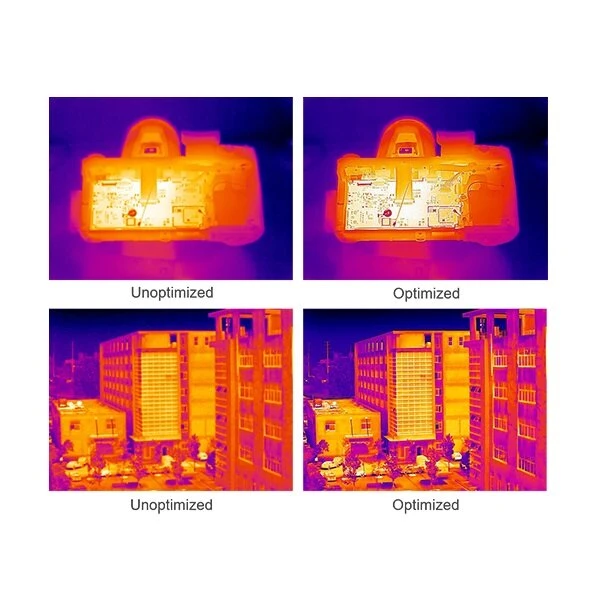

New Sharp IR composite image enhancement technology

Based on advanced and deep learning technology, SharpIR performs various optimization processes such as defogging, sharpening, contrast enhancement, and lossless magnification on low-resolution images to enhance the clarity of infrared images

16-hour Battery Life

Low power consumption, Large capacity battery

2.5-hour Fast Charge

USB Type-C Interface; High power fast charge.

Specification:

Model	PC210
Detector type	256×192@12μm
Focal Length	3.2mm
Field of view(FOV)	56°×48°
Focus	Focus-free (Manual focus)
Visible Camera Resolution	200W pixel, Resolution optional (240×320/1600×1200)
Flashlight	Yes
Display	2.4″ LCD screen, 240×320

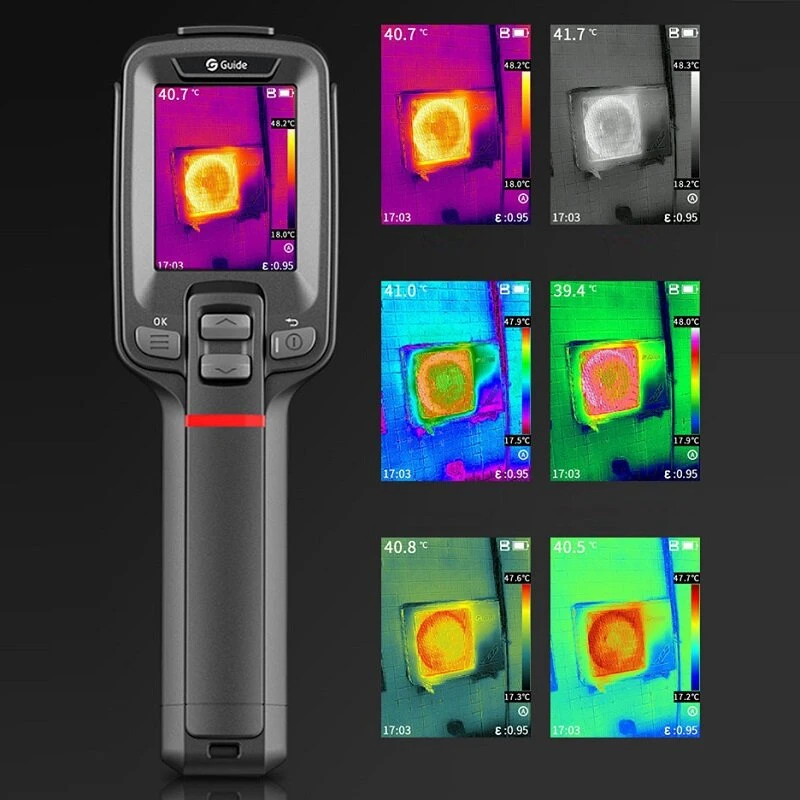

Image Model	IR, Visible, Picture-in-Picture, MIF
Temperature Range	-20°C-150°C， 100°C-550°C(Auto switching)
Measurement Analysis	Center spot
Measurement Area	3(incl. max & min temp)
Auto Hot & Cold Spot Tracking	Yes
Alarm	Full Screen Max & Min Spot Alarm,Support Image and flash light Alarm
Image Storage
Storage Media	TF card(Standard 16G, up to 32G)
Image Format	IR/MIF/PIP imaging mode: jpg format with temperature data (256192) ; Visible light imaging mode: jpg format without temperature data (240320)
Connections & Communications

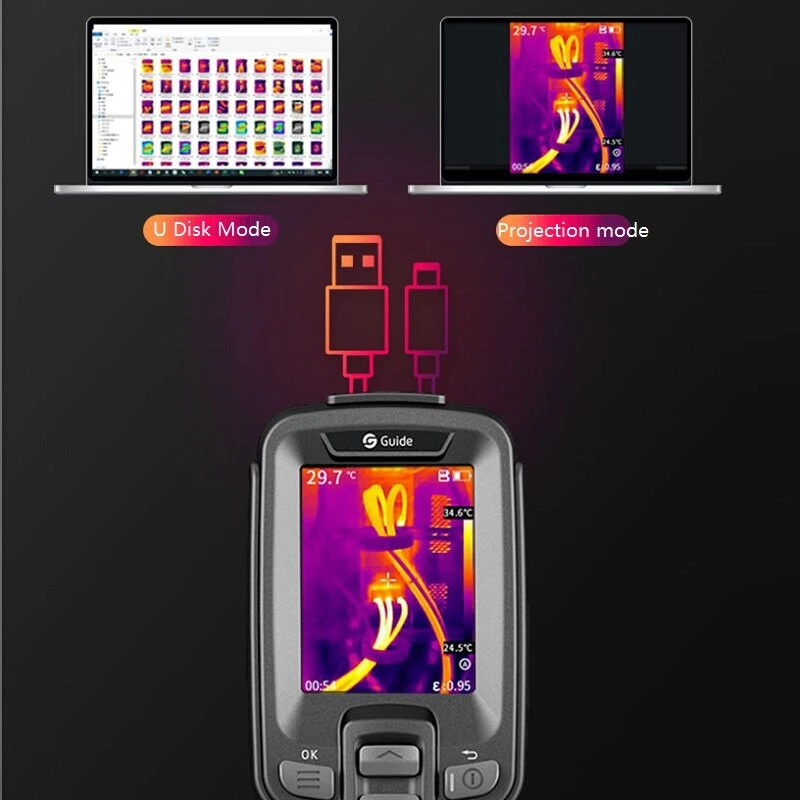

USB	TYPE-C/TF Card slot
Laser	Yes
Tripod interface	Yes
PC IR Analysis Software	Yes
Power System
Battery Type	Rechargeable Li ion battery
Battery Operating Time	16 hours
Charging Time	Internal charge≤2.5 hours
Environmental Parameters
Operating Temperature	-15°C~50°C
Storage Temperature	-40°C~70°C
Encapsulation	IP54，2-meter drop test
Certification	CE/ROHS/FCC/PSC/KC/UN38.3/IP54
Weight	about 375g
Size	194mm×61.5mm×76mm
