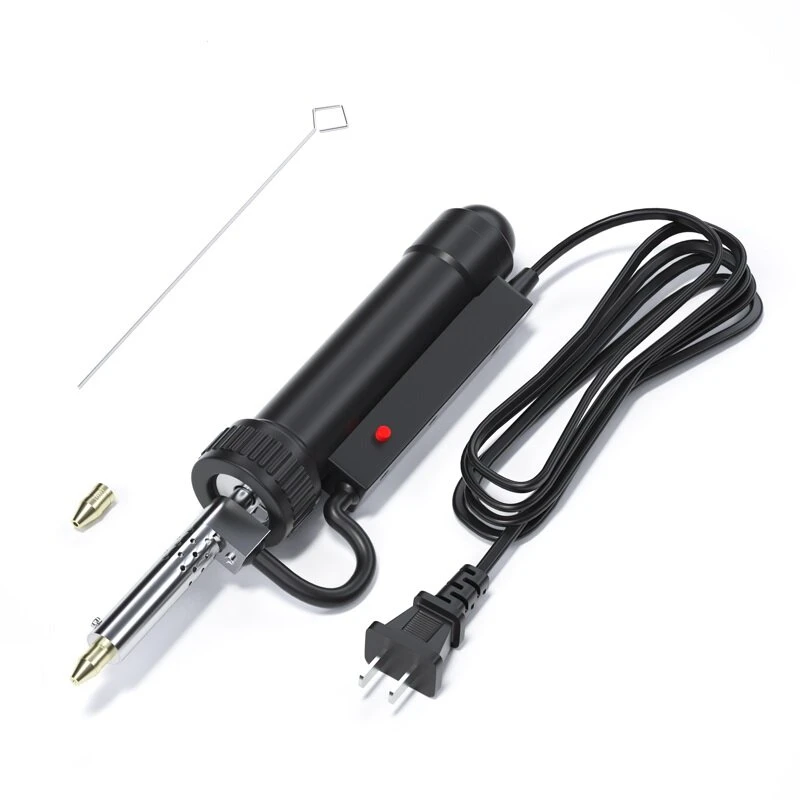

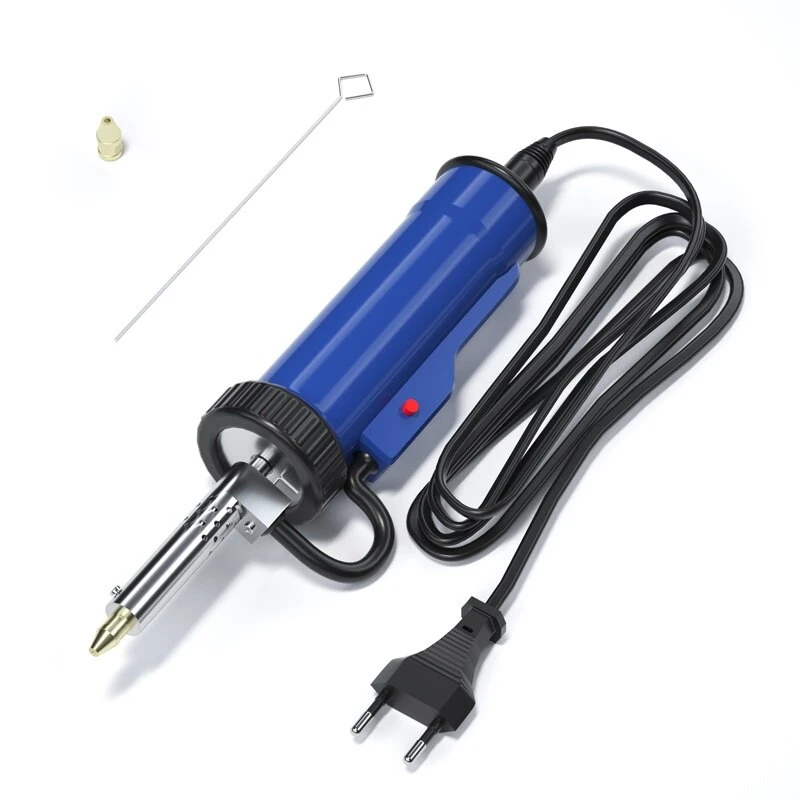

Handskit 110V/220V Electric Tin Sucker Dual-Use Electric Soldering Iron Gun Electric Heat Suction Tin Pump Electronic Dismantling Repair With 4 Suction Head

Thank you for choosing our product, this product belongs to small power electric heating tin suction device, large tin spot and double-layer and multi-layer circuit do not work well Please read the instructions and health and safety warnings that came with all equipment before you start using it, in order to Make sure you use it correctly.

Description:

Working voltage: 220-240V / 100-130V

Electromagnetic power: 350W

Heating power: 30W

Heating temperature: 400°C

Instructions:

1. Plug in the power first, let the tin absorber energize and heat for 5 minutes to use, first try to press the switch to feel the working vibration of the tin absorber

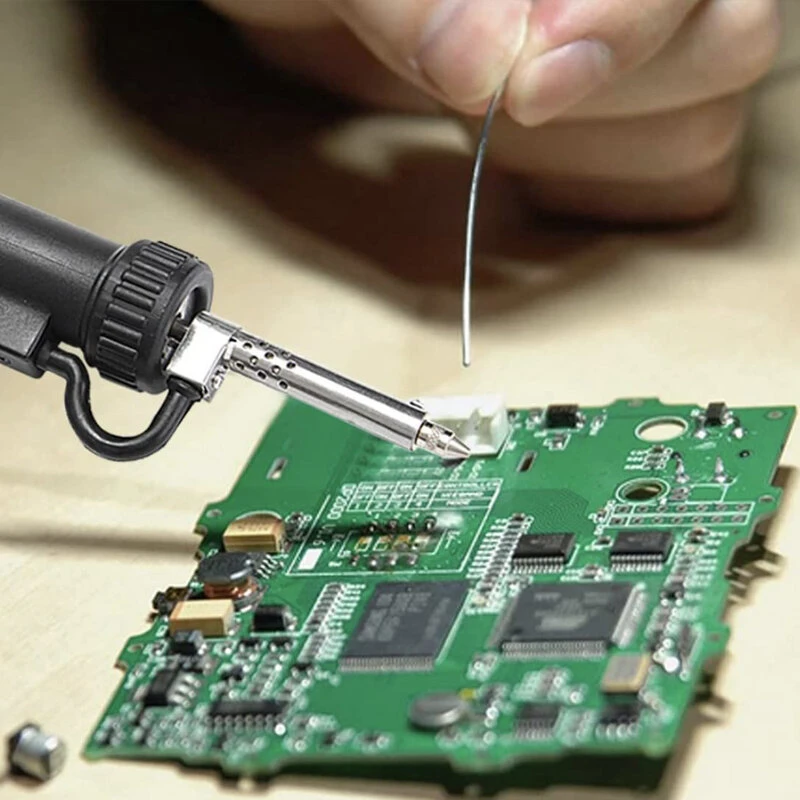

2. Put the nozzle of the tin suction device on the part that needs to remove tin, first let the suction nozzle completely melt the tin wire, press and hold the switch to start sucking tin, after sucking, release the switch to spray the tin slag into the tin slag box

Clean up tin slag:

(after working for a period of time, there will be some solder slag inside that needs to be cleaned):

1. Make sure that the solder suction device is disconnected from the power supply and completely cooled before cleaning

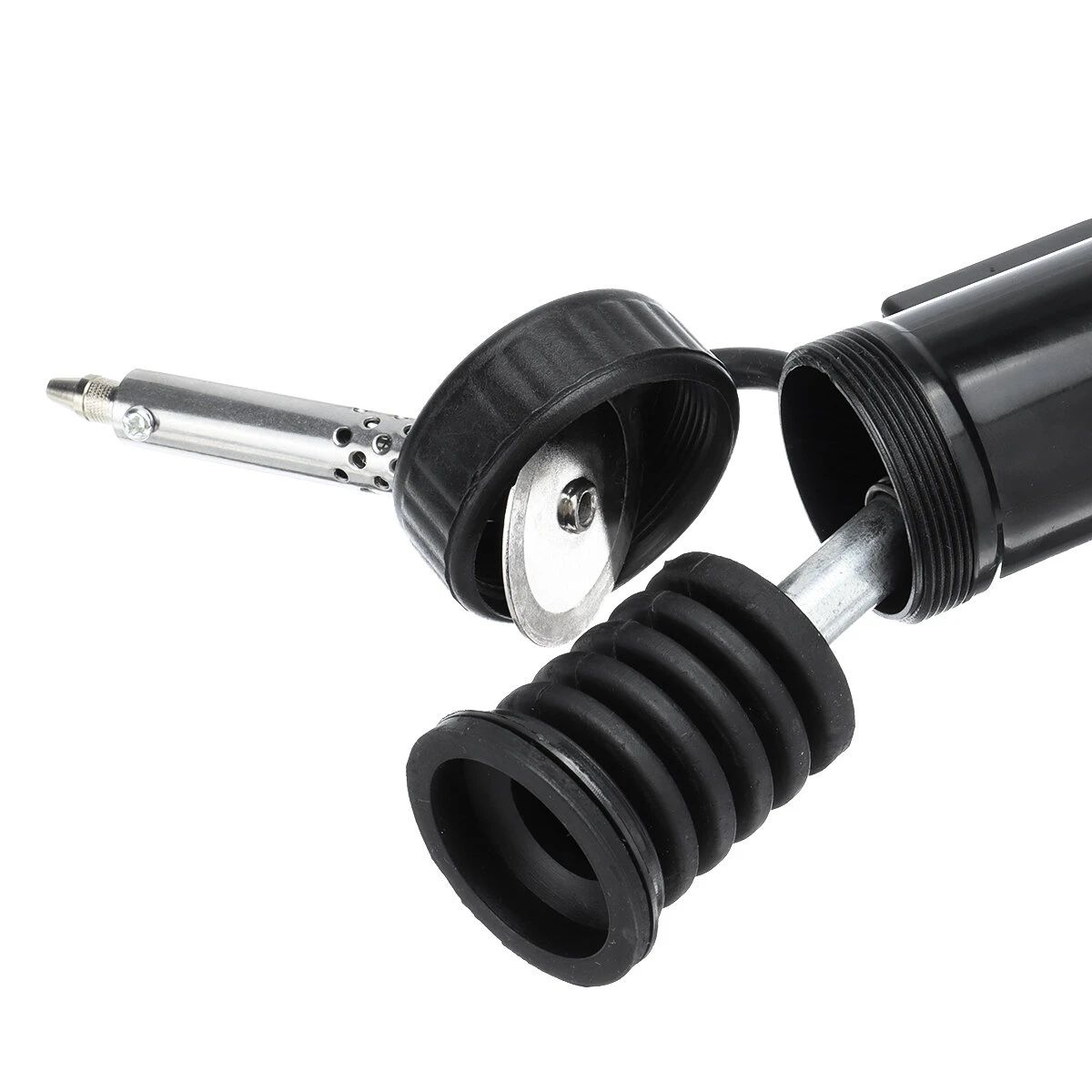

2. Unscrew the screw cap counterclockwise, clean the tin slag inside and put it back

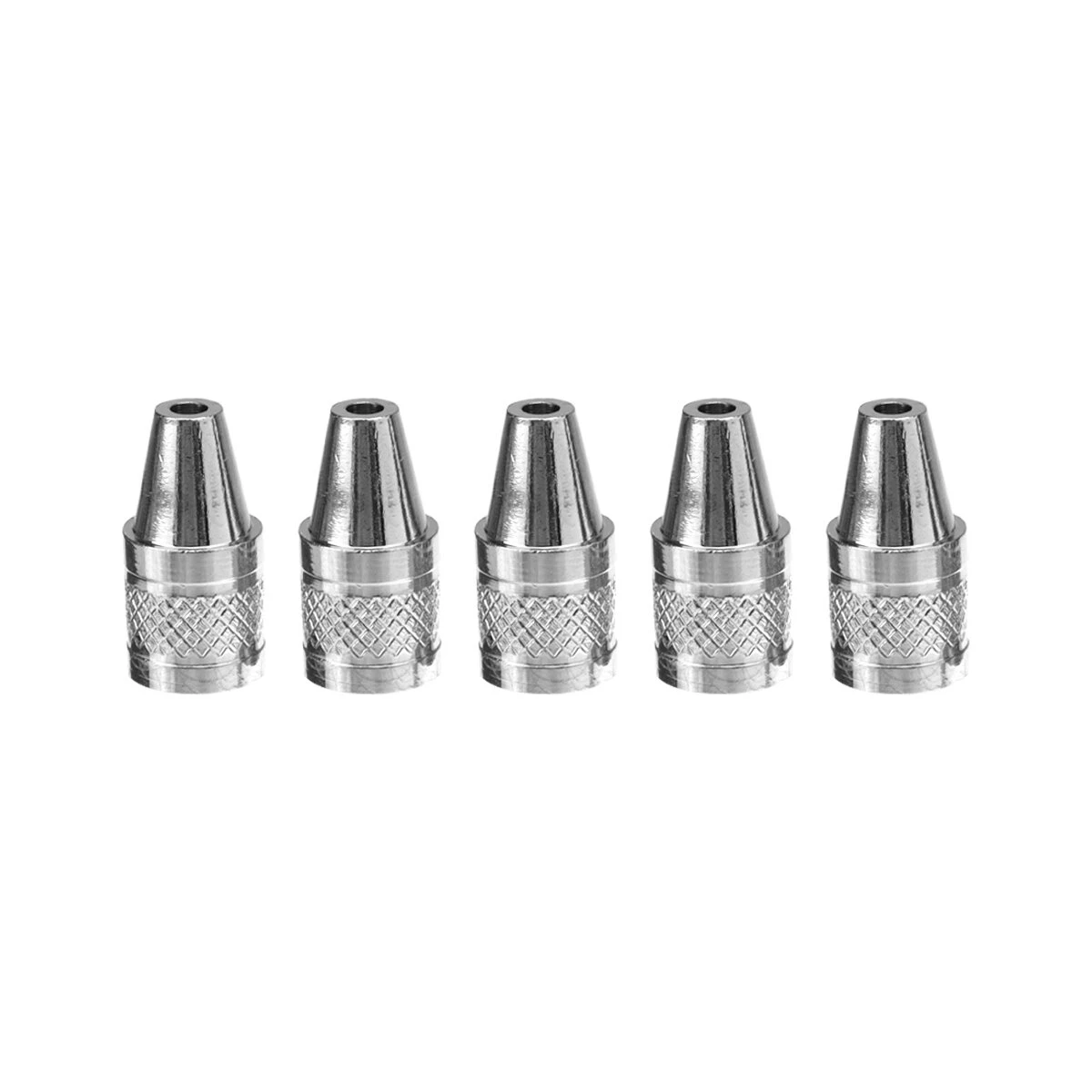

To replace the tin suction nozzle:

1. Make sure that the tin absorber is disconnected from the power supply and can be replaced only after it has completely cooled down

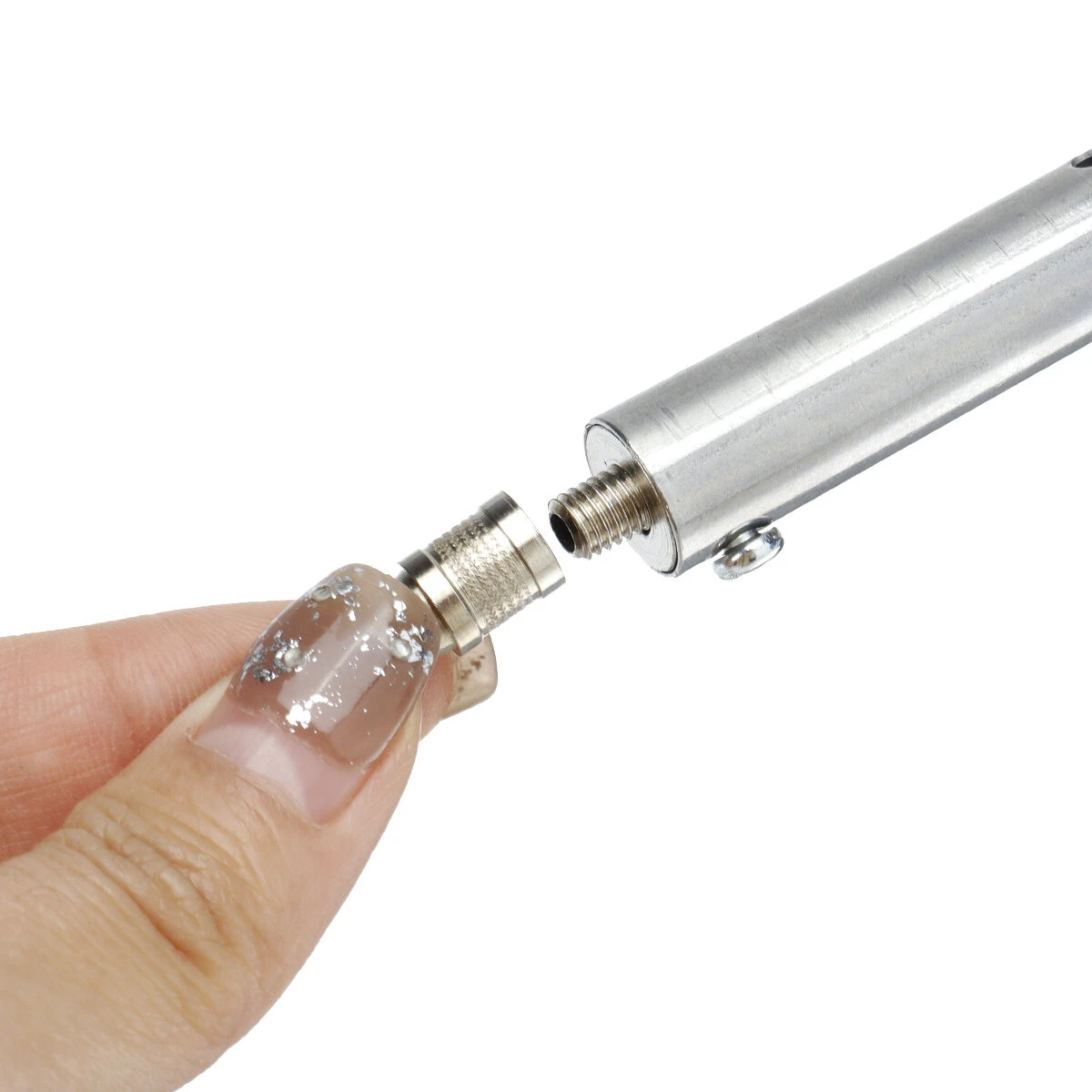

2. Twist out the suction nozzle counterclockwise with pliers, and then reinstall a new soldering iron nozzle



Common Problem:

1. When replacing the suction nozzle, it must be replaced during heating, otherwise the threaded head of the heating core will be twisted and it will not work properly. It is recommended to wear gloves and use pliers to prevent hands from being burned)

2. Press the switch several times before turning it off after use to ensure that no tin slag is left in the straw

3. If the heating core is blocked by tin slag, the tin suction tube must be cleaned with a needle after the heating core is heated to ensure that the suction tube is unobstructed

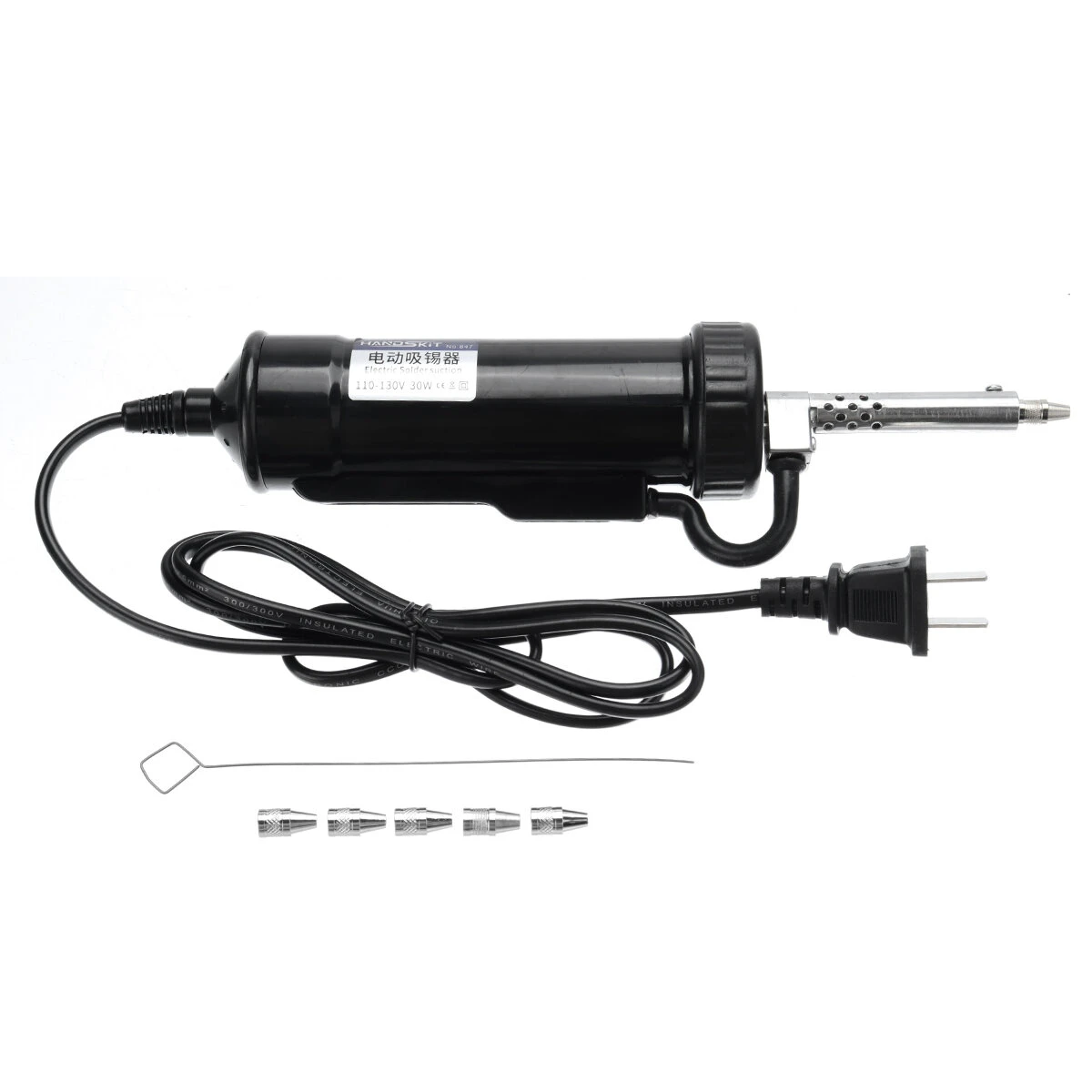

Package Included:

[There are six packages to choose from:

Type1: 847 220v With Four Nozzles

Type2: 847 110v With Four Nozzles

Type3: 846 220v With Four Nozzles

Type4: 846 220v Set

Type5: 847 110v Set

Type6: 847 220v Set]

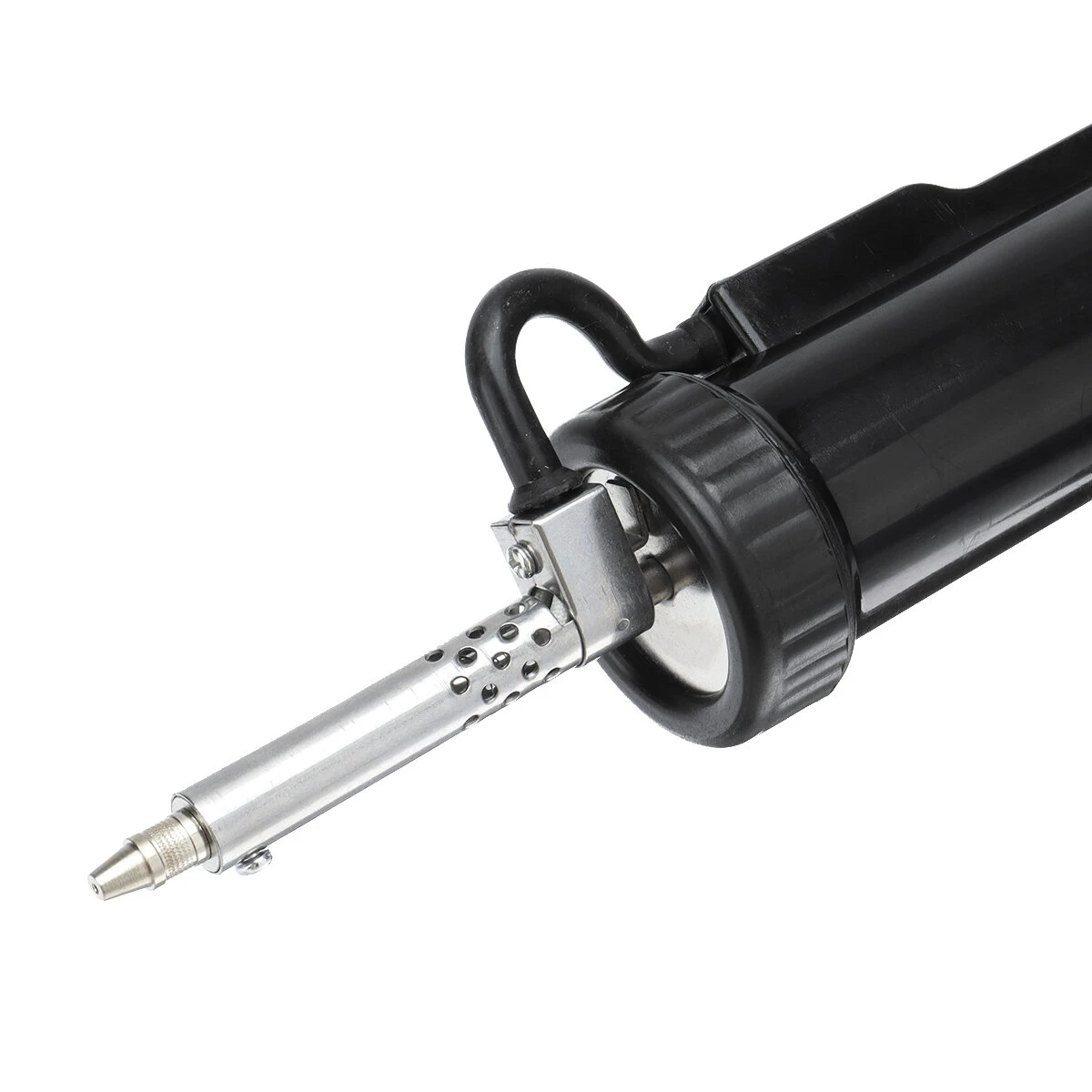

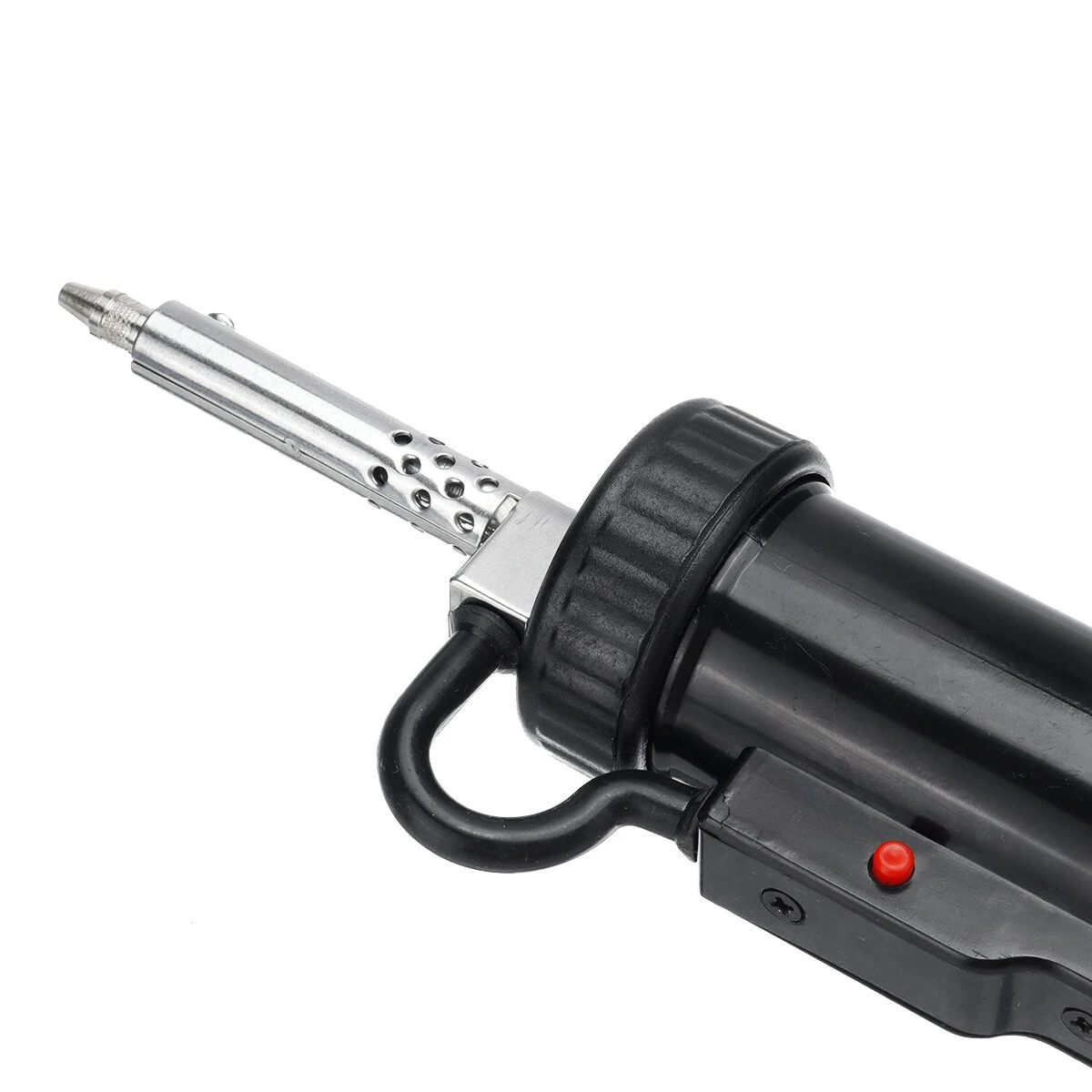

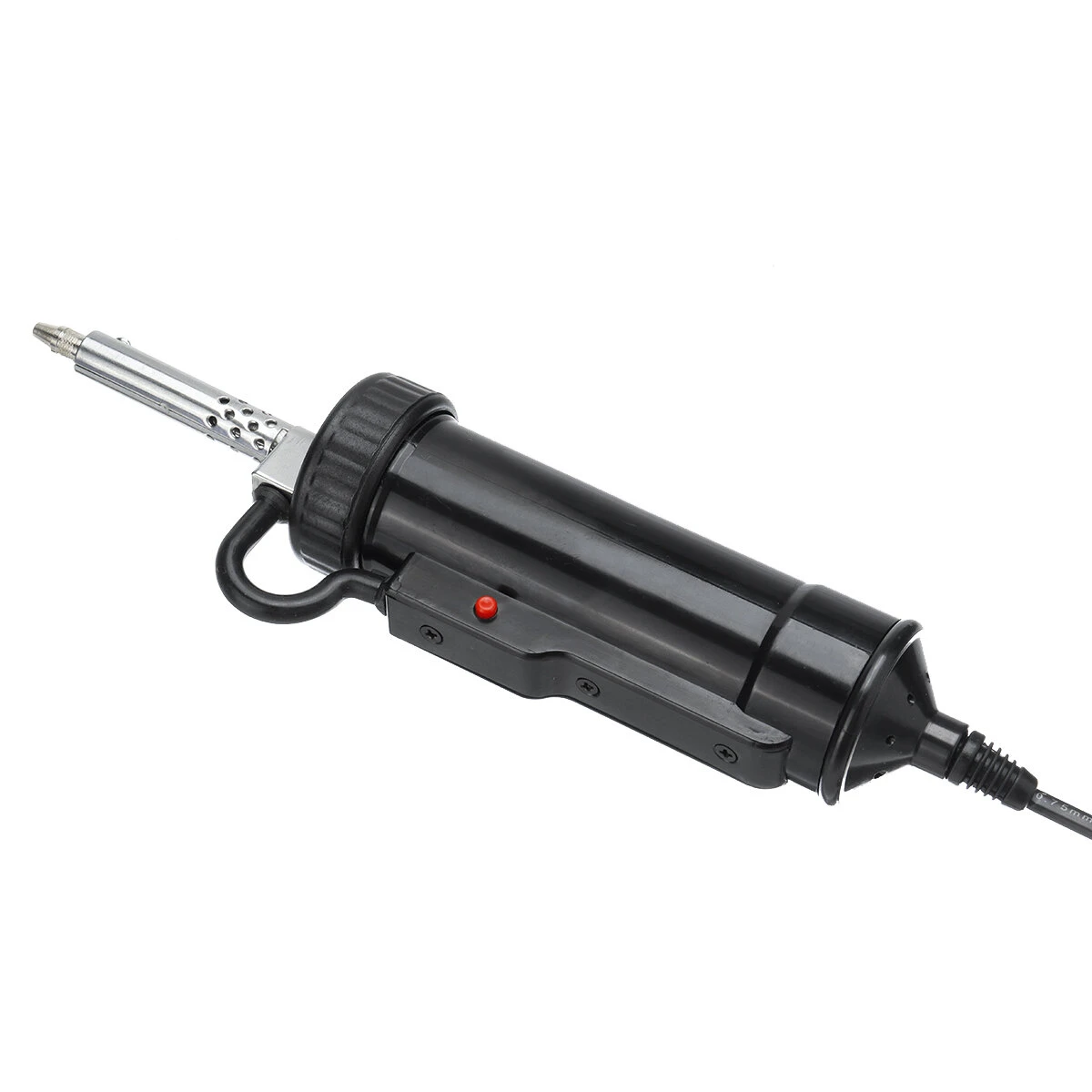

Detail Pictures:
