MLX90640 Digital Infrared Thermal Imager 3.4 Inch LCD Handheld Infrared Temperature Sensors Detection Tool + Battery

Features:

-This is a handheld and multifunctional thermal imager, compact and lightweight, with 3.4inch TFT display screen, you can see the data more clearly. It can be used in a variety of situations and is an indispensable tool for household and industry use. Come on and try it, it will not let you down.

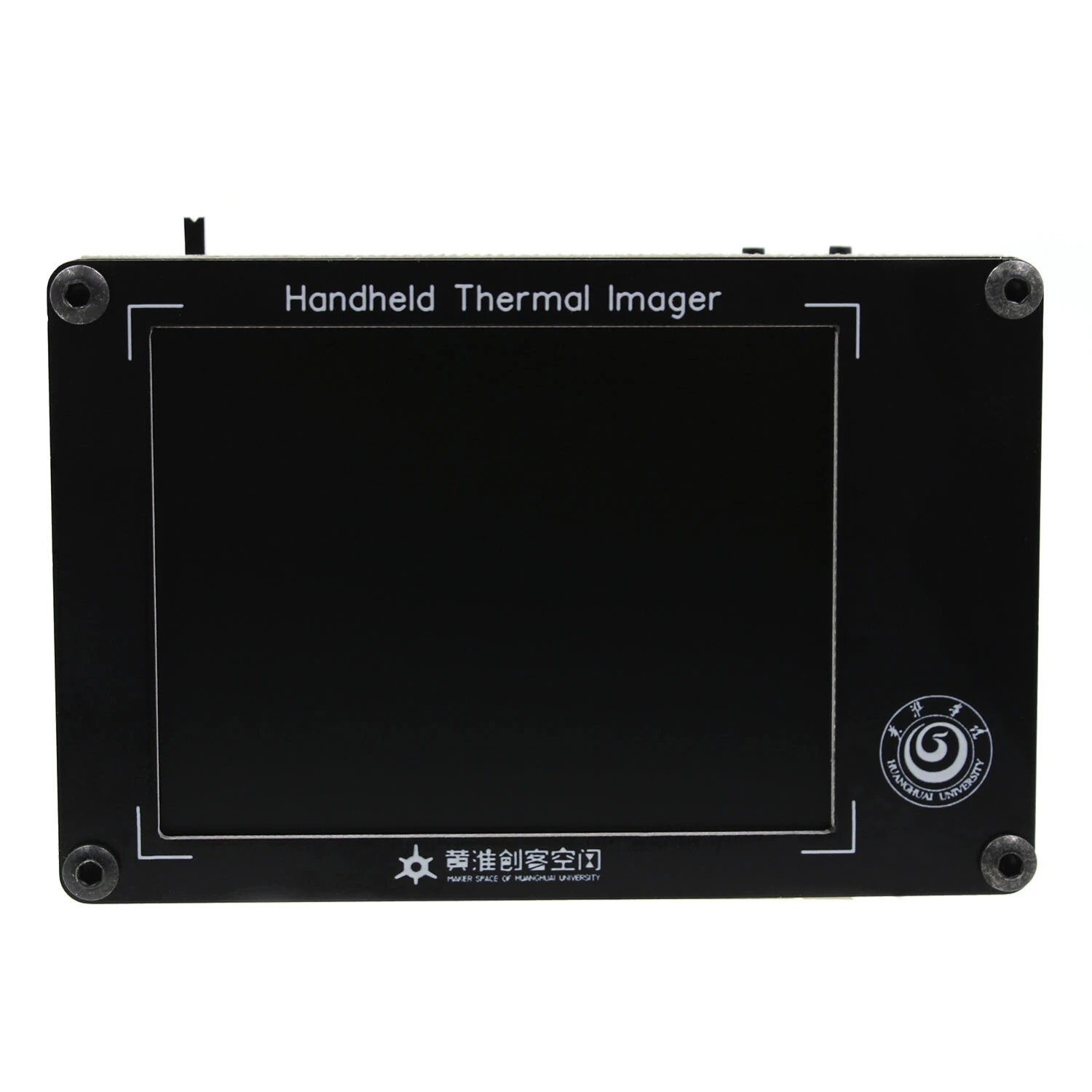

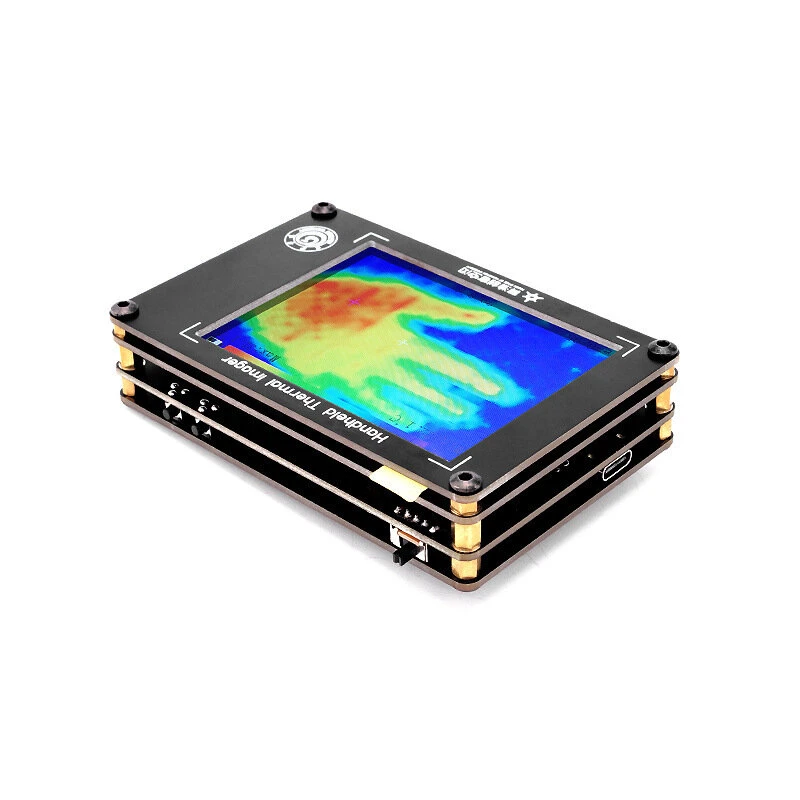

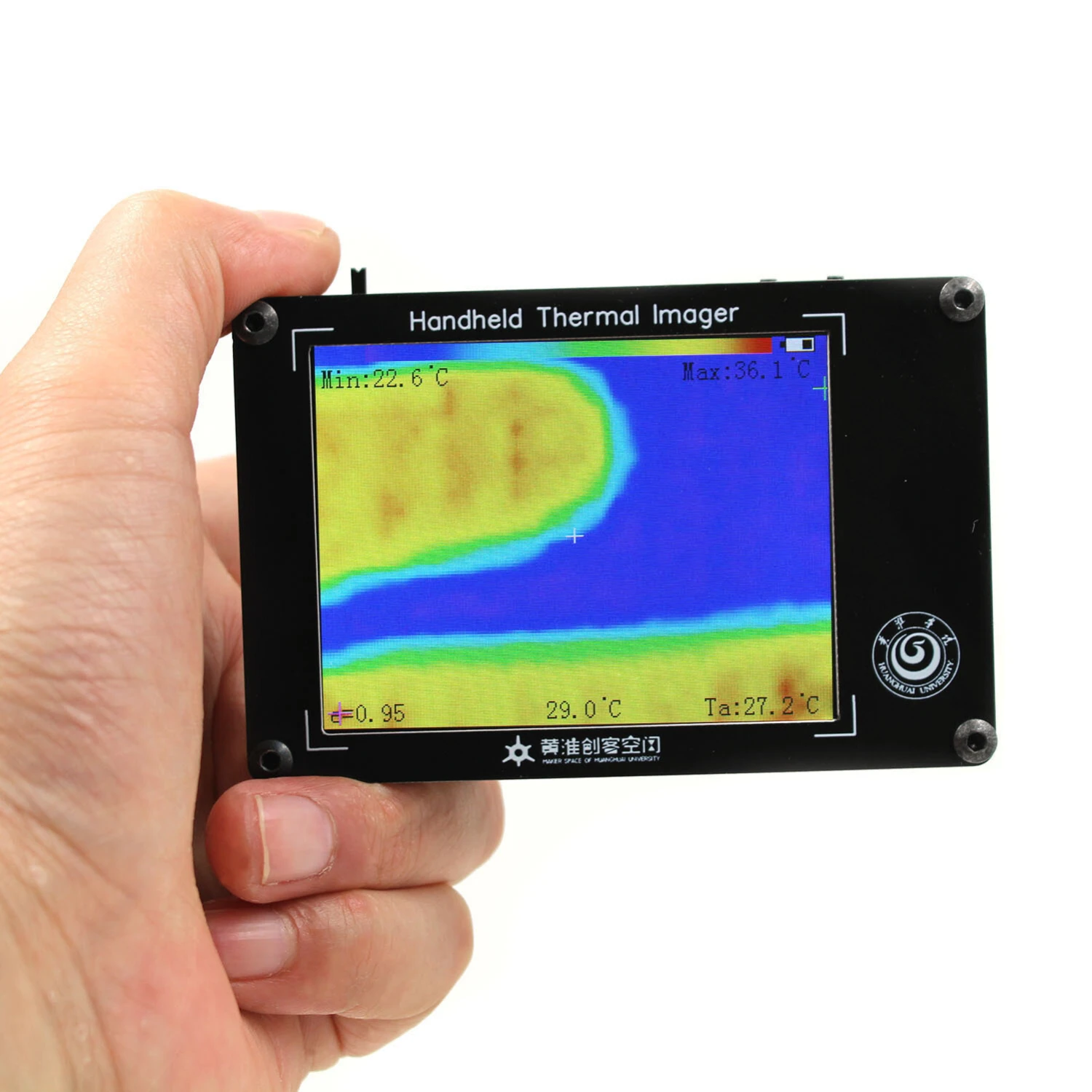

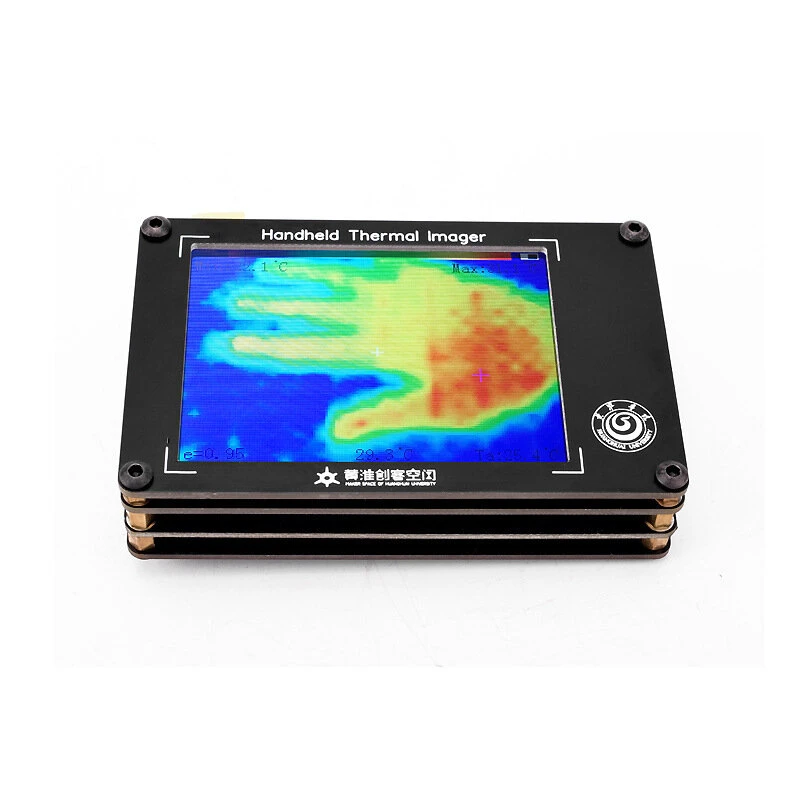

-3.4 inch TFT screen resolution is 320*240, the screen shows the highest temperature, the lowest temperature, the center point.

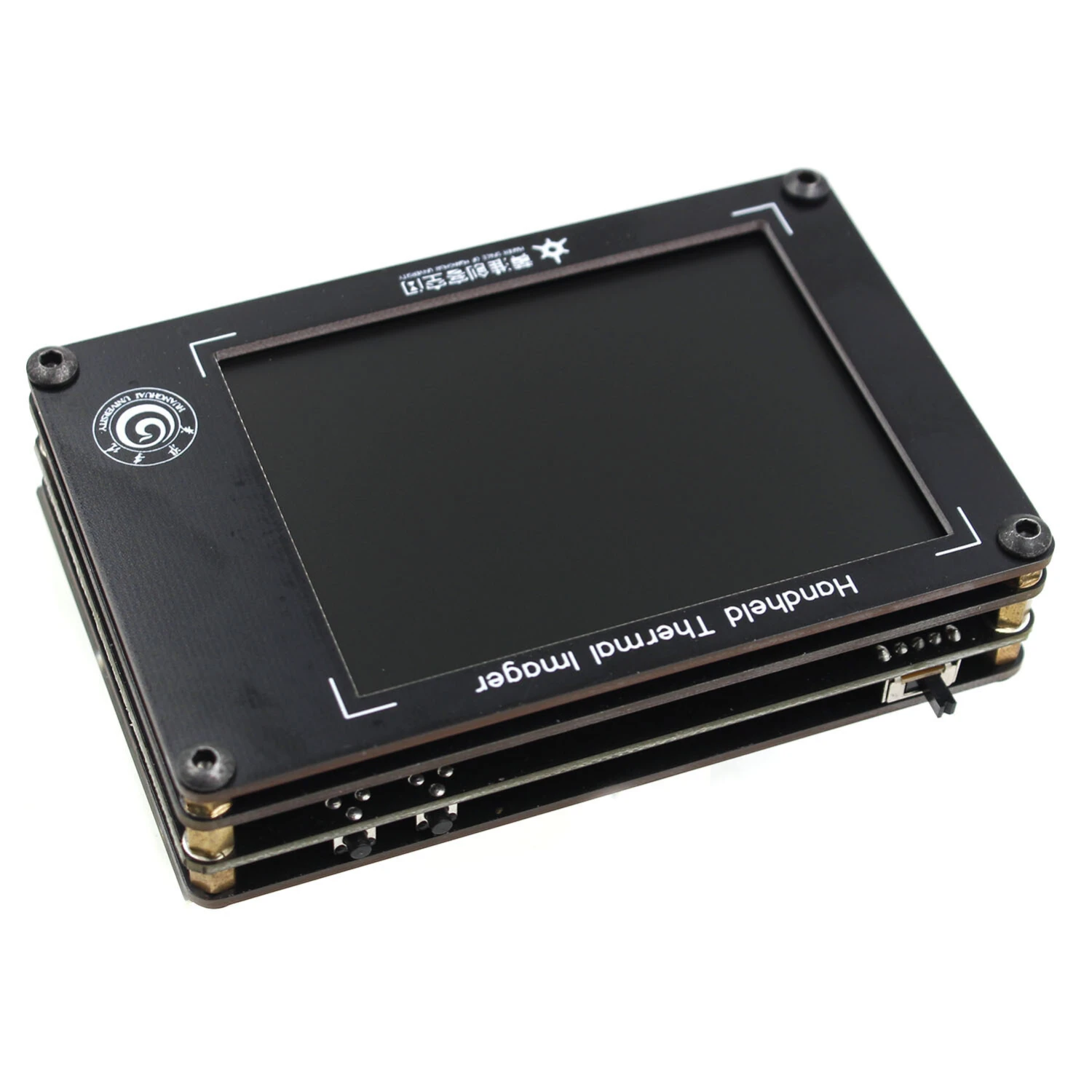

-Using acrylic cover, which can better protect the tool and not easy to be damaged, with a long service time.

-Small in size and easy to carry, you can take it with you to anywhere you want to use it.

-built-in battery, can use 10 hours , and can using when charing!

-The built-in SPI flash chip can store 100 pictures, and the data cable can be connected to the computer or mobile phone to view or copy image files



Specifications:

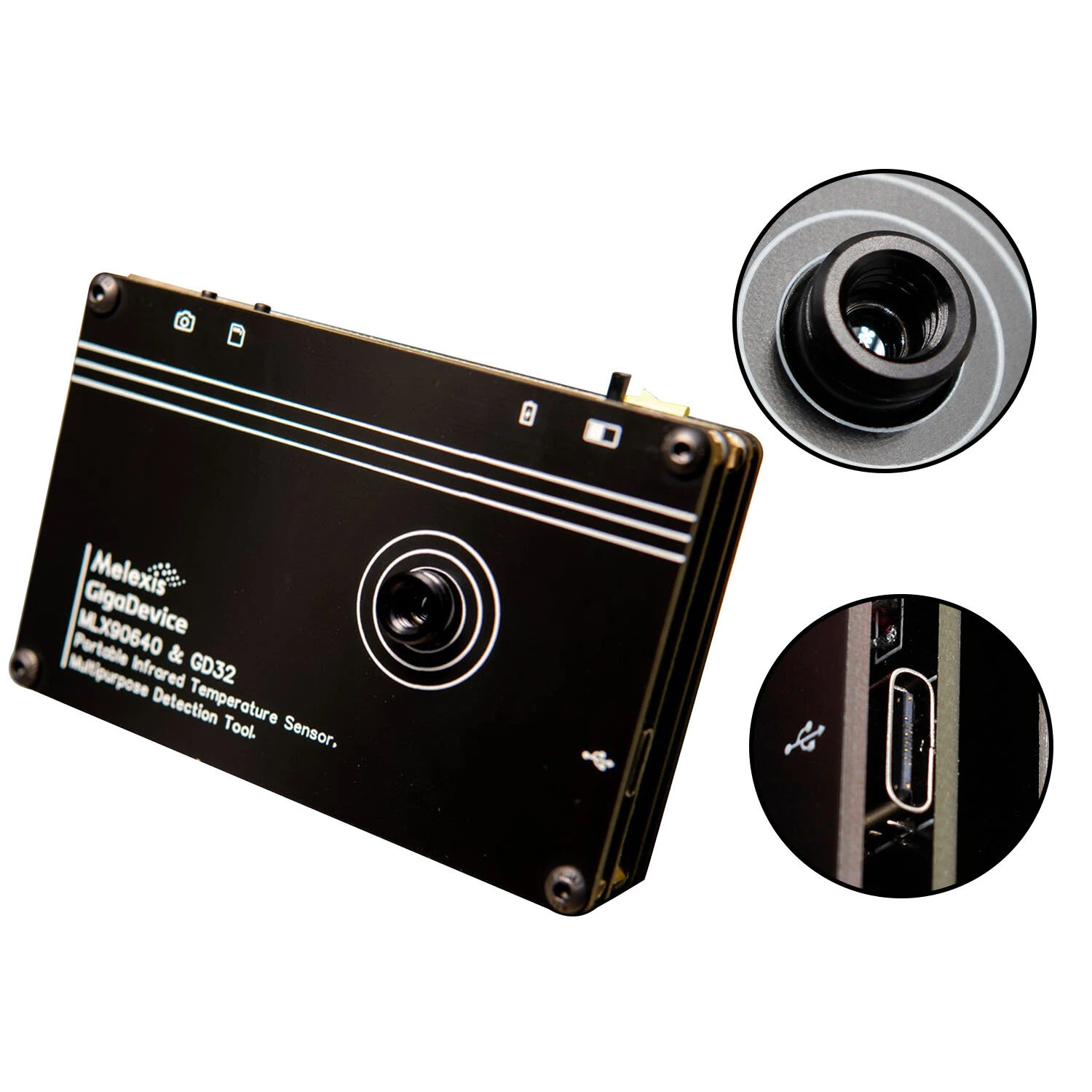

Module: MLX90640ESF-BAB

Infrared sensors: MLX90640ESF‐BAB/MLX90640ESF‐BAA

Resolution: 320*240

Temperature measurement ranges: ‐40℃~300℃

Measurement accuracy: +/- 2℃(Central point,20~50℃)

Operate temperature: 10℃~50℃

Operate humidity: less than or equal to 70%

Refresh rate: 8Hz

FOV: MLX90640ESF‐BAB (55°x35°), MLX90640ESF‐BAA(110°x75°)

Emissivity: 0.95

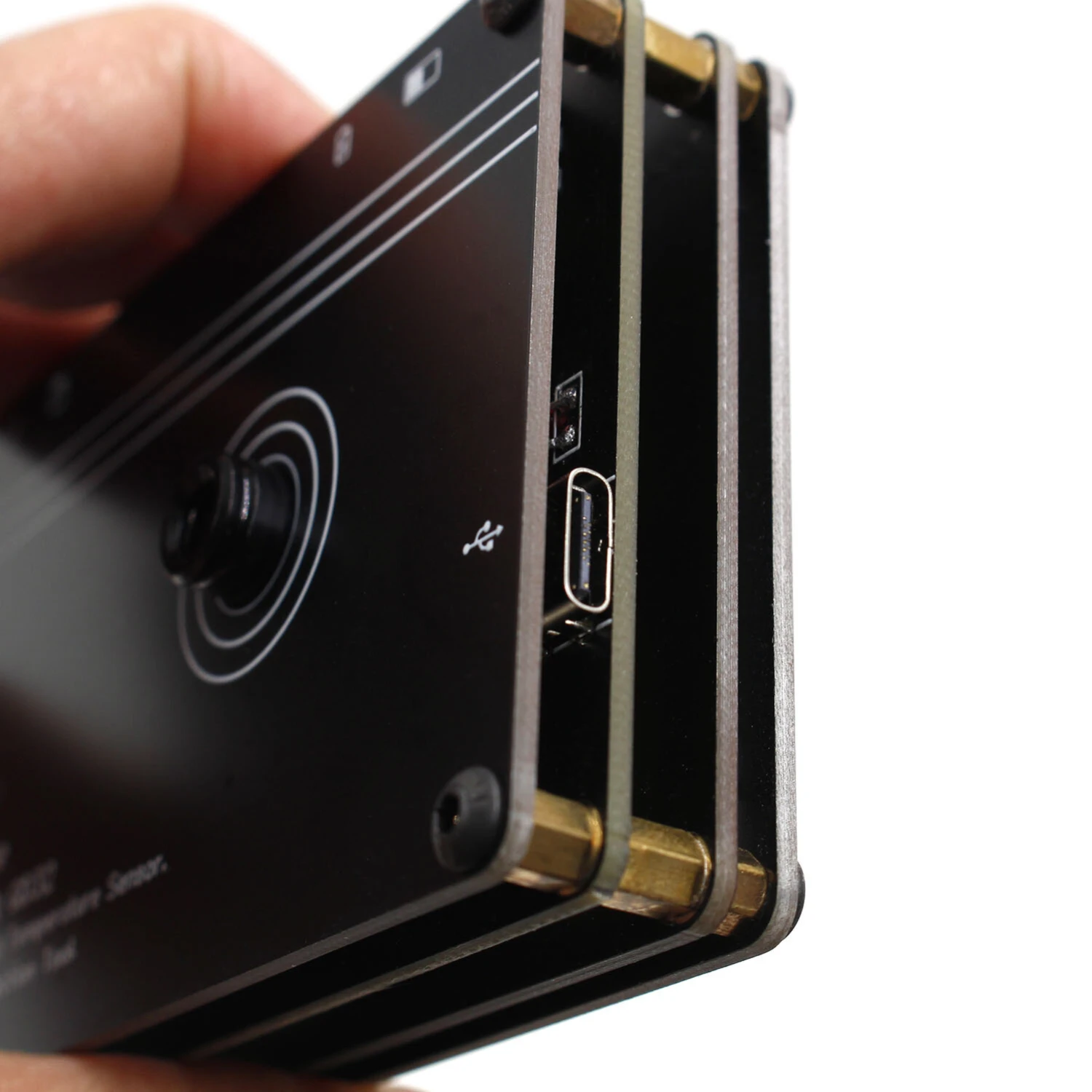

Charge port: Type C 5V/1A

Battery: 3.7v 1500mAh

Working time: about 10 hours

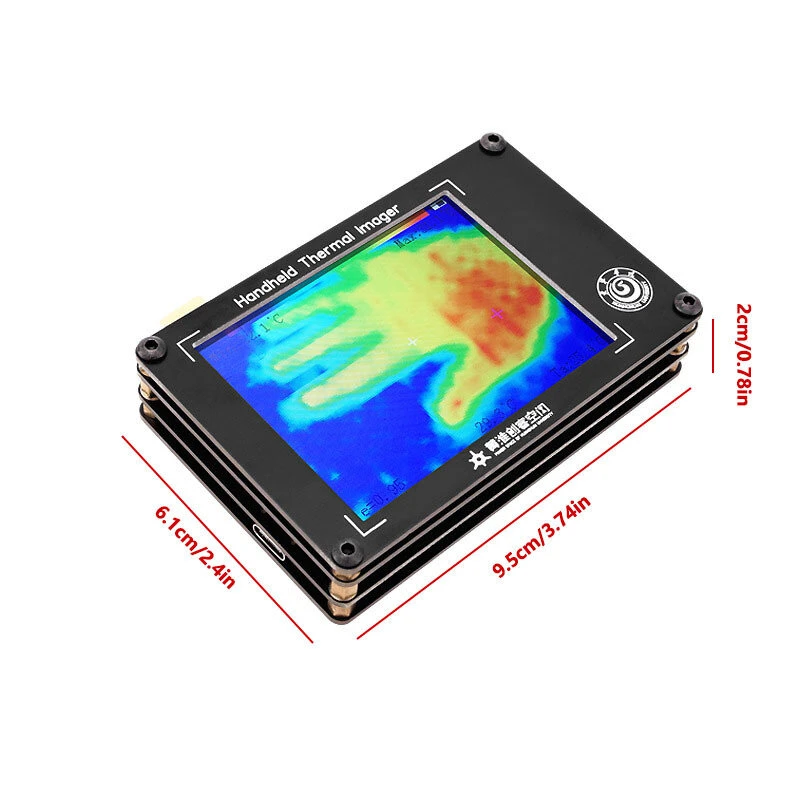

Item size: 95 x 62 x 20mm

Colour: black

Material: plastic

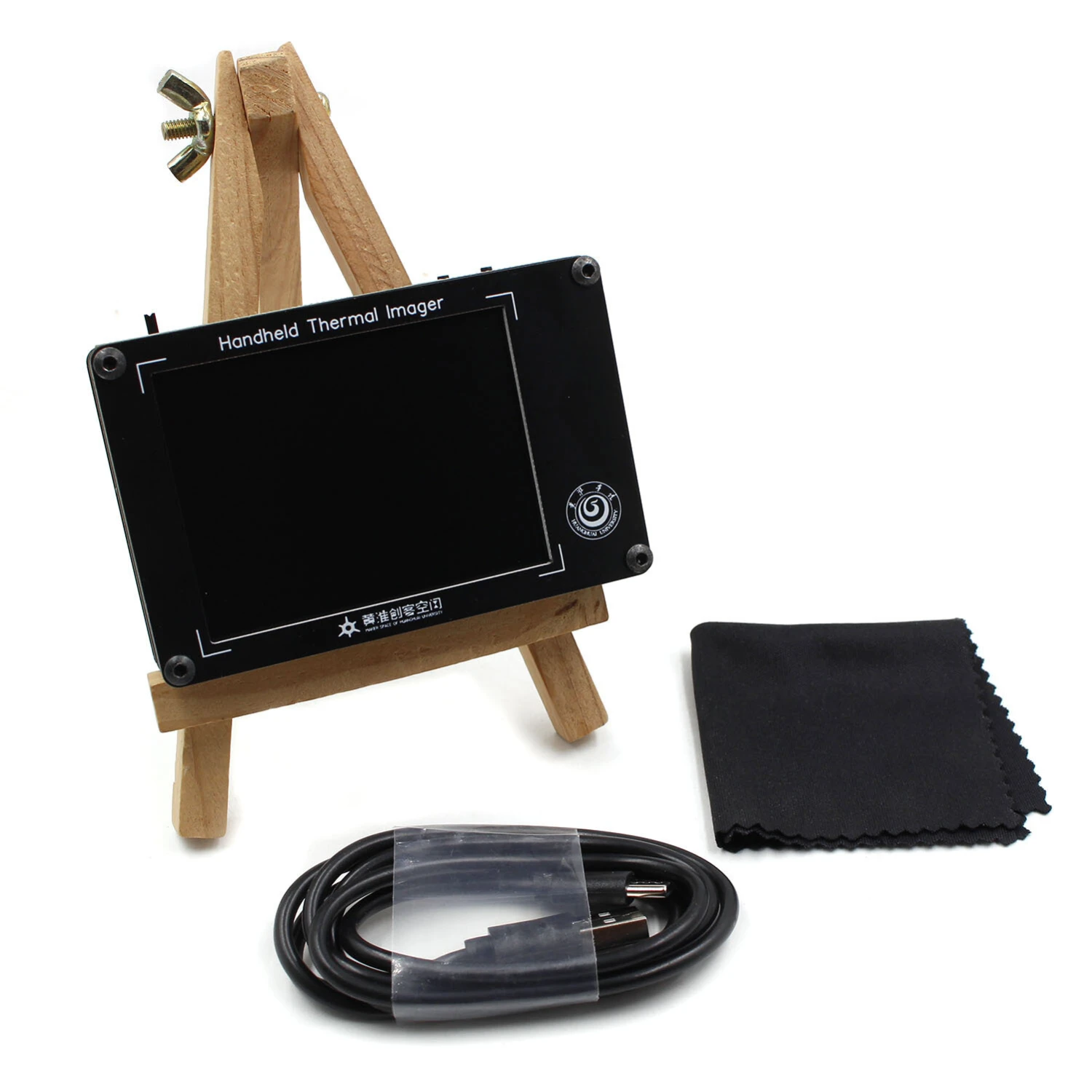

Package Includes:

1 x thermal imager

1 x Data cable

1 x cleaning cloth
