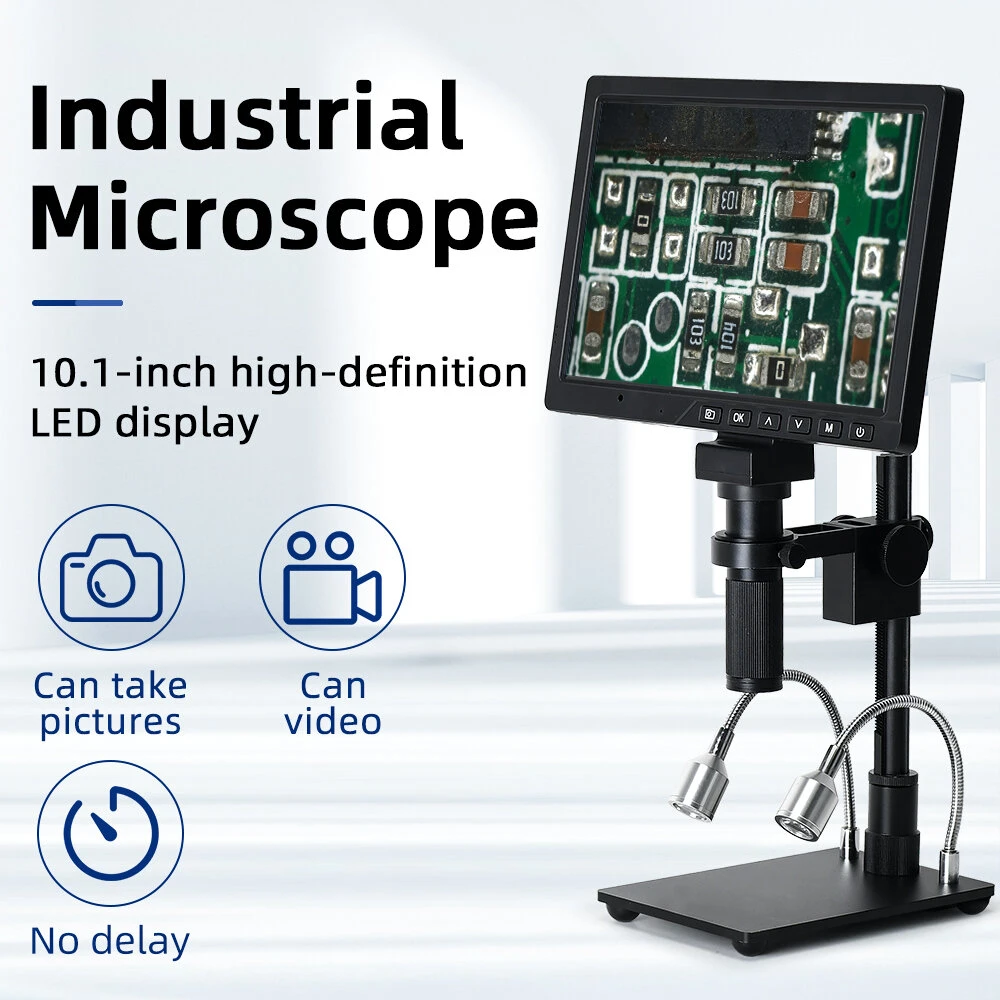

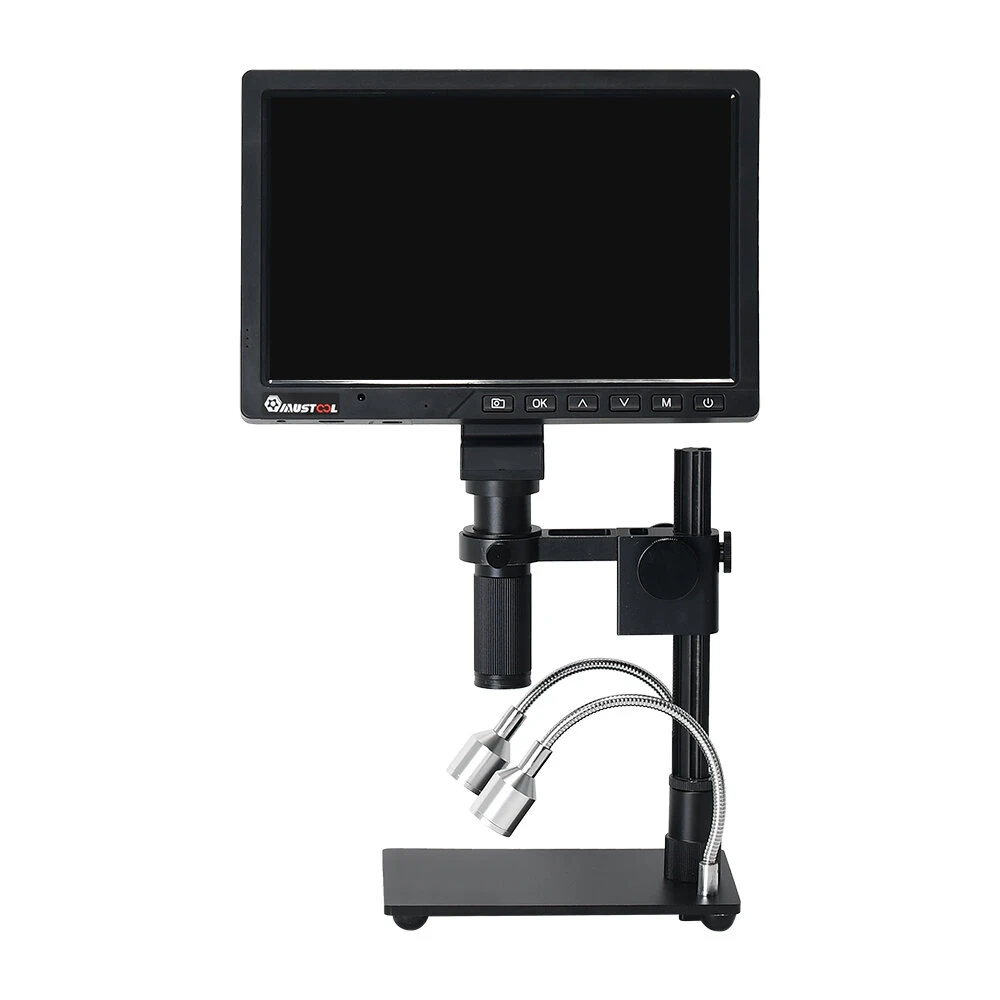

Mustool -1090 10.1 inch LCD HD Video Microscope with 150X C Mount Lens Electronic Microscope Camera with Metal Stand Professional repair Tools

The Mustool -1090 is a multifunctional digital microscope,individually designed and developed.  It realizes Full HD, high object distance, multifunction and multi-output at the same time. With help of the Hayear measuring software, it can easily meet many different requirements in many fields, such as industrial overhaul and teaching demonstration. And its appearance design combines more ergonomic consideration, provides users with better experience. We sincerely wish this product can release your eyes and improve your work quality.

Feature:

1. Widely used in the fields of microelectronics, molds, jewelry, printing, mobile phone repair schools, etc.

2. Especially suitable for observing the surface microstructure of large objects.

3. Using high quality materials, strong and durable, has a long service life.

4. HD camera with 16 megapixel CMOS sensor 1/2.8 inch, with HDMI USB port.

5. Strict quality control and quality assurance, high safety factor, can be used with peace of mind.

8X-150X Zoom C-mount Lens:

Working distance: 50mm-350mm

Field of view: 3.1mm-66mm

zoom c-mount Lens

zoom ratios:15:1

Magnification Power by 0.11X – 2X(about 8X -150X on the Monitor)

Size: 100mm(L) * 28mm(DIA)

Size: 35x19x19

Weigh 2.5kg

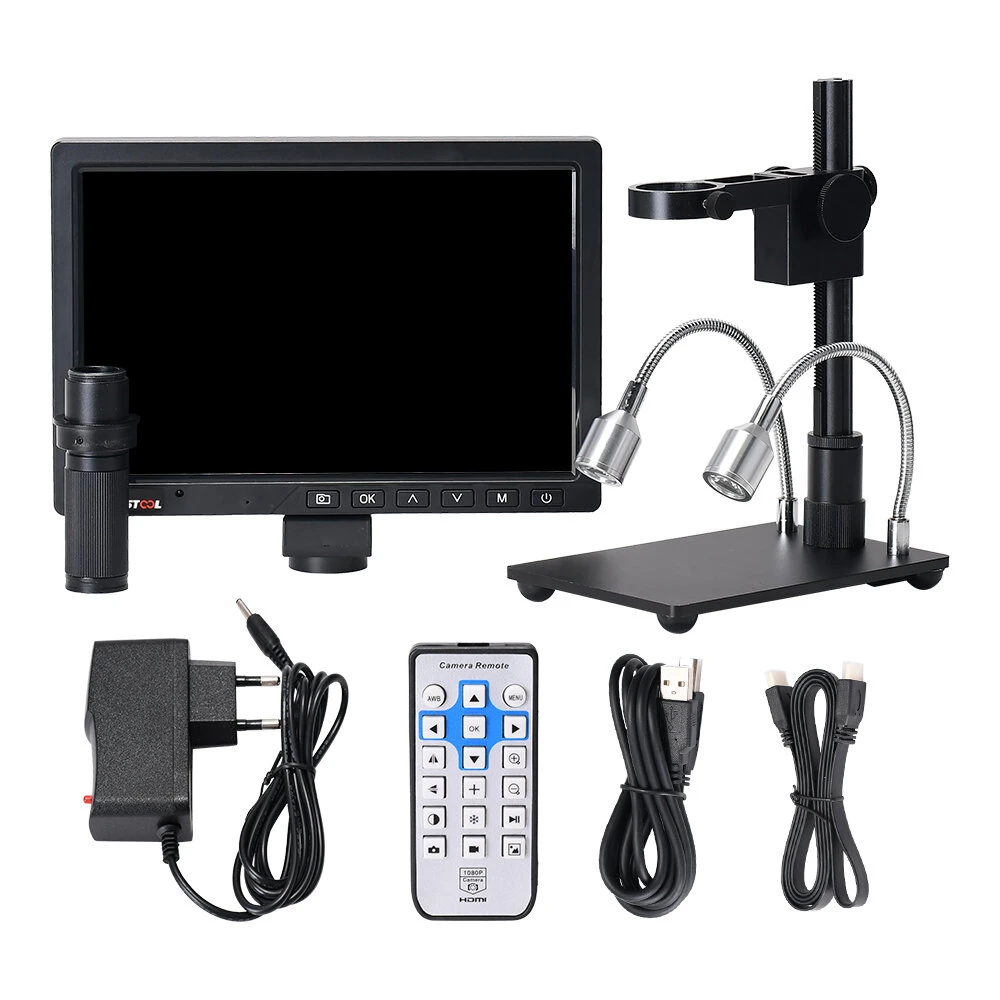

Package included:

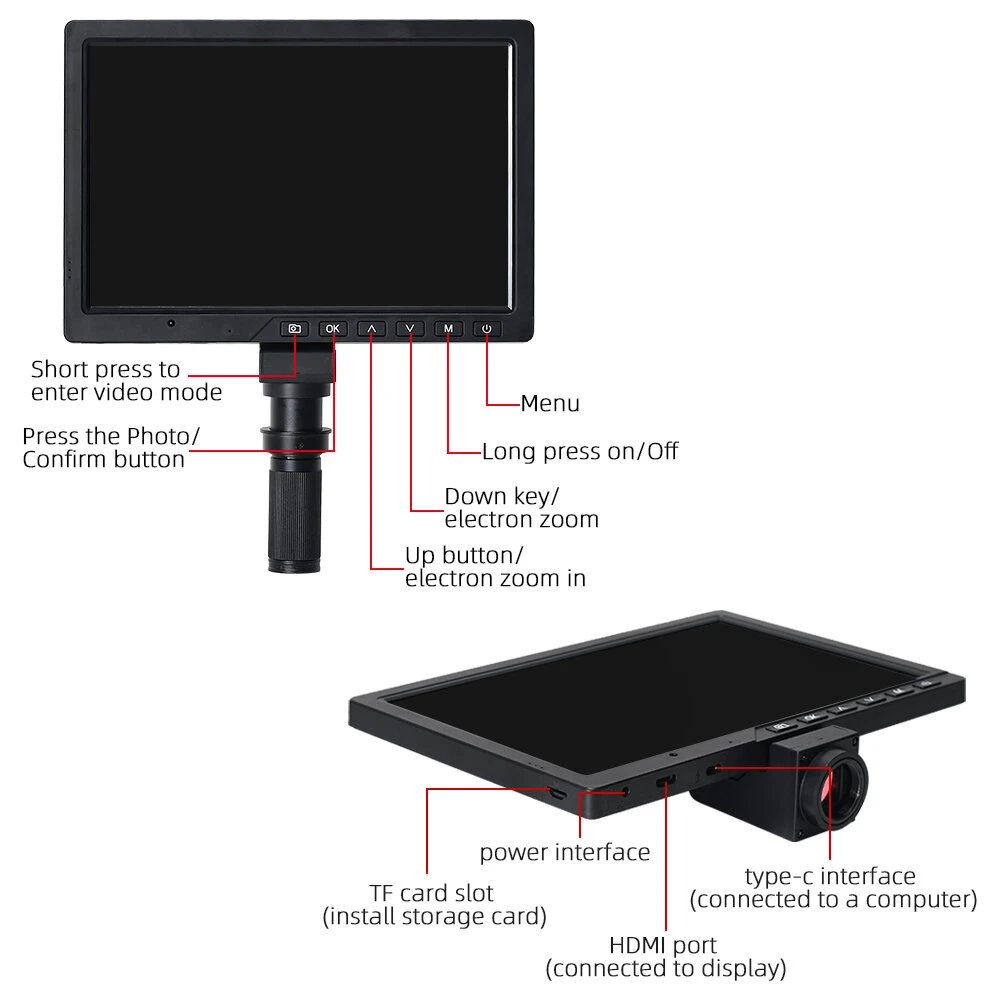

1 X 10.1-inch HD Microscope camera

1 X 150X C-MOUNT Lens

1 X Power supply

1 X USB cable

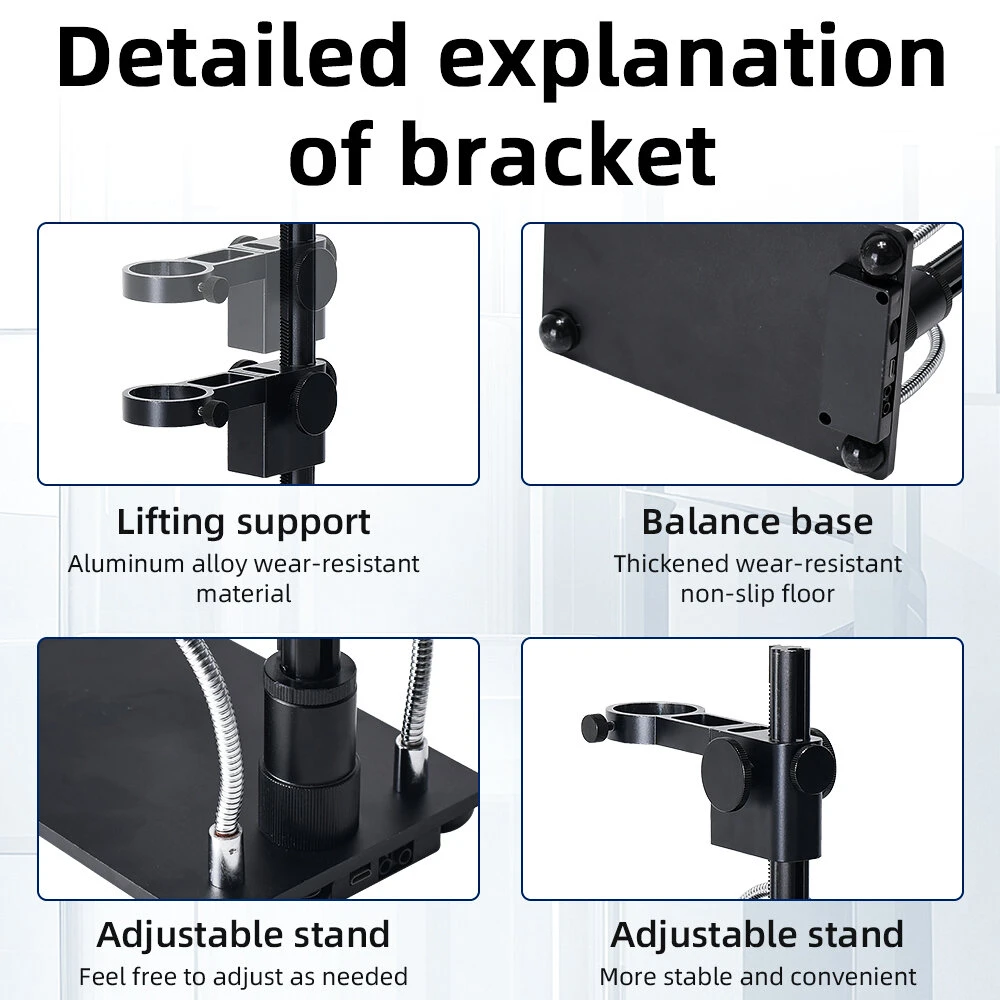

1 X Adjustable bracket

1 X Remote control

1 X HDMI cable

Sensor	16 Megapixel IMX sensor
Pixel Size	2.0 × 2.0μm
Sensor Size	1/2.8 inch

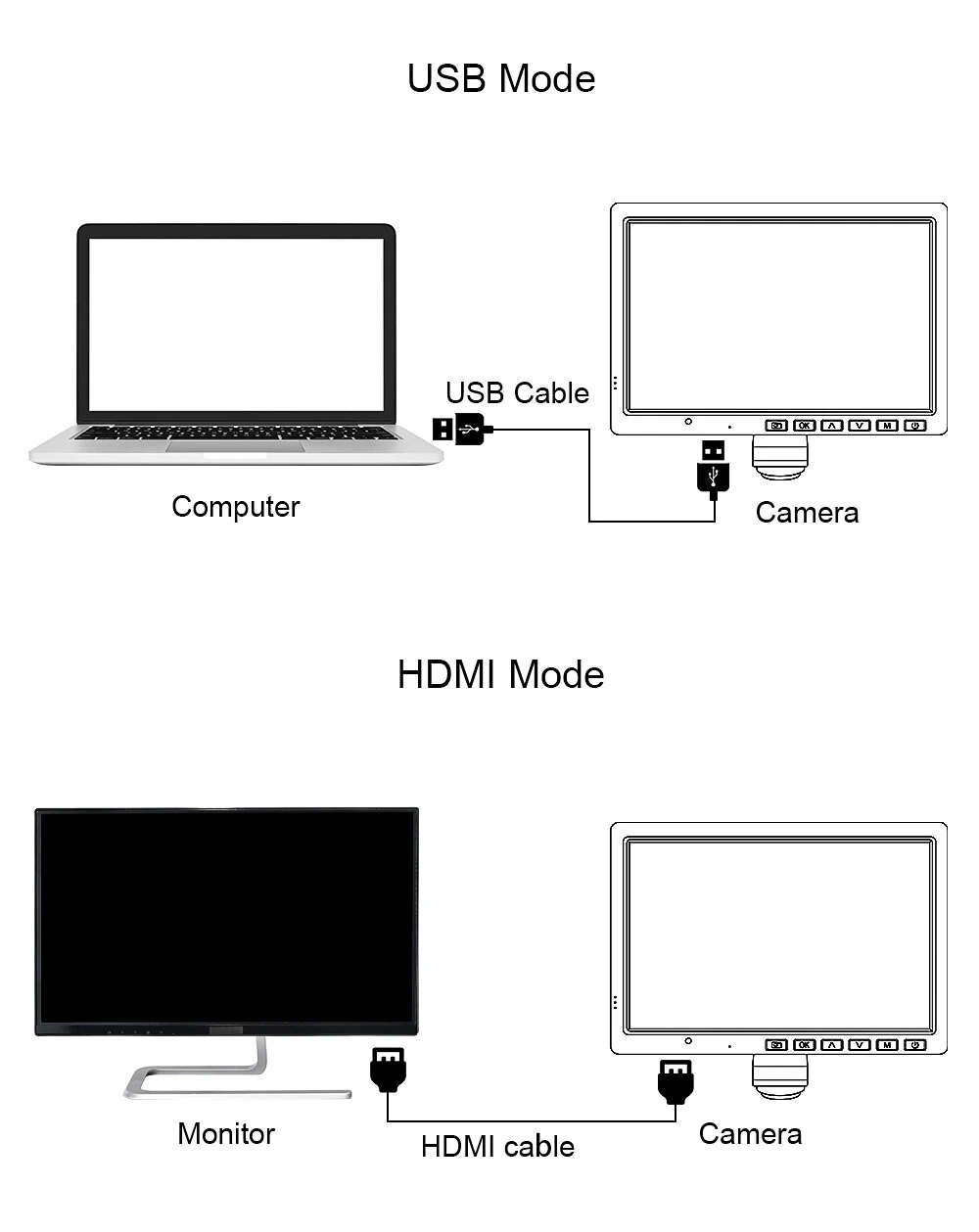

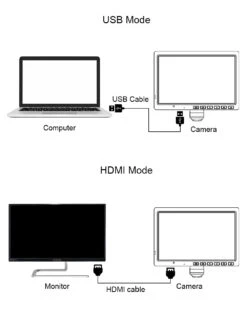

Video Output Interface	HDMI / USB (HD Interface)
Resolution
Monitor size	10.1 inches
USB Output
Video Ratio	Support 16:9, 4:3 Mode
Picture Resolution	4608 x 3456
Frame Rate
Color	R/G/B support manual adjustment
Cross line	5 horizontal/vertical line, Color & size of line can be adjust, cross line with scale
Zoom	7X digital zoom
Magnifier Function	Support magnifying in same screen
Sensitivity Level	Middle(can be used with extra light source)
Interface for Lens	Standard C/CS Interface
Dynamic Range	40dB

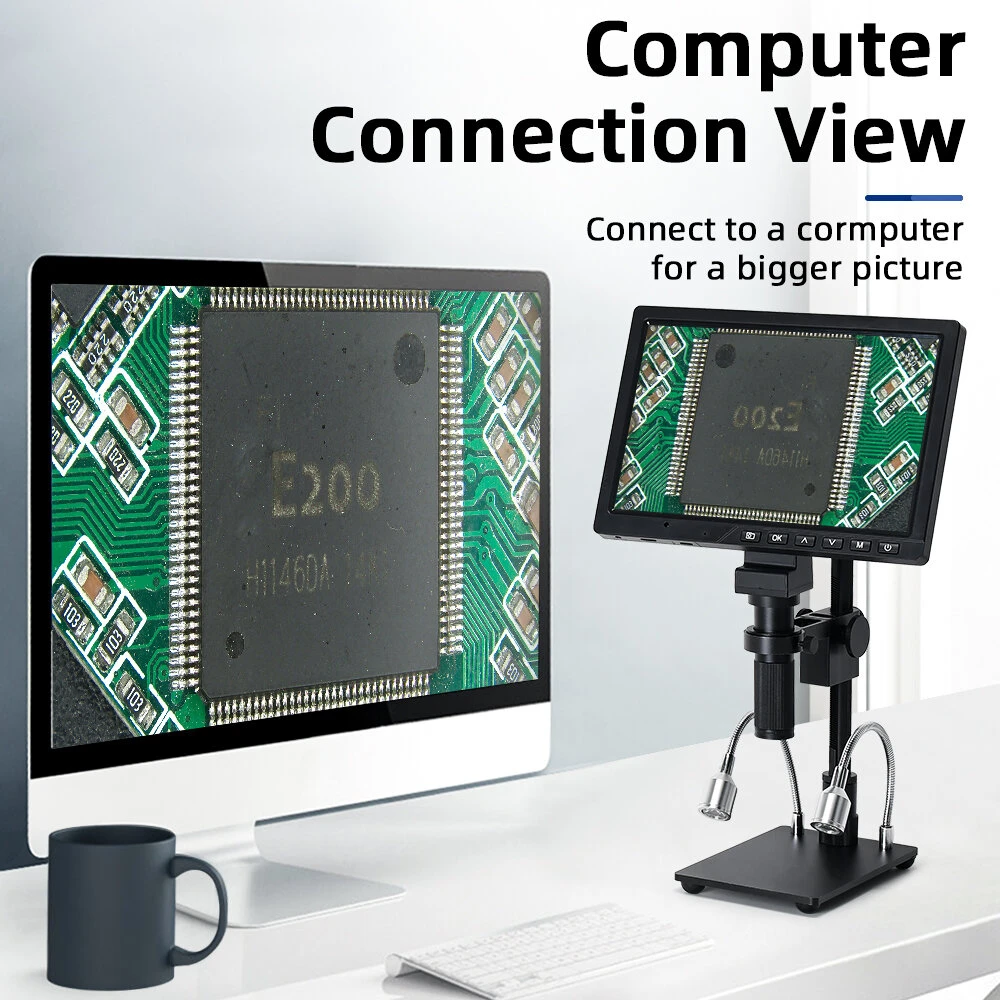

PC Systems	Support Windows XP/7/8/10, with measurement software(gift)
Picture Format	JPEG
Language	CN, EN, JP, FR, DE, RU, IT, KR, TUR
Working Voltage	12V/1A
Spectral Response (Wavelength)	400nm~700nm (Strong)
White Balance	Manual/Auto
SNR	45dB
Image	Support Up/Down, Right/Left
Black & White Mode	Support
Storage	TF Card, Maximum support 256GB
Working Temperature	-40°C~70°C
