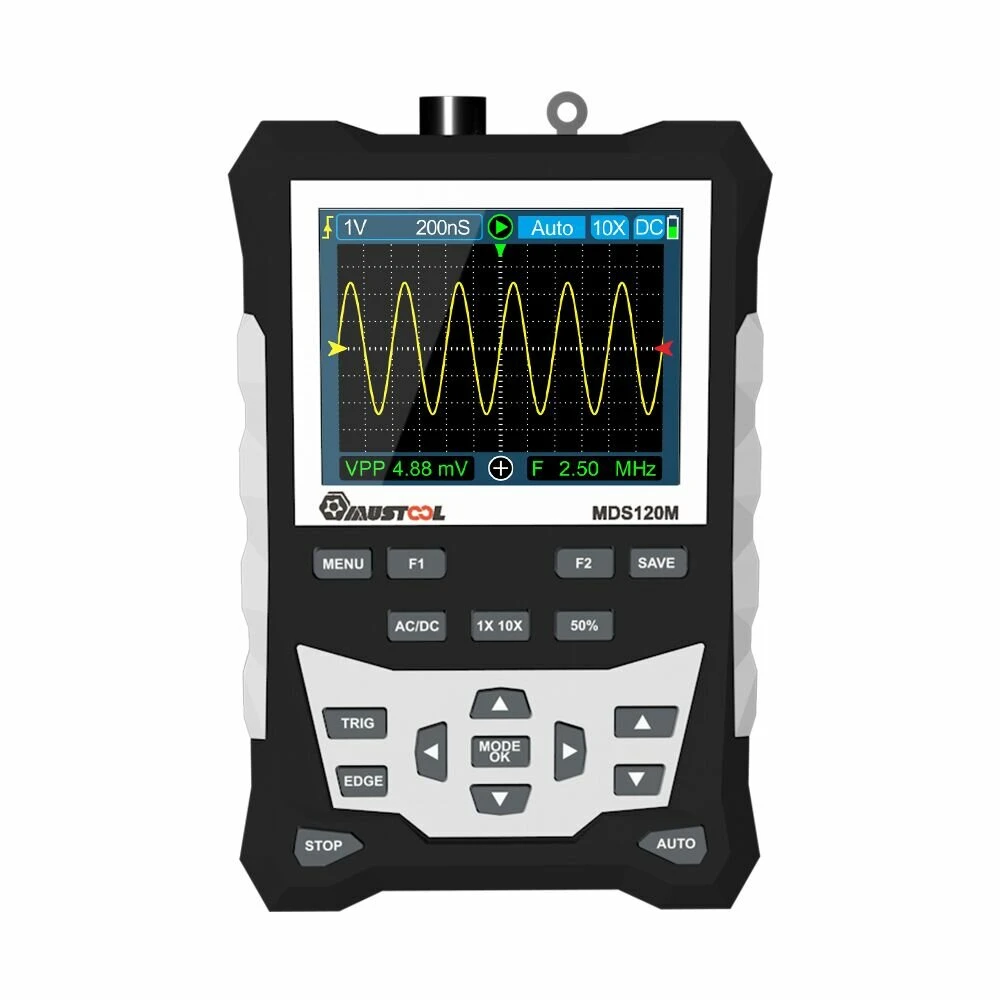

MUSTOOL MDS120M Professional Digital Oscilloscope 120MHz Analog Bandwidth 500MS/s Sampling Rate 320×240 LCD Screen Support Waveform Storage With Backlight
Original price was: $59.02.$41.31Current price is: $41.31.
- Safeguard Your Shopping Experience
- Online assistance, always at your service.
- Buy with confidence, backed by quality.
- There are quality problems, free return and exchange
Description:
Hello everyone, this is a professional oscilloscope provided by the MUSTOOL Team

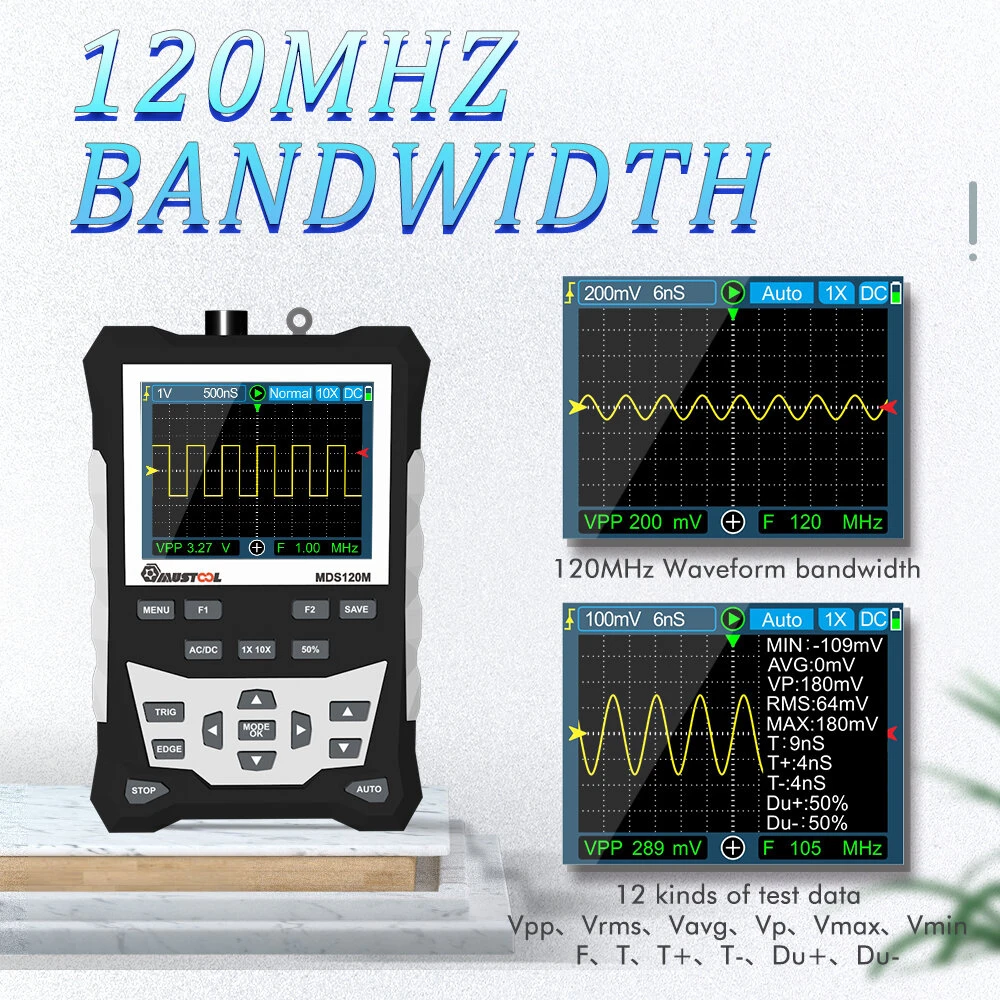

120MHz bandwidth and 500MSps sampling rate

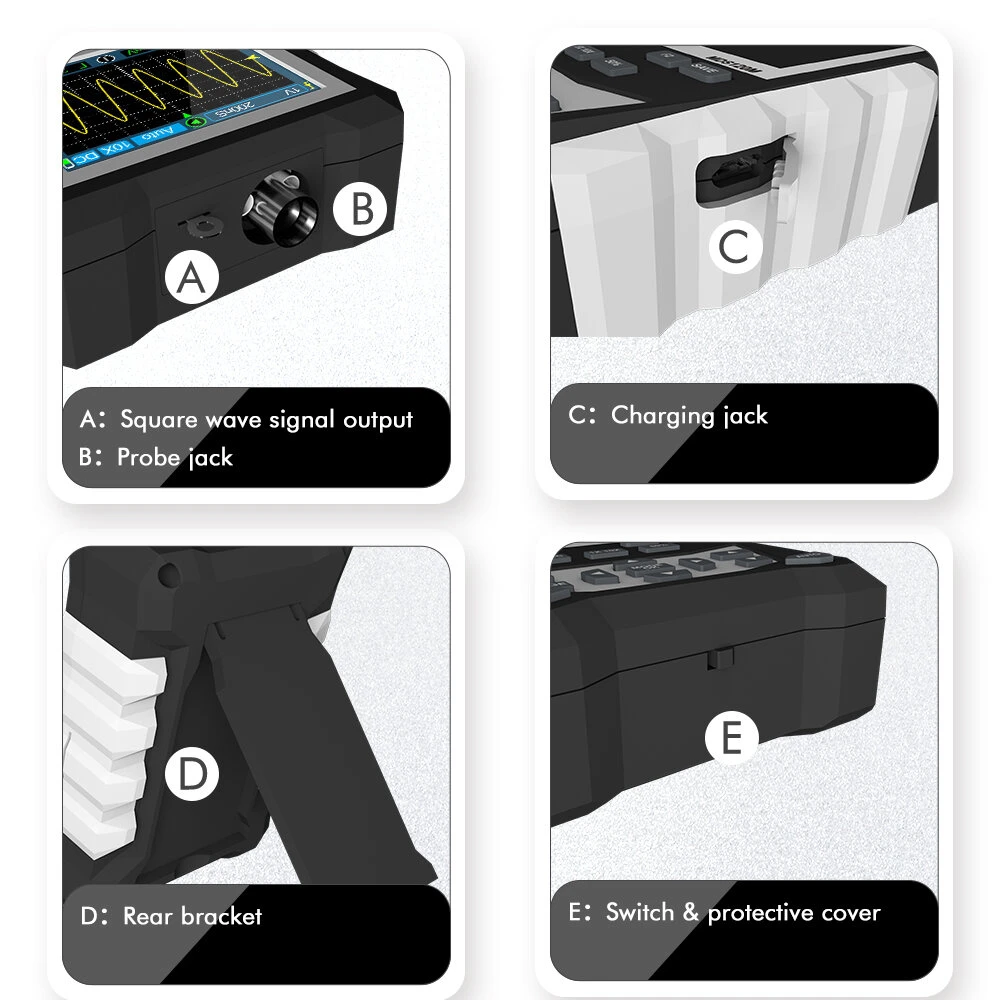

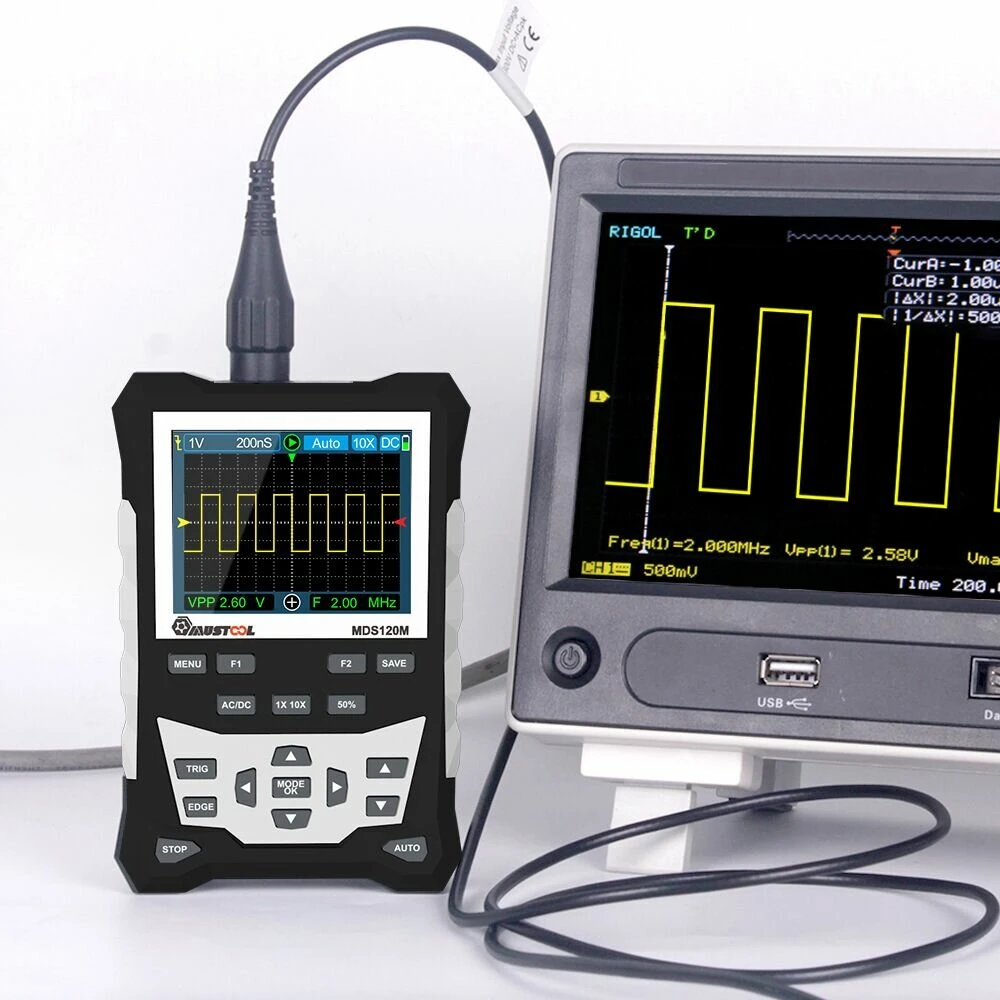

It is not just an oscilloscope, but also has 4 speeds of square iwave signal output function(1kHz,10KHz,100KHz,1MHz)
Portable, hand-held, sufficient power can achieve 6 hours of battery life

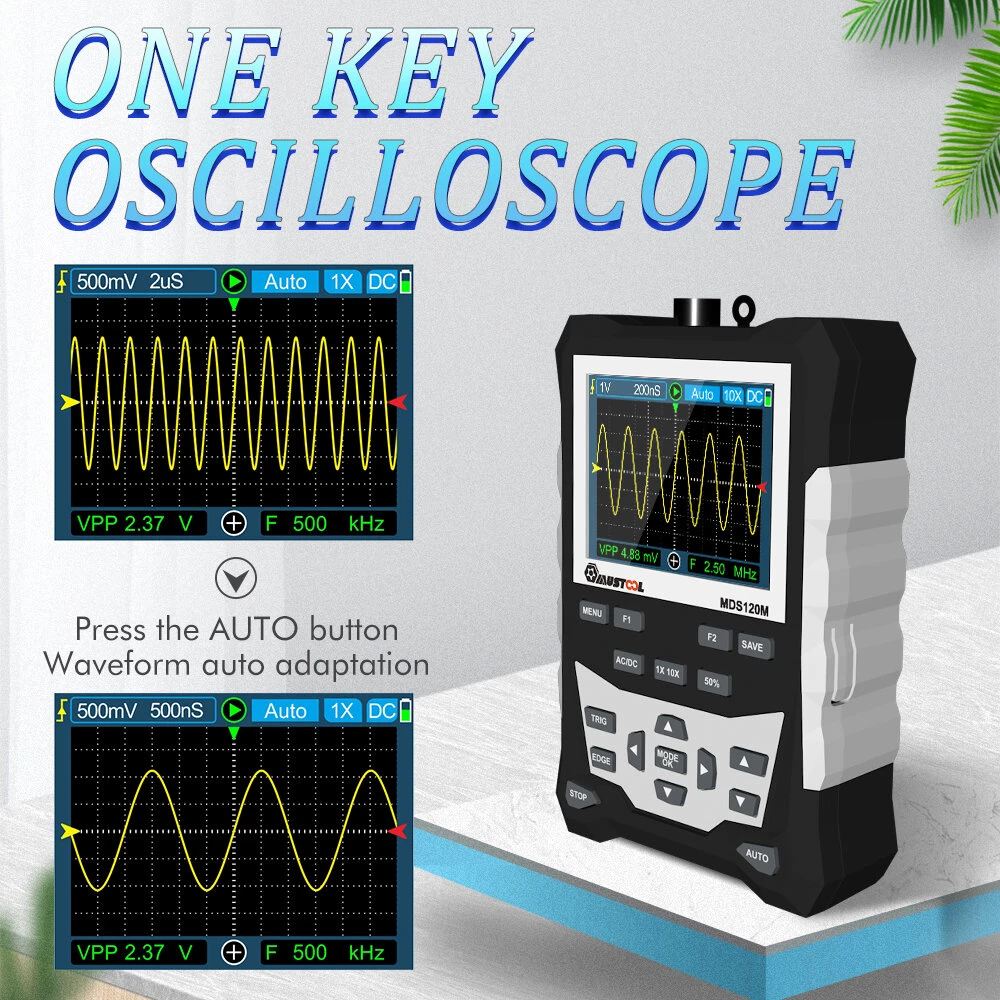

One-key automatic measurement of waveforms, with one X1/X10 oscilloscope probe included
12 kinds of parameter measurement: Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du-
Specifications:
|

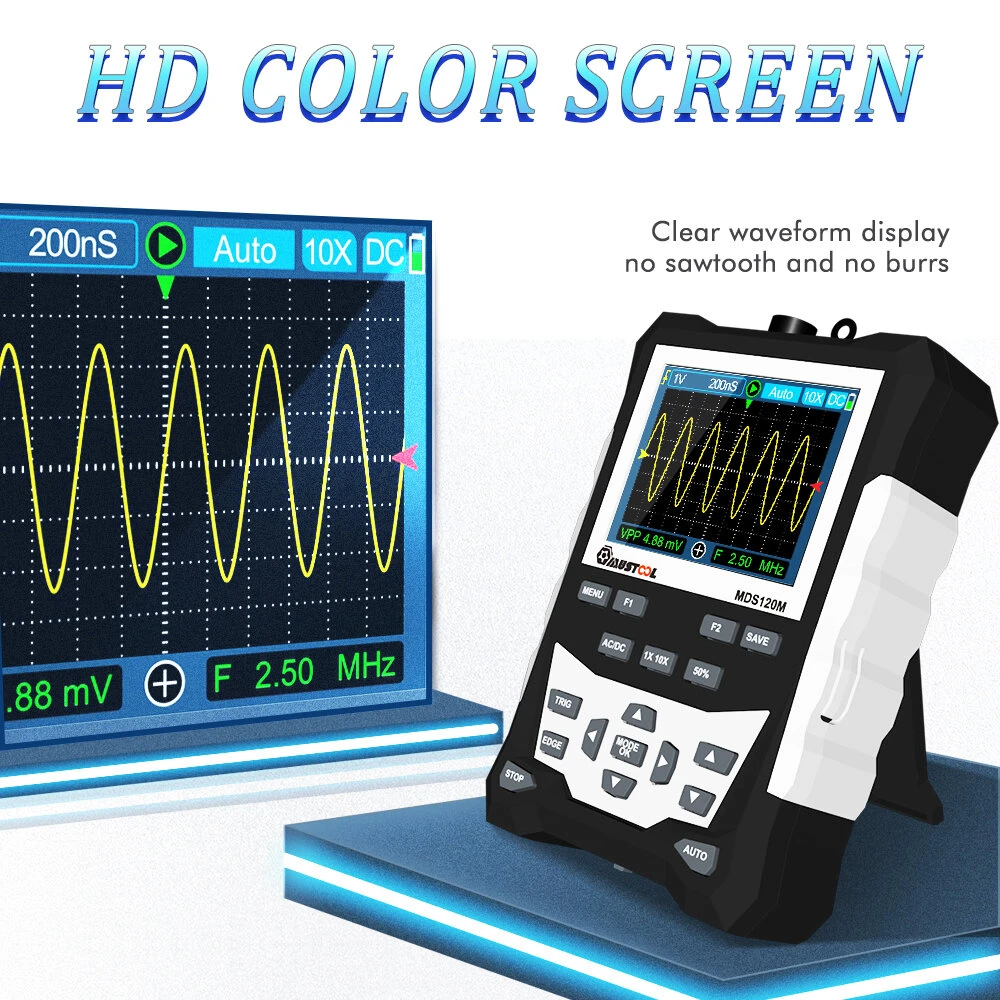

Display |
320×240 LCD screen |
|
Display area |
50mm x 40mm |
|
Backlight |
White, brightness adjustable |
|
Impedance |
x1: 1MΩ / x10: 10MΩ |
|
Battery |
18650 lithium battery |
|
Auto shutdown |
No operation for 15 minutes |
|
Storage |
2500 DSO waveforms |
|

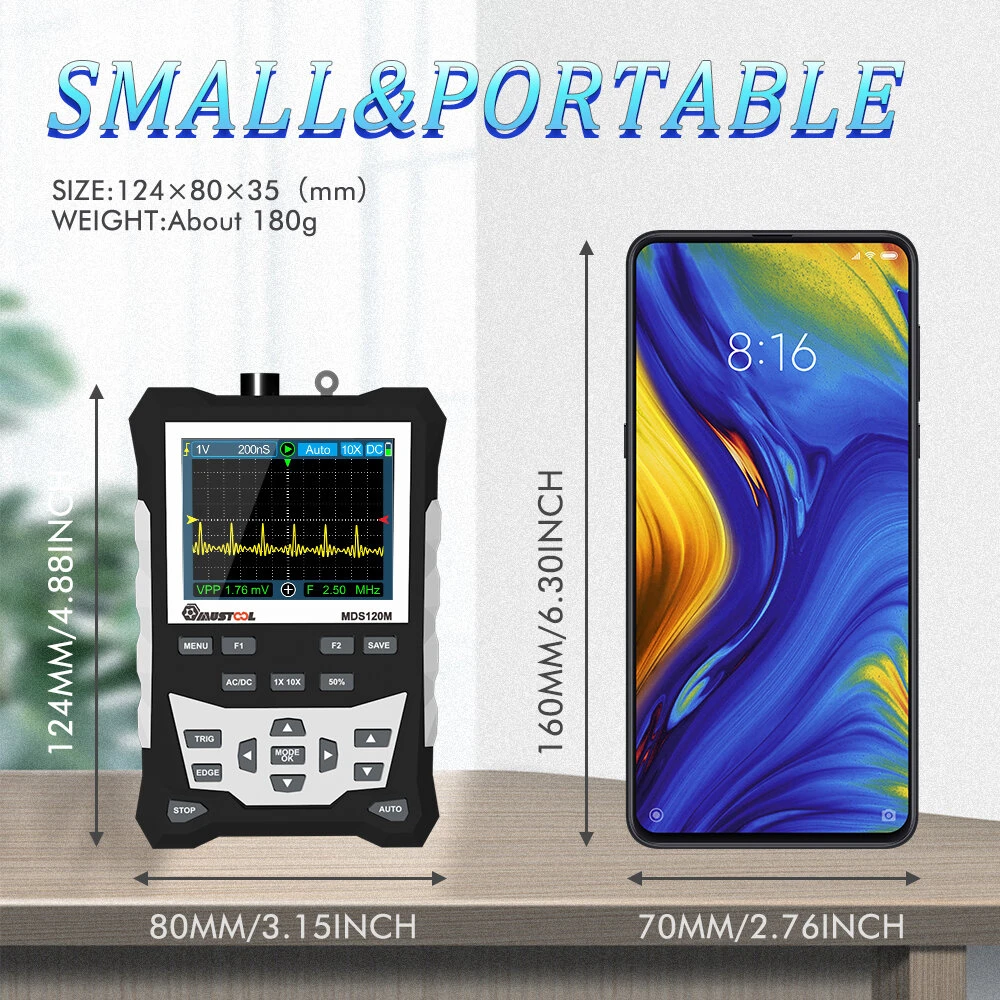

Size |
124 X 80 X 35mm |
|
Use conditions |
0C~ +40℃; < 75%RH |
|
Storoge conditions |
-10C~ +60℃; < 90%RH |
|
Analog bandwidth |
120MHz |
|
Vertical resolution |
8 bits |
|
Vertical accuracy |
±(5%+ 0.2div) |
|
Auto zero reference |
During DC meosurement |
|
Trigger level |
±3.8div (0. 1div per step) |
|
Trigger position |
± 6div (0. 1div per step) |
|
Cursor function |
△V, △t, 1 / △t |
|
Measuremer couocyy |
±(5%+ 0.2div) |
|
Non. linearity |
±1 bits |
|
Coupling method |
DC/AC |
|
Division |
Verical: ±3.8 Horizontal:12 |
|
Time base range |
6ns/div ~ 50s/div |
|
Time base accuracy |
±(0.01%+0.1div) |
|
Scan mode |
Auto/Single/Normal |
|
Trigger slope |
Rising / Falling |
|
Record length |
12div |
|
Maximum real-time sampling rate |
500MSps |
|
Auto configuration |
Automatically set time base and vertical amplitude |
|
Aulomatic measurement function |
Vpp, Vrms, Vavg, Vp, Vmax, Vmin,F,T,T+,T-. Du+, Du- |
|
Vertical sensifvity range |
x1: 50mV/div ~ 10V/div ; x 10: 500mV/div ~ 100V/div |
Package includes:
1 x Oscilloscope
1 x Probe
1 x English Manual
1 x USB Cable

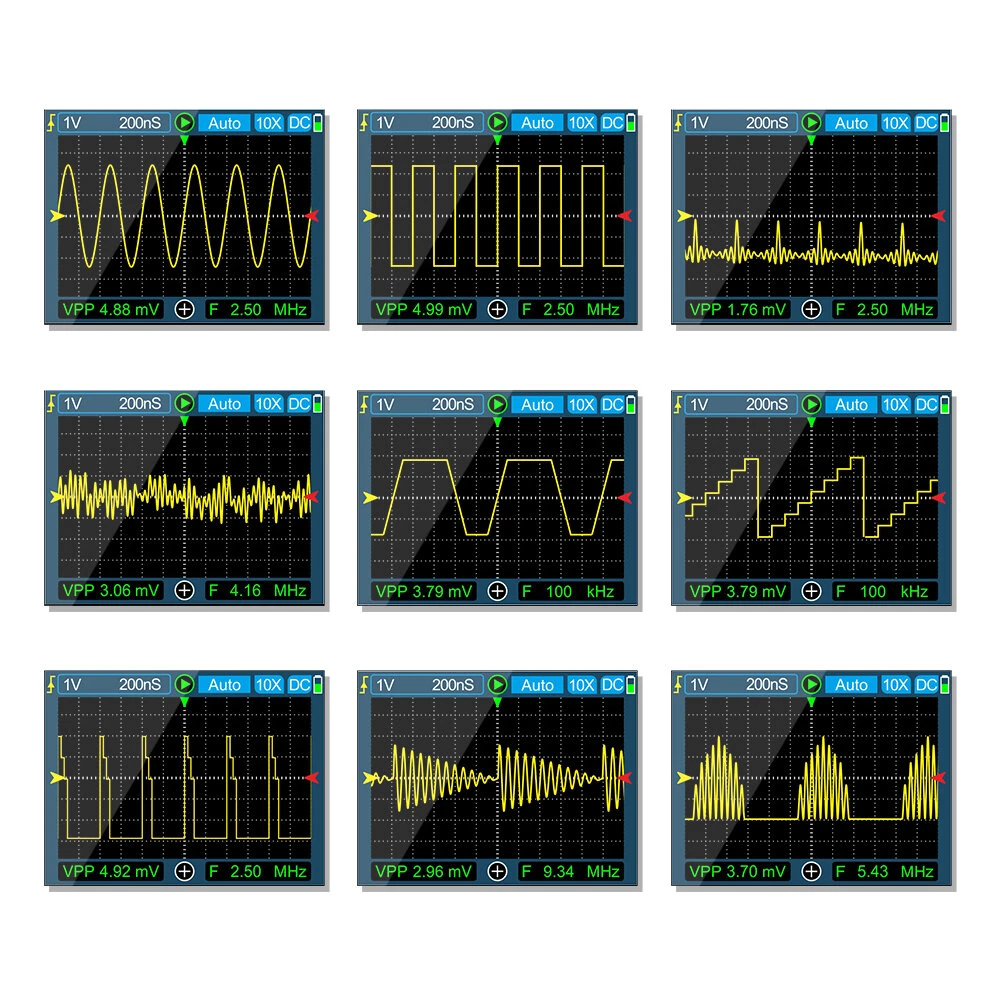

Details pictures:
