MUSTOOL MT108T True RMS NCV Temperature Tester Digital Multimeter 6000 Counts Backlight AC DC Current/Voltage Resistance Frequency Capacitance

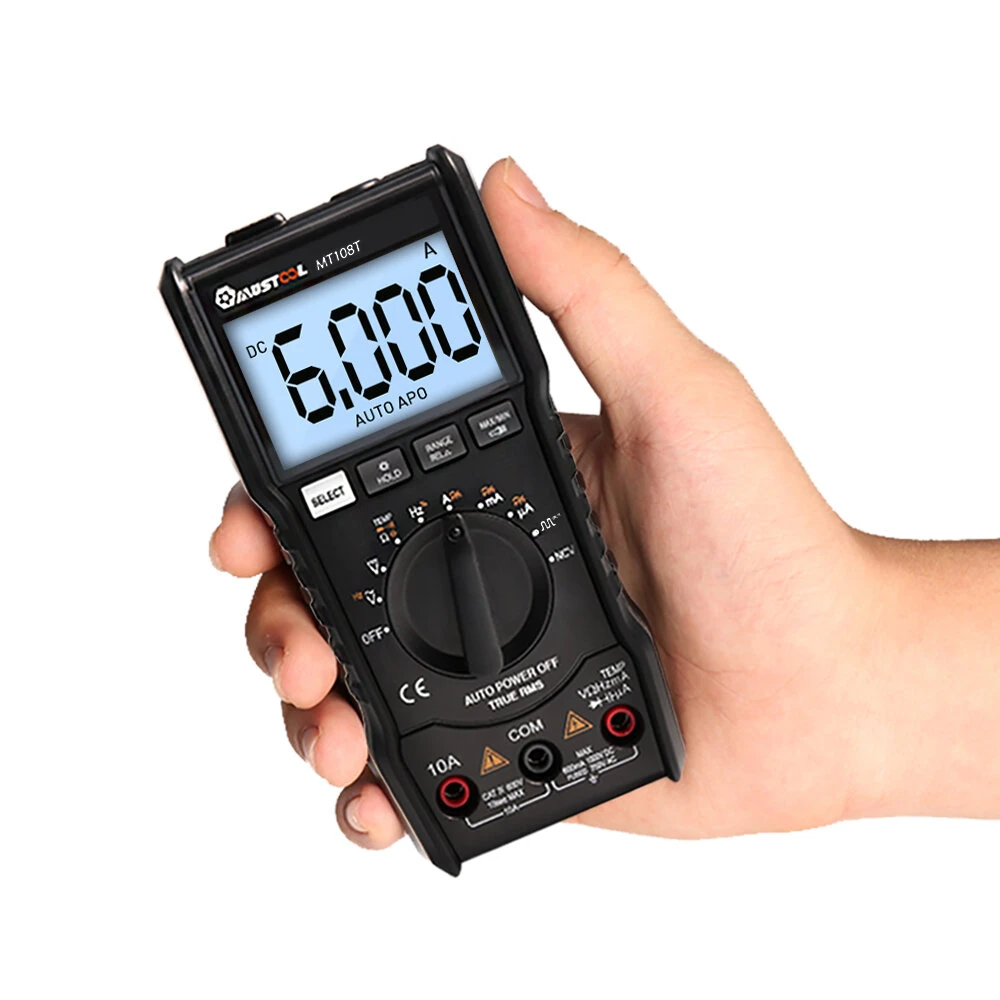

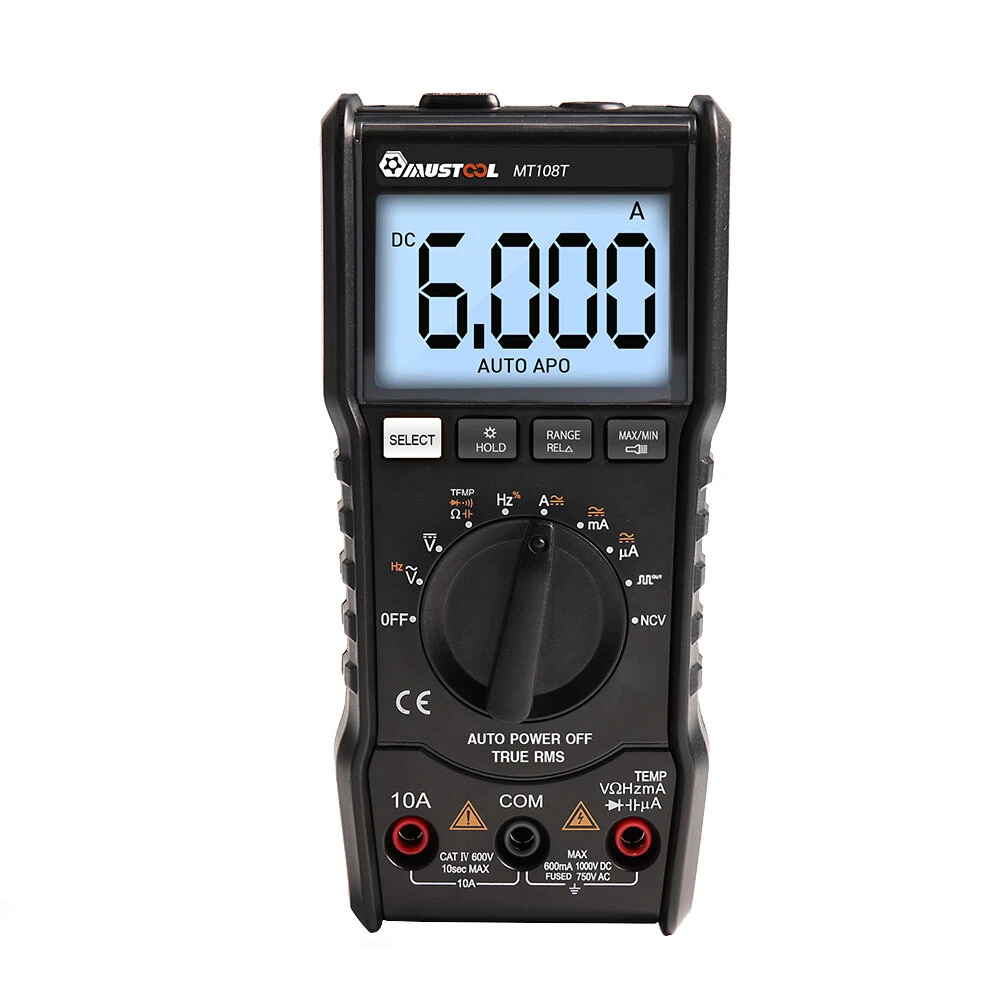

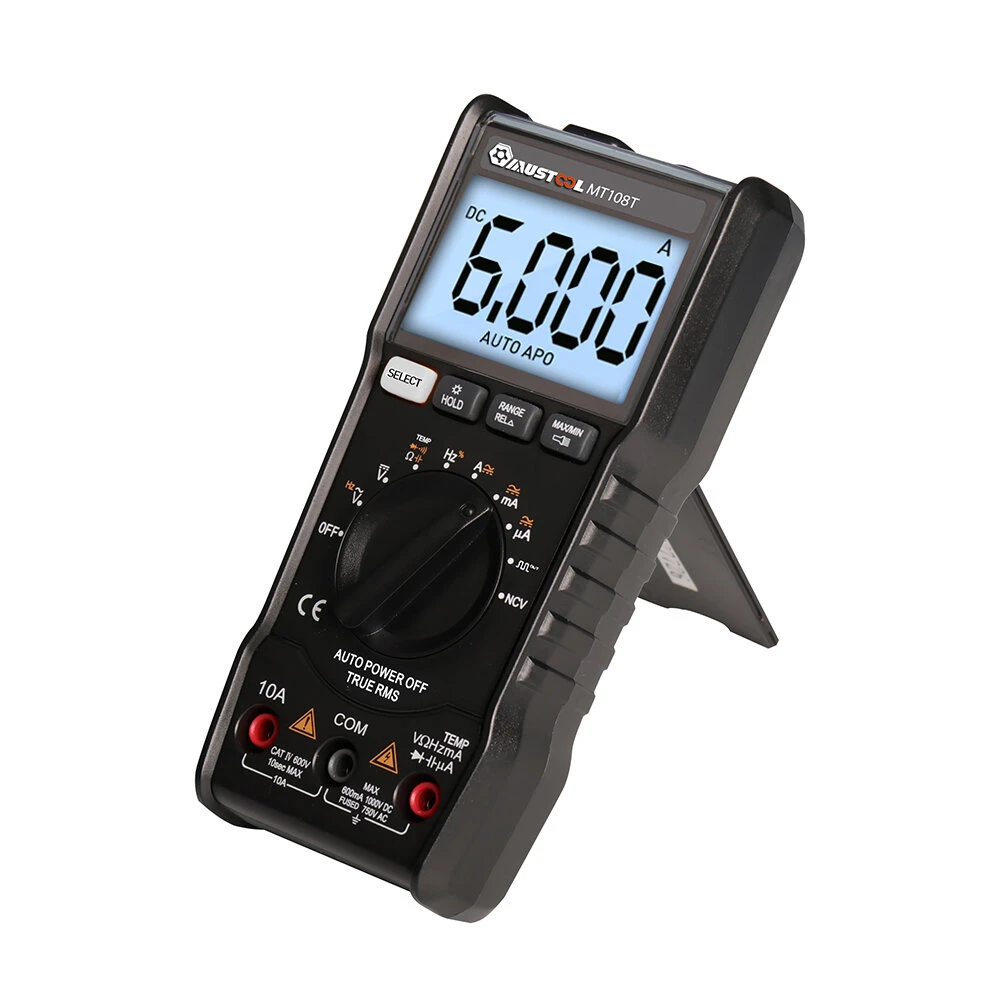

The MUSTOOL MT108T is a pocket-sized 6000 counts automatic digital instrument.

It’s a stable performance, high p’recision, high reliability clear readings, and overload protection.

With a large-screen LCD display, boost power supply, even in the 2.3V low battery edge, it can guarantee the backlight high brightness, the table is easy to carry, is a vast number of users extremely like the instrument, the backlight can be bright can be automatically turned off after 15 seconds.It’s an ideal tool for the laboratory, factory, radio enthusiasts and families.

50Hz-5000Hz Square Waves output. (Only the old version)

Auto P’ower-off.

Auto Range (User can choose manual operation)

HD LCD screen display with backlight .

(Tips: Press and hold the backlight key for 2 seconds to turn on the 15S auto off function; press for 3 seconds, the backlight remains on.)

Diode 4.2V high voltage output, easy to light the LCD.

10A large current measurement, UA level small current measurement

Main measurement: AC/DC voltage, AC/DC current, resistance, capacitance, diode, frequency, duty cycle, continuity, buzzer

DC voltage (DCV)

Range	Accuracy	Resolution
6V	± (0.5%+3)	0.001V
60V		0.01V
600V		0.1V
1000V	± (0.8%+10)	1V

AC voltage(DCV)

Range	Accuracy	Resolution
6V	± (0.8%+3)	0.001V
60V		0.01V
600V		0.1V
750V	± (1.2%+10)	1V

DC Current (DC mA)

Range	Accuracy	Resolution
60mA	± (1.2%+10)	10uA
600mA		100uA

DC Current (DC uA)

Range	Accuracy	Resolution
600uA	± (1.2%+10)	0.1uA
6000uA		1uA

AC Current (AC mA)

Range	Accuracy	Resolution
60mA	± (1.2%+10)	10uA
600mA		100uA

AC Current (AC uA)

Range	Accuracy	Resolution
600uA	± (1.2%+10)	0.1uA
6000uA		1uA

DC/AC 10A Current (DC/ACA)

Range	Accuracy	Resolution
6A	± (2.0%+30)	0.01A
10A		0.01A

Resistance (Ω)

Range	Accuracy	Resolution
600Ω	± (0.8%+5)	0.1Ω
6kΩ	± (0.8%+3)	1Ω
60kΩ		10Ω
600kΩ		100Ω
6MΩ		1kΩ
40MΩ	± (2.5%+3)	10kΩ

Capacitance(C)

Range	Accuracy	Resolution
60nF	± (3.5%+20)	10pF
600nF		100pF
6uF		1nF
60uF		10nF
600uF		100nF
6mF	± (5%+3)	11uF
30mF		10uF

Frequency measurement:

Range	Accuracy	Resolution
10Hz	± (0.1%+3)	0.01Hz
100Hz		0.1Hz
1kHz		1Hz
10kHZ		10Hz
100kHz		100Hz
1MHz		1kHz
20MHz		10kHz

Temperature measurement (°C/°F)

Range	Accuracy	Resolution
(-20-1000 )℃	± (1.0%+5) <400℃ ± (1.5%+15)≥400℃	1℃
(0-1832 )℉	± (0.75%+5) <750℉ ± (1.5%+15)≥750℉	1℉

Square Waves Output: 50Hz/100Hz/200Hz/300Hz/400Hz/500Hz/600Hz/700Hz/800Hz/ 900Hz/1000Hz/2000HZ/4000HZ/5000HZ

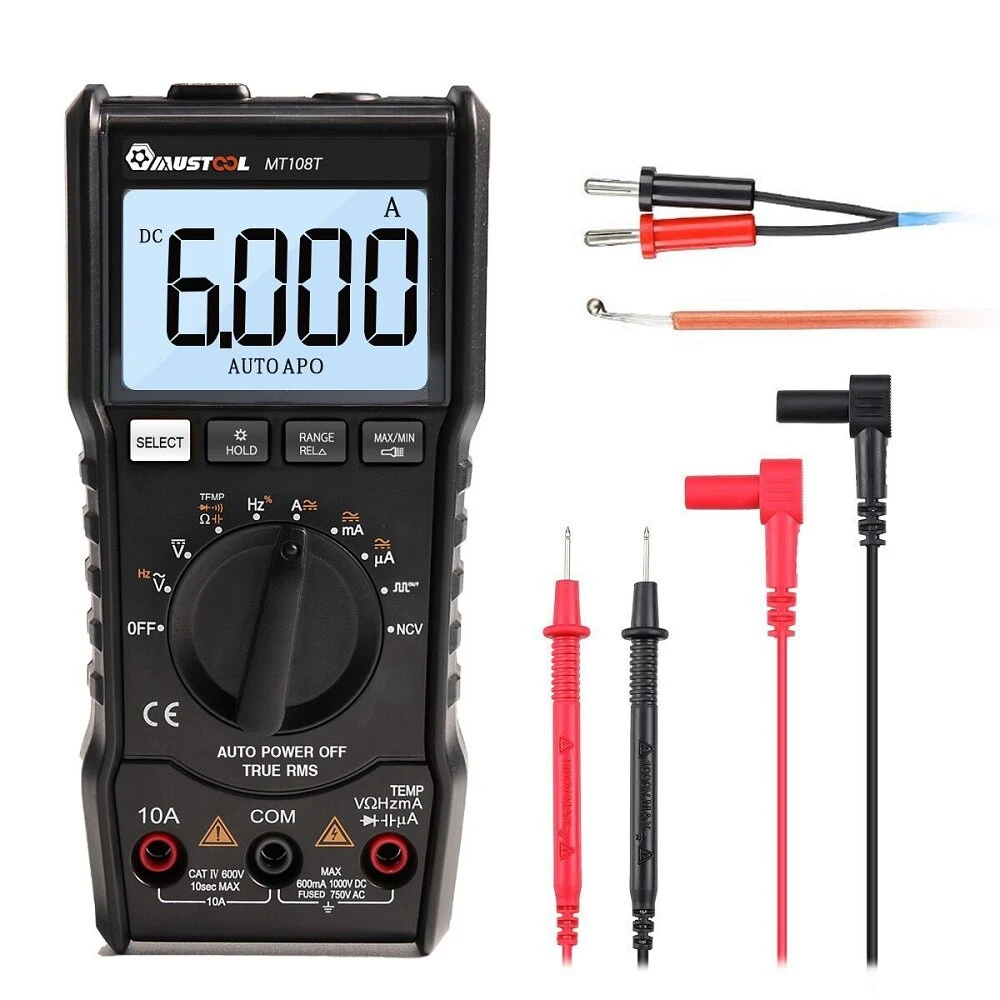

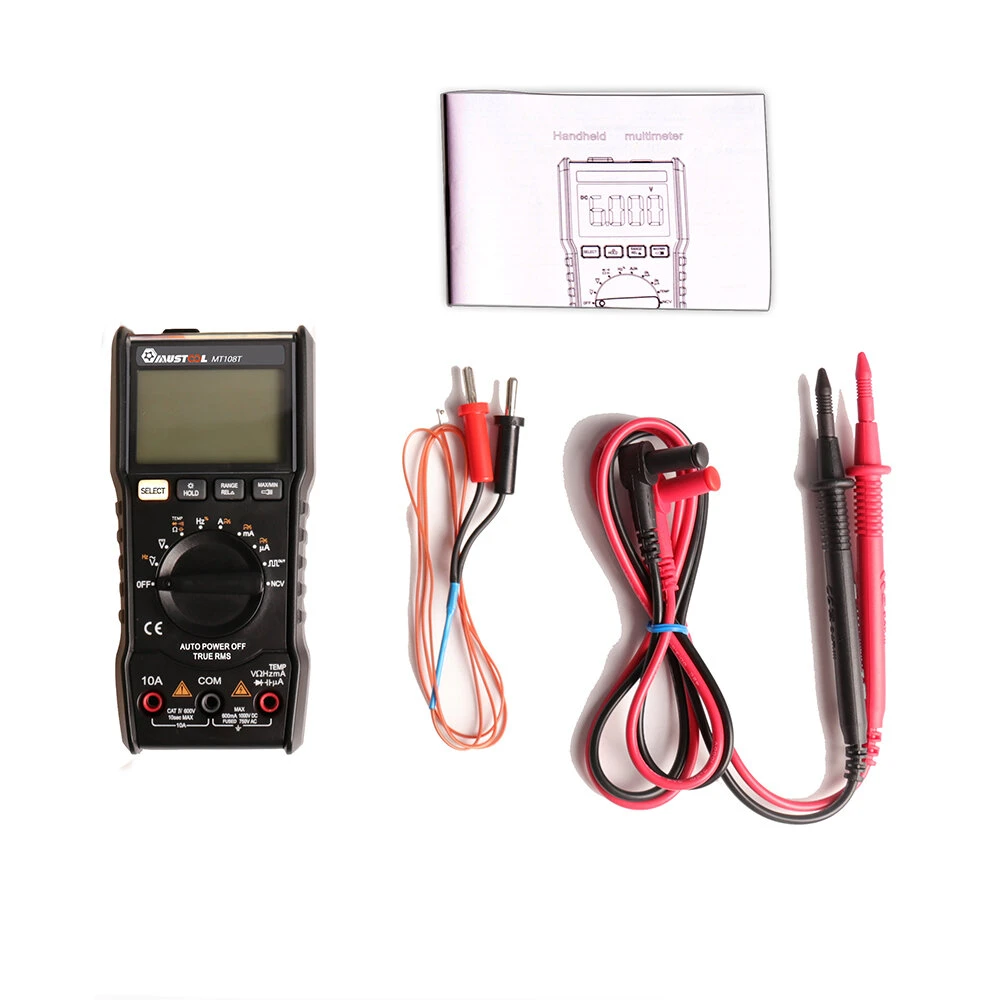

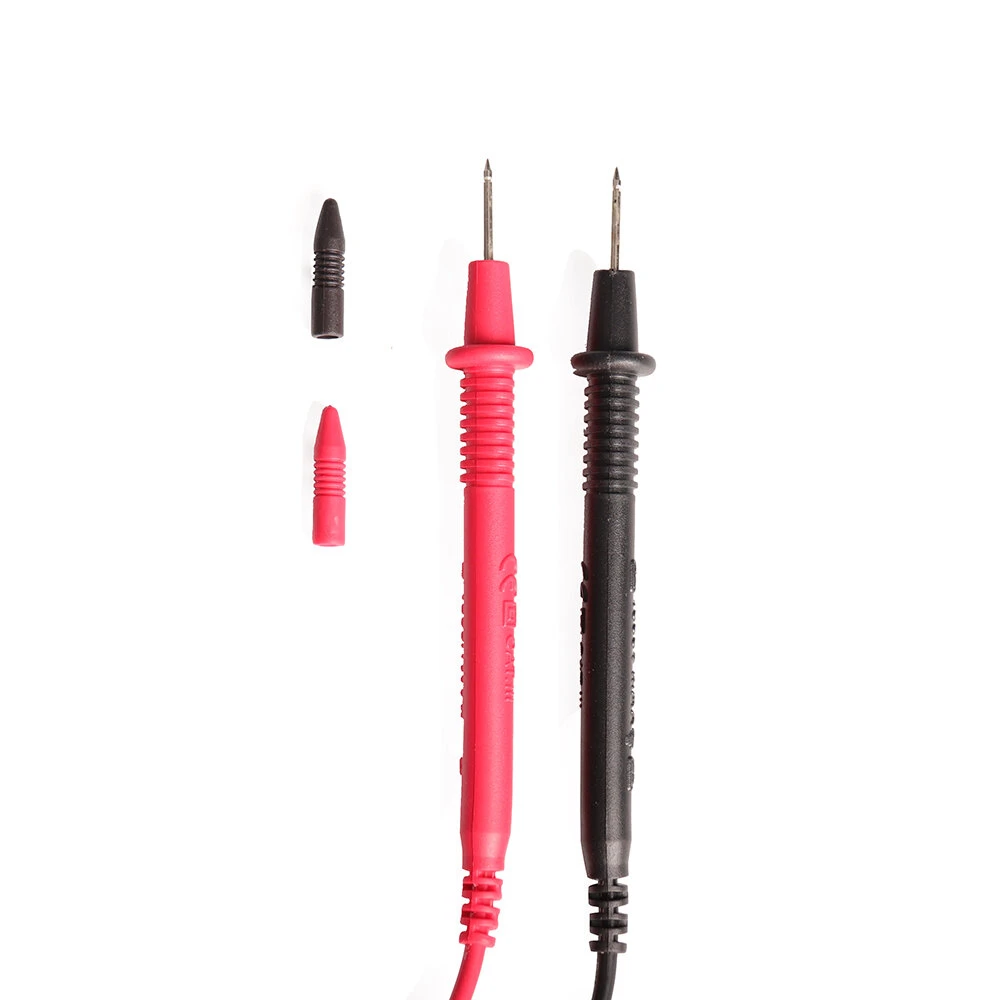

2 x Test Lead Set

1 x Temperature Sensing Cable

1 x English User Manual
