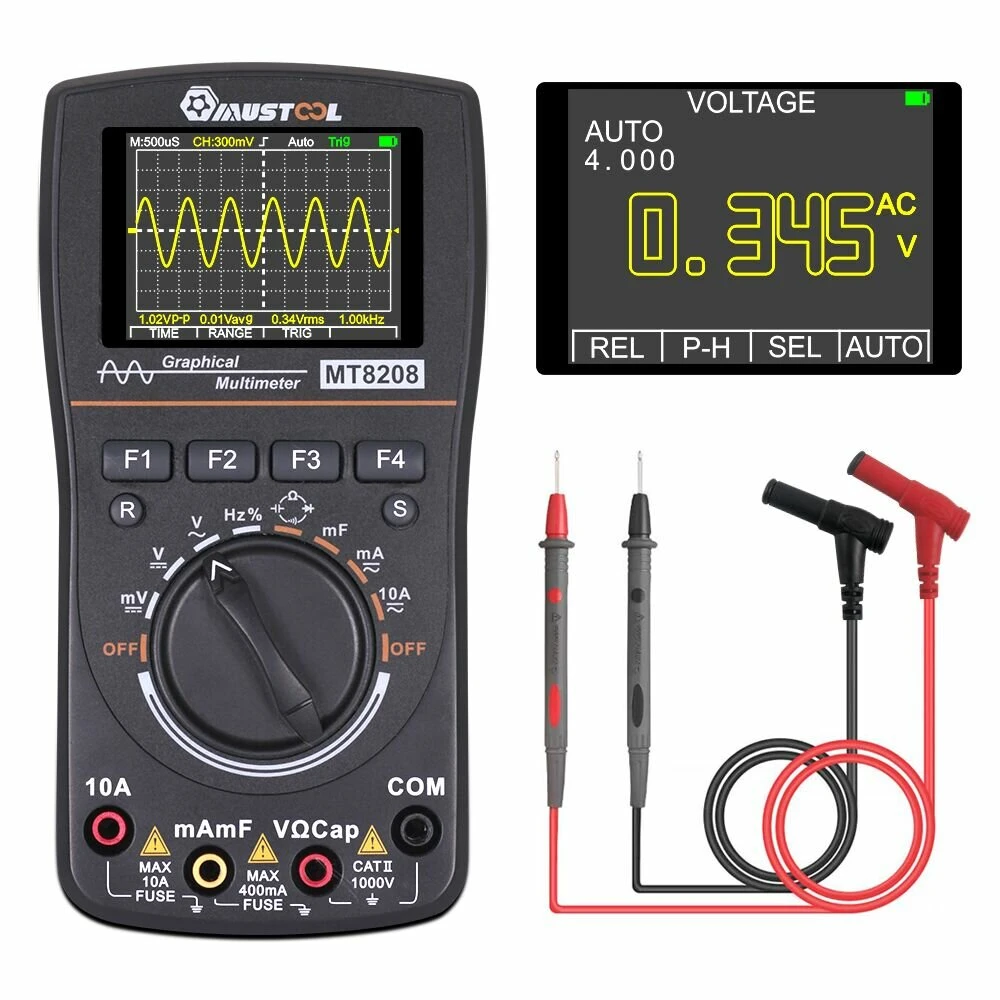

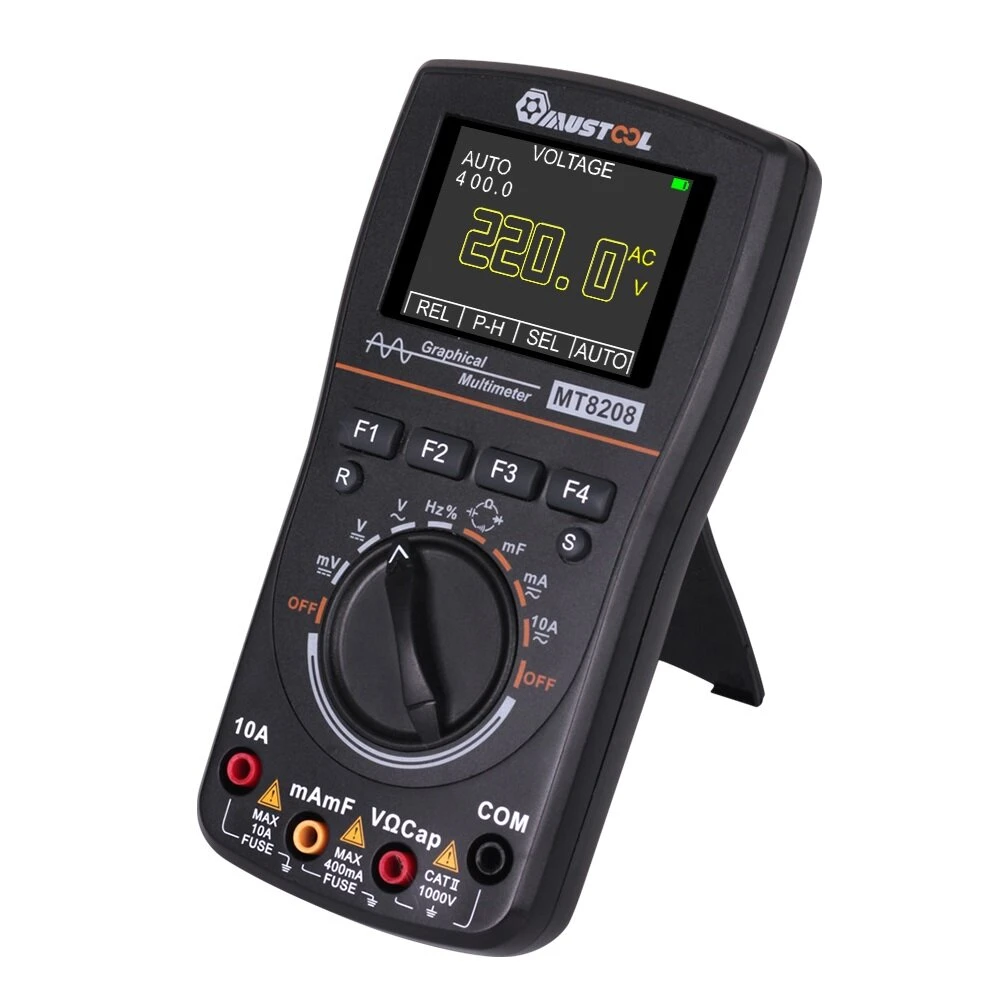

MUSTOOL MT8208 Intelligent Graphical Digital Oscilloscope Multimeter 2 In 1 With 2.4 Inches Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate For DIY And Electronic Test Upgraded From MT8206

Mode

MT8206

MT8208

Waveform measurement bandwidth

20KHz

1MHz  ↑

 Multimeter measurement

Automatic range

Automatic range + Manual range ↑

 LCD screen

HD Screen

 Color Scrreen ↑

Sampling rate

200KHz

2.5MHz  ↑

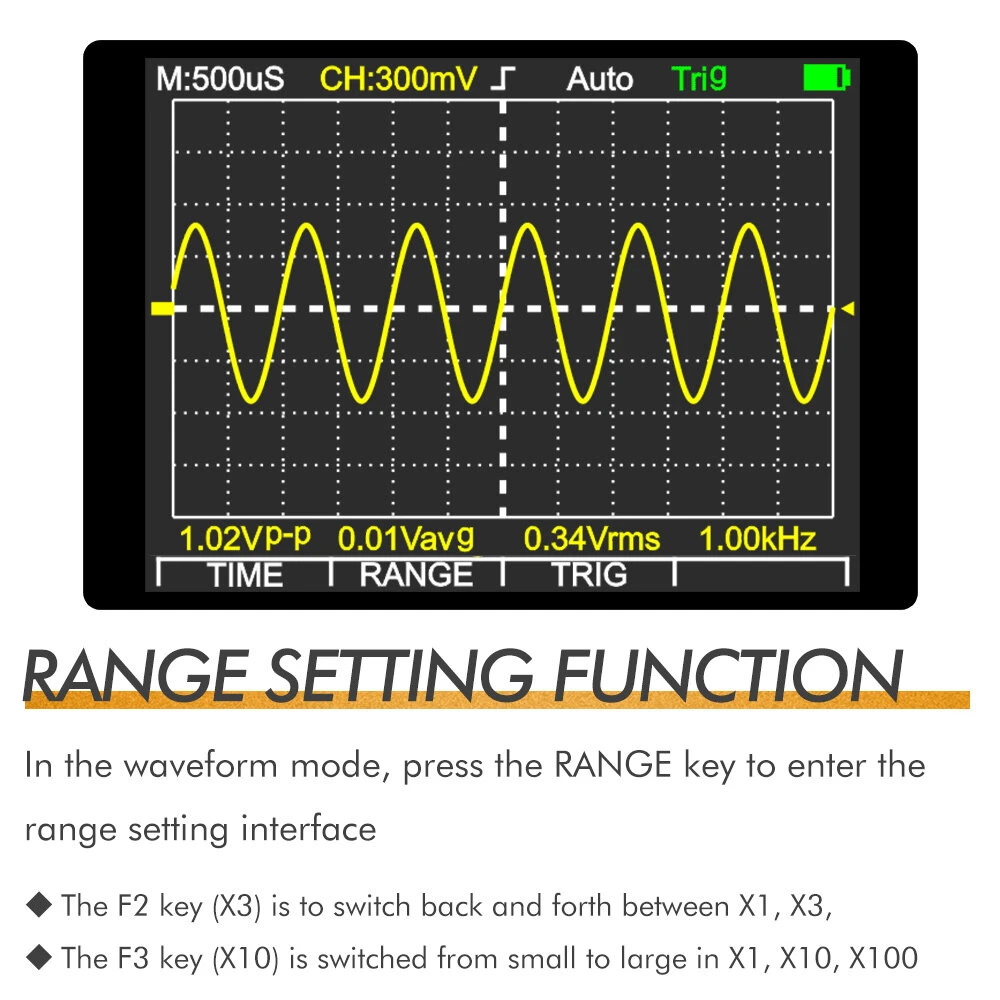

Oscilloscope function secondary display

/

 VP-P, average value, effective value,
frequency, time base, amplitude.  (Increased functionality)

Measurement mode

/

Normal, Automatic (Increased functionality)

Product Model:

MT8208

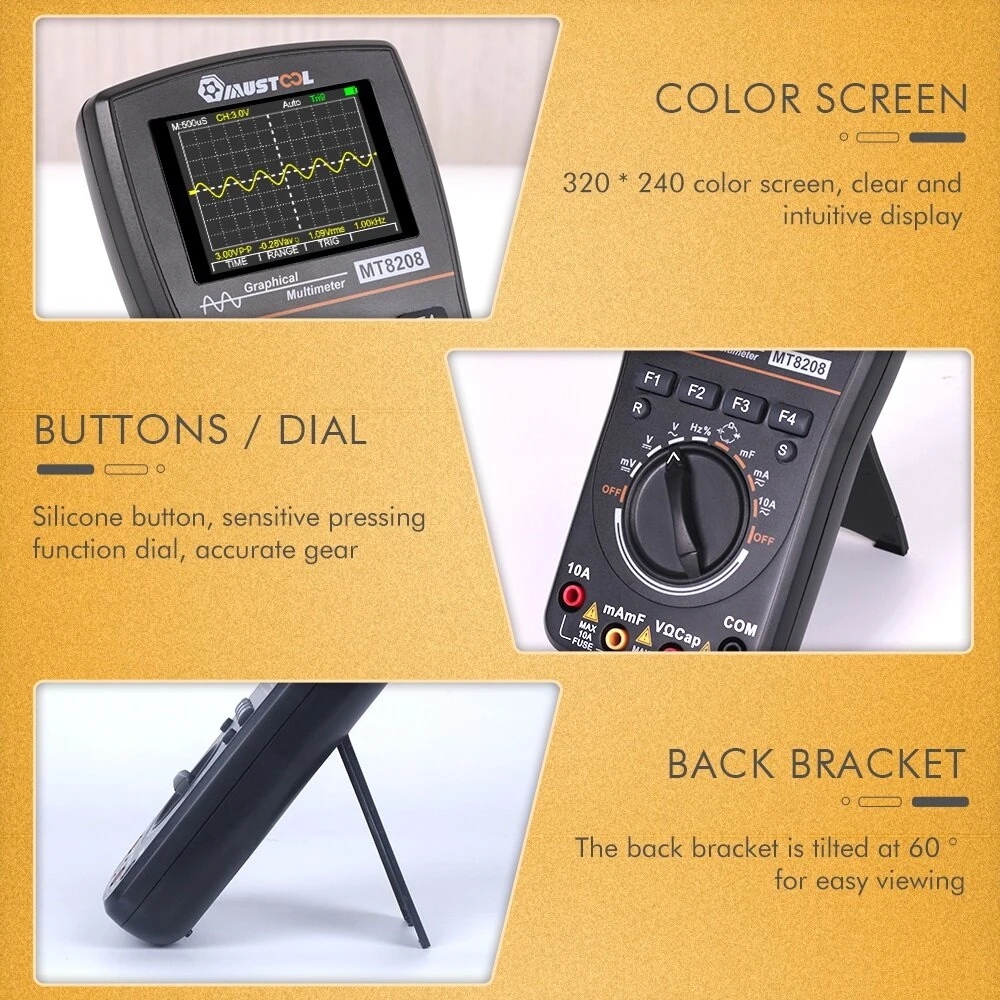

Display:320×240 LCM

Display area: about 2.4 inches

Backlit : White

Input resistance : 10MΩ

Battery : AA battery x 3(not  included)

Power consumption : About 80mA

Use time : Low light about 5 hours

Storage : 100 Data/10 Wave forms

Use: 0 ° C – + 40 ° C; <75% RH

Storage : -10 ° C 〜+ 60 0 C; <90% RH

Size : 83 x 160 x 32(mm)

Weight: About 195g (without battery)

Bandwidth : ACV / 1 MHz ACA / 5KHZ

Max real-time sampling rate : 2.5Msps

Multimeter Specification

Features

Range

Uncertainty

DC voltage

400mV,4V/40V/400/1000V

0.75% rdg+10dgt

AC voltage

400mV/4V/40V/400/750V

1.0% rdg+10dgt

DC

40mA/400mA,4A/10A

1.2% rdg+10dgt

Alternating current

40mA/400mA,4A/10A

1.5% rdg+10dgt

Resistance

400.0Ω~40.00MΩ

1.0% rdg+5dgt

Capacitance

0.1nF~100，10.00mF

2.0% rdg+10dgt

Frequency

5Hz 〜5MHz

1.0% rdg+5dgt

Duty cycle

0.1%~99.9%

1.0% rdg+5dgt

Diode test

Voltage is about 5V,test current is about 1.5mA

Continuity test

Judgment Resistance about:<50Ω beep

Fuse specifications

500mA/250V, 10A/250V
