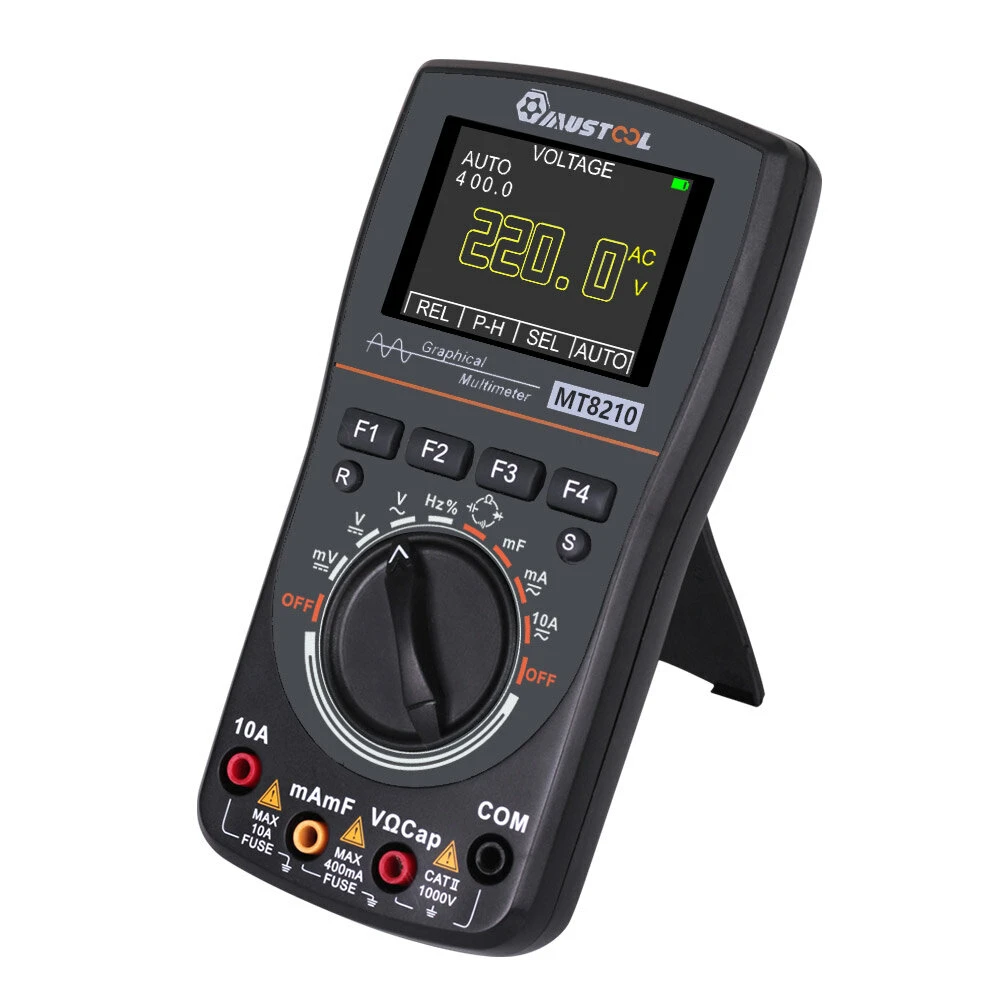

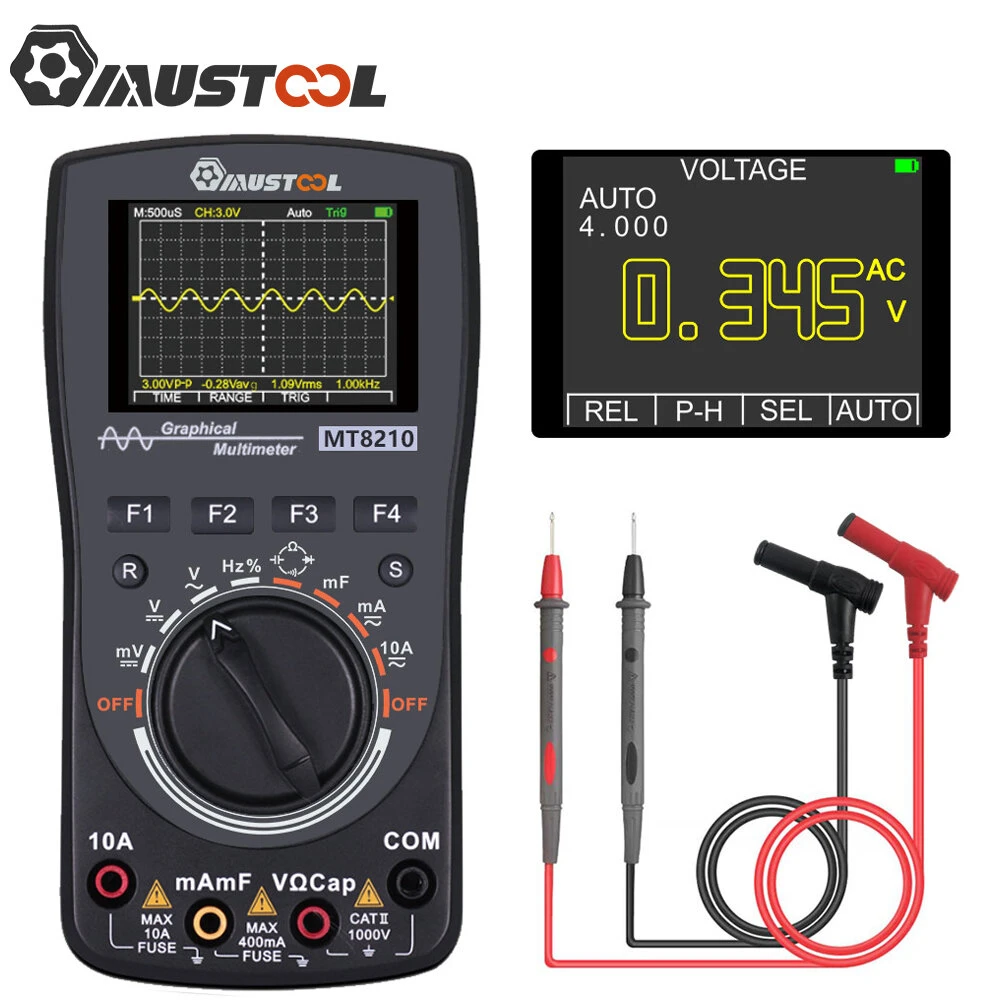

MUSTOOL MT8210 Intelligent Graphical Digital Oscilloscope Multimeter 2 In 1 With 2.4 Inches Color Screen 1MHz Bandwidth 2.5Msps Sampling Rate For DIY And Electronic Test
Original price was: $51.40.$35.98Current price is: $35.98.
- Safeguard Your Shopping Experience
- Online assistance, always at your service.
- Buy with confidence, backed by quality.
- There are quality problems, free return and exchange
A More Powerful Graphical Multimeter !!!
Oscilloscope + Multimeter function 2 in 1

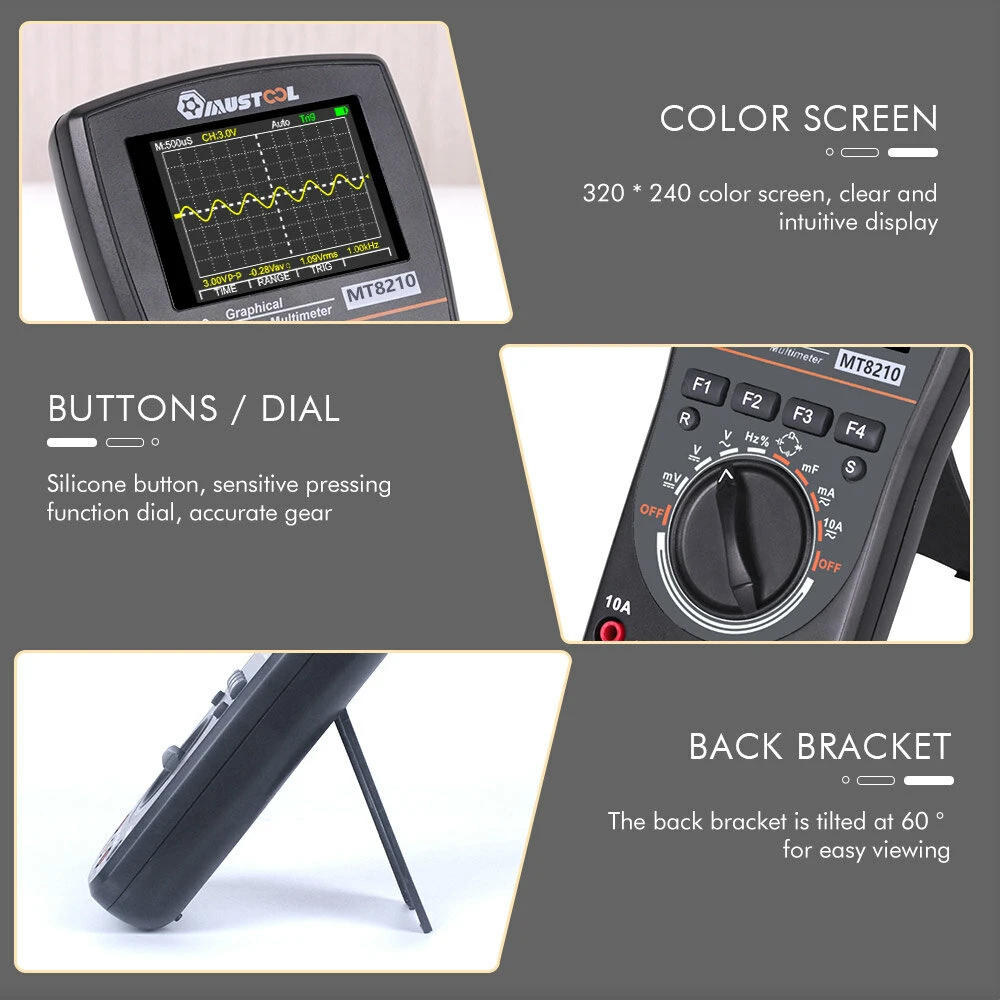

It has 2.4 inches color screen, wonderful display effect !
We upgraded the bandwith to 1MHz with 2.5Msps Sampling Rate, which is much more suitable for DIY lovers.
Now sells for rock-bottom prices!
Dont miss it!
| Mode | MT8206 | MT8210 |
| Waveform measurement bandwidth | 20KHz | 1MHz ↑ |
| Multimeter measurement | Automatic range | Automatic range + Manual range ↑ |
| LCD screen | HD Screen | Color Scrreen ↑ |
| Sampling rate | 200KHz | 2.5MHz ↑ |
| Oscilloscope function secondary display | / | VP-P, average value, effective value, |
| Measurement mode | / | Normal, Automatic (Increased functionality) |

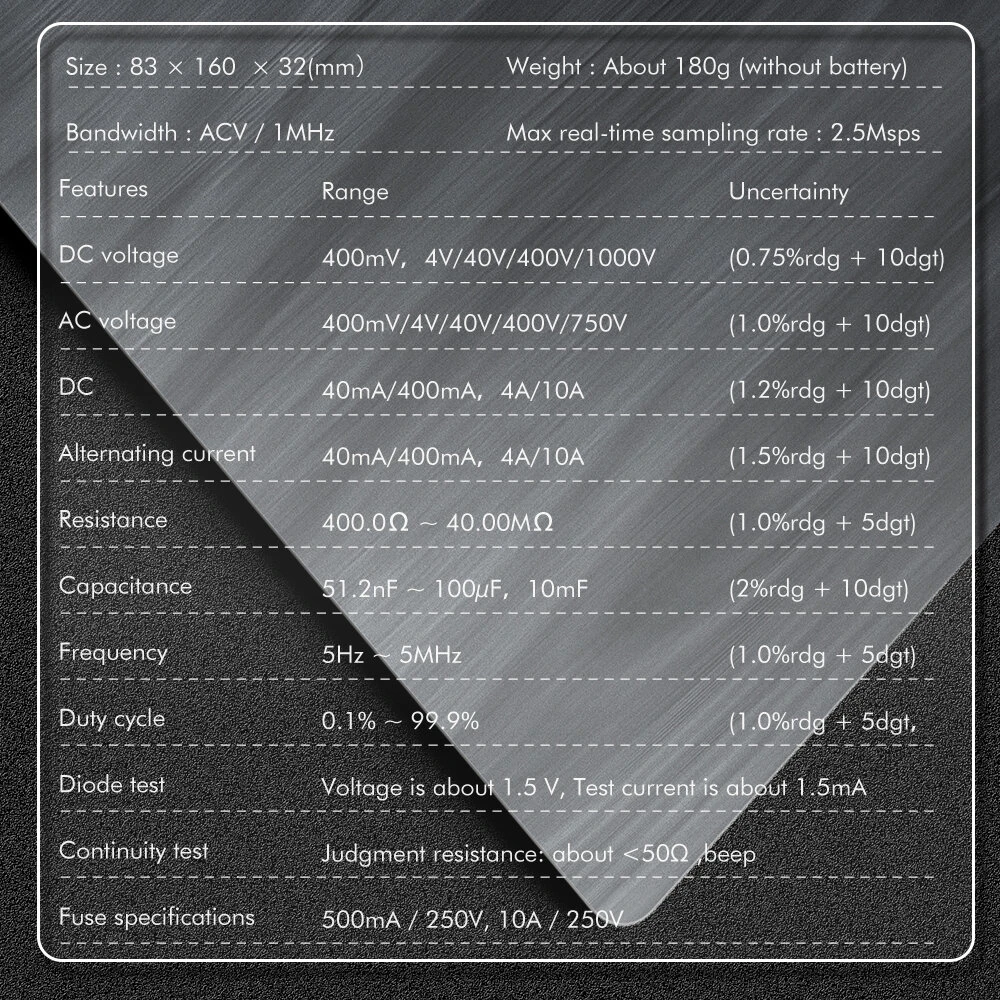

| Size | 83 × 160 × 32(mm | |
| Weight: | About 180g (without battery) | |
| Max real-time sampling rate | 2.5Msps | |
| Bandwidth | ACV / 1MHz | |
| Features | Range | Uncertainty |
| DC voltage | 400mV, 4V/40V/400V/1000V | (0.75%rdg + 10dgt) |
| AC voltage | 400mV/4V/40V/400V/750V | (1.0%rdg + 10dgt) |
| DC | 40mA/400mA, 4A/10A | (1.2%rdg + 10dgt) |
| Alternating current | 40mA/400mA, 4A/10A | (1.5%rdg + 10dgt) |
| Resistance | 400.0Q ~ 40.00MQ | (1.0%rdg + 5dgt) |
| Capacitance | 51.2nF ~ 100uF, 10mF | (2%rdg+ 10dgt) |
| Frequency | 5Hz 5MHz | (1.0%rdg + 5dgt) |
| Duty cycle | 0.1% ～ 99.9% | (1.0%rdg + 5dgt) |
| Diode test | Voltage is about 1.5 V, Test current is about 1.5mA | |
| Continuity test | Judgment resistance: about <50Q beep | |
| Fuse specifications | 500mA / 250V, 10A / 250V | |
Package inluded:
1 x MT8210 Oscilloscope
1 x Test Leads
1 x English Manual
1 x Packing box
