MUSTOOL X1 Pocket 6000 Counts True RMS Clamp Meter AC/DC Voltage&Current Digital Multimeter Automatic Digital Meter With Square Wave Output Ω/V/A/Diode/Frequency/Continuity Test

Features:

Function
DC voltage  DCV	√
AC voltage  ACV	√
DC current  DCA	√
AC current  ACA	√
Resistor / Diode / On-Off Test / Capacitor	√
Frequency F	√
Square wave output	√
NCV	√
Full unit symbol	√
Backlight manual/Auto off	√
True RMS measurement	√
Temperature(℃/℉)	√
Flashlight lighting	√

Specifications:

1.DC voltage (DCV)

Accuracy  Range	6000counts	Resolution
6V	±(0.5%+3)	0.001V
60V		0.01V
600V		0.1V
1000V	±(0.8%+10)	1V

2.AC voltage(ACV)

Accuracy Range	6000counts	Resolution
6V	±(0.8%+3)	0.001V
60V		0.01V
600V		0.1V
750V	±(1.2%+10)	1V

3.DC current (DC A)

Accuracy Range	6000counts	Resolution
60A	±(2%+30)	0.01A
600A		0.1A

4.AC current(AC A)

Accuracy Range	6000counts	Resolution
60A		0.01A
600A		0.1A

5.Resistance (Ω)

Accuracy Range	6000counts	Resolution
600Ω	±(0.8%+5)	0.1Ω
6kΩ	±(0.8%+3)	1Ω
60kΩ		10Ω
600kΩ		100Ω
6MΩ		1kΩ
40MΩ	±(2.5%+3)	10kΩ

6.Diode and continuity test

Range	display value	test condition
	Diode forward voltage drop	Forward DC current is about 1mA, open circuit voltage is about 3V
	The buzzer sounds long and the resistance of the test is less than (50±20) Ω.	Open circuit voltage is about 3V, press “SELECT” for two-speed function switching

7.Capacitance(C)

Accuracy Range	6000counts	Resolution
60nF	±(3.5%+20)	10pF
600nF		100pF
6uF		1nF
60uF		10nF
600uF		100nF
6mF	±(5%+3)	1uF
30mF		10uF

8.Frequency measurement

Accuracy Range	6000counts	Resolution
10Hz	±(0.1%+3)	0.01Hz
100Hz		0.1Hz
1kHz		1Hz
10kHZ		10Hz
100kHz		100Hz
1MHz		1kHz
10MHz		10kHz

9.Temperature measurement ( °C/°F)

Accuracy Range	6000counts	Resolution
(-20-1000 )℃	±(1.0%+5)<400℃;   ±(1.5%+15)≥400℃	1℃
(0-1832 )℉	±(0.75%+5)<750℉;   ±(1.5%+15)≥750℉	1℉

Package Includes:

1 x MUSTOOL X1 Clamp Meter(battery not included)
1 x Test Leads
1 x Temperature Probe
1 x English User Manual

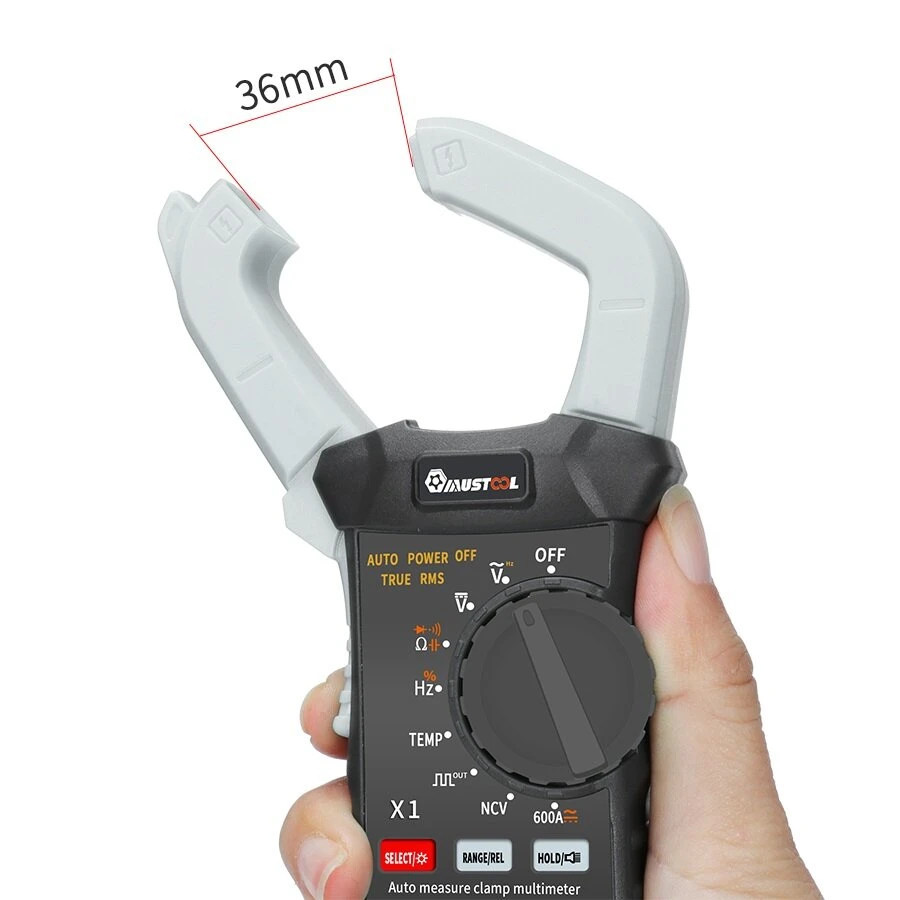

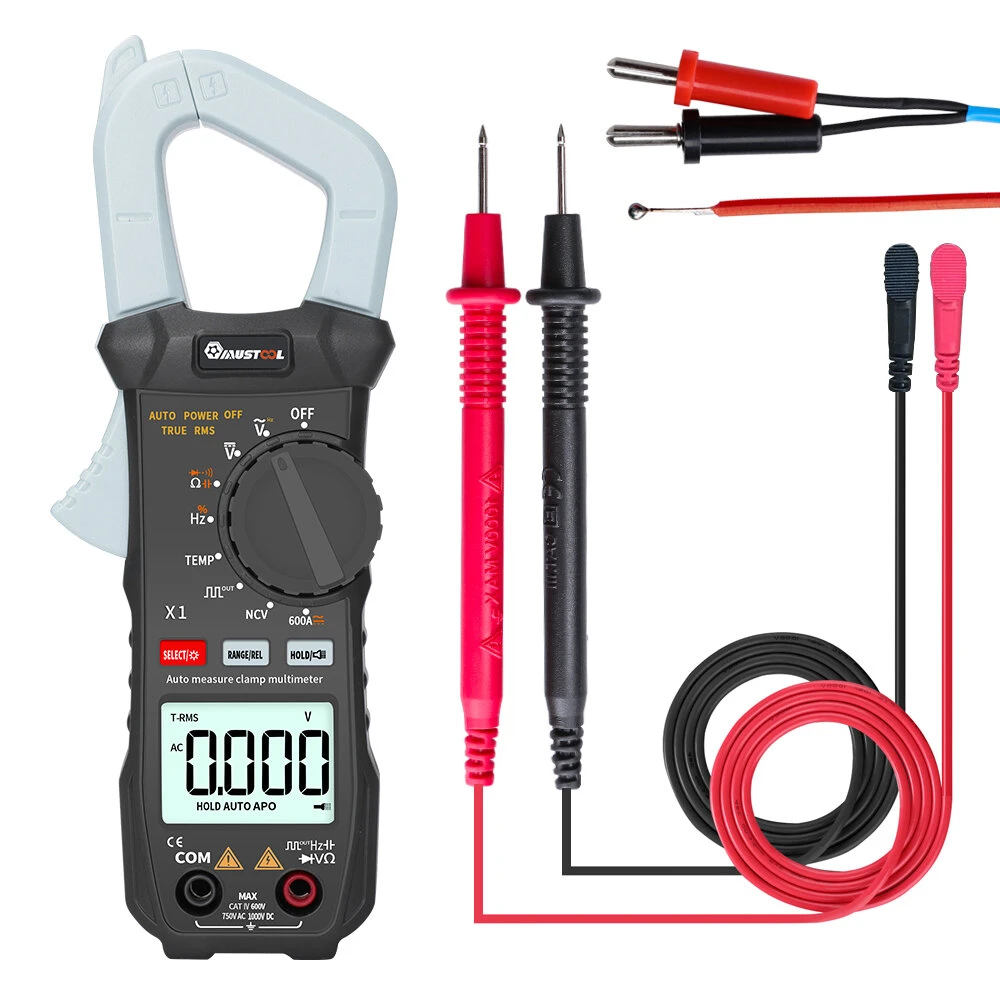

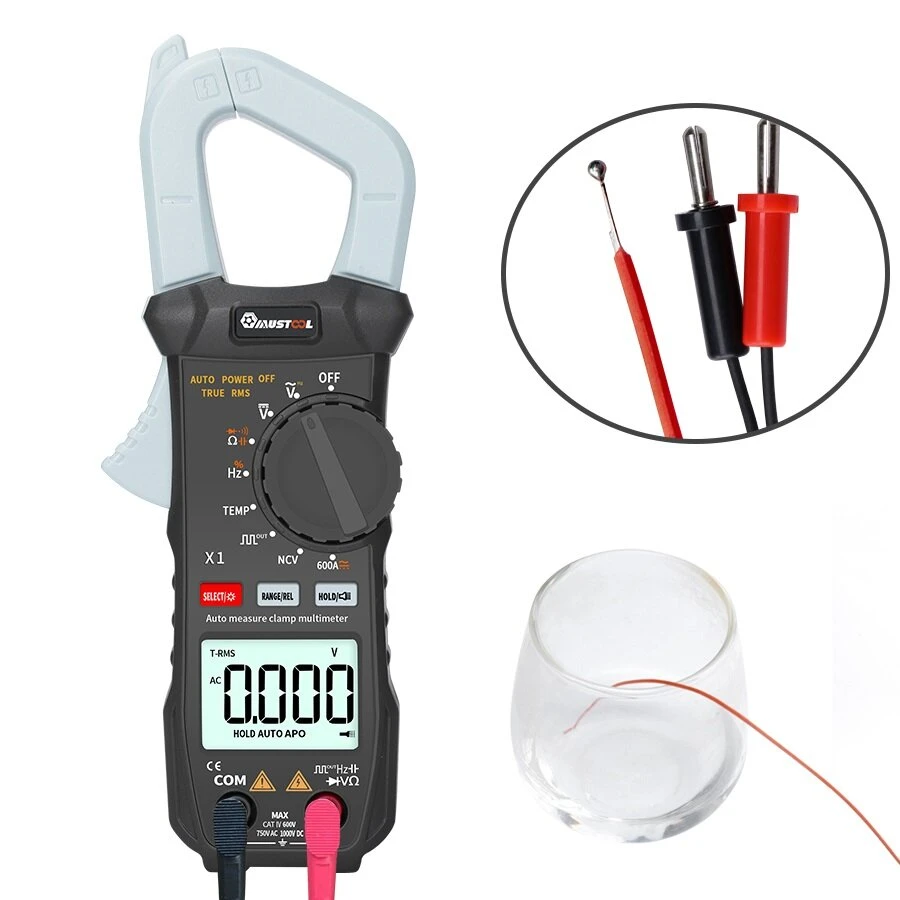

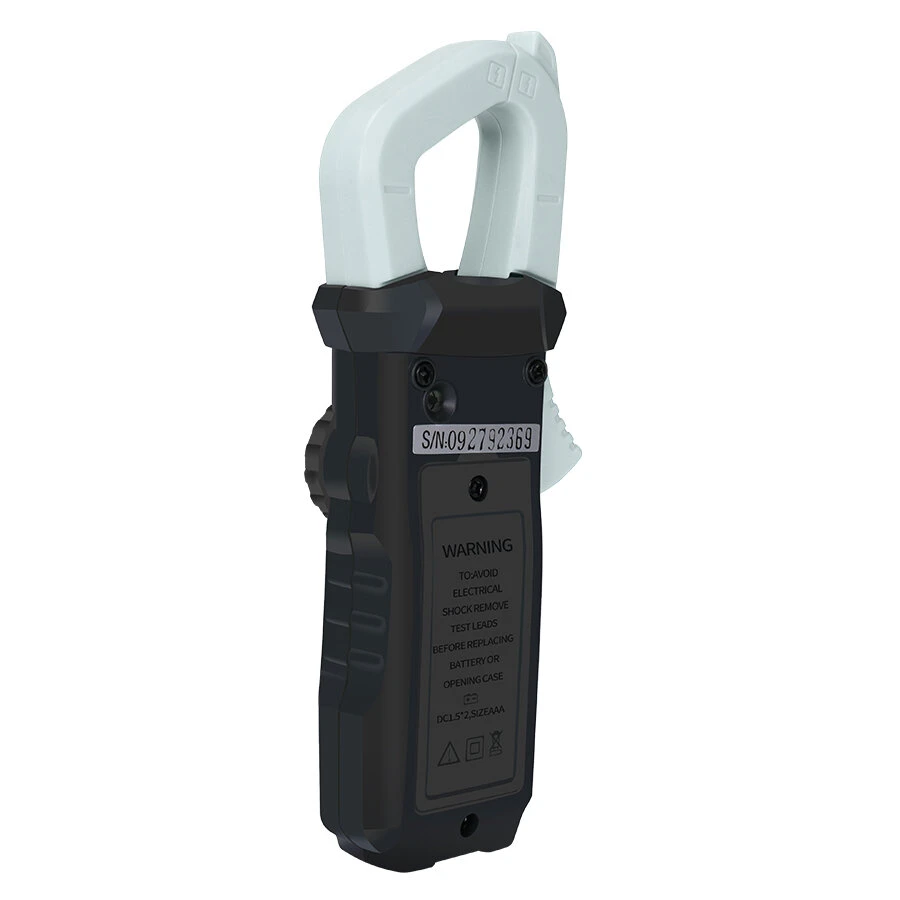

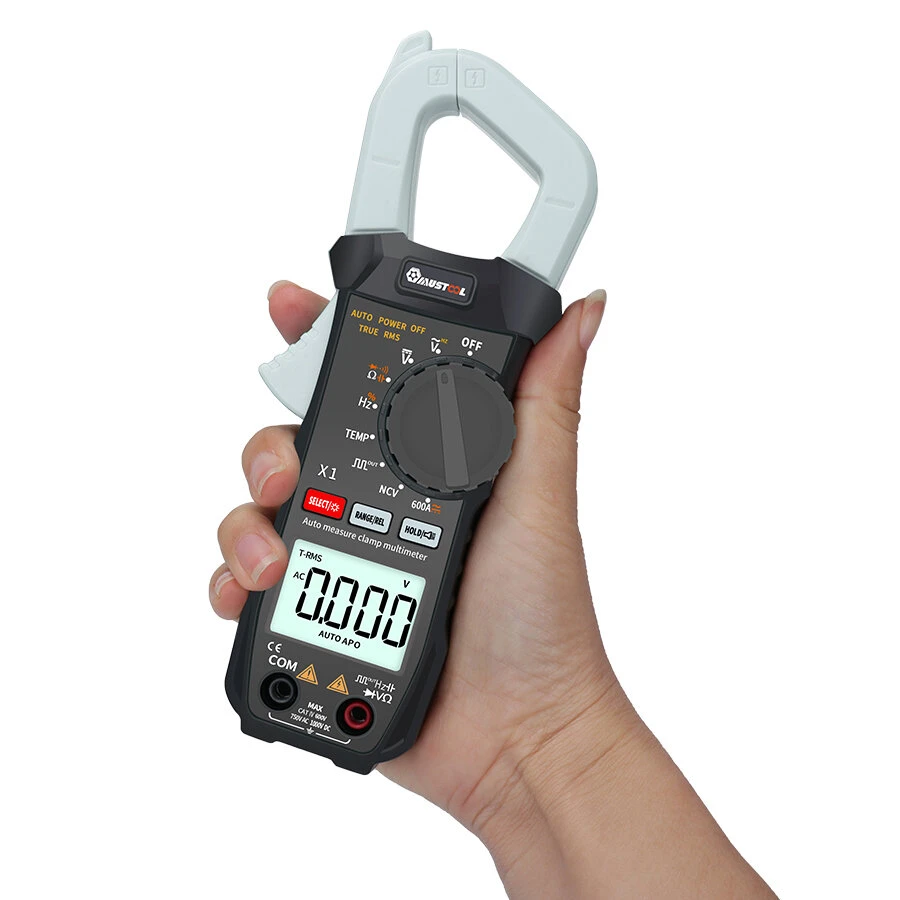

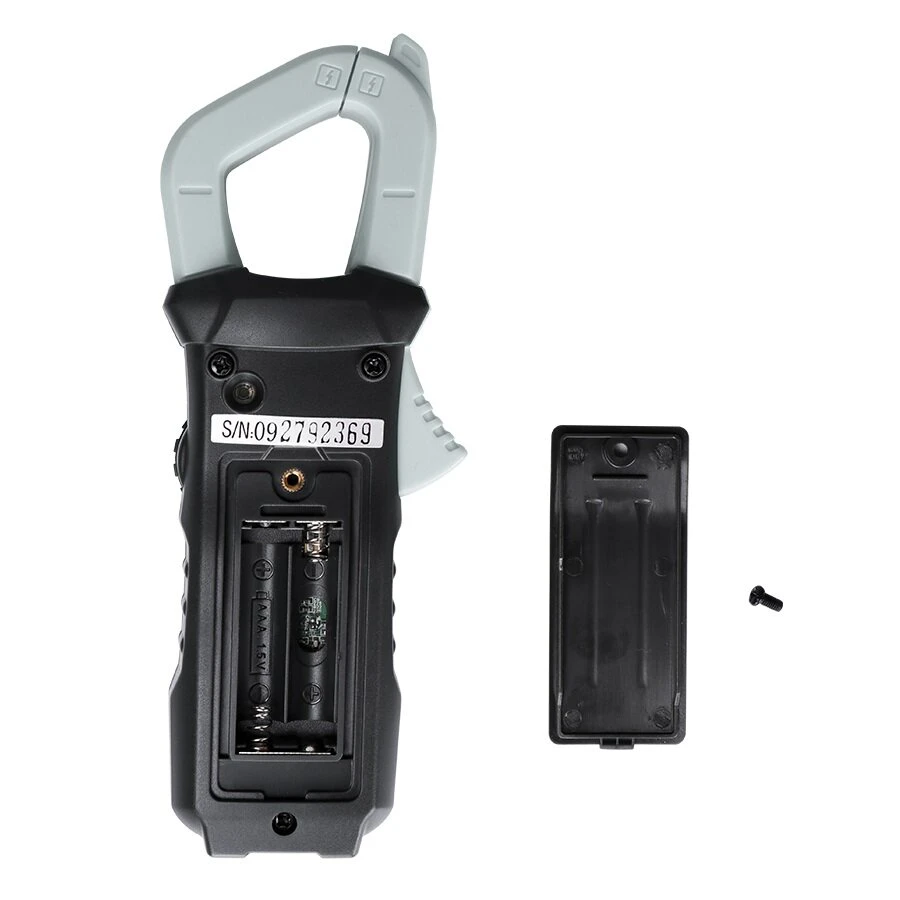

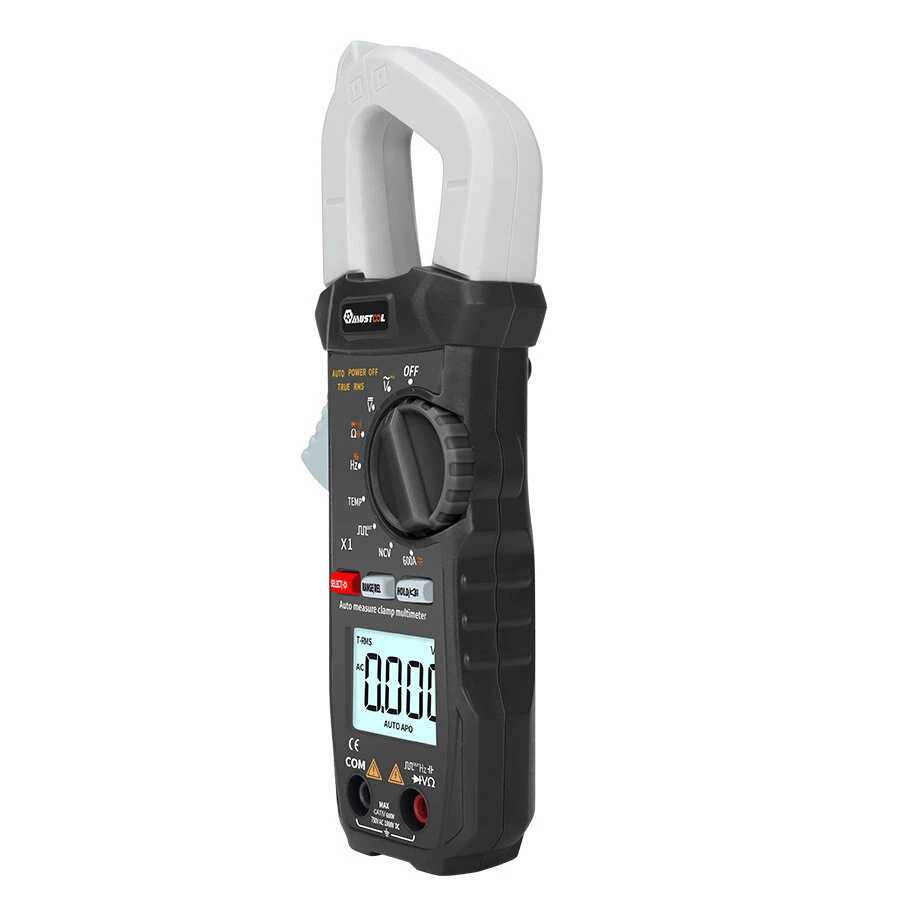

Detail Pictures:
