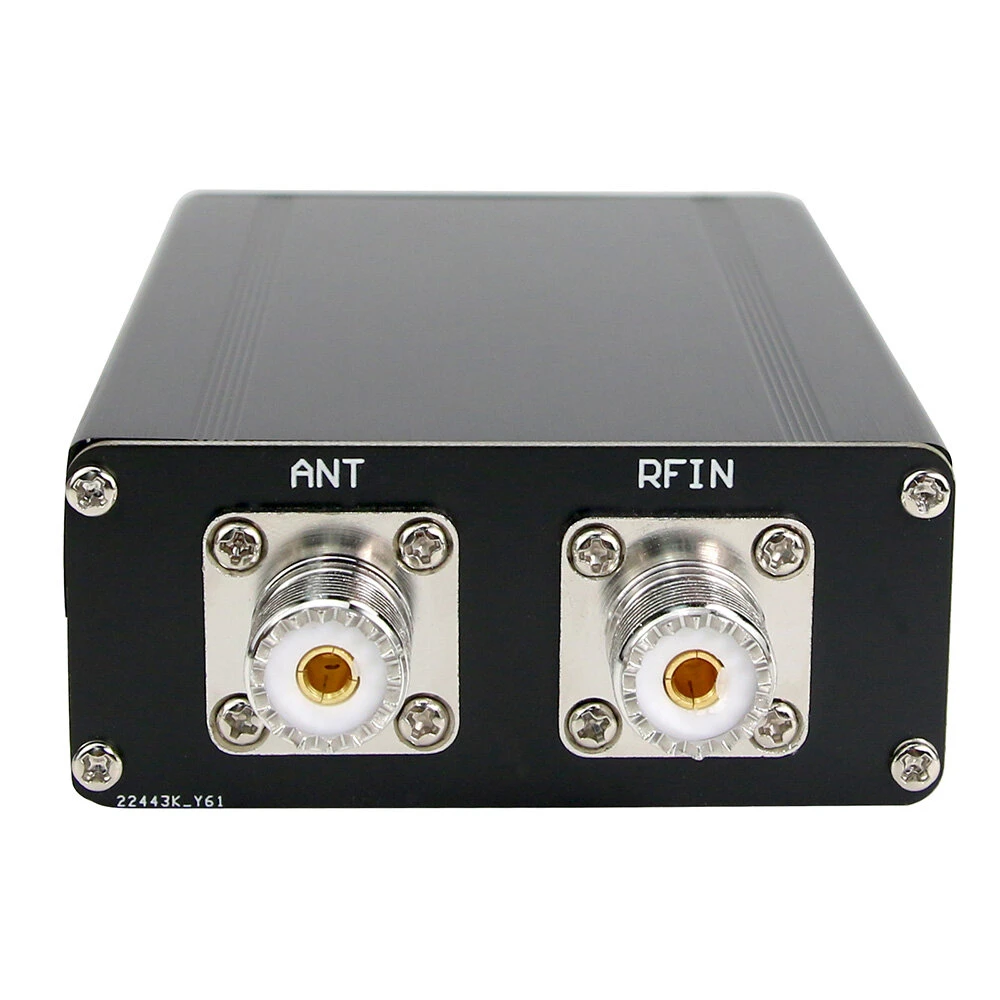

New ATU100 Automatic Antenna Tuner 100W 1.8-55MHz/1.8-30MHz With Battery Inside Assembled For 5-100W Shortwave Radio Stations
Original price was: $88.53.$61.97Current price is: $61.97.
- Safeguard Your Shopping Experience
- Online assistance, always at your service.
- Buy with confidence, backed by quality.
- There are quality problems, free return and exchange

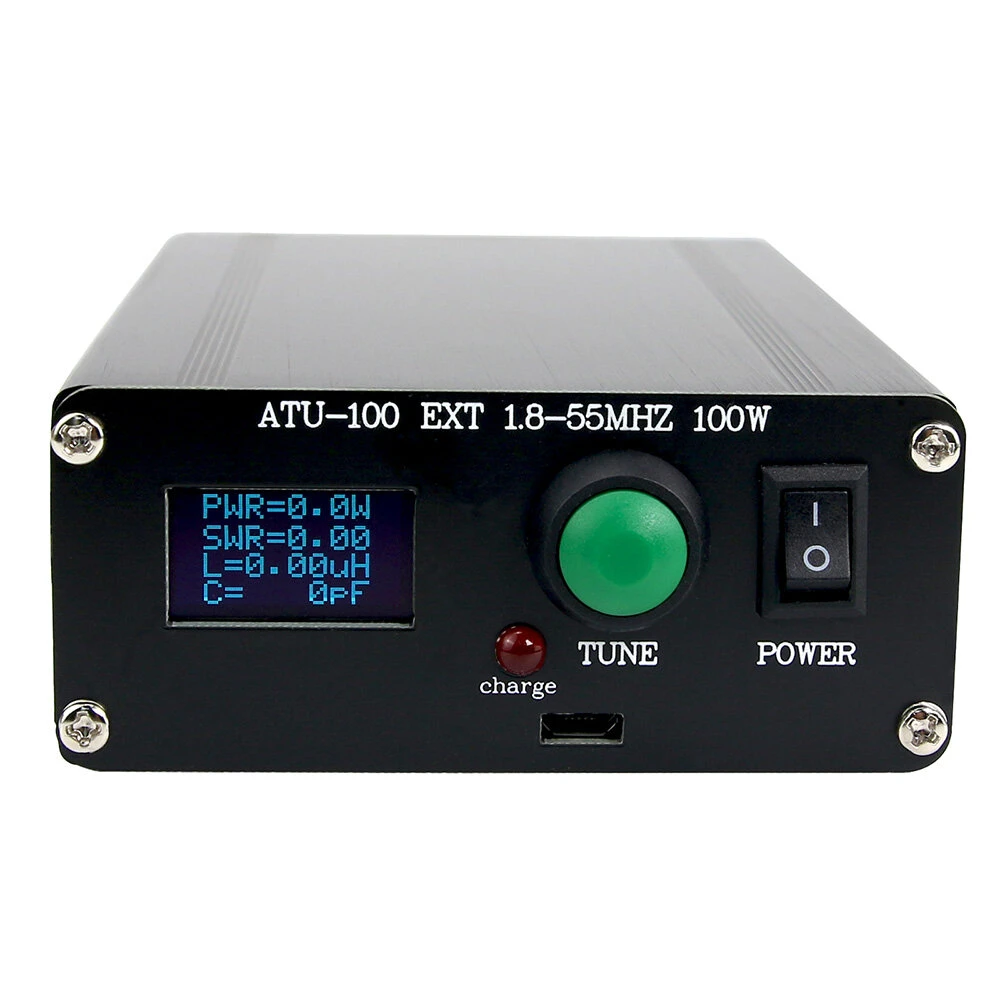

Type A: 1.8-55MHz Automatic Antenna Tuner
Features:
– 0.96-inch OLED display
– Frequency 1.8-55 MHz
– Power supply voltage range: 10-15V DC
- With Lithium battery
– Maximum current consumption: 300 mA
– Maximum working power: 100W
– Maximum possible measured power: 150W
– 1W: It is necessary to start setting the minimum power
– Minimum possible measured power: 0.1W
– Step for measurement on powers under 10W: 0.1W
– Step for measurement on powers above 10W: 1W
– Power measurement accuracy: 10%
– Specified maximum inductor: 8.4 uH capacity
– The minimum installation step of inductor: 0.05μH
– Maximum installation capacity: 1870 pF capacitor
– Minimum installation step: 10 pF
Package Included:
-1 x Automatic Antenna Tuner with Shell
Note: The product is assembled and with shell.
Type B: 1.8-30MHz Mini Automatic Antenna Tuner
Note:
It is assembled and ready to use.
– The device does not consider its own efficiency.
– Supply voltage is 5V standard voltage.
-This Tuner can install battery inside,if you need battery,please choose the one with battery

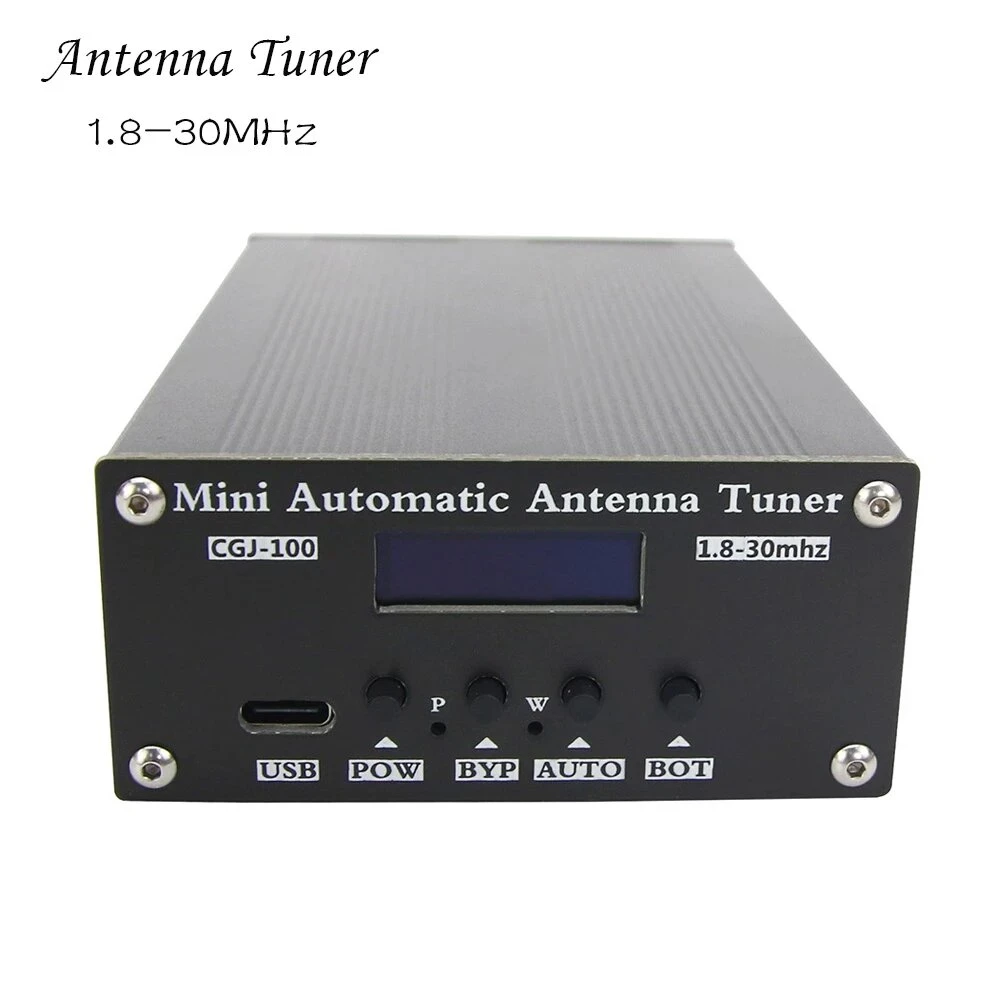

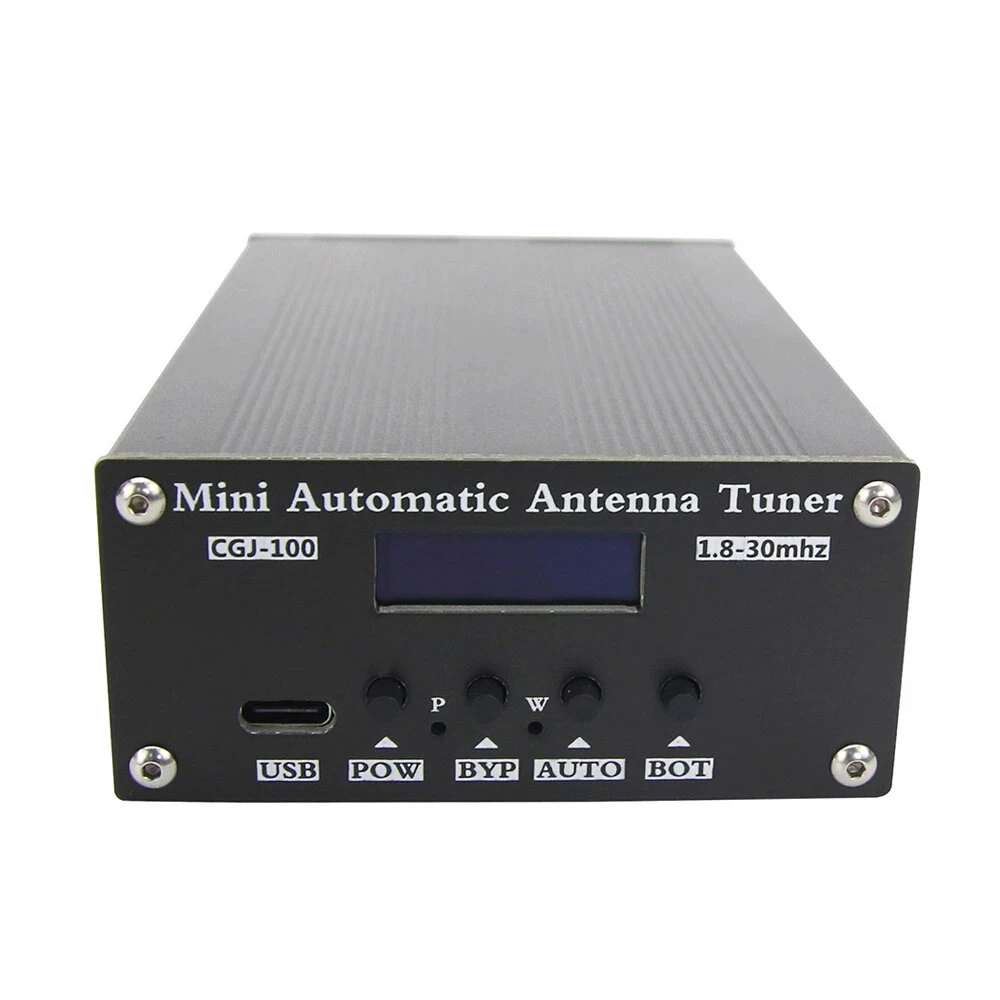

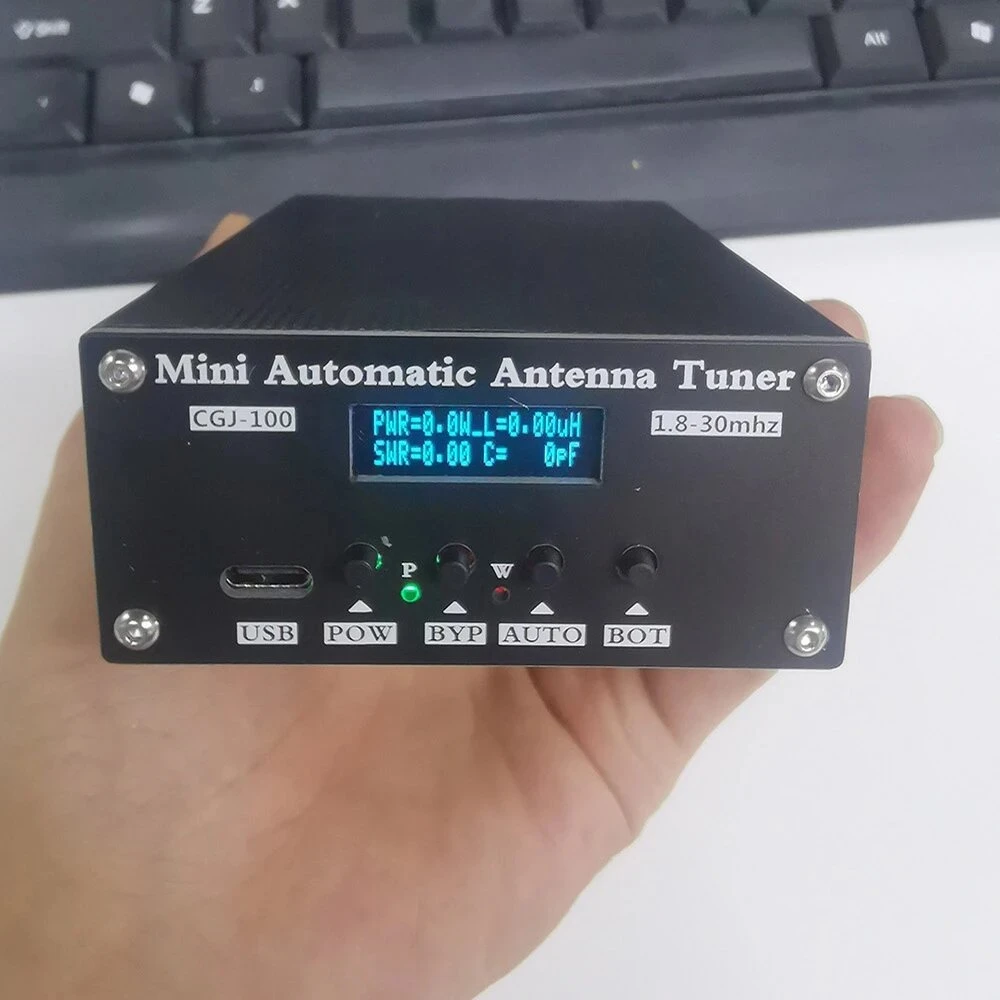

CGJ-100 1.8-30MHz Mini Automatic Antenna Tuner 0.91″ OLED Display For 5-100W Shortwave Radio Stations
– CGJ-100: For high-power shortwave radio stations using 5-100W.
Features:
– Mini short-wave automatic antenna tuner.
– TYPE-C charging interface, M connector.
– With a 0.91-inch OLED display.
– This antenna tuner is automatically tuned and does not require any control wires, suitable for most radio stations.
– The device contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping 1.8-30MHz amateur radio HF band.
Specifications:
– Power supply voltage: USB charge and discharge
– Maximum current consumption: 400ma
– Maximum working throughput: 100W
– Maximum possible measurement power: 150W
– Minimum power required to start tuning: 5W
– Minimum possible measurement power: 0.1W
– Measurement steps for power up to 10W: 0.1W
– Measurement steps for power higher than 10W: 1W
– Power measurement accuracy: 10%
– Maximum installation inductance: 8.53uH
– Minimum installation inductance step size: 0.05uH
– Maximum installation capacitance: 1869pF
– Minimum installation capacitance step: 10pF
– 4pcs panel buttons: POW, BYP, AUTO and BOT function
– Display: 0.91″ OLED
Package Included:
– 1 x Automatic Antenna Tuner

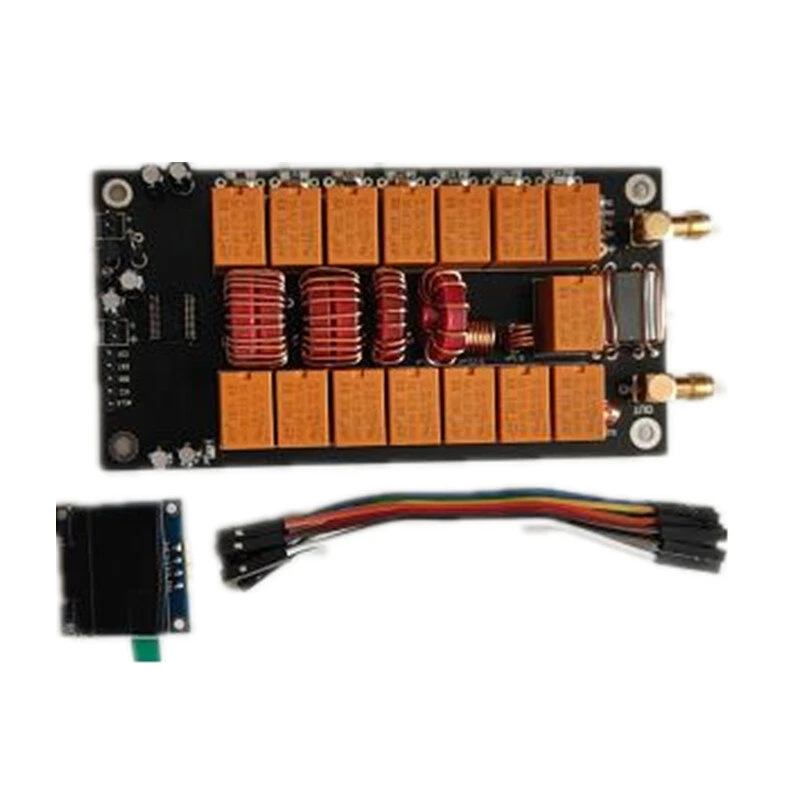

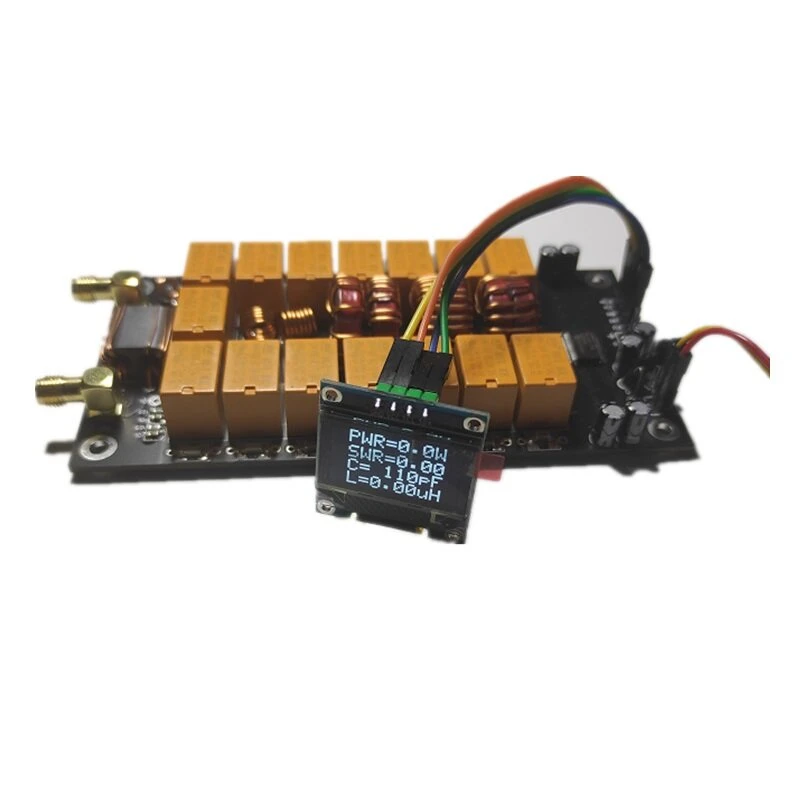

Tyep C: Without shell (PCB Board + Screen)
Specifications:
Power supply range: 10 – 15 VDC
Max current : 450mA
Max working power: 100 watts
Max measured power: 150 watts
Minimum power for tuning start: 1 watt
Recommended maximum power while tuning not above 30 watts. (after tuning you can set 100 watts and work on this power)
Minimum measured power: 0.1 watt
Step for measurement on powers under 10 watts: 0.1 watt
Step for measurement on powers above 10 watts : 1 watt
Power measurement accuracy : 10%
Maximum inductance set: 8.5 uH
Minimal step for setting inductance: 0.1 uH
Maximum installed capacity: 1870 pF
Minimal step for setting capacity: 10 pF
100 Watts tuner, 7×7 (7 capacitors x 7 coils) based on PIC 16F1938.
Dimentsion – 120 mm x 62 mm.
Package Included:
1 x PCB board
1 x LCD screen
1 x Dupont cable
Note: not included battery
Details picture:
| Type | A, C, B |
|---|
