OWON HDS200 Series 2CH Handheld Oscilloscope 100MHz Bandwidth 20000 Counts Multiumeter OSC + DMM + Waveform Generator 3 In 1 Suitable For Automobile Maintenance And Power Detection
Original price was: $193.26.$95.99Current price is: $95.99.
- Safeguard Your Shopping Experience
- Online assistance, always at your service.
- Buy with confidence, backed by quality.
- There are quality problems, free return and exchange
Note: If the computer does not automatically install the software successfully, please install the software manually according to the PDF file in the manual.
Features:
● Oscilloscope + multimeter + waveform generator, multifunction in one
● 3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
● 18650 lithium battery, comprehensive power consumption≤3W, can work continuously for about 6 hours
● USB Type-C interface, support power bank, support PC software connection
● Self-calibration function
● SCPI supported, facilitate secondary development
Specifications:
Oscilloscopes
|
Model |
HDS2102
|
HDS2102S
|
|
Bandwidth |
100MHz |
100MHz |
|
Channels |
2- CH Oscilloscope |
2-CH Oscilloscope +1-CH Generator |
|
Sample Rate |
500MSa/s |
|
|
Acquisition Model |
Normal, Peak detect |
|
|
Record Length |
8K |
|
|
Display |
3.5 -inch LCD |
|
|
Waveform Refresh Rate |
10,000 wfrms/s |
|
|
Input Coupling |
DC, AC, and Ground |
|
|
Input Impedance |
1 MΩ+2%, in parallel with 1 6pF+10pF |
|
|
Probe Attenuation Factors |
1X,10X,100X,1000X,10000X |
|
|
Max. input Voltage |
400V (DC+AC, PK PK, 1MΩ input impedance) (10:1 probe attenuation) |
|
|
Bandwidth Limit (typical) |
20MHz / Full bandwidth |
|
|
Horizontal Scale |
2ns/div – 1000s/div, step by 1-2- 5 |
|
|
Vertical Sensitivity |
10mV/div – 10V/div |
|
|
Vertical Resolution |
8 bits |
|
|
Trigger Type |
Edge |
|
|
Trigger Modes |
Auto, Normal, single |
|
|
Automatic Measurement |
Frequency, Period, Amplitude, Max, Min, Mean, PK-PK |
|
|
Cursor Measurement |
△V, △T, △T&△V between cursors |
|
|
Communication Interface |
USB Type-C |
|
Multimeter (Standard)
|
Max. Resolution
|
20,000 counts |
|
Testing Mode
|
Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test
|
|
Input Impedance
|
10MΩ
|
|
Max Input Voltage |
AC 750V, DC 1000V
|
|
Max Input Current
|
DC: 10A AC: 10A
|
|
Diode
|
0- 2V |
Waveform Generator (Only for HDS2102S
)
|
Frequency Output |
Sine
|
0.1Hz – 25MHz
|
|
Square |
0.1Hz – 5MHz
|
|
|
Ramp |
0.1Hz – 1MHz
|
|
|
Pulse
|
0.1Hz – 5MHz
|
|
|
Arbitrary
|
0.1Hz – 5MHz
|
|
|
Sampling Rate |
125MSa/s
|
|
|
Channel |
1-CH
|
|
|
Amplitude Range |
20mVpp-5Vpp
|
|
|
Waveform Length
|
8K
|
|
|
Vertical Resolution |
14bits
|
|
|
Output Impedance
|
50Ω
|
|

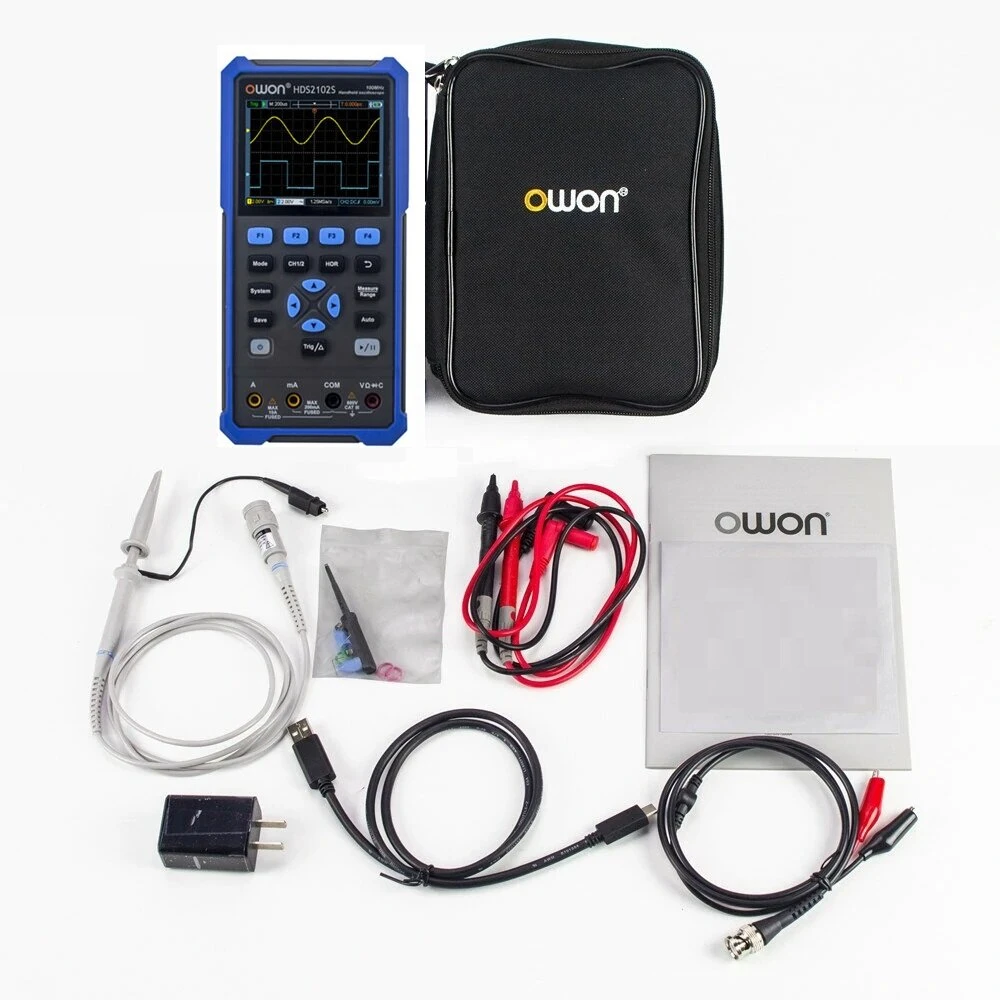

Package includes:
1 x Oscilloscope
1 x Bag
1 x Probe
1 x Power Plug(EU type)
1 x Probe Adjust
1 x USB Cable
2 x Multimeter Leads
1 x Instructions
1 x BNC to Alligator Clip
Note:
We will send you a plug adapter according to your country.

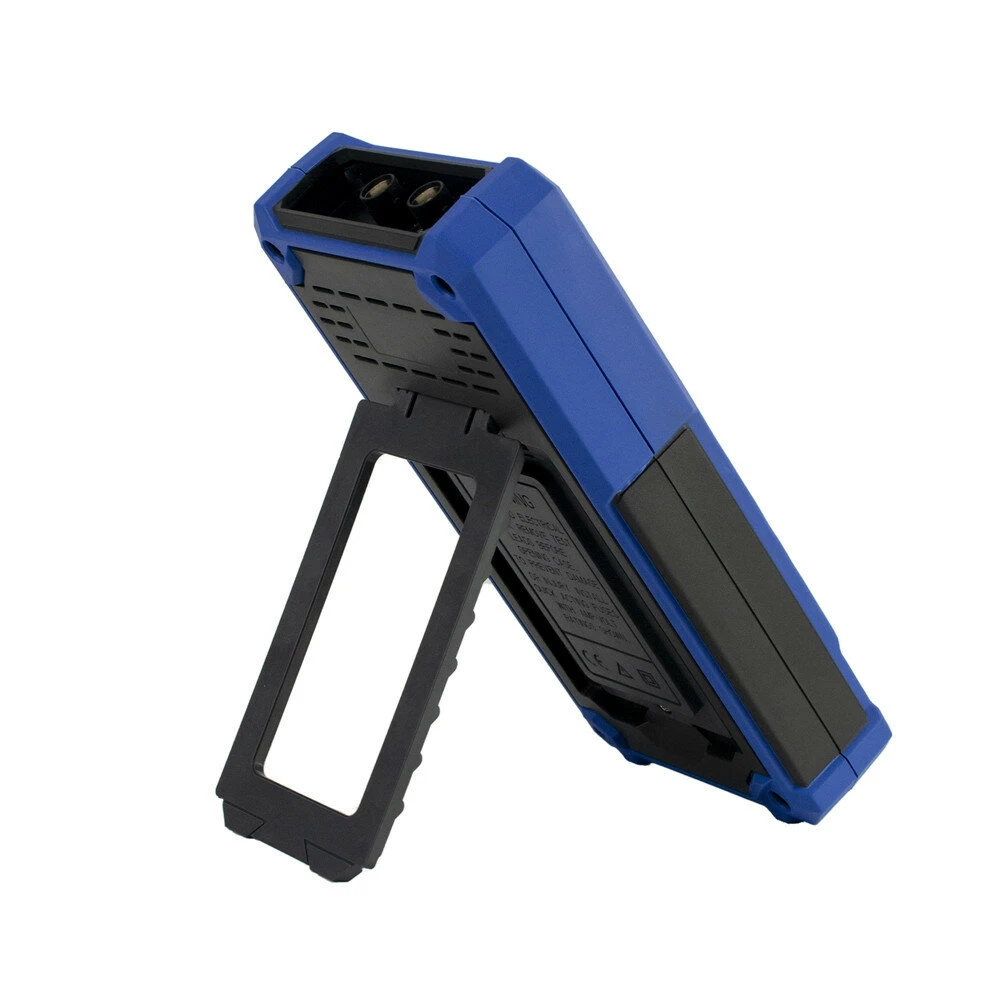

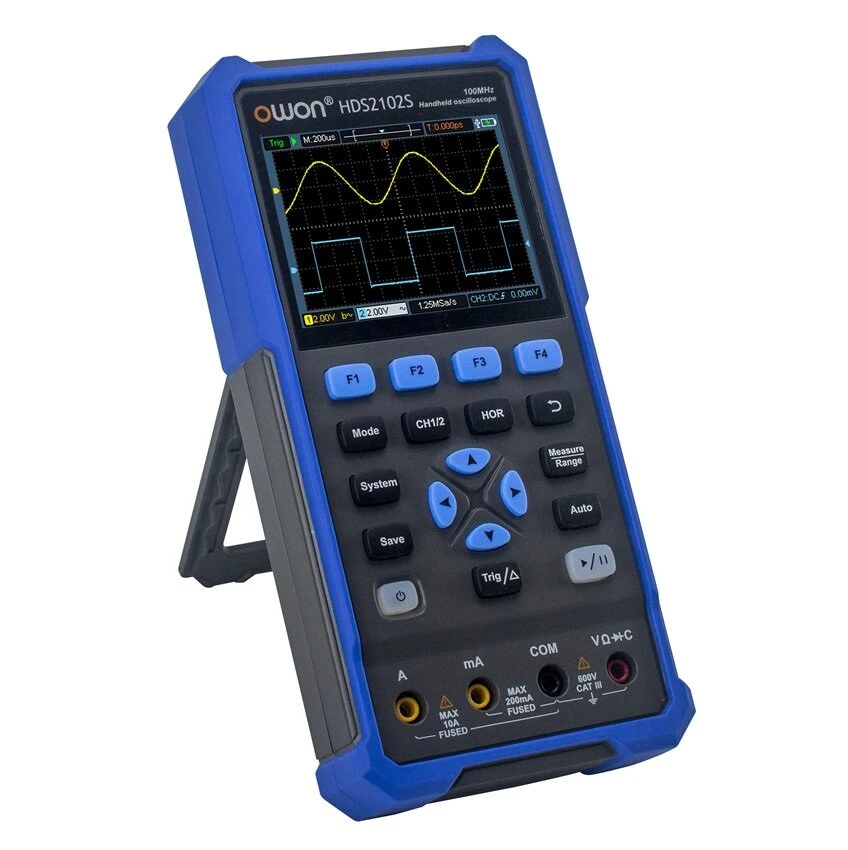

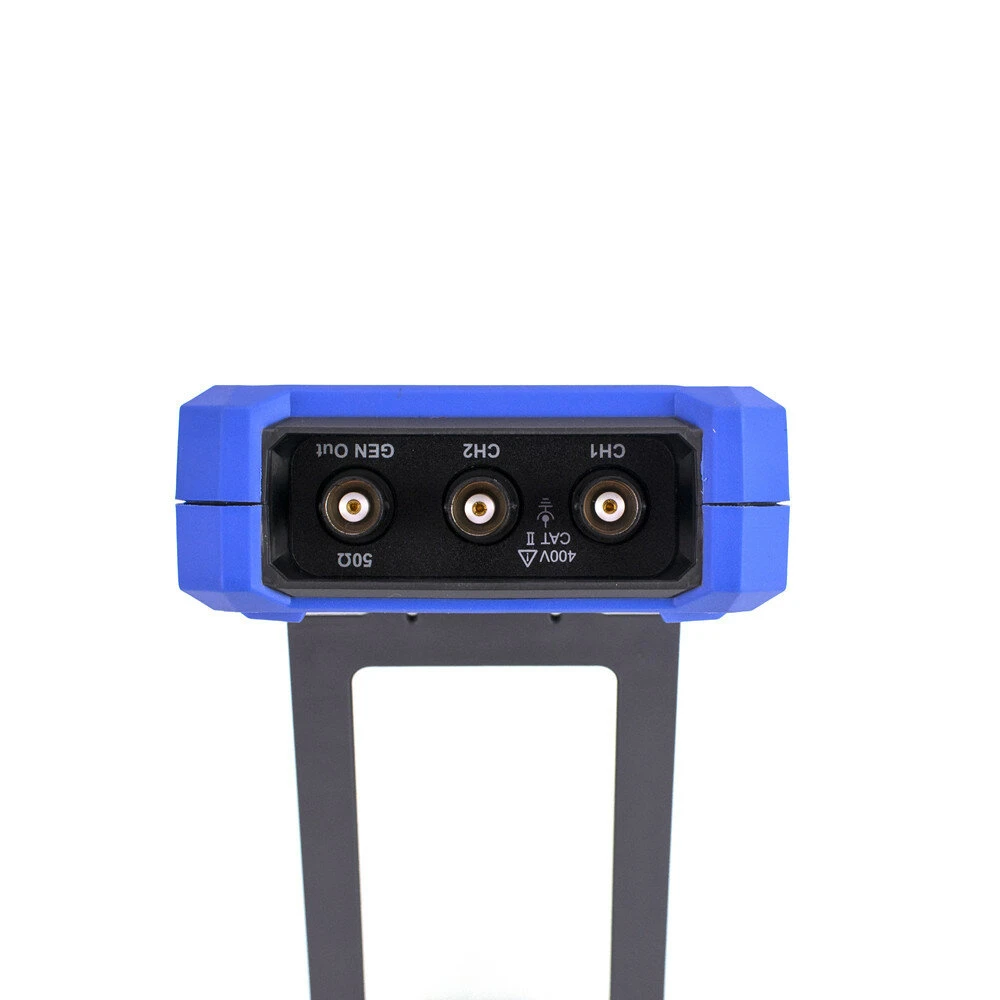

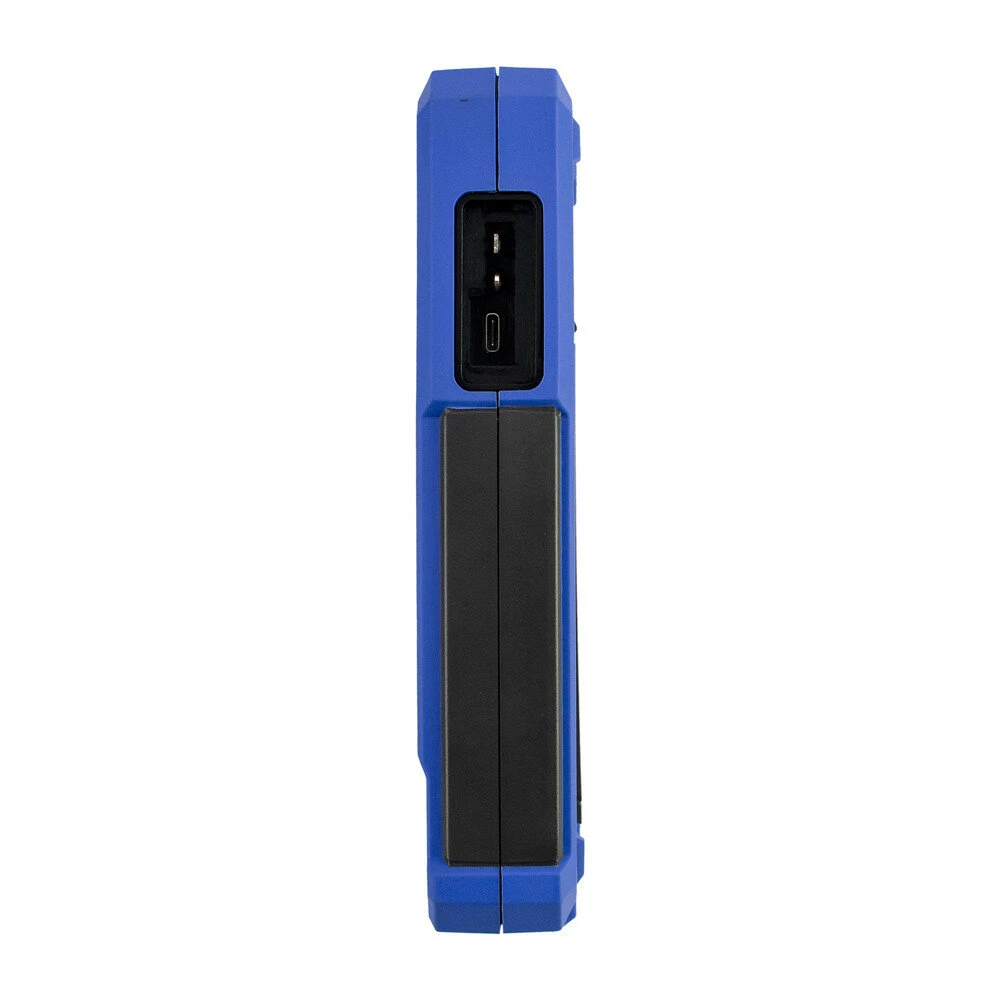

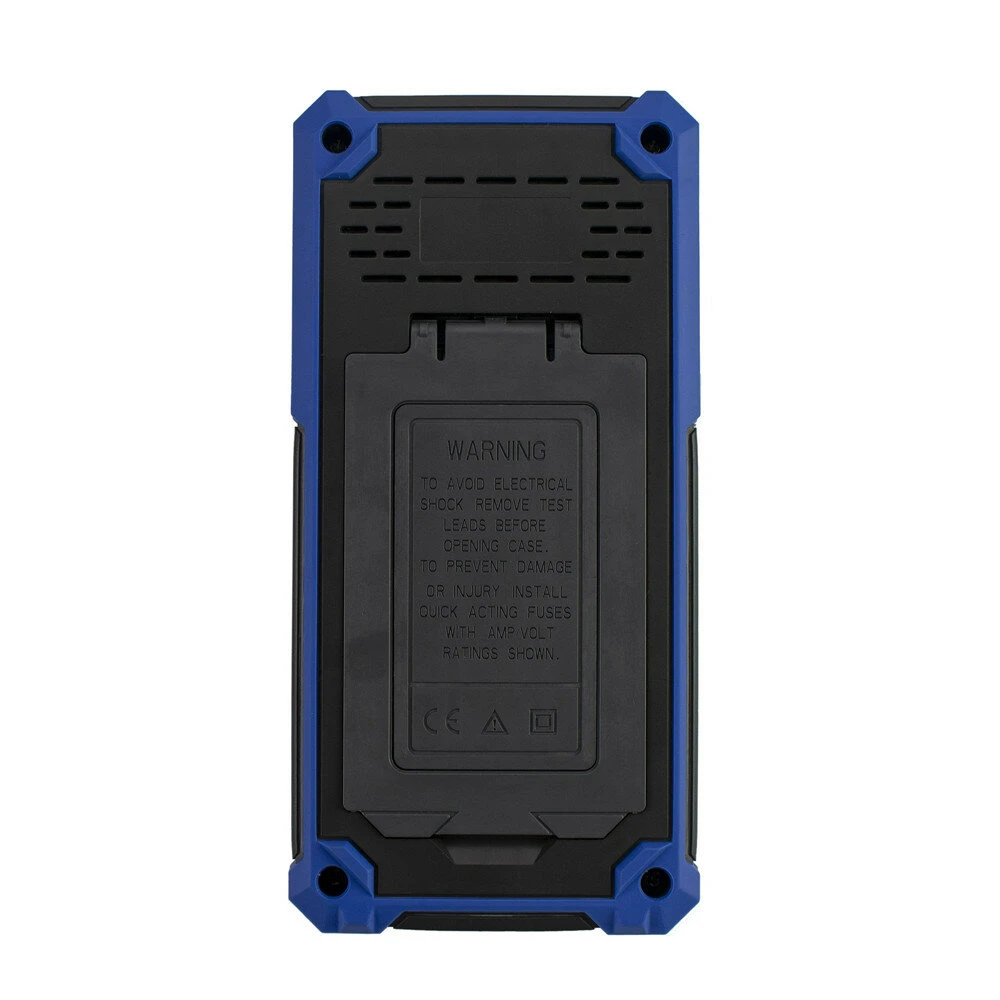

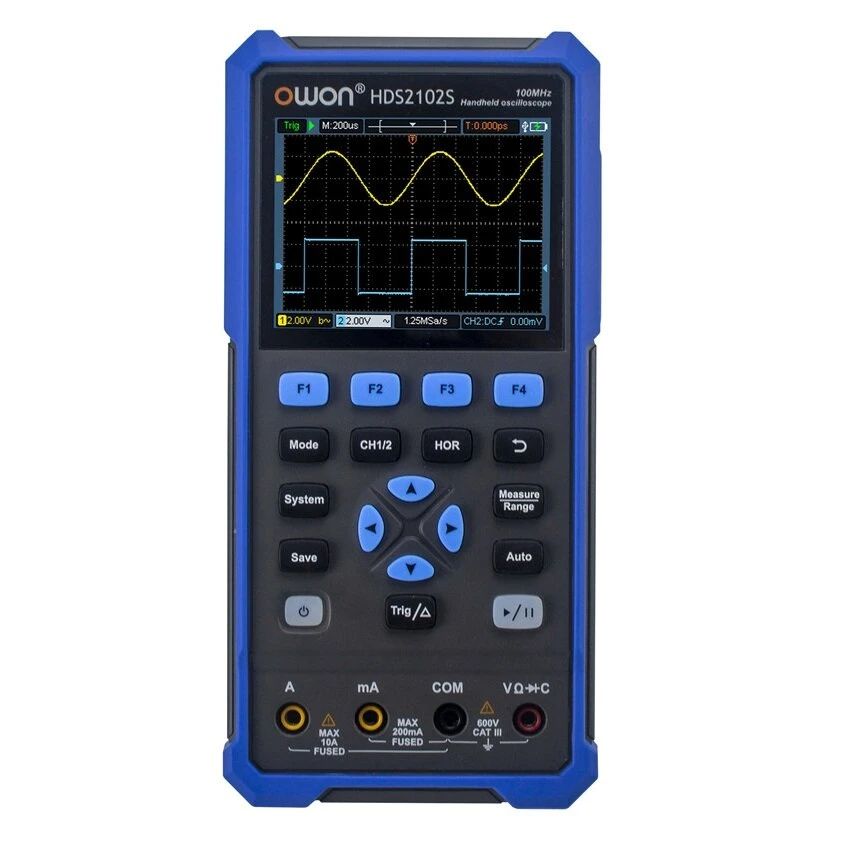

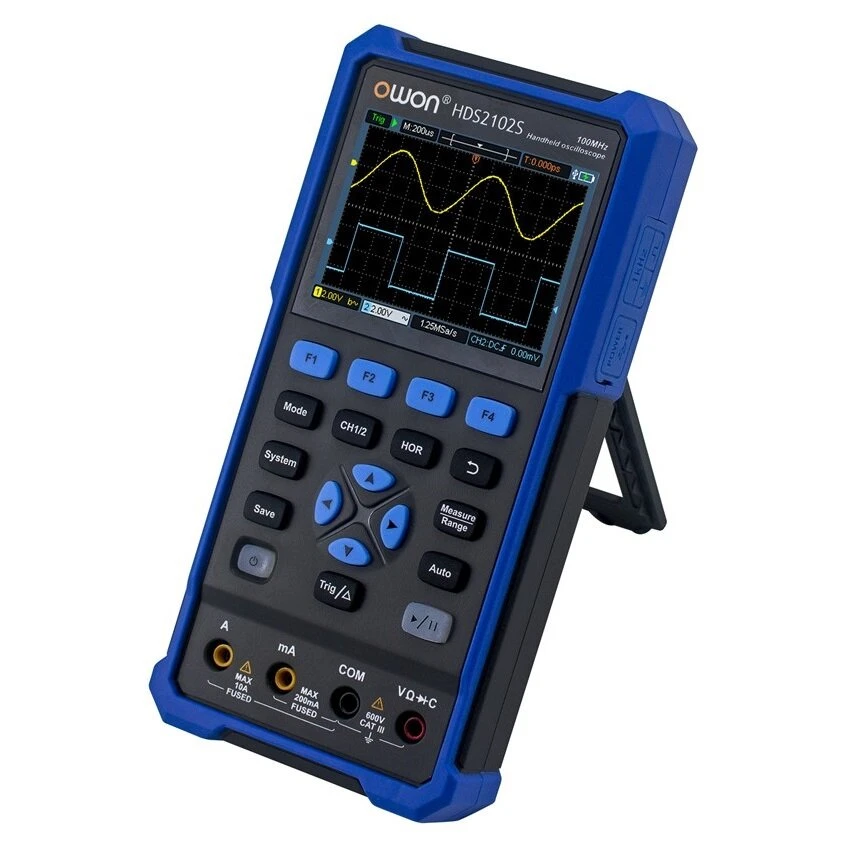

Details picture:
| Model | HDS2102, HDS2102S |
|---|
