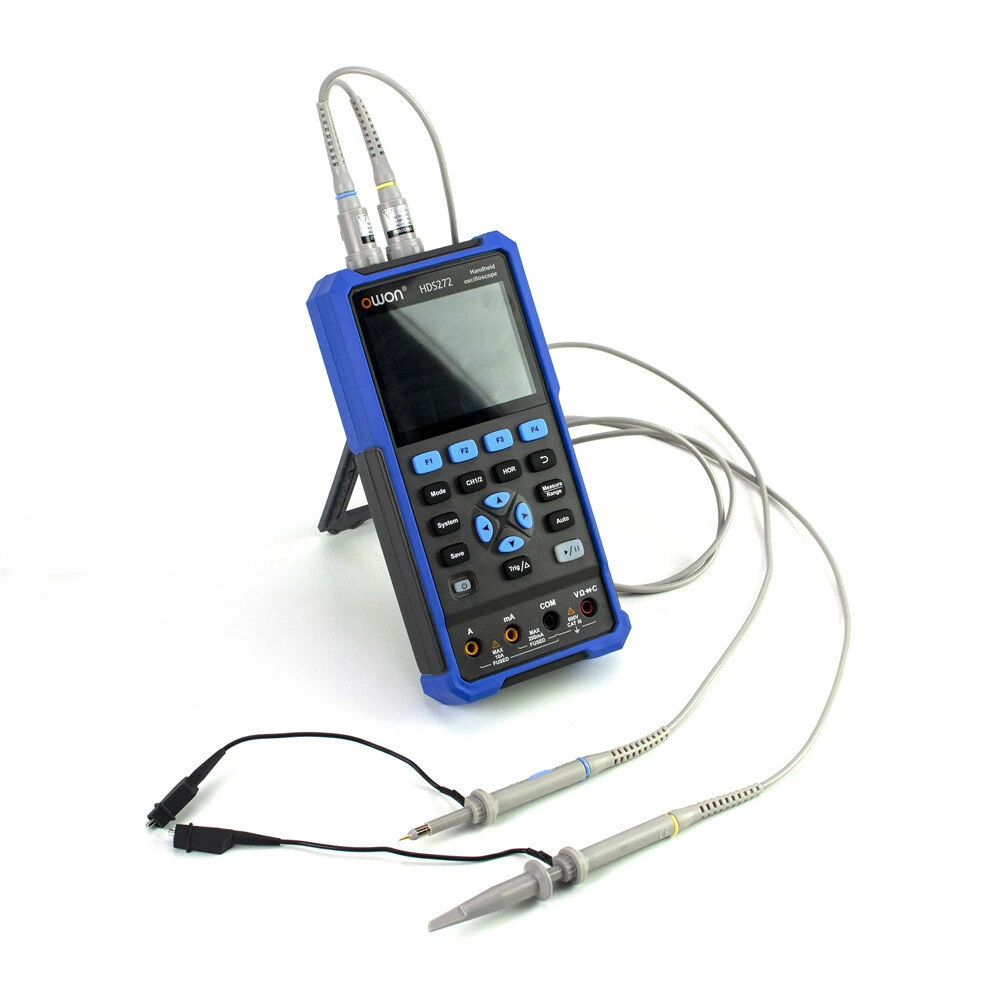

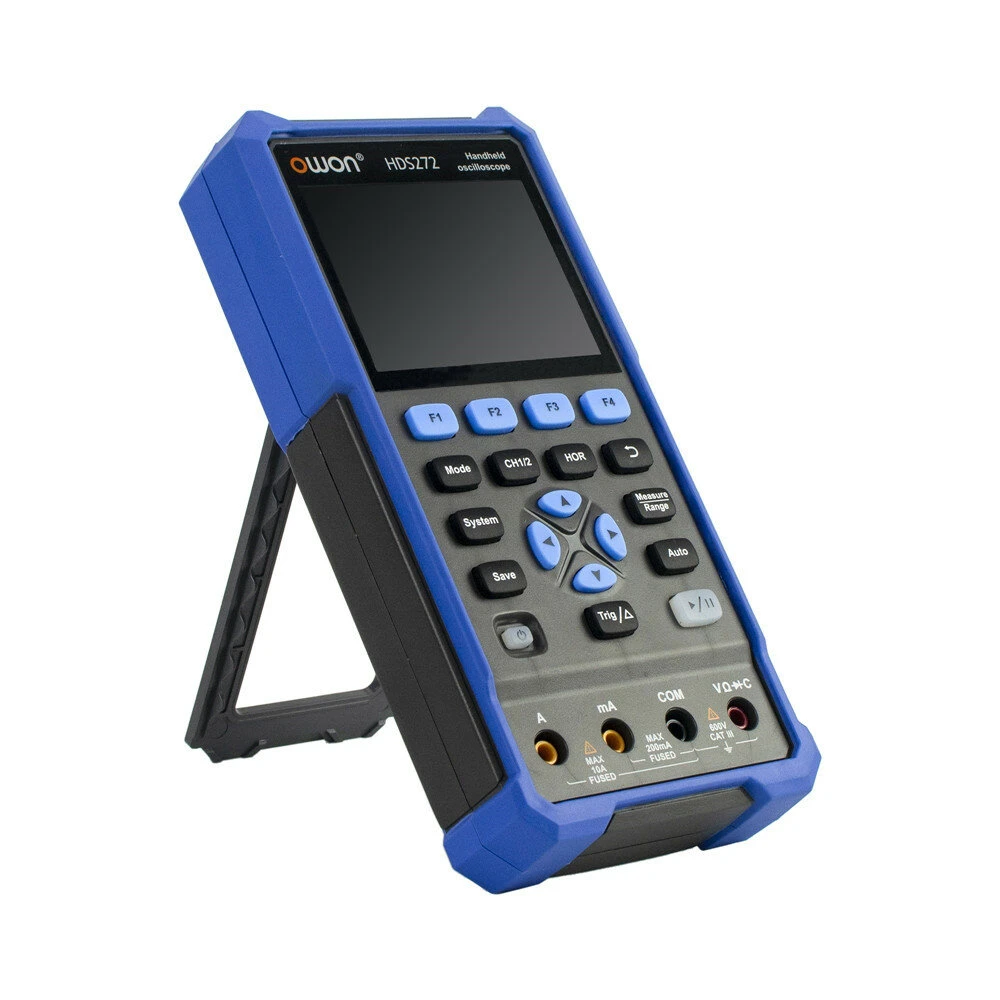

Features:
●Oscilloscope + multimeter + waveform generator, multifunction in one

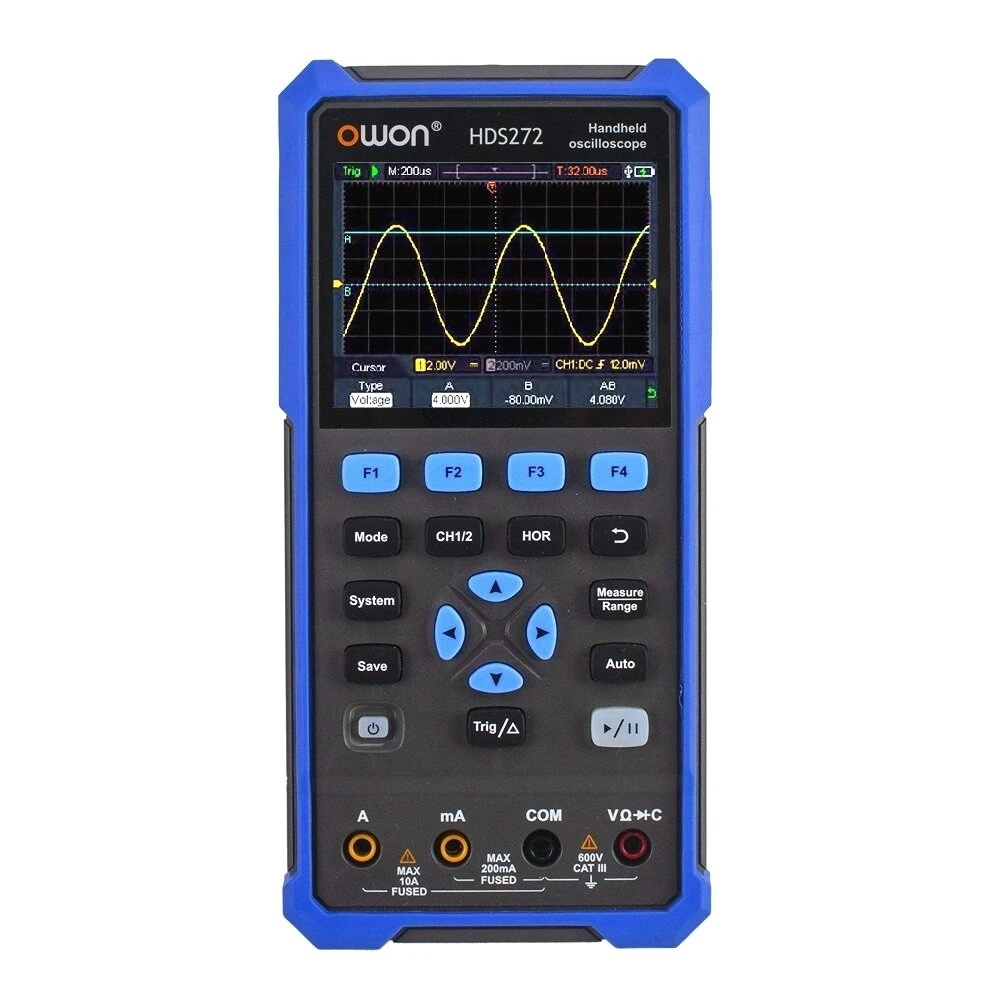

●3.5-inch high-resolution, high-contrast color LCD display, suitable for outdoor use
●18650 lithium battery, comprehensive power consumption≤3W, can work continuously for about 6 hours

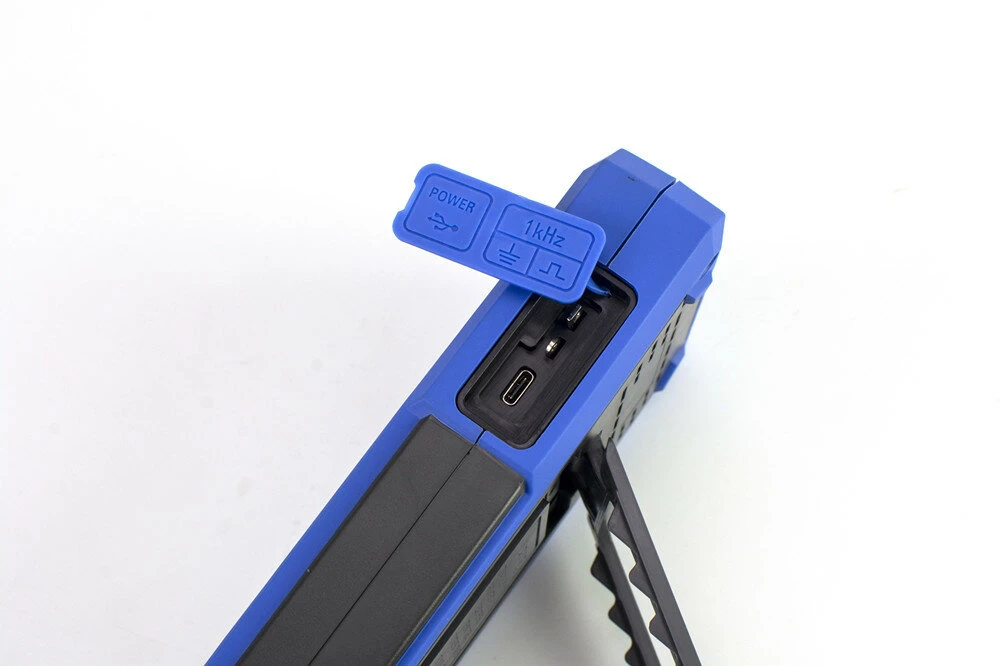

●USB Type-C interface, support power bank, support PC software connection
●Self-calibration function
●SCPI supported, facilitate secondary development
Specifications:

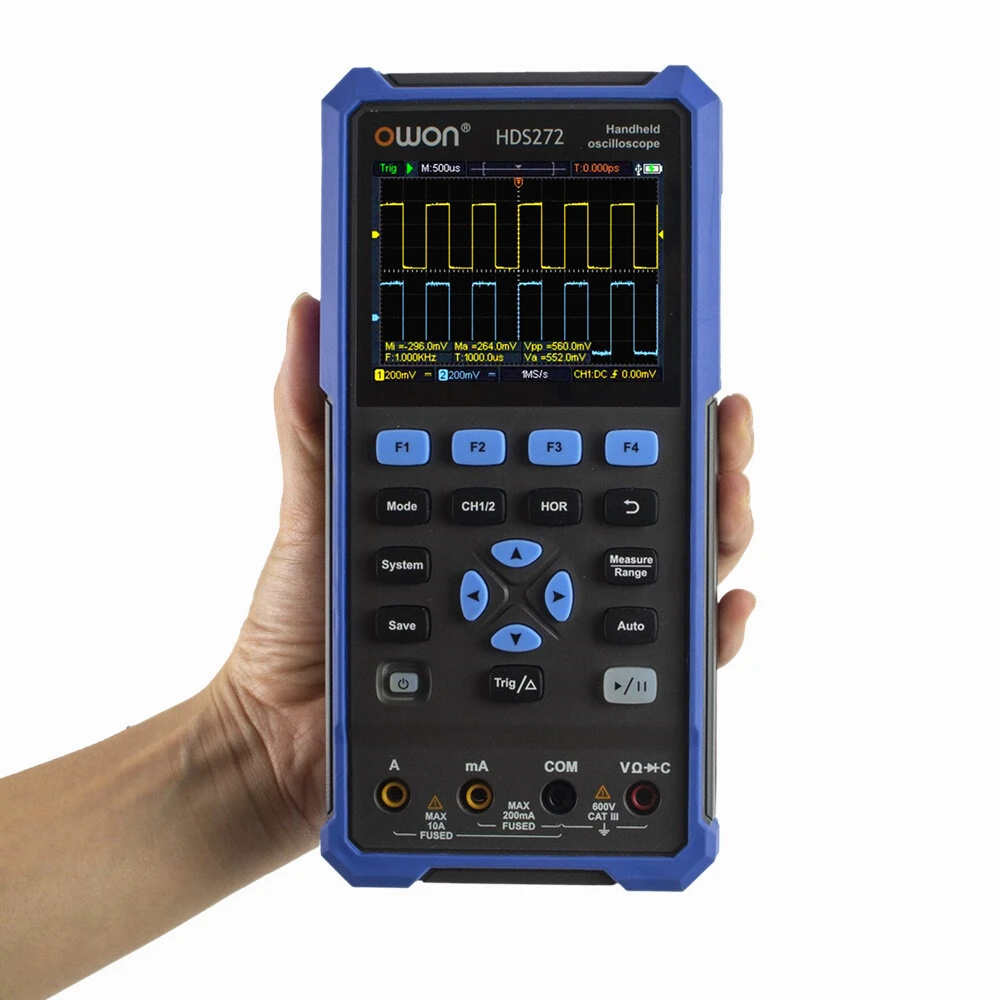

Oscilloscopes
|
Model |
HDS242 |
HDS272 |
HDS2102 |
HDS242S |
HDS272S |
HDS2102S |
||||
|
Bandwidth |
40MHz |
70MHz |
100MHz |
40MHz |
70MHz |
100MHz |
||||
|
Channels |
2- CH Oscilloscope |
2-CH Oscilloscope +1-CH Generator |
||||||||
|
Sample Rate |
250MSa/s |
250MSa/s |
500MSa/s |
250MSa/s |
250MSa/s |
500MSa/s |
||||
|
Acquisition Model |
Normal, Peak Test |
|||||||||
|
Record Length |
8K |
|||||||||
|
Display |
3.5 -inch LCD |
|||||||||
|
Waveform Refresh Rate |
10,000 wfrms/s |
|||||||||
|
Input Coupling |
DC, AC, and Ground |
|||||||||
|
Input Impedance |
1 MΩ+2%, in parallel with 1 6pF+10pF |
|||||||||
|
Probe Attenuation Factors |
1X,10X,100X,1000X,10000X |
|||||||||
|
Max. input Voltage |
400V (DC+AC, PK PK, 1MΩ input impedance) (10:1 probe attenuation) |
|||||||||
|
Bandwidth Limit (typical) |
20MHz |
|||||||||
|
Horizontal Scale |
5ns/div – 1000s/div, step by 1-2- 5 |
|||||||||
|
Vertical Sensitivity |
10mV/div – 10V/div |
|||||||||
|
Vertical Resolution |
8 bits |
|||||||||
|
Trigger Type |
Edge |
|||||||||
|
Trigger Modes |
Auto, Normal, single |
|||||||||
|
Automatic Measurement |
Frequency, Period, Amplitude, Max, Min, Mean, PK-PK |
|||||||||
|
Cursor Measurement |
△V, △T, △T&△V between cursors |
|||||||||
|
Communication Interface |
USB Type-C |
|||||||||

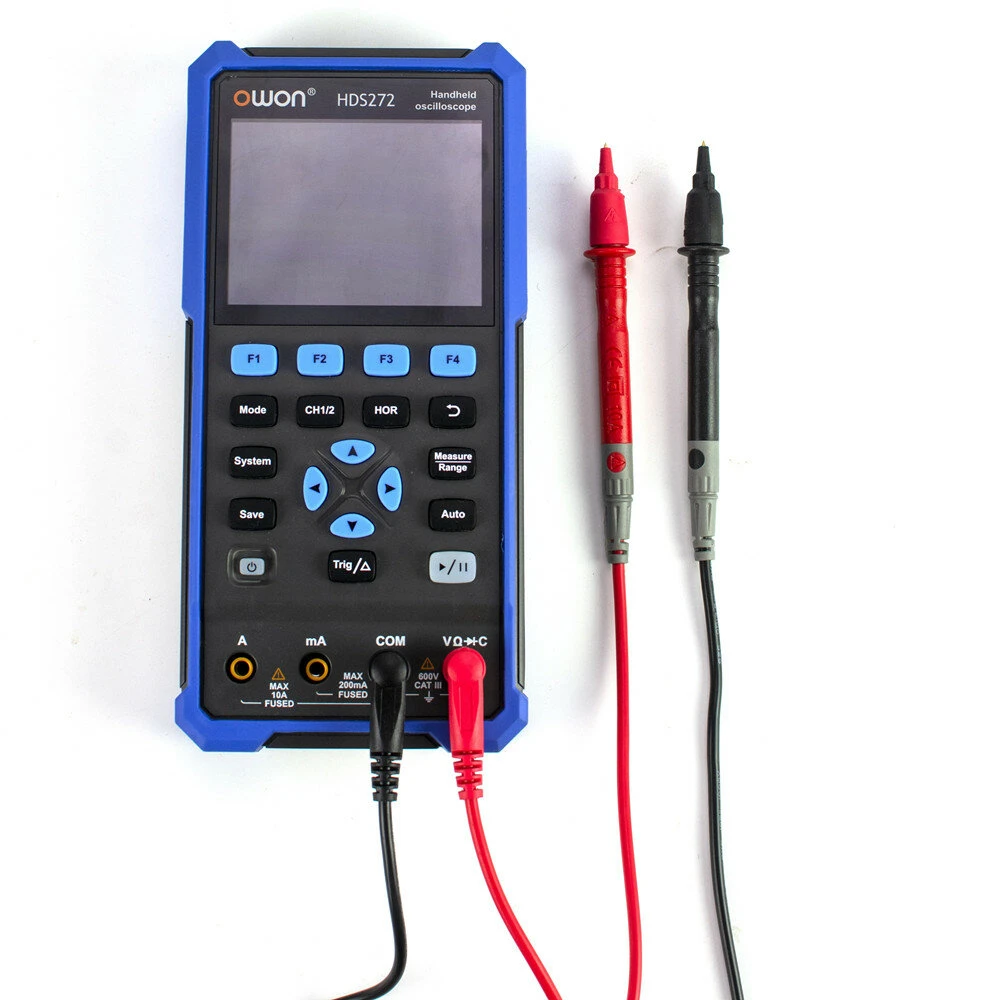

Multimeter (Standard)
|
Max. Resolution |
20,000 counts |
|
Testing Mode |
Voltage, Current, Resistance, Capacitance, Diode ,and Continuity test |
|
Input Impedance |
10MΩ |
|
Max Input Voltage |
AC 750V, DC 1000V |
|
Max Input Current |
DC: 10A AC: 10A |
|
Diode |
0- 2V |

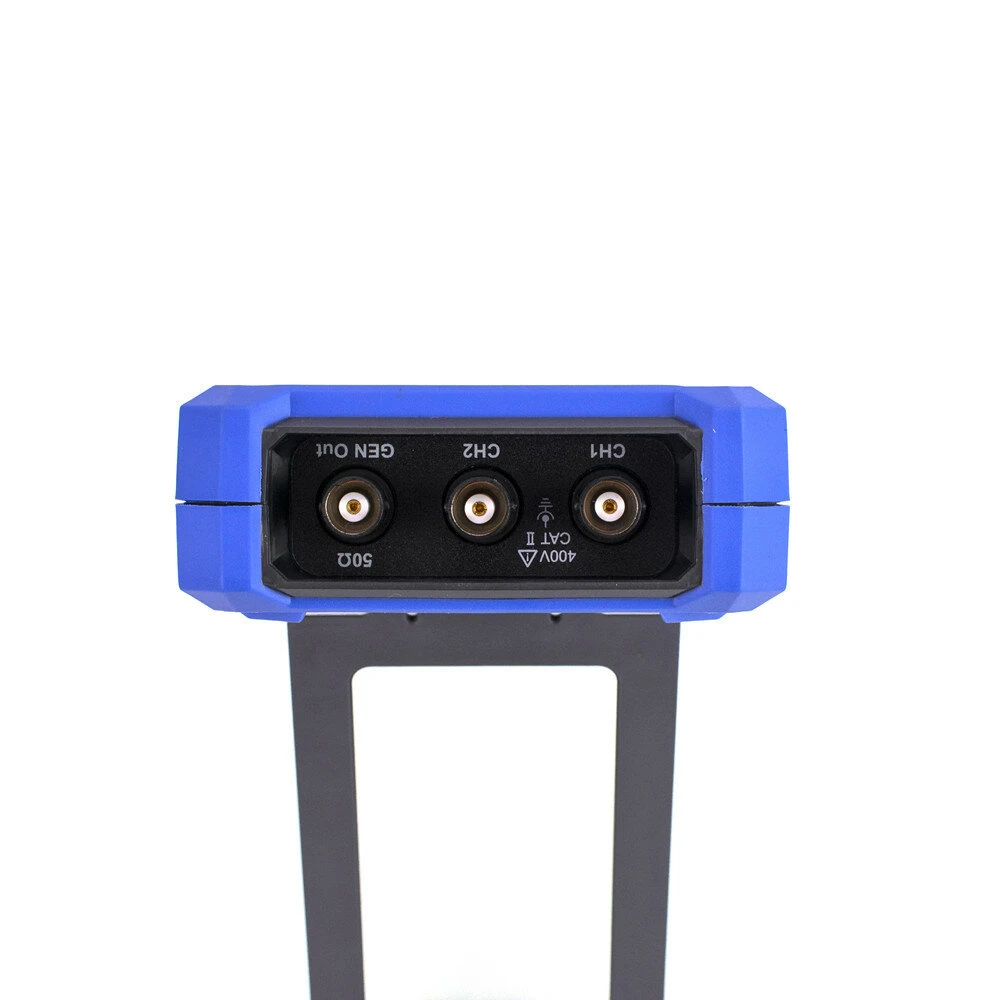

Waveform Generator (Only for HDS242S & HDS272S & HDS2102S )
|
Frequency Output |
Sine |
0.1Hz – 25MHz |
|
Square |
0.1Hz – 5MHz |
|
|
Ramp |
0.1Hz – 1MHz |
|
|
Pulse |
0.1Hz – 5MHz |
|
|
Arbitrary |
0.1Hz – 5MHz |
|
|
Sampling Rate |
125MSa/s |
|
|
Channel |
1-CH |
|
|
Amplitude Range |
20mVpp-5Vpp |
|
|
Waveform Length |
8K |
|
|
Vertical Resolution |
14bits |
|
|
Output Impedance |
50Ω |
|

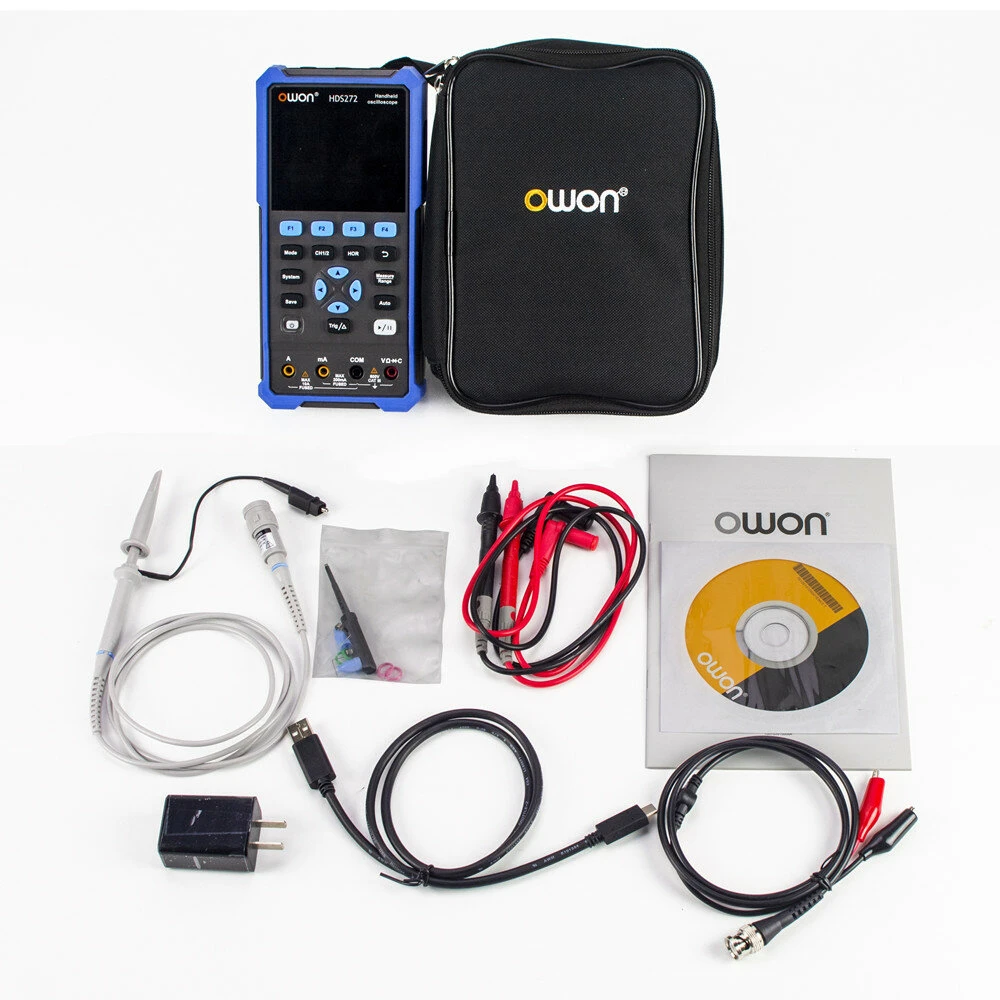

Package includes:
1 x Main device
1 x Bag
1 x Probe
1 x Power Plug(EU type)
1 x Probe Adjust
1 x USB Cable
2 x Multimeter Leads
1 x Instructions
1 x CD Rom
1 x BNC to Alligator Clip
Note:
We will send you a plug adapter according to your country.
