PD 65W Mini Hot Plate Preheater OLED Display PCB Board Welding Heating Plate Rework Station Preheating Platform Repair Tool

Description:

 –Ultra mini sized intelligent constant temperature heating table

 –Eliminate redundancy and retain sufficient effective heating area, greatly saving energy consumption and heating time
–Efficient heating area, reduced energy consumption, widely applicable fields, screen display and temperature control
–Concentrate preheating of operating parts to reduce damage to nearby components
–USB Type-C interface+PD protocol for faster heating

Product parameters:

Input interface: Type-C
Power supply: PD 65w 20v 3.25A (recommended for PD65w)
Temperature range: 0 ° C~350 ° C (the lowest temperature is the ambient temperature, which can only be raised but not lowered)
Shell: High quality 3D printing shell, no layering
Product size: length: 5.6cm, width: 5.6cm, height: 3.5cm   Operating instructions:
Double button simultaneous pressing: heating or stopping heating
Double key long press to enter the menu interface or exit
Double key press to confirm
Attention: It is recommended that the temperature not exceed 250 ℃

Package Included:

1 X Heating table X1

Common Q&A:
Q: How many volts does the power supply require?
Answer: A charger that supports the PD protocol with a voltage of 20V 3.25A is required, and theoretically it can support the PD protocol with a voltage of 20V
Q: Why does the heating start with a black screen and restart?
Answer: This issue triggered the charger protection and requires replacement with another charger or data cable, most of which caused the charger model to be recorded

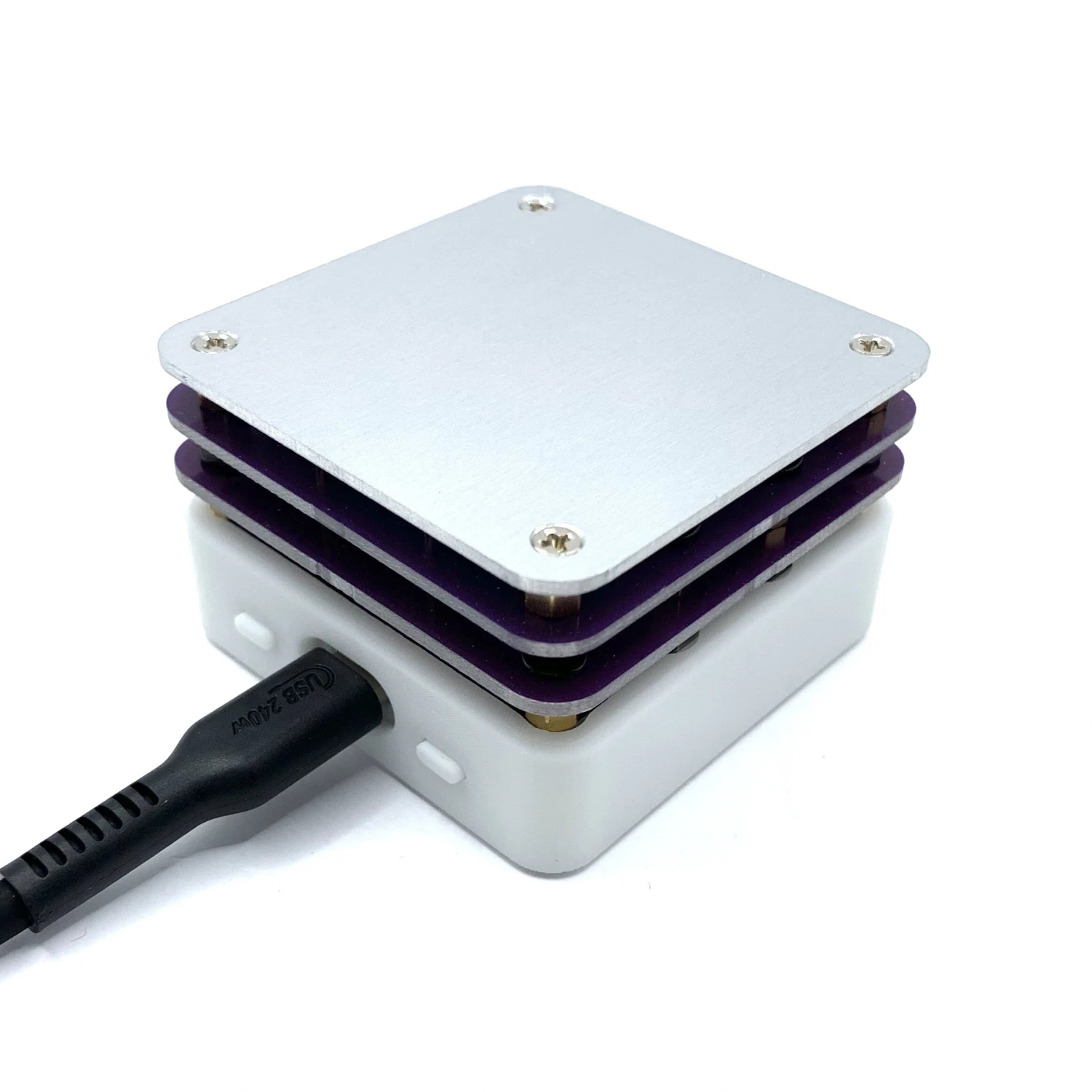

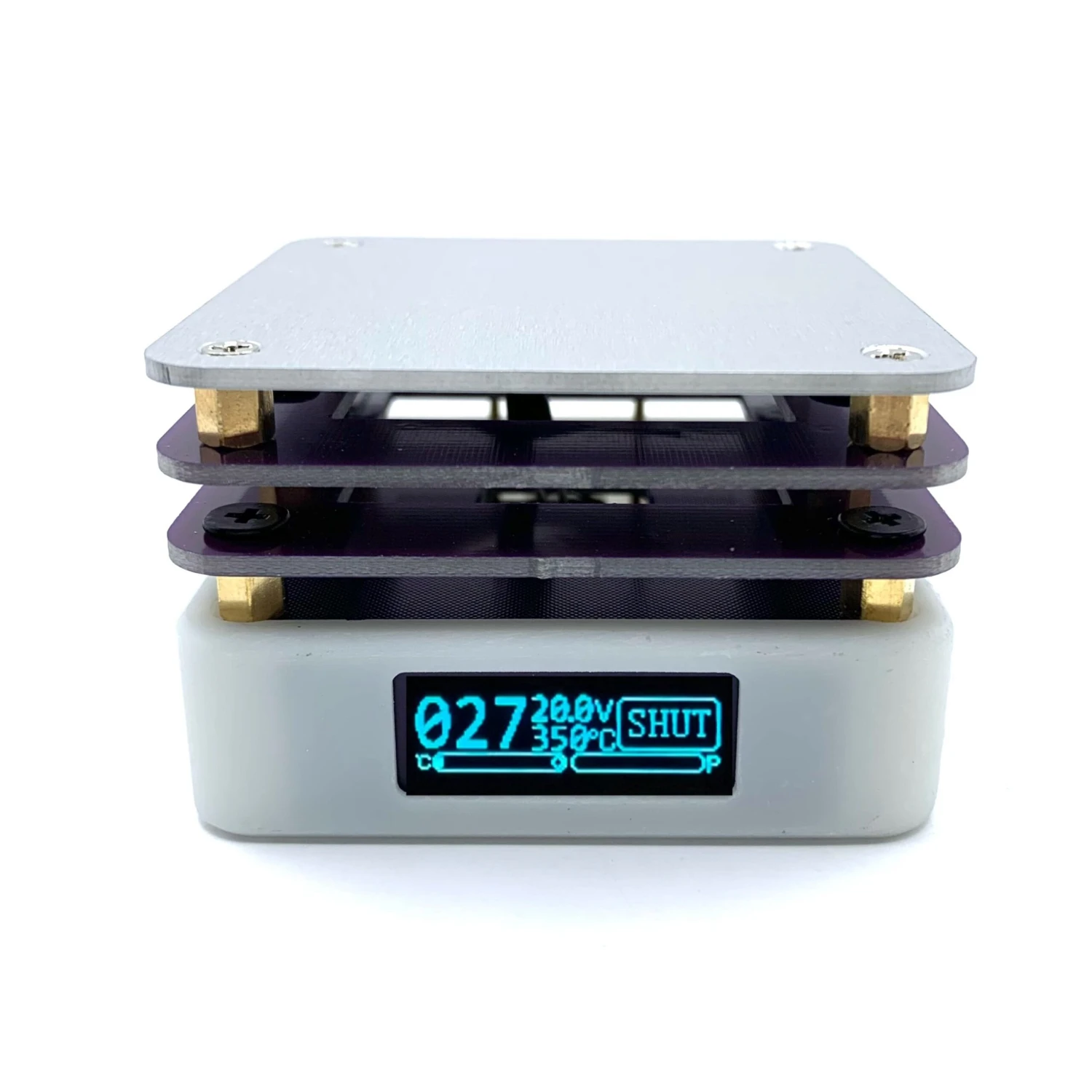

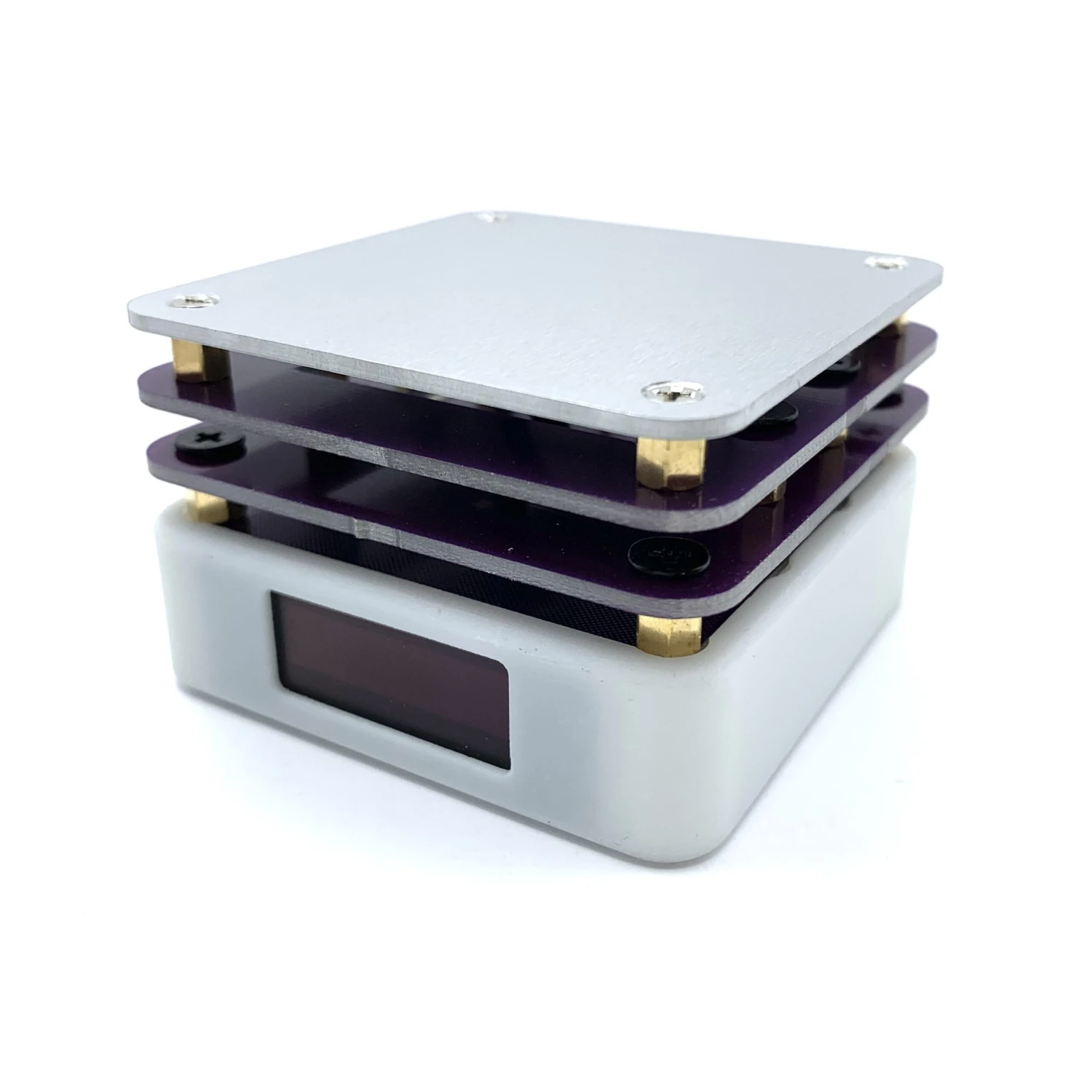

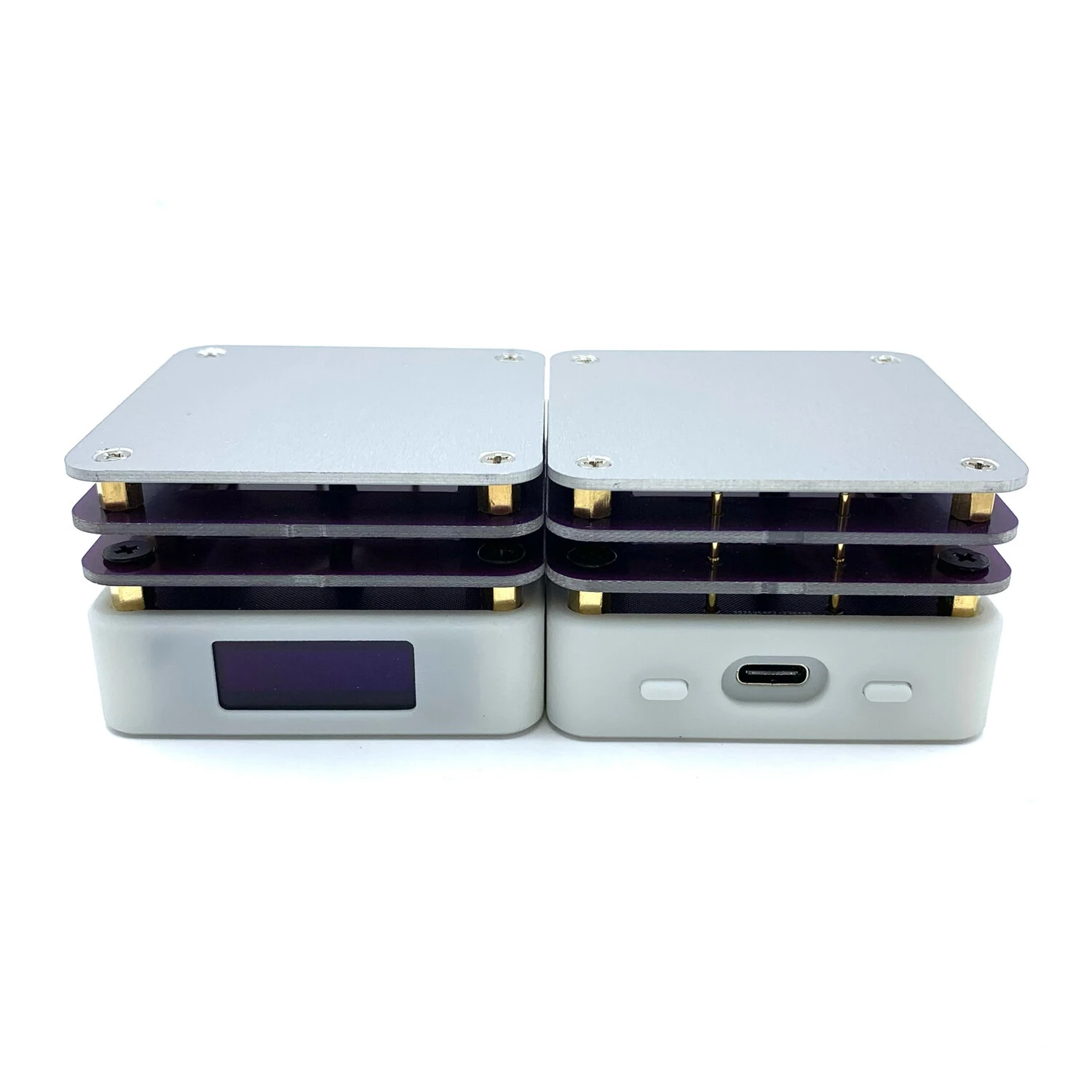

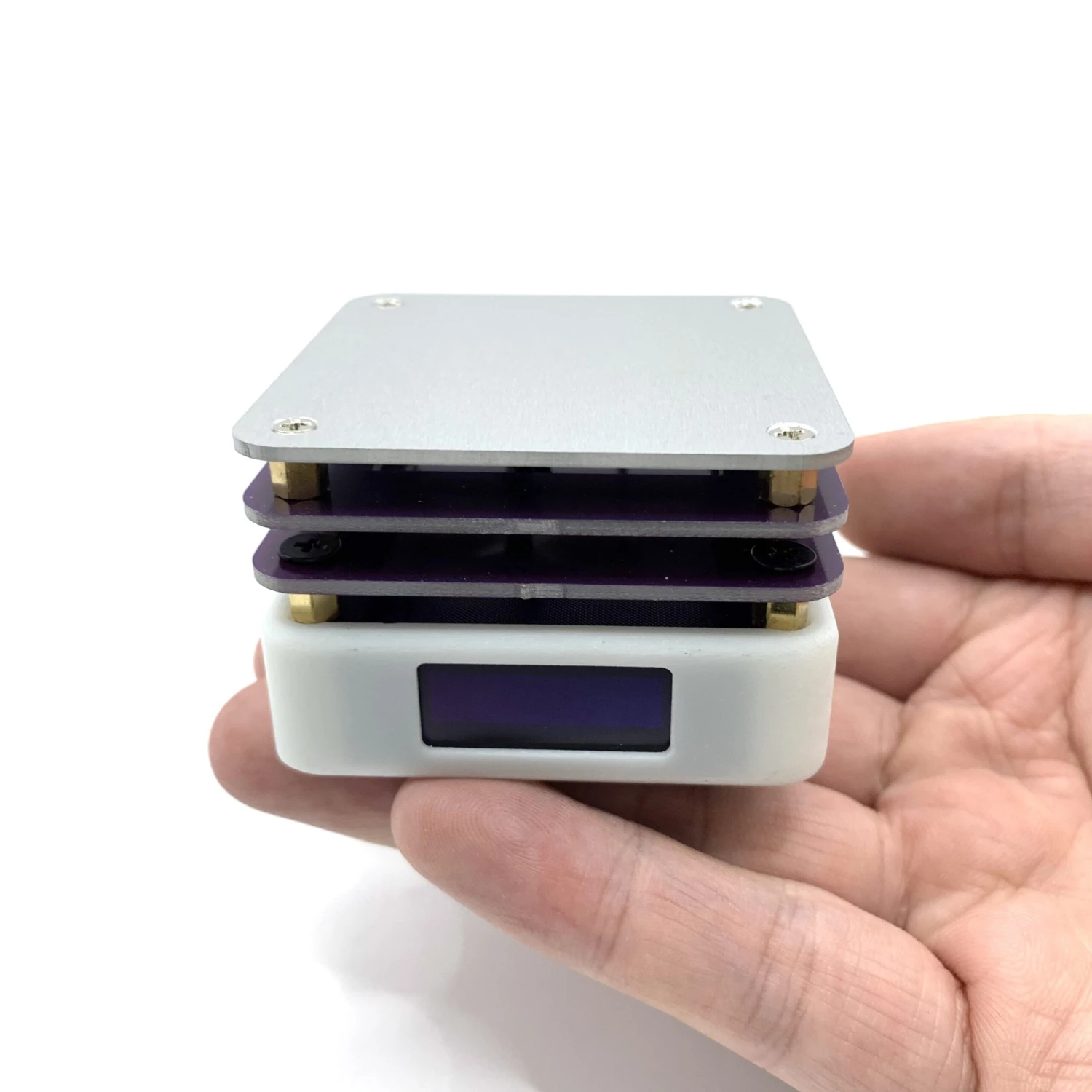

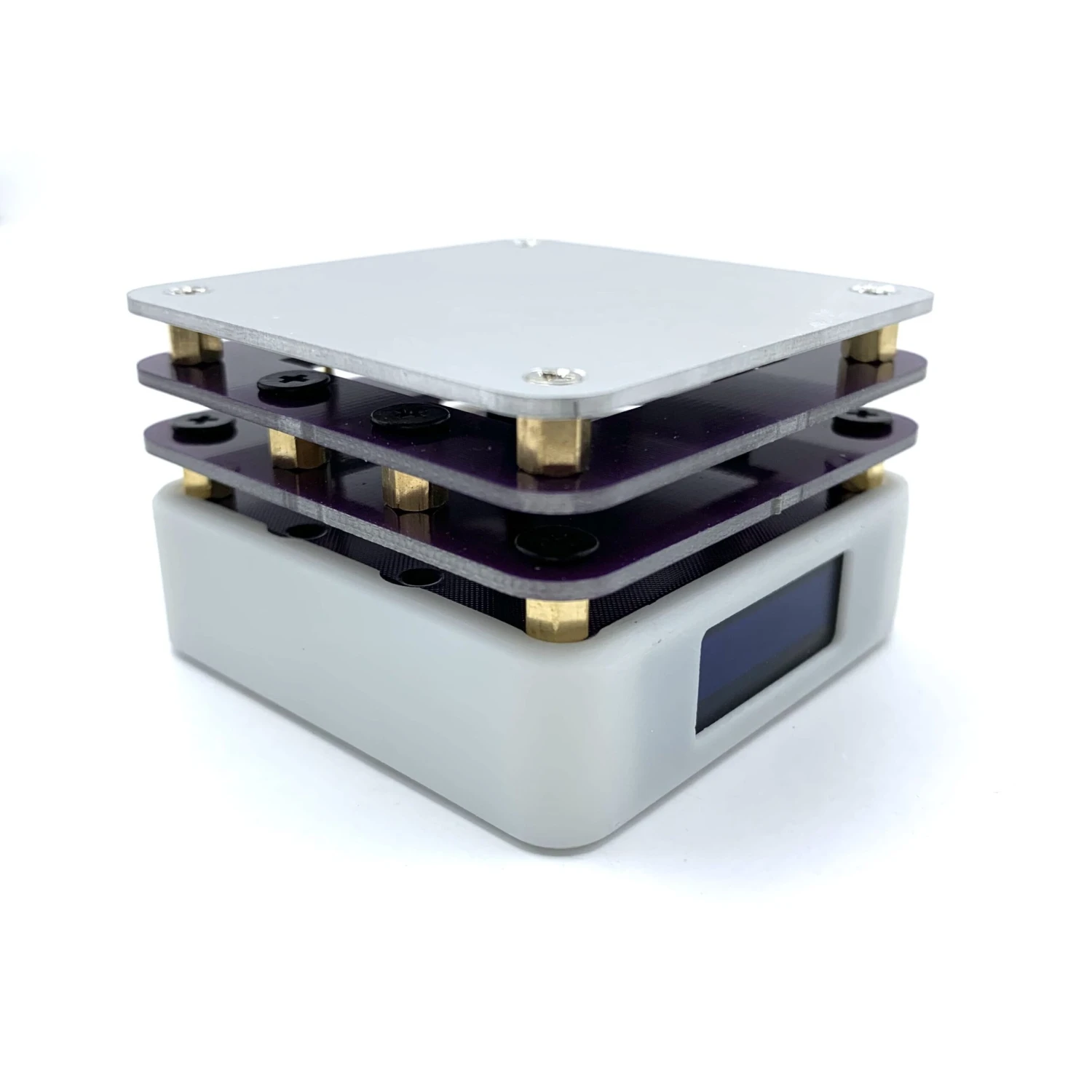

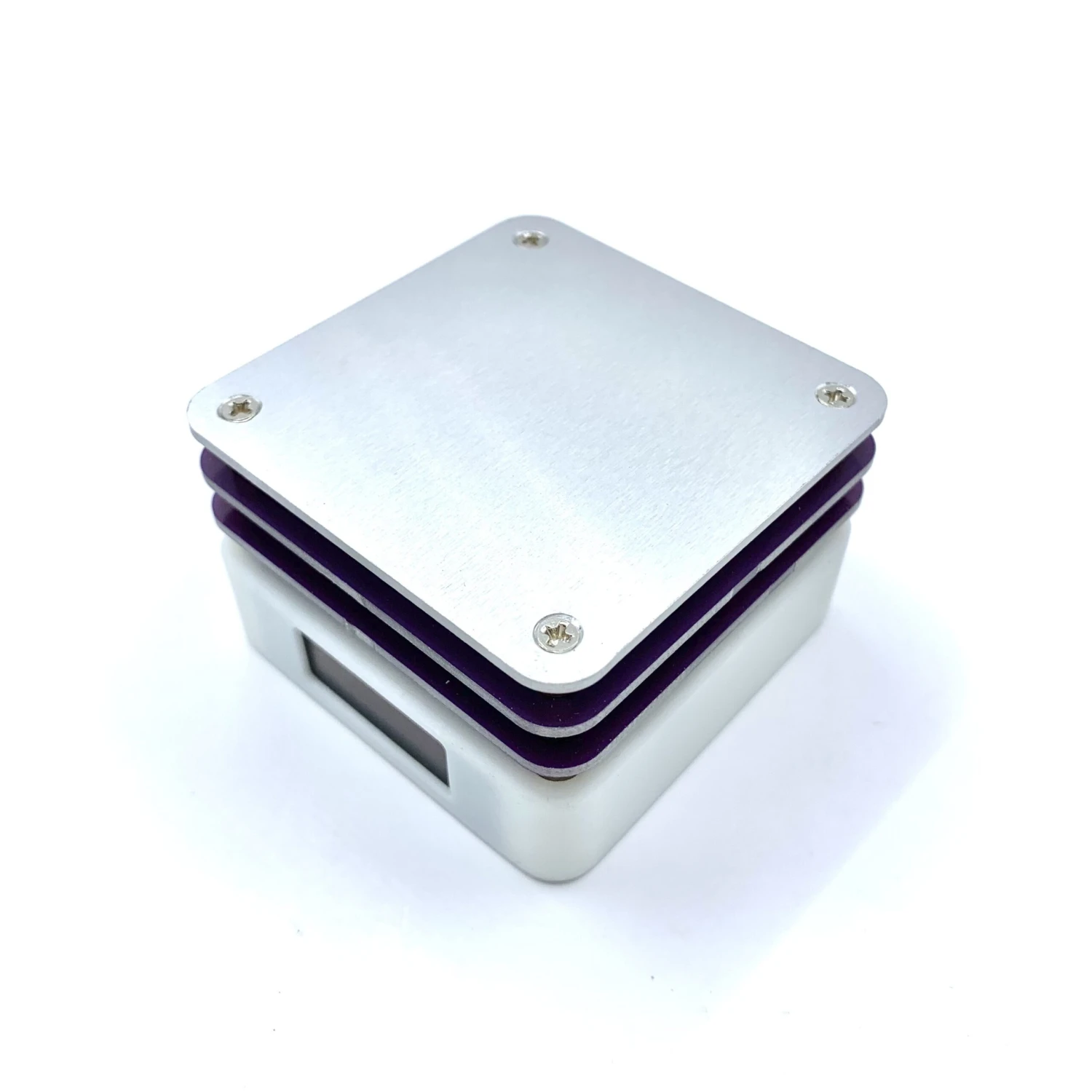

Detail Pictures:
