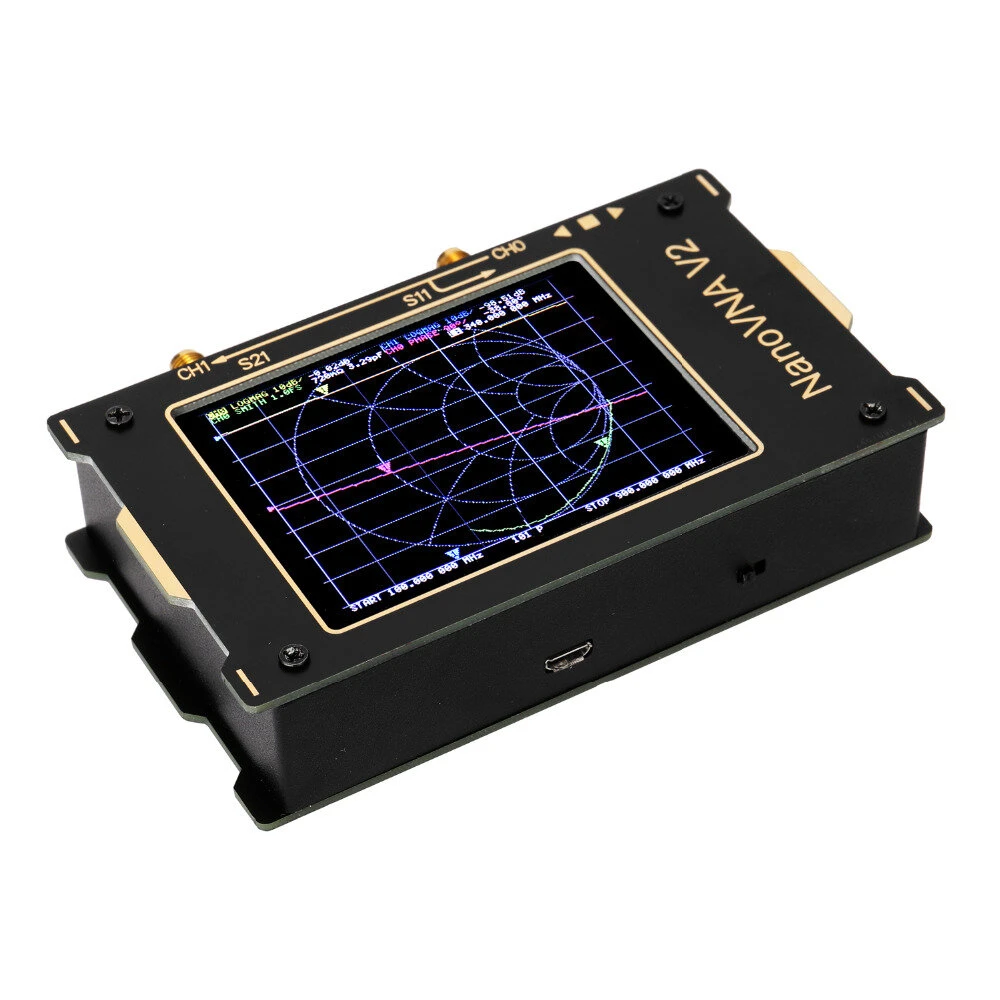

S-A-A-2 NanoVNA V2 50kHz – 3GHz 3.2 Inch Large Screen 3G Vector Network Analyzer S-A-A-2 NanoVNA V2 Antenna Analyzer Shortwave HF VHF UHF Measure Duplexer Filte
Original price was: $69.49.$48.64Current price is: $48.64.
- Safeguard Your Shopping Experience
- Online assistance, always at your service.
- Buy with confidence, backed by quality.
- There are quality problems, free return and exchange
Made of fine quality material, practical, easy to operate and use, has a long service life.
Features:
Made of fine quality material, practical, has a long service life.
Portable and compact, easy to use and carry.
Measurement frequency range is 50KHz~3GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.
Metal housing, 3.2-inch large screen is more accurate for touching, easy to operate, no need to connect power, get rid of the shackles of data cable, and can be used alone.
This product can reach 3G, can measure 2.4G antennas, can also measure duplexer, filter.

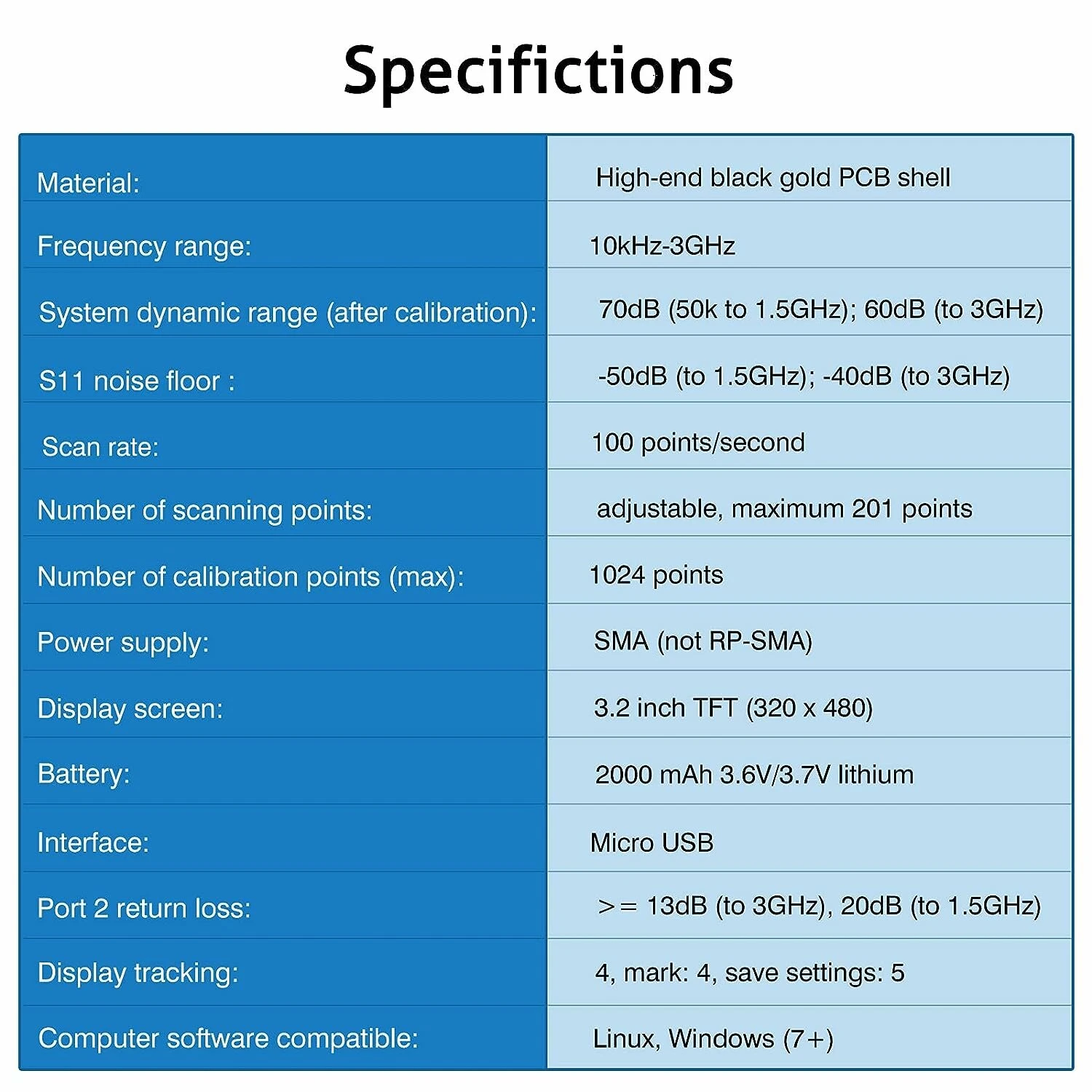

Specifications:
Material: PCB+metal
Main color: black+gold
Measurement frequency range: 50KHz-3GHz
System dynamic range (after calibration): 70dB (50k to 1.5GHz); 60dB (up to 3GHz)
S11 noise floor (after calibration): -50dB (up to 1.5GHz); -40dB (up to 3GHz)
Sweep rate: 100 points / second
Sweep points (on device): 10-201 points, adjustable
Sweep points (USB): 1-1024 points, adjustable
Power supply: USB, 4.6V–5.5V
RF port: SMA
USB interface: Micro USB
Display screen: 3.2-inch TFT
Battery: 1 * lithium battery, 1950mAh (included)
Port 2 return loss: ≥13dB (up to 3GHz), 20dB (up to 1.5GHz)
Display tracking: 4, Marking: 4, Setting save: 5
Operating ambient temperature: 0-45℃
Item size: 115 * 80 * 27mm / 4.5 * 3.1 * 1.1in
Package size: 180 * 120 * 35mm / 7.1 * 4.7 * 1.4in
Package weight: 330g / 11.6ounce
Note:
1.
2.

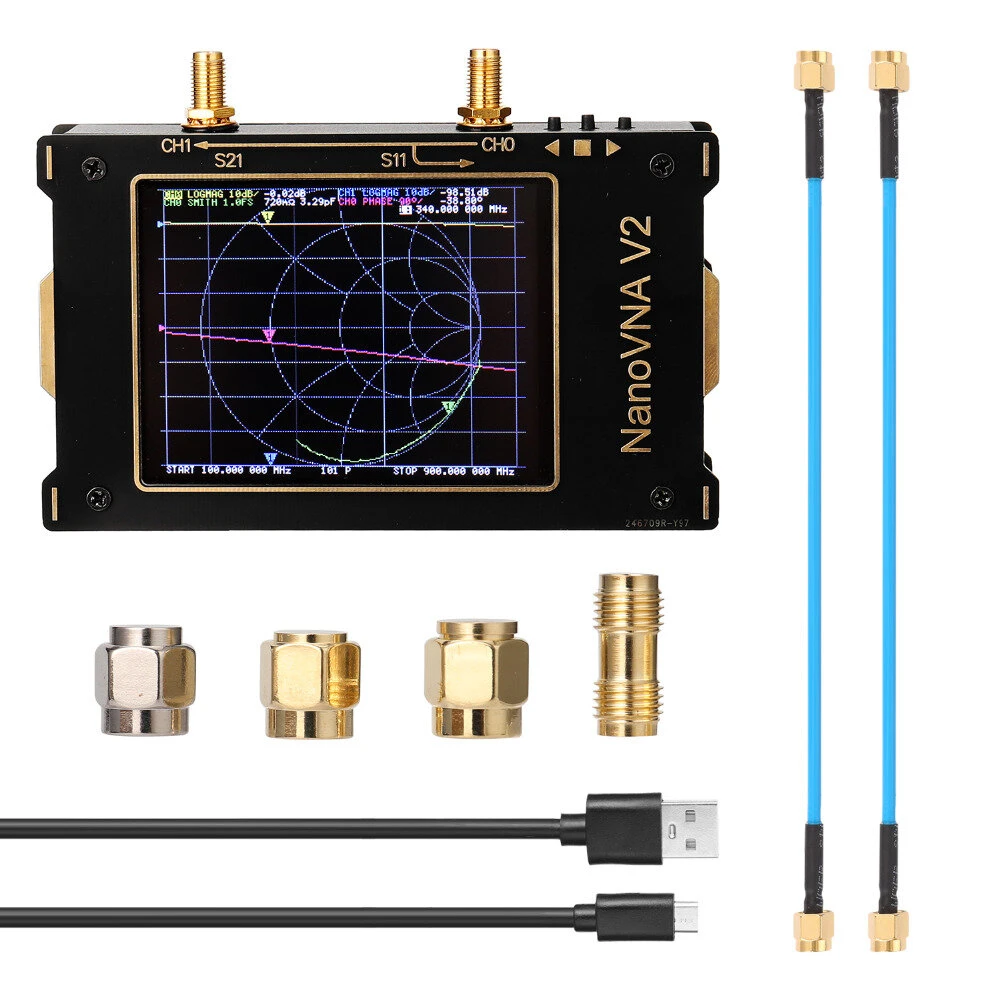

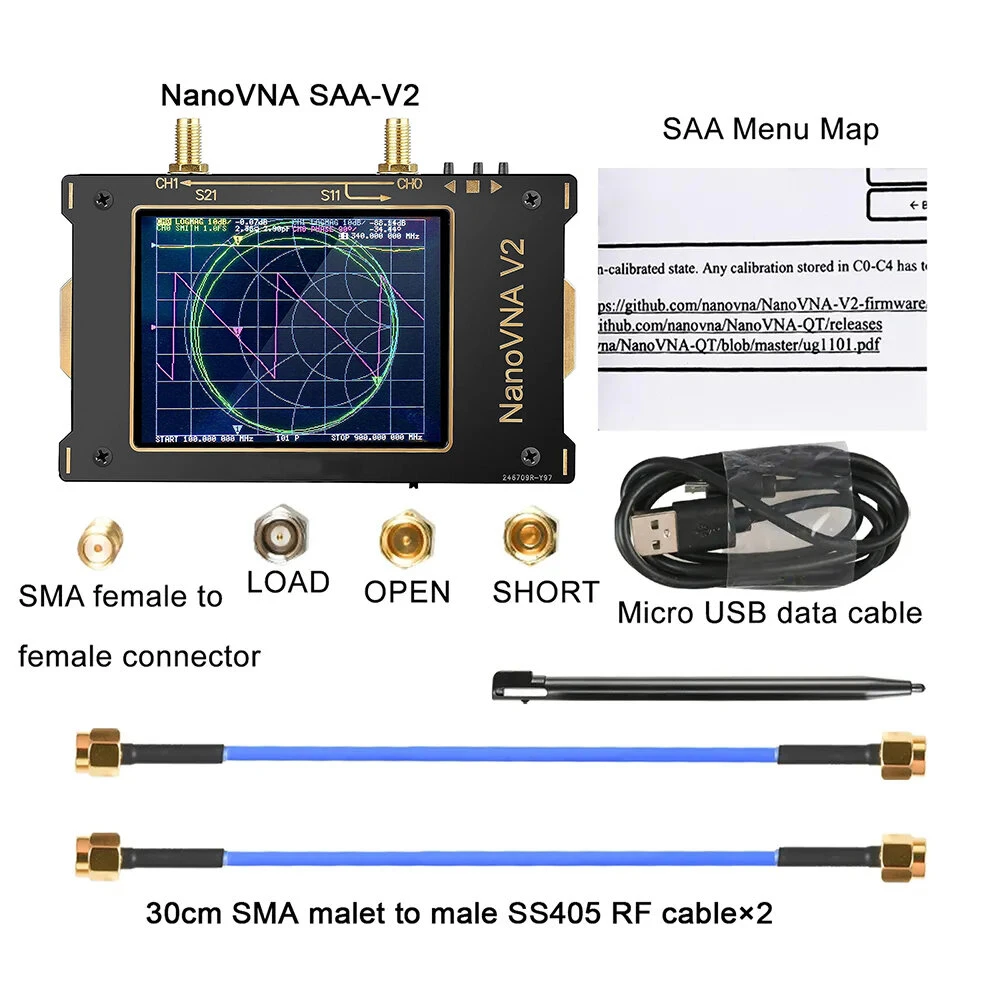

Packing List:
1 * Vector Network Analyzer
2 * 300mm RF Cable SS405 SMA Double Male Needle
1 * USB Data Cable
1 * Calibration Kit (50Ω Load)
1 * Calibration Kit (Short)
1 * Calibration Kit (Open)
1 * SMA Female to Female Connector

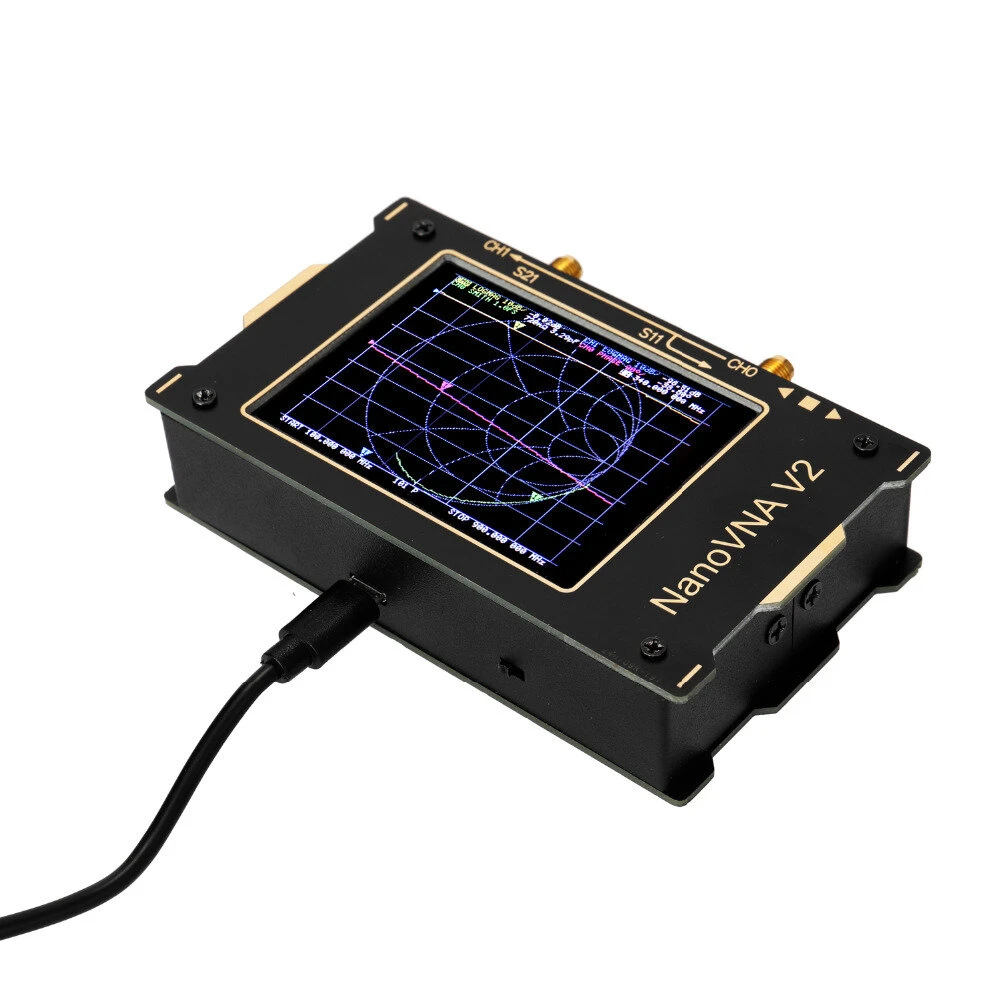

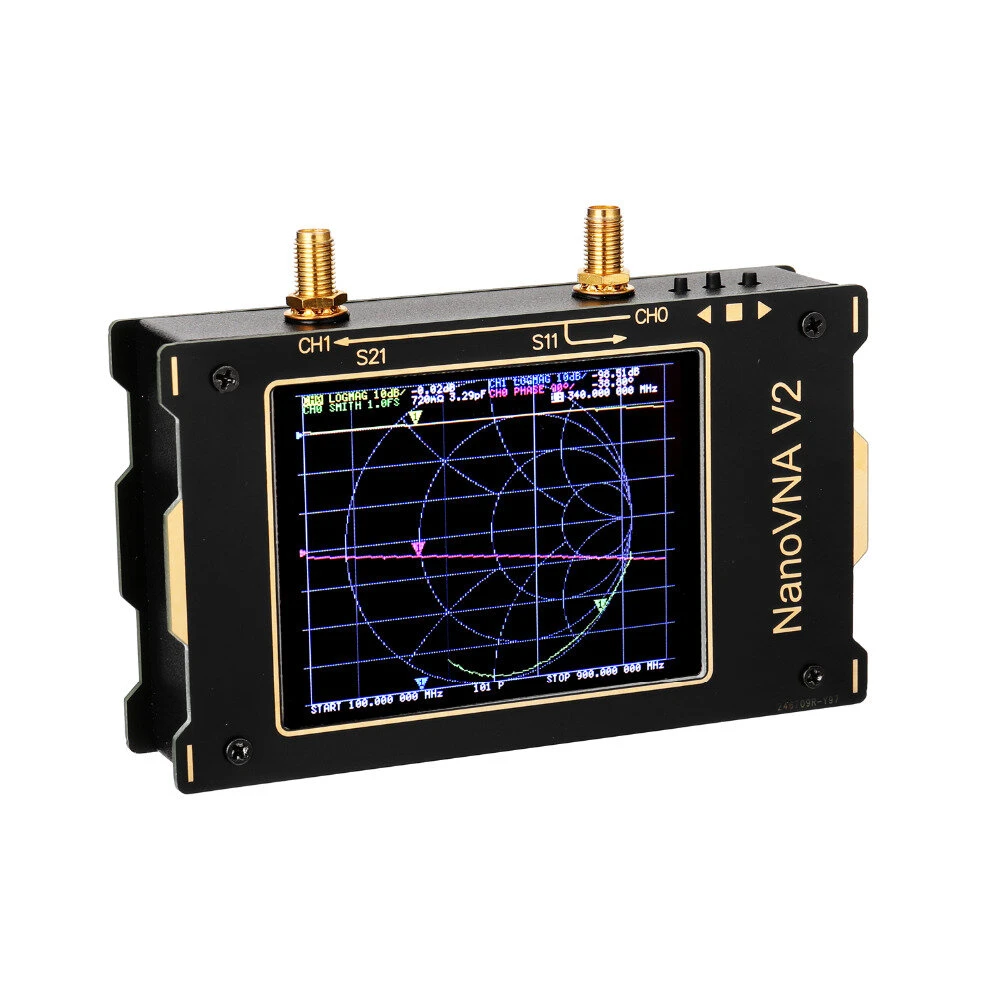

Details Pictures:
