UT343 series coating thickness gauge

It is a high-performance composite coating thickness gauge that integrates the measurement of iron and non-iron substrates. The product has the characteristics of high precision, stable and reliable performance, nondestructive measurement, etc., and has the functions and applications of professional paint measurement and judgment mode, measurement value voice broadcast, wireless Bluetooth APP, LED lighting, etc. in the automobile industry. It is a necessary instrument for automobile manufacturing, sales, evaluation, metal processing, coating, inspection and other industries. It is widely used in manufacturing industry, metal processing industry, aerospace, ships, motor vehicles, scientific research, quality supervision and other industries and fields



Main features of UT343D

– Automatic identification of ferrous and non-ferrous substrates

– The sensor adopts gem clamping technology, which is precise, wear-resistant and stable

– It has single point and two point calibration methods to ensure the accuracy of measurement

– Quick judgment and prompt of single point and multiple points

– Red, green and yellow warning lights

– Automatic rotation of screen display

– 500 groups of stored data and USB data transmission



Specification for UT343D



Specifications	Range
Measuring range	0~1250um
Accuracy	±(3%H+1)um
Resolution	0.1um (0~99.9um); 1um (100~1250um)
Measurement method	Single/Continuous
Measurement mode	Max/Min/Avg
Metal type	Ferrous/ non-ferrous
Features
Display type	2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control	√
Auto rotatable screen	√
Unit conversion	√
Audio alarm	√
LED alarm	√
PC analysis software	√
USB communication	√
Quick test mode	√
Data storage	500 groups
Auto power off	√
Low battery indication	√
General Characterisitics
Power	3V battery (R03) x 2
Display	48mm x 36mm
Product color	Red and grey
Product net weight	175g
Product size	153.5mm x 64.5mm x 41mm

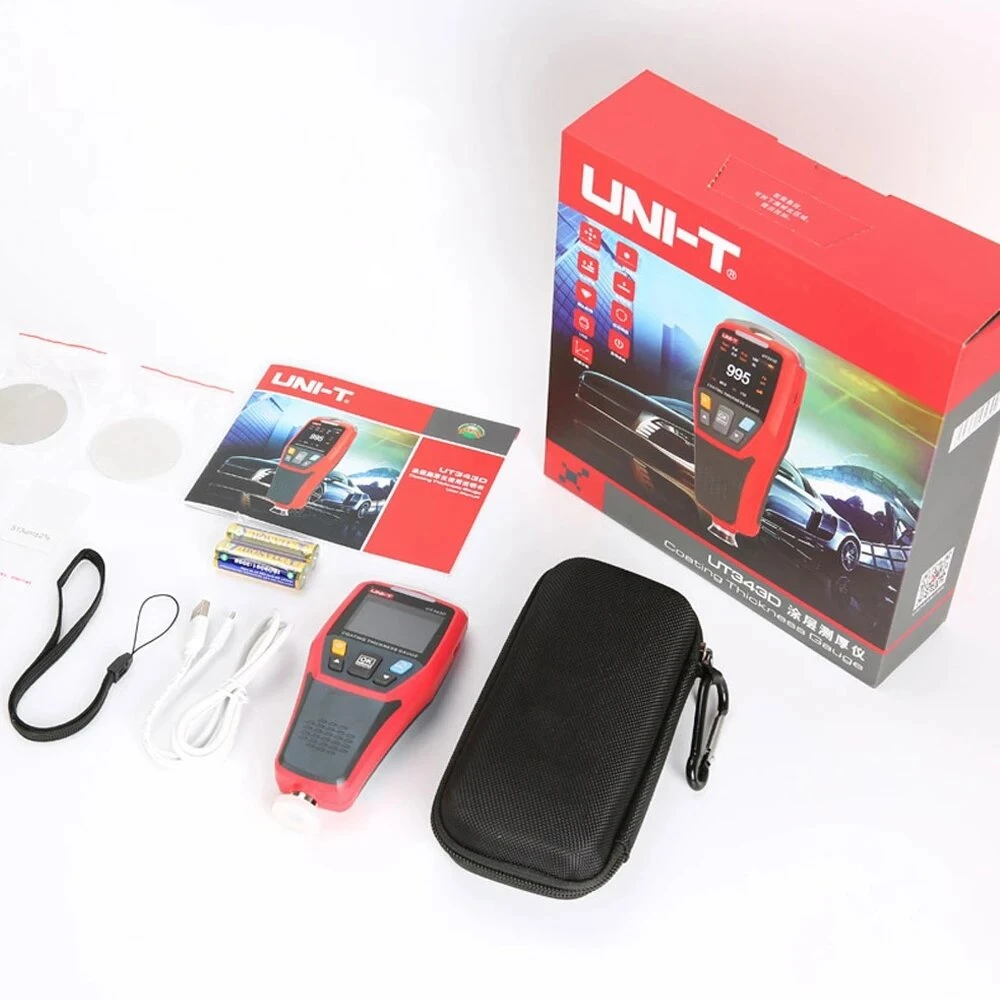

Standard accessories	Micro USB interface cable, standard piece, batteries, cloth bag
Standard individual packing	Gift box, English manual
Standard quantity per carton	20pcs
Standard carton measurement	355mm x 320mm x 195mm
Standard carton gross weight	7.5kg
