UNI-T UTi256M Thermal Imager For Android Type-C For Mobile Phone Brand New PCB Heat Loss Detectio 256×192 Pixel Infrared Camera
Original price was: $247.52.$95.99Current price is: $95.99.
- Safeguard Your Shopping Experience
- Online assistance, always at your service.
- Buy with confidence, backed by quality.
- There are quality problems, free return and exchange
UTi256M is a professional thermal camera module for smartphones, which is compact, portable, and easy to operate through connecting with mobile phones. It’s 256×192 IR resolution provides clear image with a fast response. UTi256M is with wide temperature measurement range -20℃ ~ 200℃. Users can troubleshoot HVAC problems or investigate heat source issues around the house and hidden issues faster and easier with this thermal camera module. It is a perfect tool for DIY homeowners,outdoor lovers, engineers, contractors and builders, etc.
|

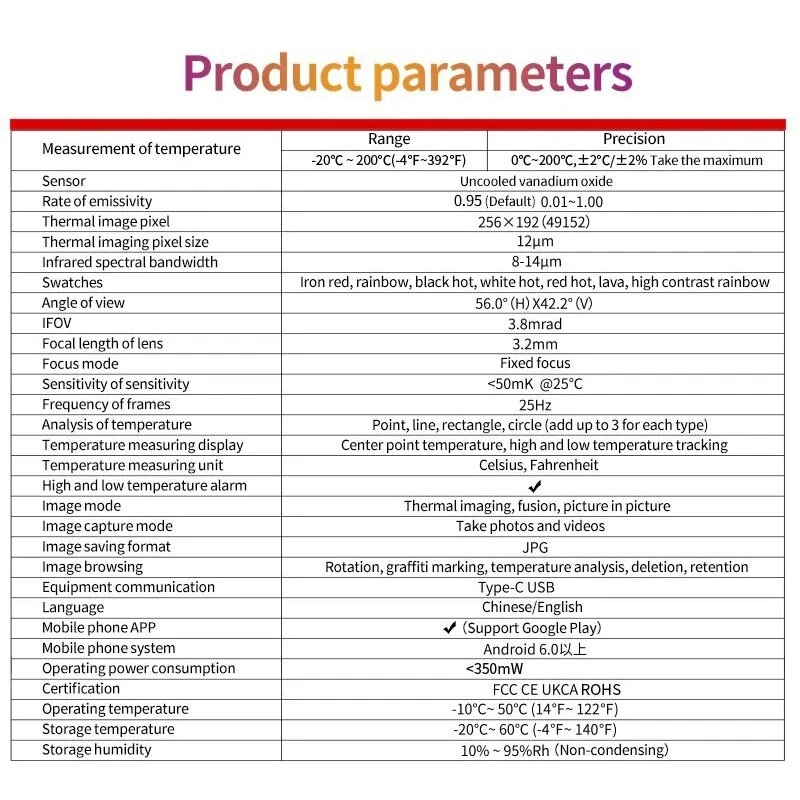

Technical Data |
|
|
IR resolution (Pixels) |
256×192 |
|
Field of view(FOV) |
56.0°×42.2° |
|
Thermal sensitivity(NETD) |
≤50mK @25℃ |
|
Spatial resolution(IFOV) |
3.8mrad |
|
Frame rate |
≤25Hz |
|
Focus |
Focus free |
|
Lens focal length |
3.2mm |
|
Temperature measurement range |
-20℃ ~ 200℃ |
|
Accuracy |
±2° or ±2% whichever is greater |
|
Emissivity |
0.01~1.00 adjustable |
|
Functions |
|
|
Color palettes |
7 |
|
Image modes |
Thermal,Fusion |
|

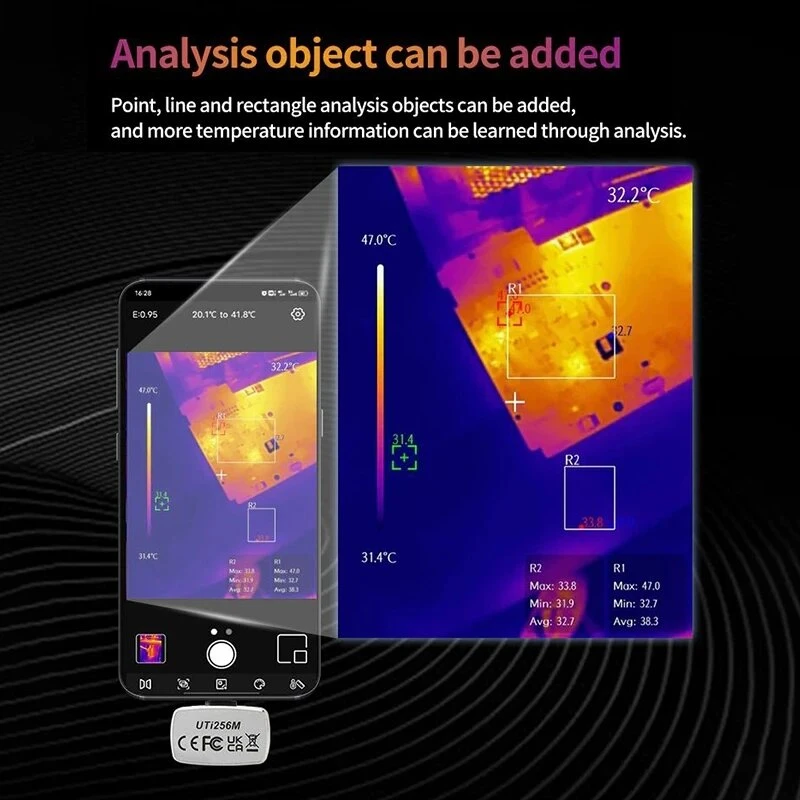

On screen analyzer |
3 Points/3 Lines /3 Rectangles |
|
Auto alarm for high/low temperature |
√ |
|
Video recording |
√ |
|
General Characteristics |
|
|
USB |
Type-C |
|
Drop proof |
1m |
|
Image/Video storage format |
JPEG,MP4 |
|
Certificates |
CE,UKCA,FCC,RoHS |
|
Product net weight |
12g |
|
Product size |
33mm×28.2mm×11.3mm |
