XINTEST HT02 Handheld Thermograph Camera Infrared Thermal Camera Digital Infrared Imager Temperature Tester With 2.4inch Color LCD Display
Original price was: $161.84.$98.99Current price is: $98.99.
- Safeguard Your Shopping Experience
- Online assistance, always at your service.
- Buy with confidence, backed by quality.
- There are quality problems, free return and exchange
Description:
HT-02 is a thermal Imaging Camera which combines the functions of surface temperture measurement and real-time thermal Imaging.
To improve recognition,this product is equipped with a vision camera.Based on pratical requirements,it can turn thermal image into visional image.Thermal image into visional image. Thermal Image and visional image can be stored them in PC which are used to generate report or for printing.HT-02 is easy to operate.After seconds it can be tested. This product is the potimum product for elecrician and maintaineer. It can quickly find out the problem area.
The following functions help to improve the accuracy and usability of product:
1. Adjustable radiation coefficient and reflection background compensation help to improve the accurancy of the measurement of semi-reflective surface.
2. The marking of hot spot and cold spot can help user to locate the hottest and coldest area of thermal imaging temperature.
3. Options of color palette
Specification:
Display: 2.4inch color display thermal imaging camera
Resolution: 60 x 60
Total pixel: 3600
FOV/Shortest focal length:20°× 20°
Thermal sensitivity: 0.15℃
Measuring mode: Infrared focal plane measuring temperature
Temperature range: -20℃-300℃(-4o℉-572℉)
Measuring accuracy: ±2oC
Wavelength range: 8-14μm
Image frequency: 8HZ
Emissivity: 0.1-1.0/Adjustable
Focus mode: Fixed
Palette: Iron color,rainbow,black and white
Image storage: SD card(MAX 32G)
File format: JPG
Set control: Unit Adjustment/Language/Date Time Format/automatic shut down
Power supply: 4 x AA batteries (NOT included)
Power supply: 4 x AA batteries (NOT included)
Operating temperature: 0℃-50℃
Storage temperature: -40℃-70℃
Humidity: <90%RH
Vibration: 2G, IEC
Drop resistance: 2m
Size: 230 × 80 × 52mm
Weight: 410g

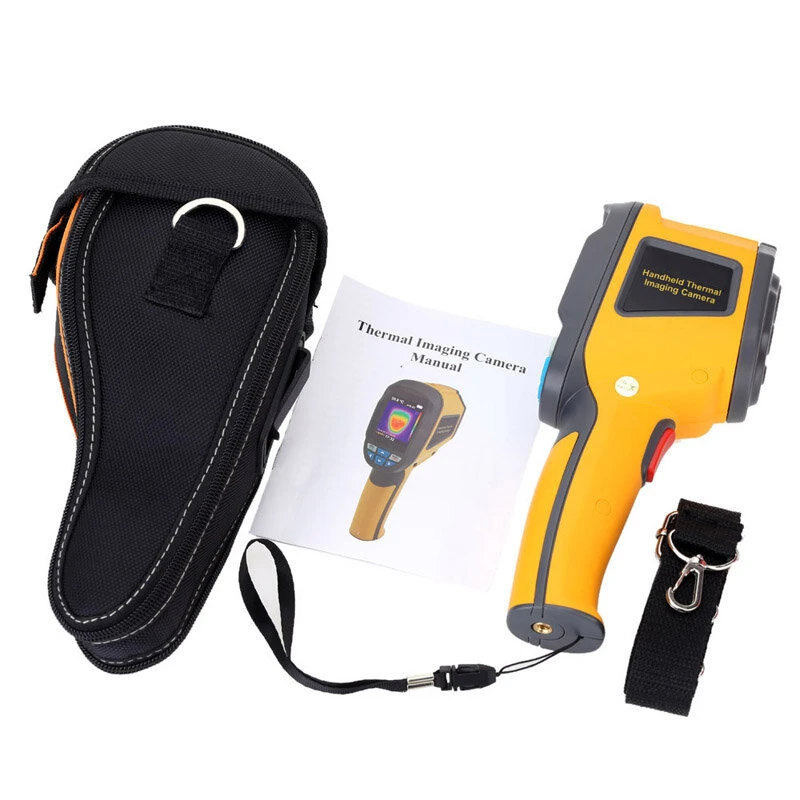

Package included:
1 x HT02 Handheld Thermograph Camera
1 x Portabel Bag
1 x Gift Box
1 x English User Manual

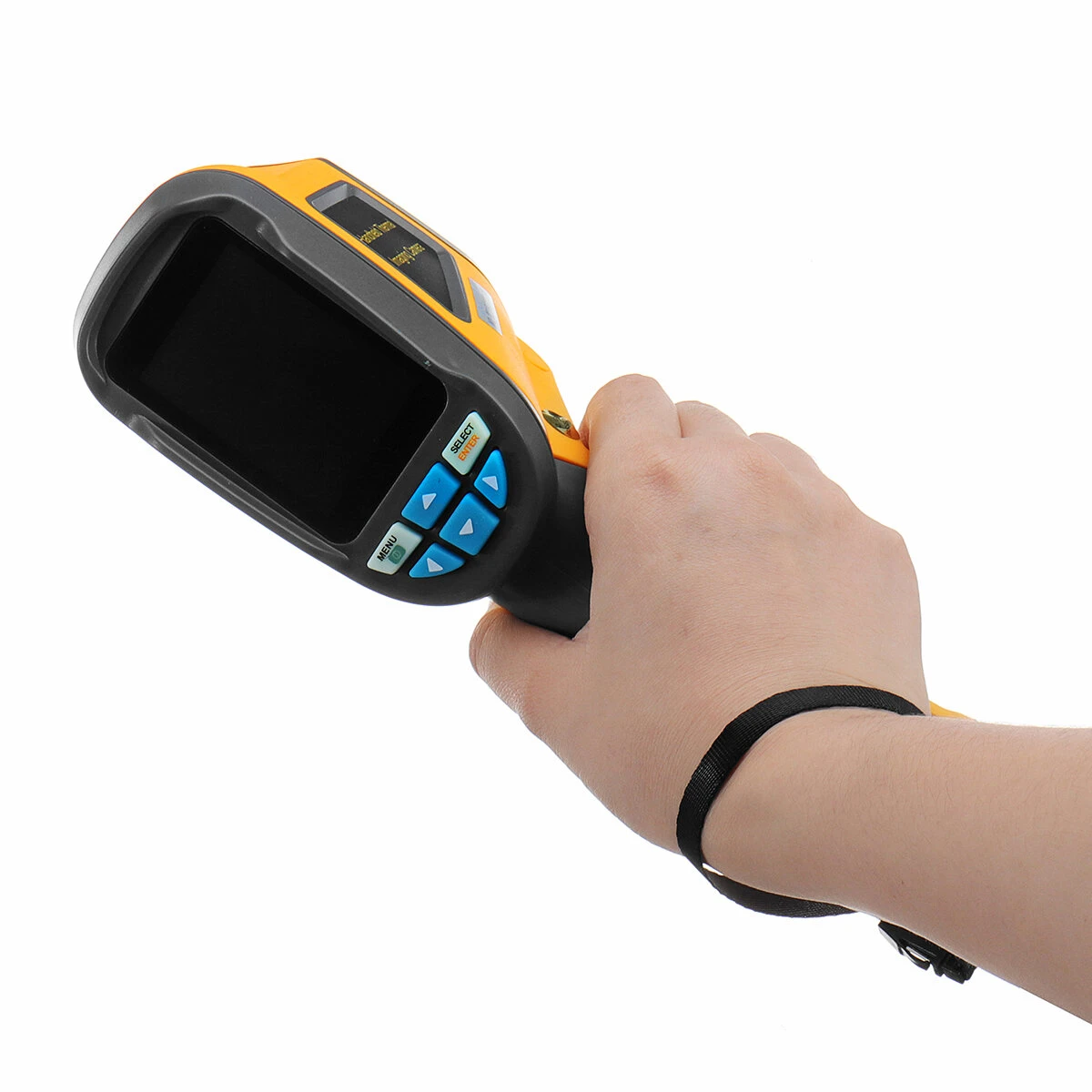

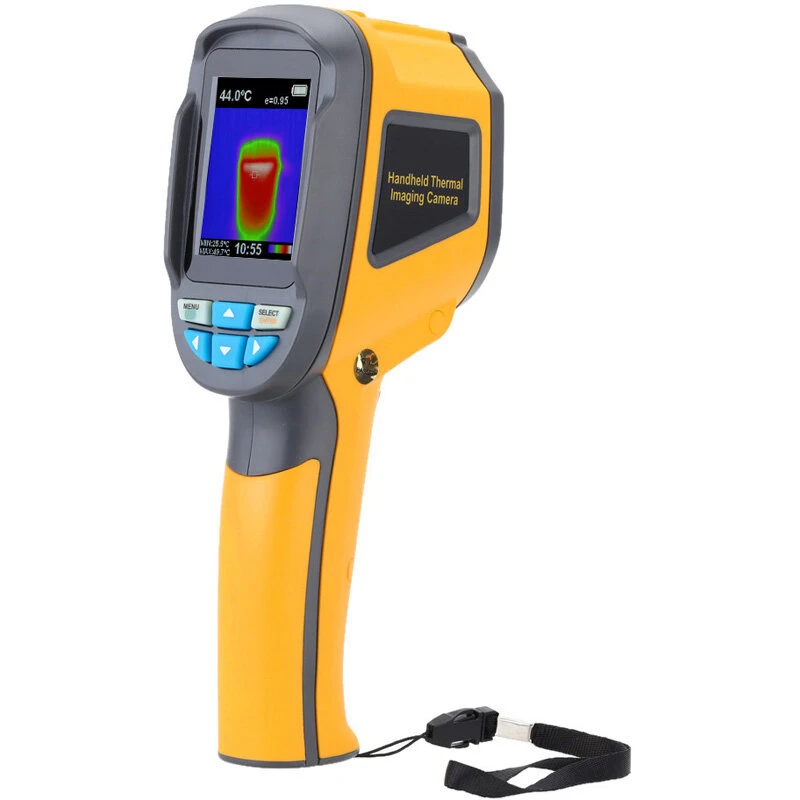

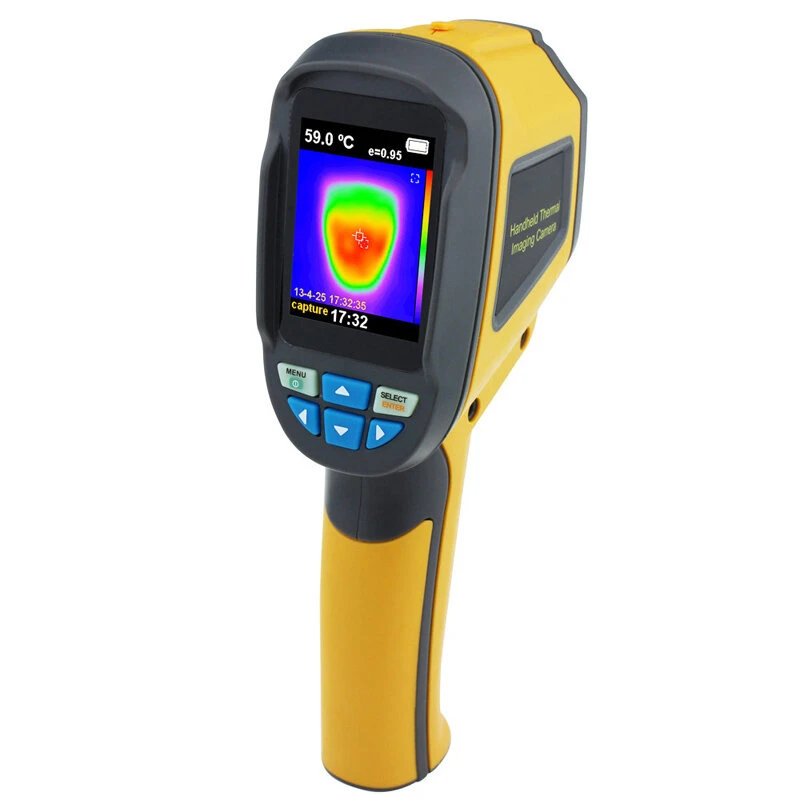

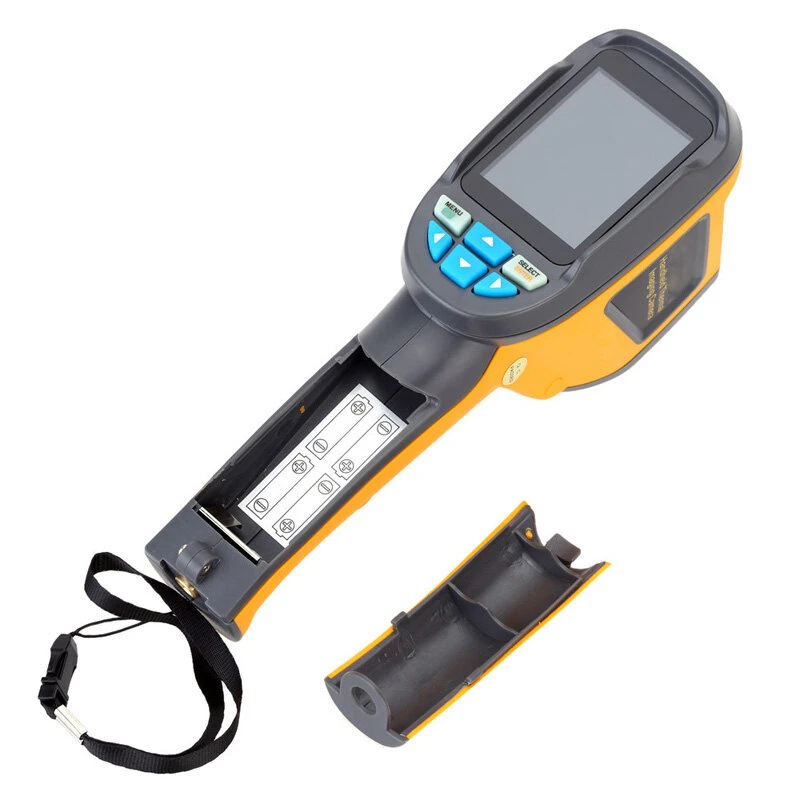

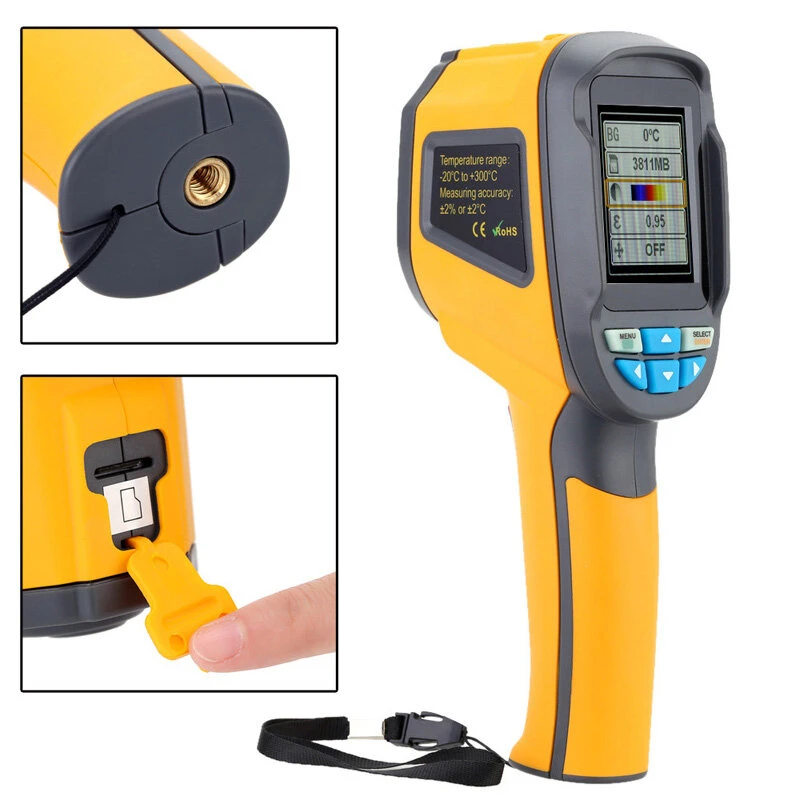

Detail Pictures:
